ORNO OR-DOM-RL-901 Intercom System Single Family House, Flush Mounting 2-wire, 230V AC

• MINIMALIST SHAPE The single-family home intercom with illuminated name field features a simple and elegant design that fits into any home, apartment and office. The housing of the outer cassette is made of aluminium and is weatherproof
• 2 mounting options: flush-mounted or surface mounting (requires protective roof - model OR-DOM-RL-901DN/G - to be purchased separately)

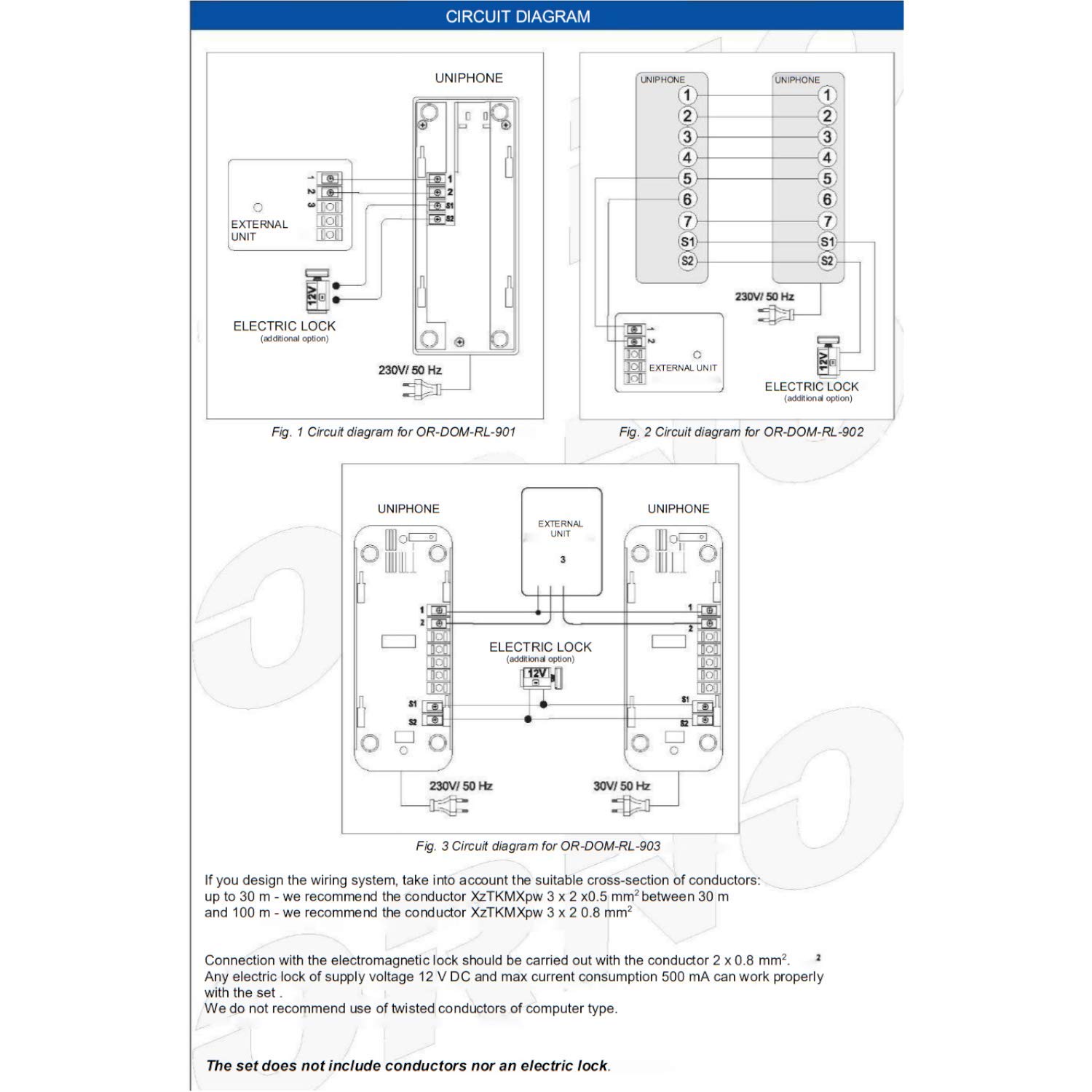

• Easy electrical connection: The Uniphone has an integrated power supply and power cord, eliminating the need for additional adapters and complicated electrical installations (see photos for the connection diagram)
• Door opening: it is possible to control the electric door opener with buttons without additional transformers. Important: the set does not contain the connection cables and the door opener itself. Each electric door opener with 12 VDC supply voltage and a current consumption of max. 500 mA
• AC power supply: the device is powered by 230V AC, so it works easily after installation and you don't have to worry about changing batteries. For electrical installation, consider the suitable cable cross section: up to 30 m - recommended cable XzTKMXpw 3 x 2 x 0.5 mm, from 30 m to 100 m - recommended cable XzTKMXpw 3 x 2 x 0.8 mm. The connection to the electromagnetic lock should be connected with a cable 2 x 0.8 mm².

// Orno Door Intercom with Door Opener General Information \\ _xD83D__xDD39_ Type:Transmitter Family Type _xD83D__xDD39_ Transmission type: wired connection _xD83D__xDD39_ Power supply type: direct to 230V _xD83D__xDD39_ Connection system: 1-wire. _xD83D__xDD39_ Number of wires:2+2 _xD83D__xDD39_ Power supply of the electric lock: from the Uniphone _xD83D__xDD39_ Expandable with an additional uniphone: yes. // Uniphone \\ _xD83D__xDD39_Support:Headphones _xD83D__xDD39_Number of ringtones:1 _xD83D__xDD39_Uniphone colour: white _xD83D__xDD39_Uniphone's dimensions (width / height / depth [mm]): 98 / 215 / 68. // External panel \\ _xD83D__xDD39_ Mounting: surface/flush-mounted _xD83D__xDD39_ External panel dimensions (w/h/d. [mm]): 116 / 200 / 54. _xD83D__xDD39_ other panel functions: illuminated place for last name
