Original Youngtown #12888D2C Pendulum Type Movement Step Clock Accessory Quartz DIY Movement Kits,1/2 Inch Maximum Dial Thickness, 9/10 Inch Total Shaft Length

• Good for repairing, replacing or making a clock.
• Young town manufactures the 12888 series in various models,Please check the dimensions of this movement prior to purchase to verify the dimensions.
• .Applicable to cross-stitch,three-dimensional embroidery,craft clock,frameless draw clock,etc.INSTRUCTIONS - Included along with the movements.

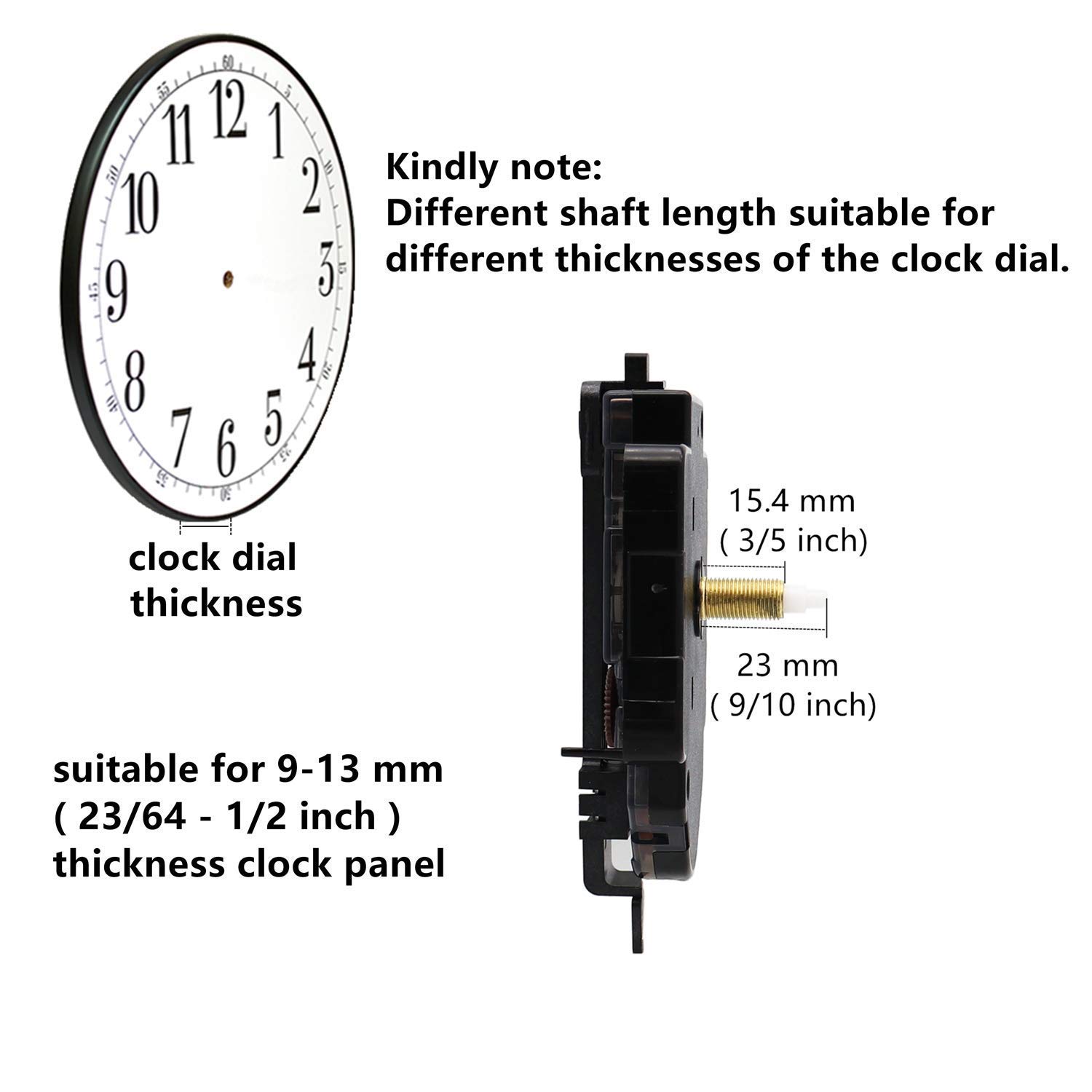

• Pendulum type STEP movement, suitable for 9 - 13 mm (9/25 - 1/2 inches) thickness clock panel;Total shaft length: 23 mm ( 9/10 inches), thread length: 15.4 mm ( 3/5 inch).Max Pendulum Swing: 26°;Max Pendulum Weight: 40g ; Max Pendulum Length: 35cm.
• This clock doesn't contain hook, they can't hang directly; If the handle is too long, you can snip them as you want according to the size of the clock panel.

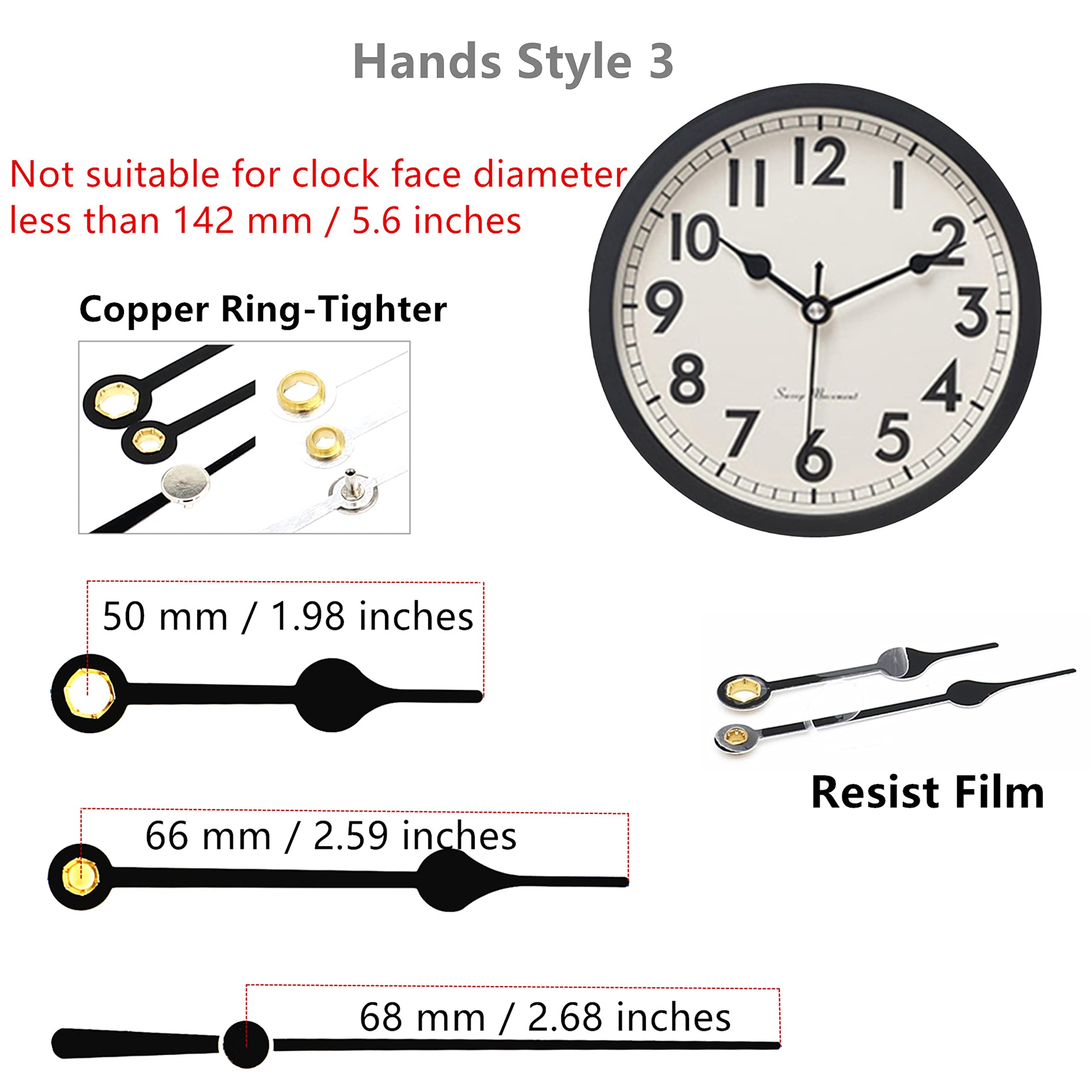

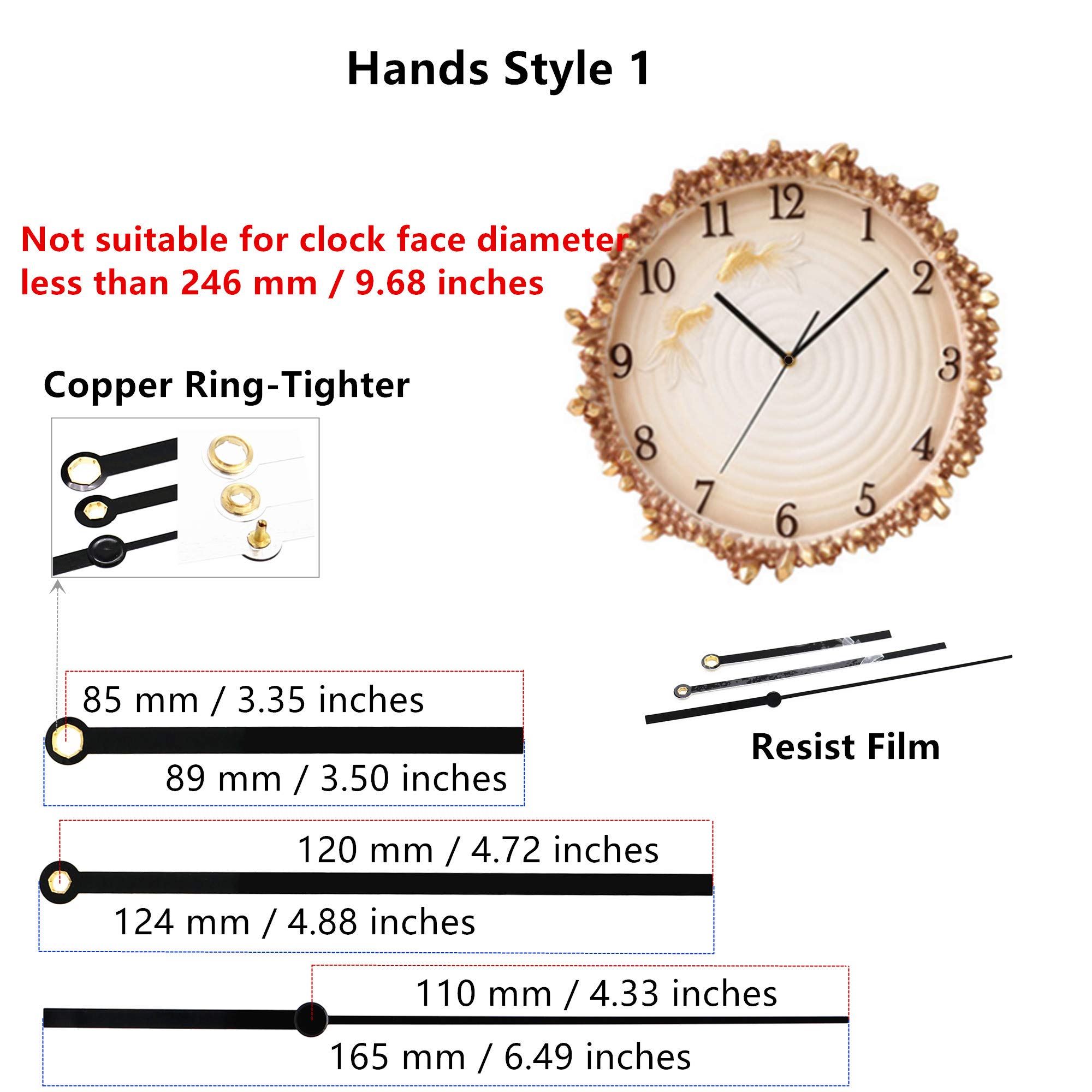

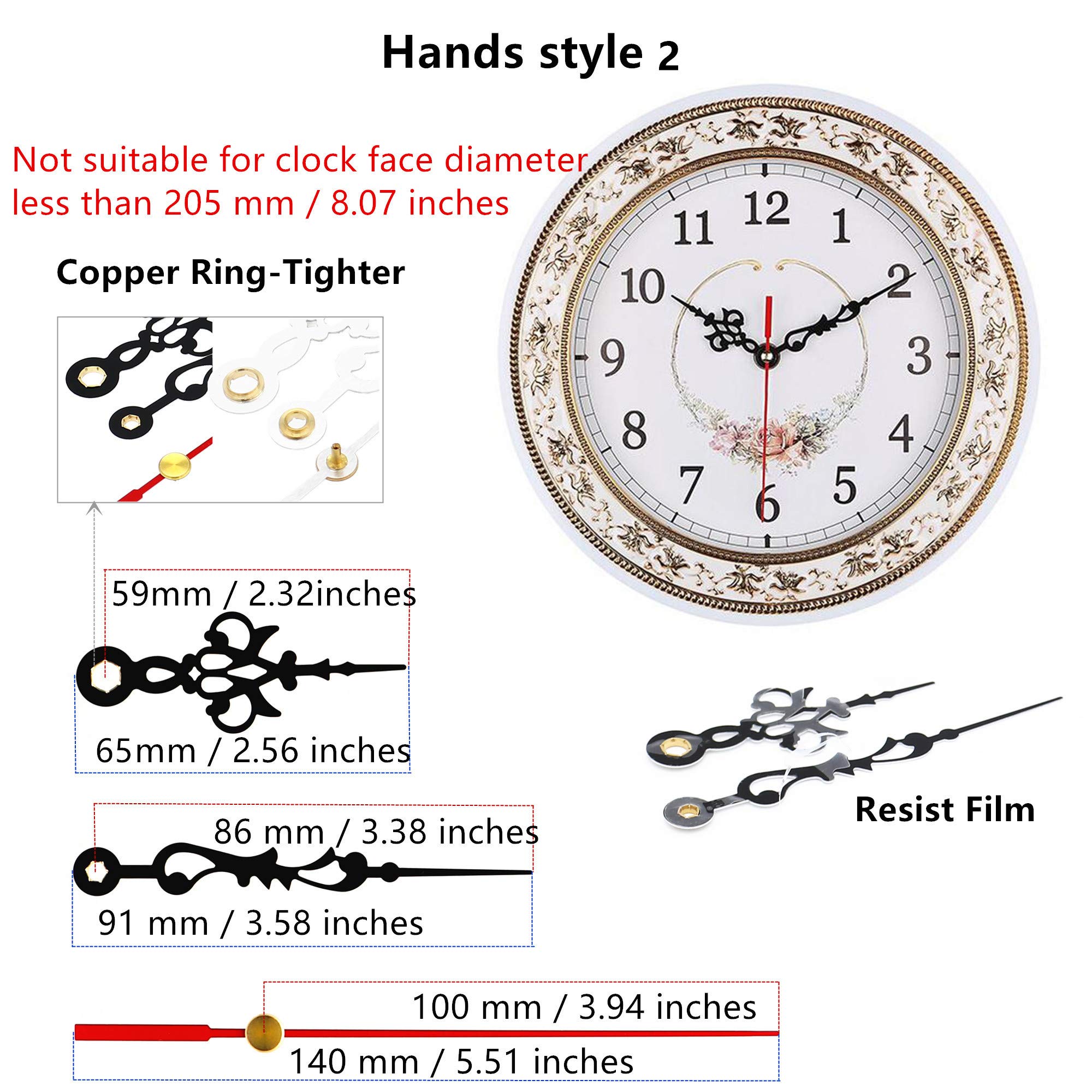

Features: Easy and simple design. Suitable for repairing, replacing or making a clock. Material: plastic and aluminum. Accuracy Within ±30seconds deviation each month (in normal temperature). Second hand motion: Step. Battery: one 1.5V Carbon-zinc batteries only,not included. Please DO NOT USE Alkaline battery,Rechargeable batteries,they will damage the movement. Max Pendulum Swing: 26° Max Pendulum Weight: 40g Max Pendulum Length: 35cm Dimensions: Case size: approx. 56 x 110 x 18 mm (2.2 x 3.3 x 0.7inches) Hands Style 1: Total hour hand length: approx. 89 mm (3.5 inches) Total minute hand length: approx. 124 mm (4.8 inches) Total second hand length: approx. 165 mm (6.5 inches) Hands Style 2: Total hour hand length: approx. 65 mm (2.56 inches) Total minute hand length: approx. 91 mm (3.58 inches) Total second hand length: approx. 140 mm (5.51 inches) Package included: 1 x Quartz clock movement 2 x Second hand 2 x Minute hand 2 x Hour hand 1 X Second cap nut 1 X Rubber gasket 1 X Brass washer 1 X Brass nut 1 x Metal hook 1 x User manual Warm notice: .The hour and minute hands had a protective plastic coating that needs to be carefully removed. .Be careful not to bend the hands with too much pressure. .Please do not use Alkaline battery, rechargeable battery, or they will damage the movement. .Do not tighten the brass hex nut too tight. .Press hard to get all clock hands in place.
