orangeRX RC Receiver Operated Electronic On / Off Switch R/C Remote Switch

• orangeRX RC Receiver Operated Electronic On / Off Switch
• Easy Receiver Controlled On / Off Switch
• Plug it into your receiver and you instantly have an on/off switch controlled by any channel on your radio
• Extremely handy for switching on and off axillary functions on all sorts of models
• Great for switching lights, bomb dropping, smoke systems, canopy operation

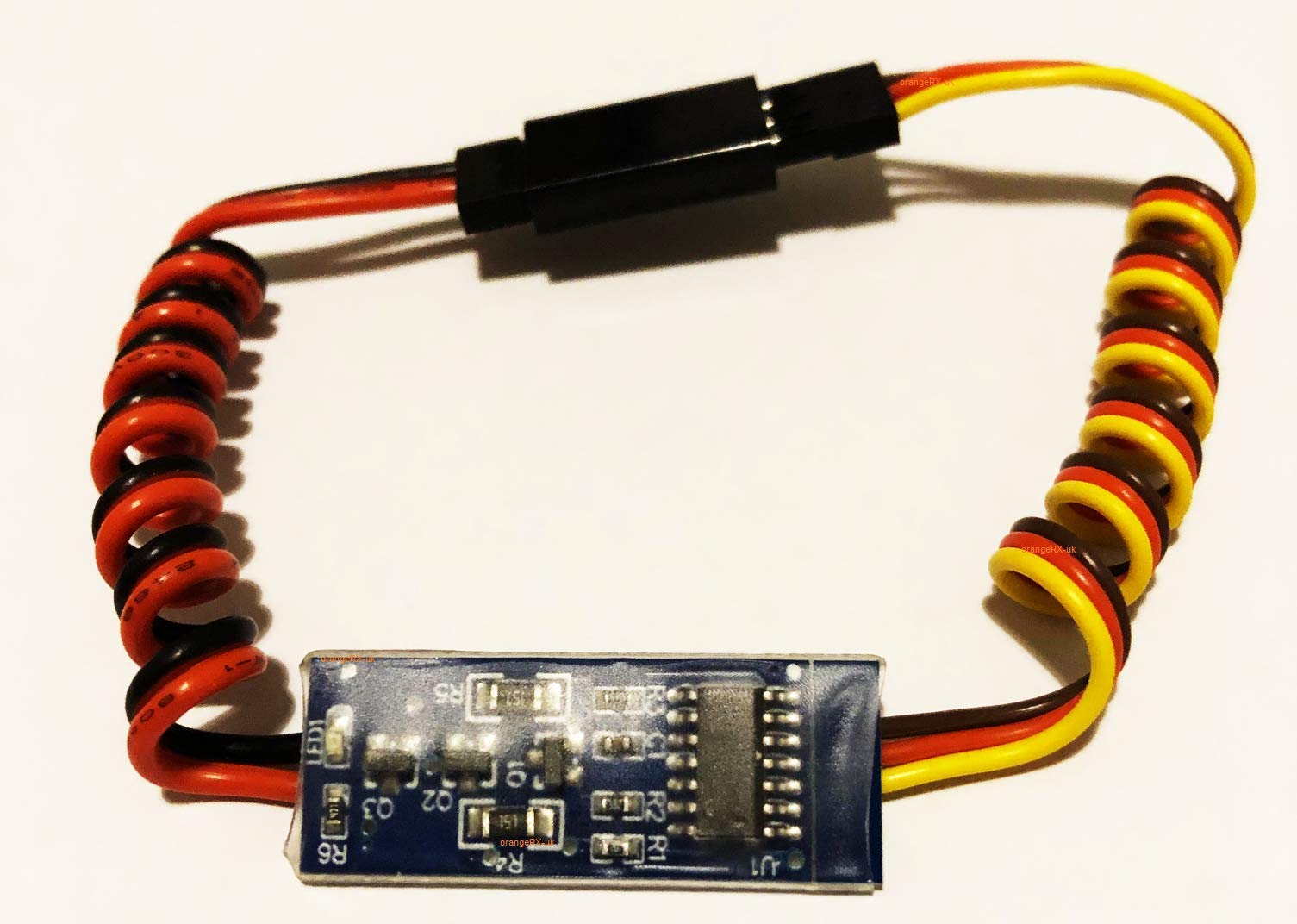

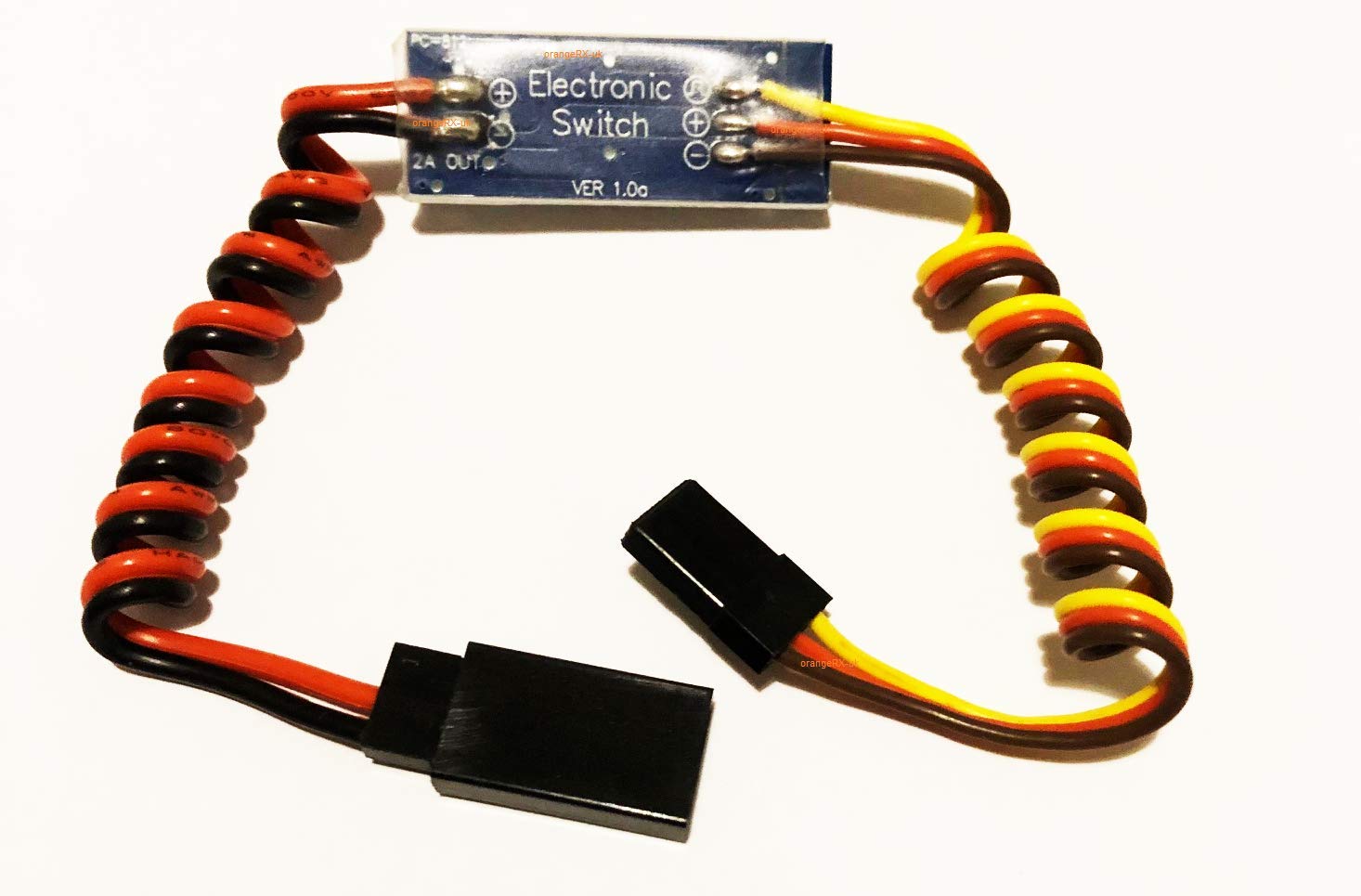

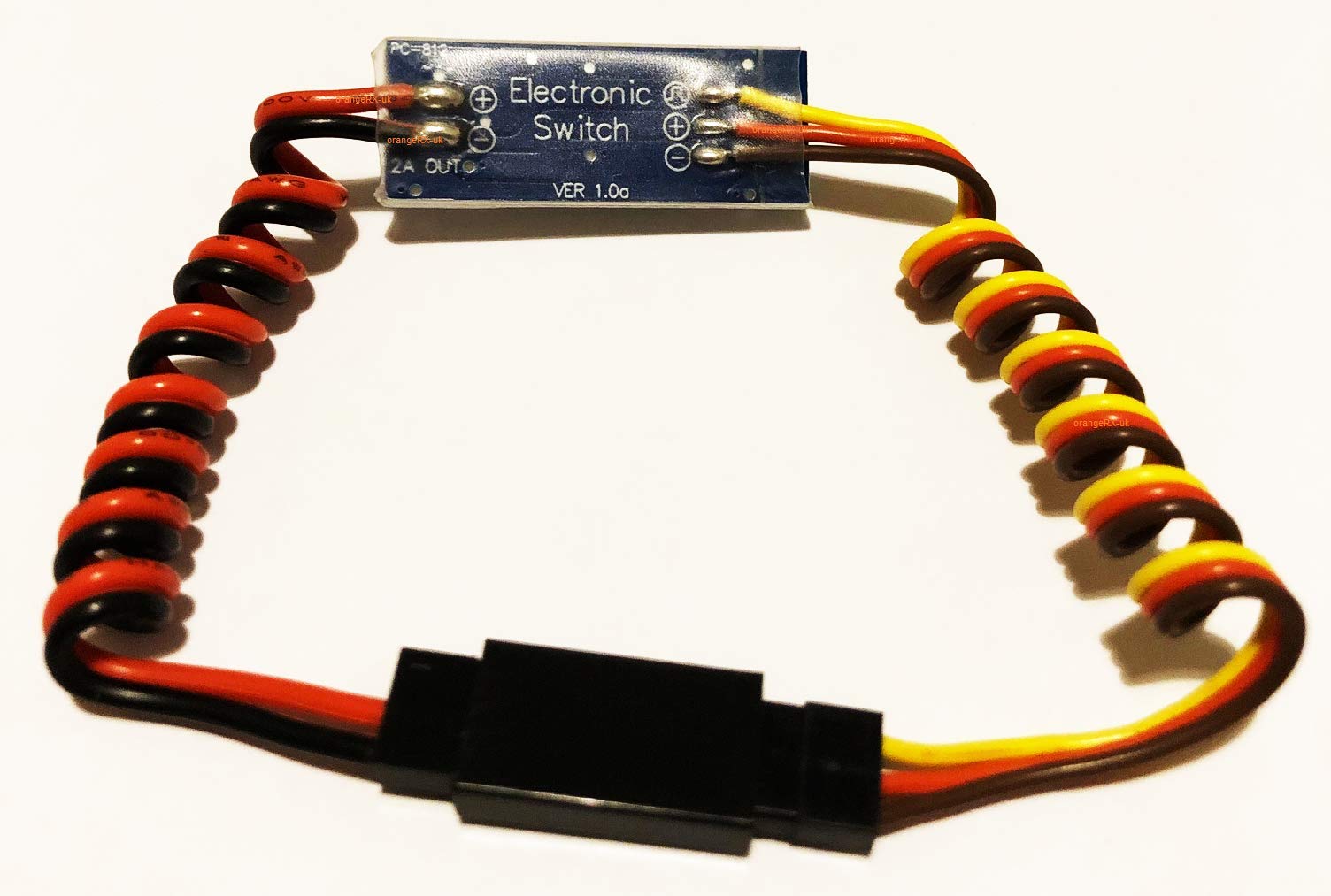

Plug it into your receiver and you instantly have an on/off switch controlled by any channel on your radio. This small lightweight electronic switch is extremely handy for switching on and off auxillary functions on all sorts of models. Connect it to your flap or gear channel for an instant on/off switch! Plug the single lead into one of your spare channels for switching lights, bomb dropping, smoke systems, canopy operation and other low current applications. The possibilities are endless! Specification: Input Voltage: 4.8~7.4v Output Voltage: 4.8~7.4v Maximum Current: 2amps Length: 30mm Width: 13mm Height: 3mm Weight: 7g Input Cable: 21cm (JR type plug) Output Cable: 20cm (JR type socket) IMPORTANT: Your radio must support end point adjustment as you may need to change the end points for this switch to see the desired signal. As all radios are different you will need to program the related channel end point travel to + - 100% in your radio. If the switch does not function with these settings you will need to begin reducing the end points around 5% at a time until the switch can detect the min & max travel for the chosen channel.
