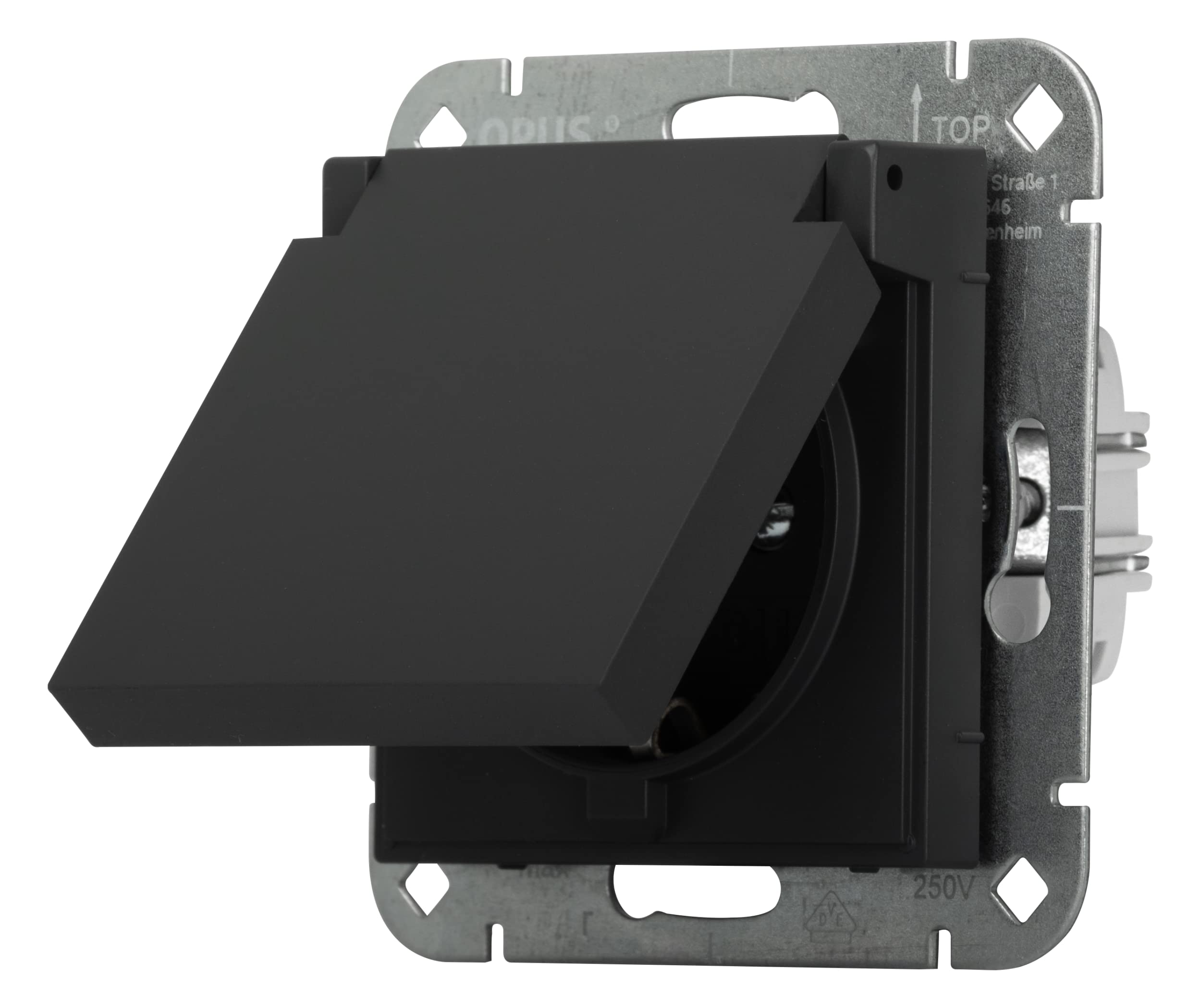

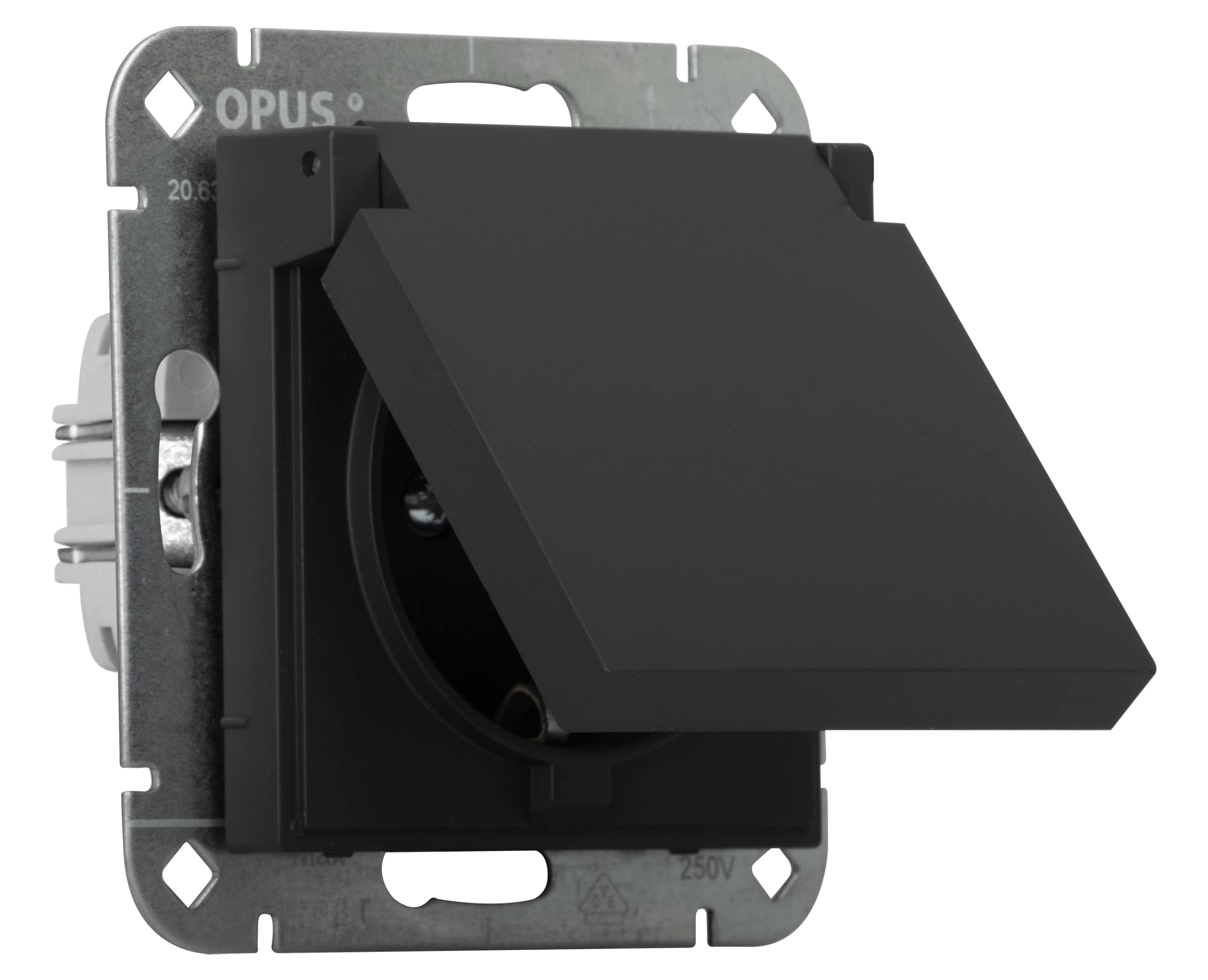

OPUS® 55 Protective Contact Socket Premium with Hinged Lid Colour Anthracite Silk Gloss

• 250 V AC 50 Hz 16 A with plug-in terminals. Connection cross section: 2.5 mm²
• Quick and safe installation: finger-friendly release mechanism, recessed and resettable retaining claws
• Combination screws for slotted and Phillips screwdrivers as well as extra long keyholes
• Cover: thermoplastic halogen-free – PC
• Socket: thermoplastic halogen-free – PA6

Concealed yet ready to use at any time, because the self-closing spring hinged lid hides the Opus 55 earthing contact socket, so that it fits discreetly into the living space. The hinged lid also prevents accidental access and protects the socket from dirt. Thanks to the 55 size, it is 100% compatible with the Opus 55 switch designs Kubus, Fusion and Information as well as the switch material from other manufacturers. Earthing contact socket 250 V AC, 50 Hz, 16 A with plug-in terminals up to 2.5 mm2 and self-closing spring hinged lid (closes in all installation positions). Quick and safe installation: finger-friendly release mechanism, recessed and resettable retaining claws, combination screws for slotted and Phillips screwdrivers and particularly long key holes. Housing material suitable for the Temperature range from –2 temperature 0 °C to +80 °C. Connection cross section: 2.5 mm². Cover: thermoplastic halogen-free – PC, base: thermoplastic halogen-free – PA6 meets the requirements of the standard DIN VDE 0620-1 16 A. Continuous current loading. Mounting type: flush-mounted and protection class: IP20.
