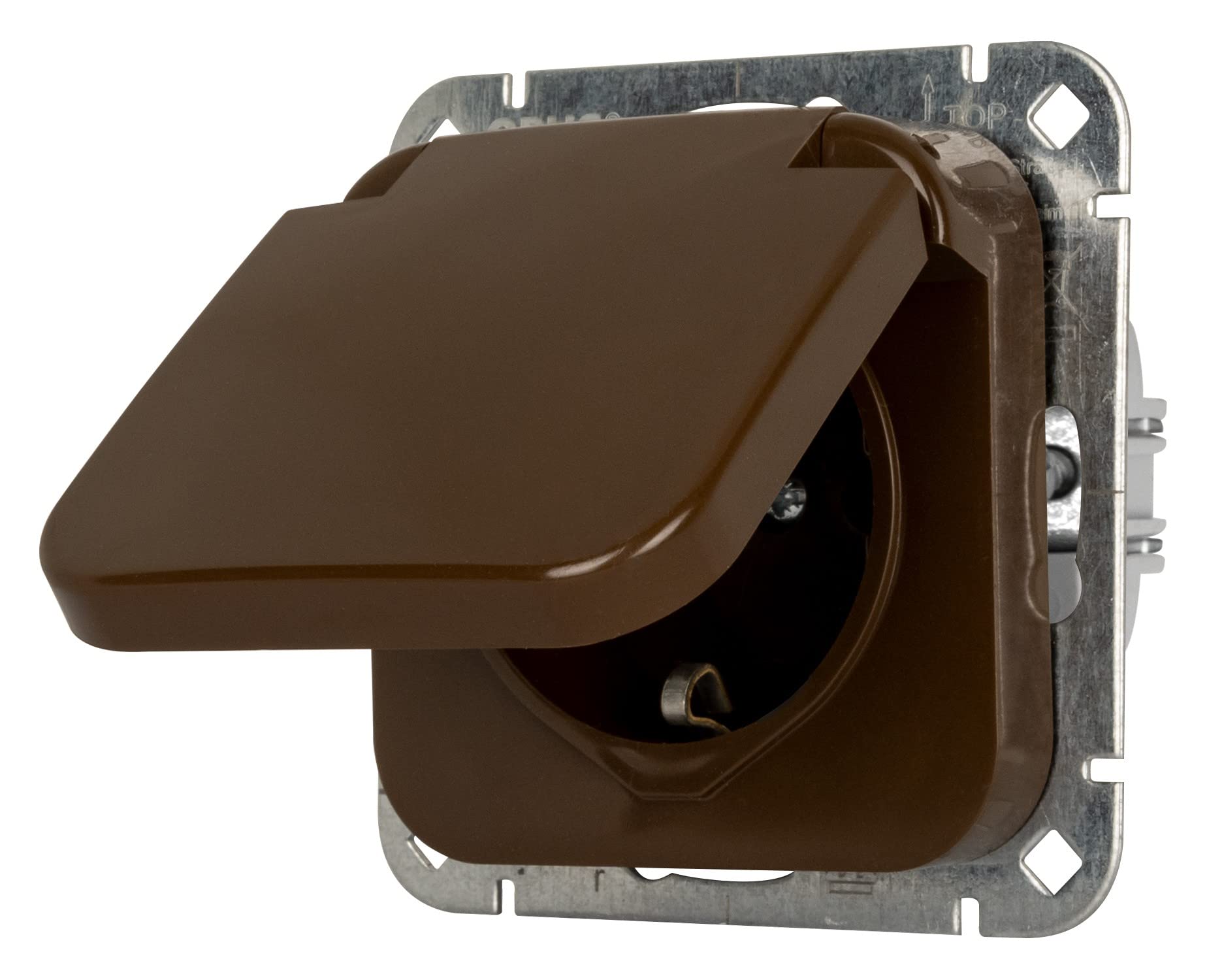

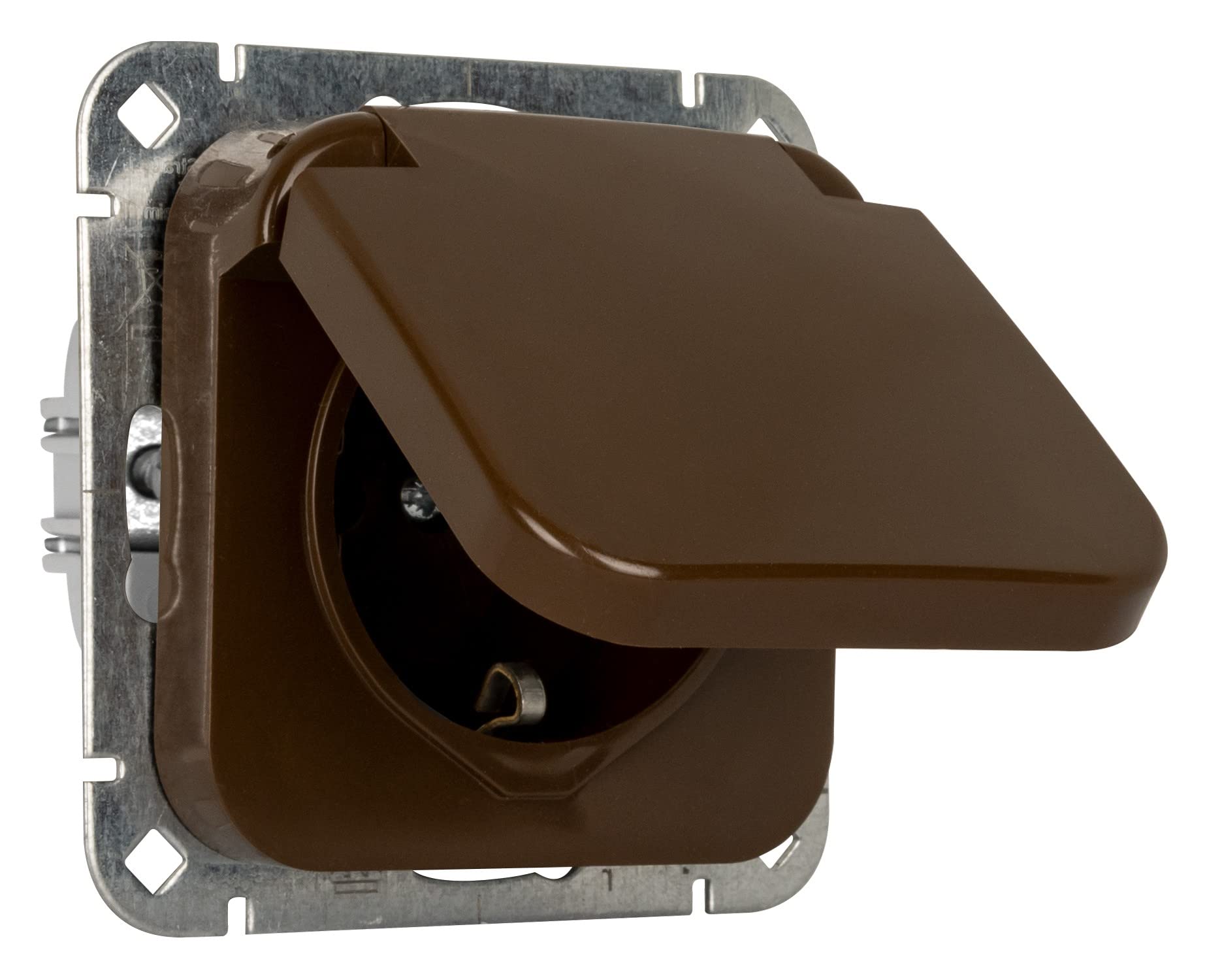

Opus 560.120.08 1 Earthing Contact Socket, Brown

• With hinged lid

Concealed yet ready to use at any time, because the self-closing spring hinged lid hides the Opus 1 earthing contact socket, so that it fits discreetly into the living space. The spring hinged lid also ensures more safety when handling electricity and prevents accidental access to the socket. At the same time, it also protects the socket from contact with external influences, such as dirt. The Opus 1 earthing contact socket is perfectly compatible with the Opus Kanto switch range - clear lines with square edges. Earthing contact socket 250 V AC, 50 Hz, 16 A with plug-in terminals up to 2.5 mm2 and self-closing spring hinged lid (closes in all installation positions). Quick and safe installation: finger-friendly release mechanism, recessed and resettable retaining claws, combination screws for slotted and Phillips screwdrivers and particularly long key holes. Housing material suitable for the temperature. range of –20 °C up to +80°C connection cross section: 2.5 mm² cover: thermoplastic halogen-free – PC, base: thermoplastic halogen-free – PA6 meets the requirements of DIN VDE 0620-1 16 A continuous current load. Mounting type: flush-mounted and protection class: IP20.
