Optogate PB-07"Eco" Version Optical Microphone Gate

• High-quality materials and workmanship.
• Infrared controlled
• Made in Germany.

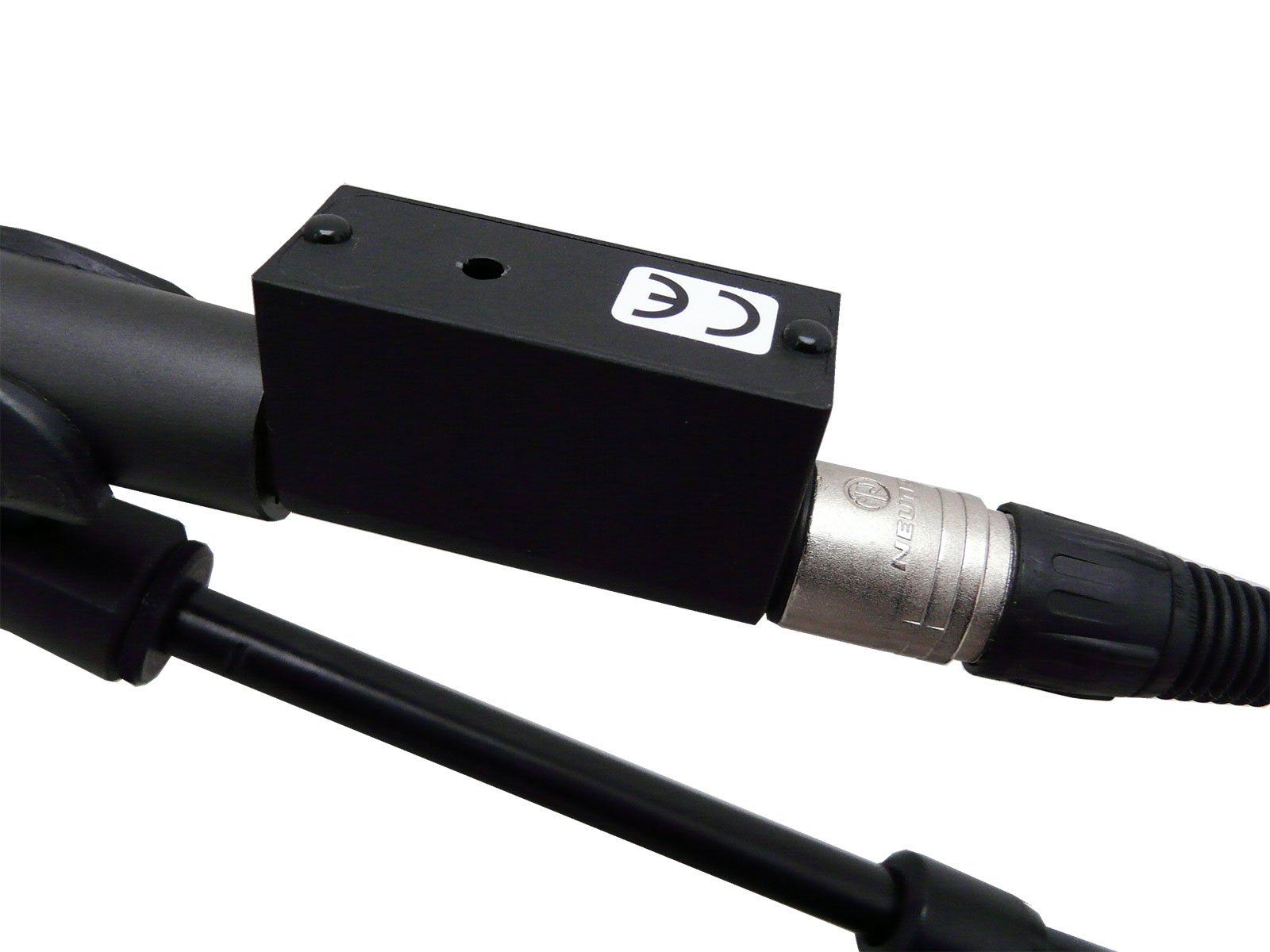

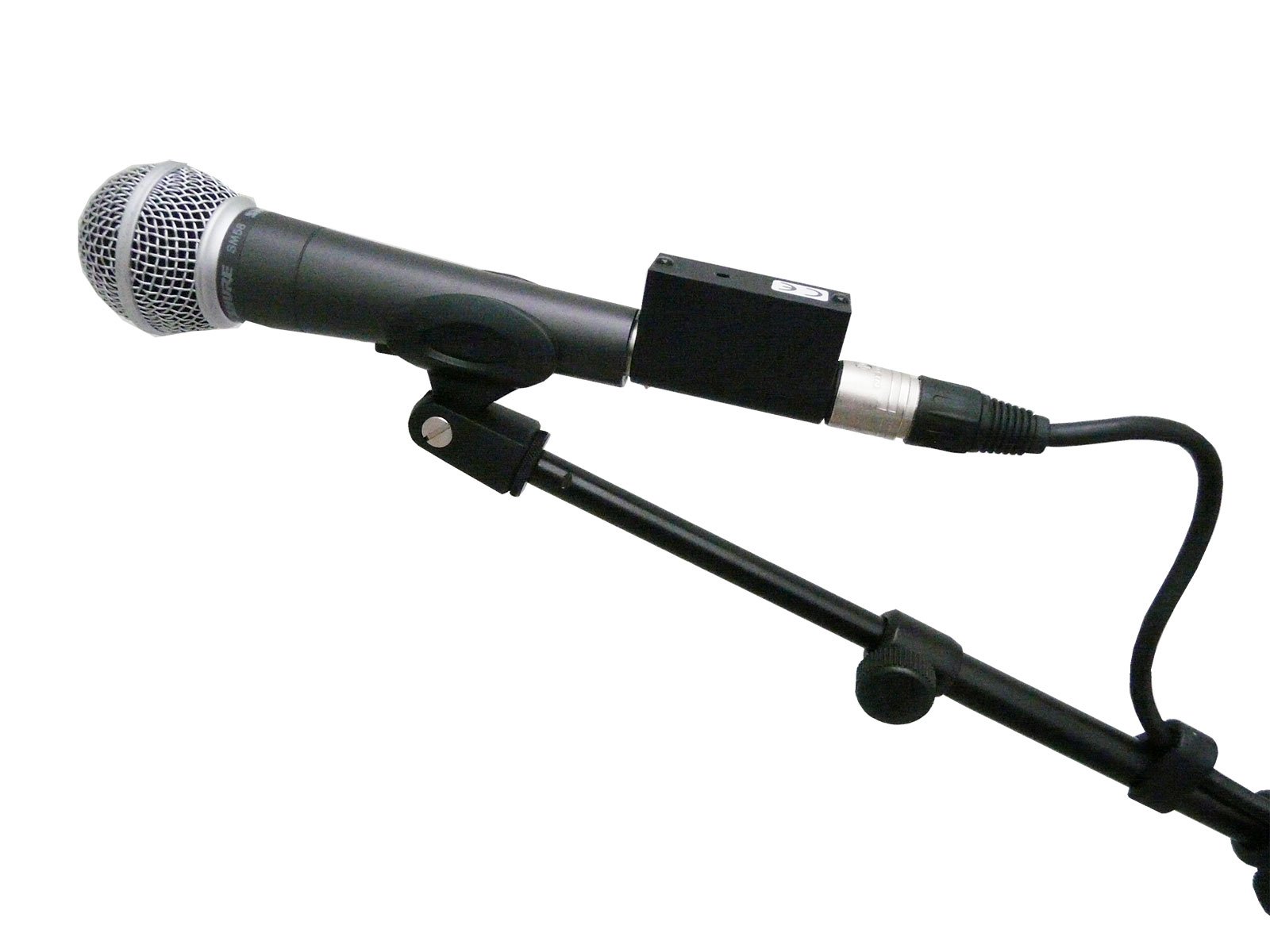

Due to many customer requests, we developed the PB-07. This model has the distance sensor on the flat side. This model "recognises" just like the other models when someone is in front of it and turns on the microphone. A red LED indicates the switching status. If the room is free again before the PB-07, the microphone will be switched off automatically. The distance can be adjusted between 15 and 120 cm via a spindle pot. It depends on the reflective surface. On the back is a 4 mm threaded hole for attaching to a clip. This model also works with 48 V phantom power. The phantom power is fed to the microphone, so that condenser microphones can also be operated with it. This model can be mounted using a clip so that it disappears behind a microphone stand. With a deeper abdominal position, it is possible that the artist does not have to stand in front of the microphone to turn it on. The PB-07 can also be easily plugged into gooseneck microphones, so that it is suitable for lectures. Dimensions: 68 mm length x 35 mm height x 21 mm width connections: XLR 3-pin (1 = gnd, 2 = plus, 3 = minus) housing: aircraft aluminium, black anodized distance range: adjustable between 15 - 120 cm (depending on the reflective surface).
