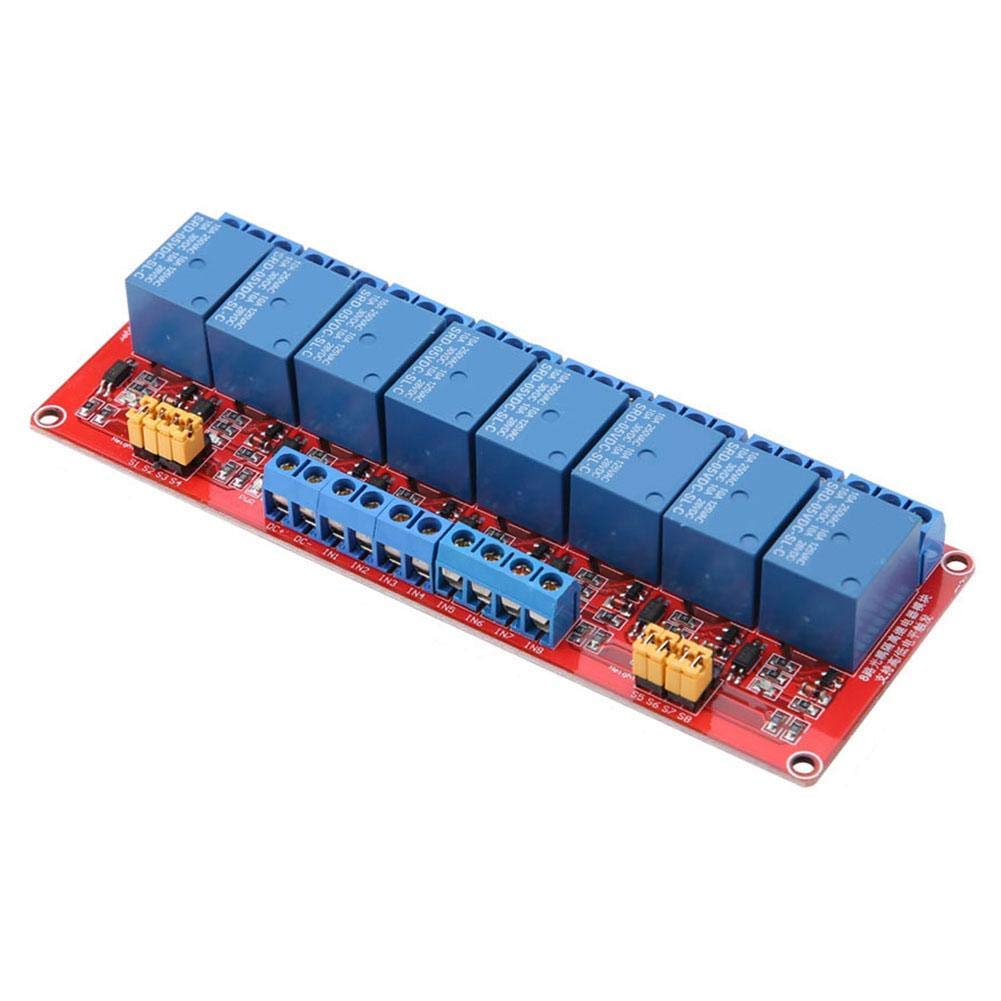

5V 8 Channel Optocoupler Relay Module High Low Trigger Expansion Board

• Operation Guide. The working voltage of the relay module has 5V, 12V, 24V to choose from. Power indicator (green), 8-way relay status indicator (red).

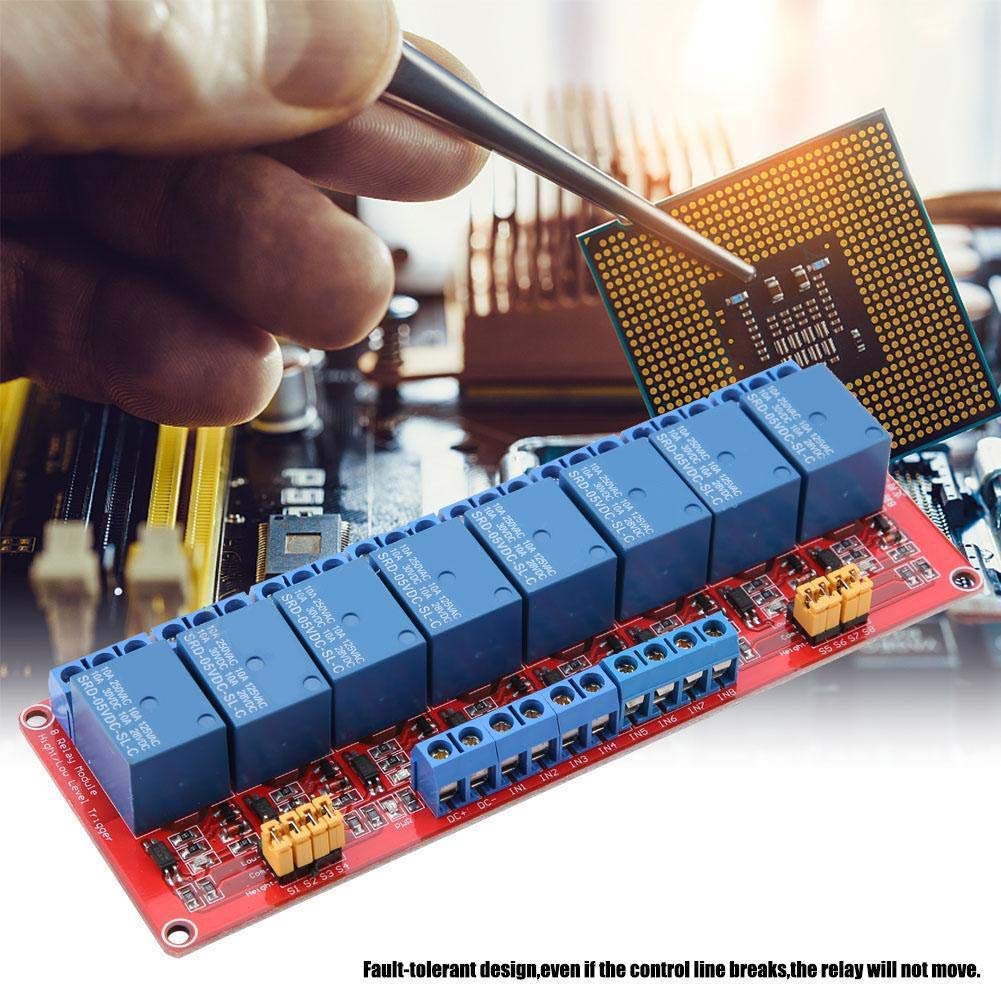

• Safe Design. Interface board optocoupler protection relay board even if the control line is disconnected, the relay will not act, to ensure your safety, please rest assured to use.

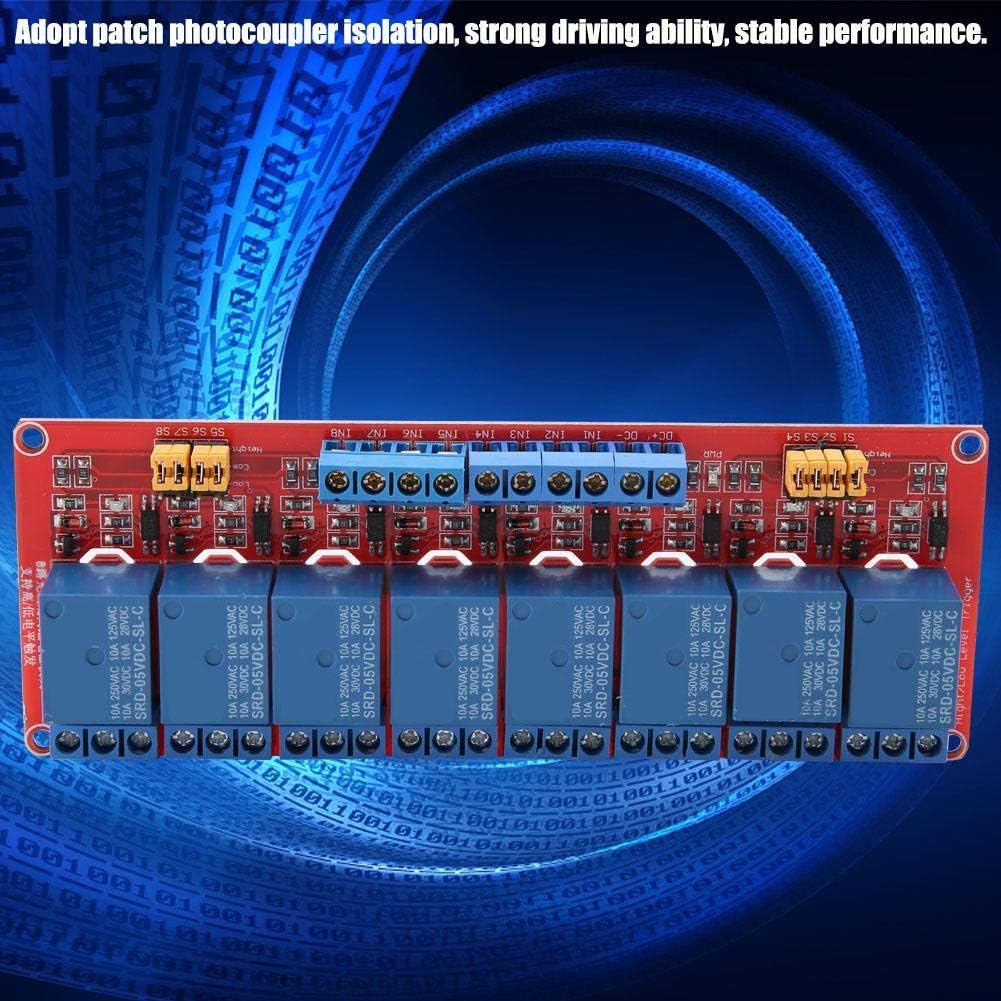

• Stable Performance. The optocoupler adopts patch optocoupler isolation, which has strong driving ability and stable performance. The trigger current is 5mA.

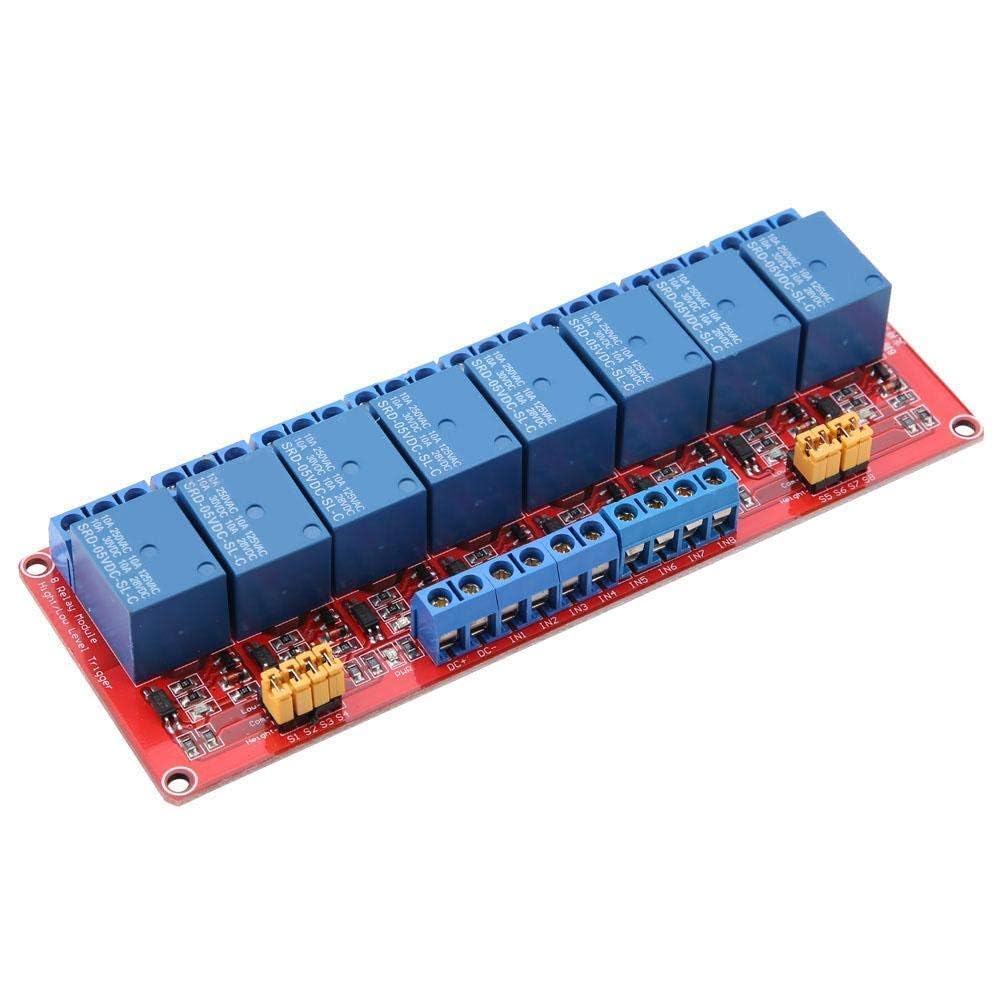

• Simple to Use. Each channel of the relay module can be triggered by jumpers to set high or low levels, with low energy consumption.
• Customer Service. We strive to provide you with the best quality products and the best customer experience, if you are not completely satisfied, please feel free to contact us.

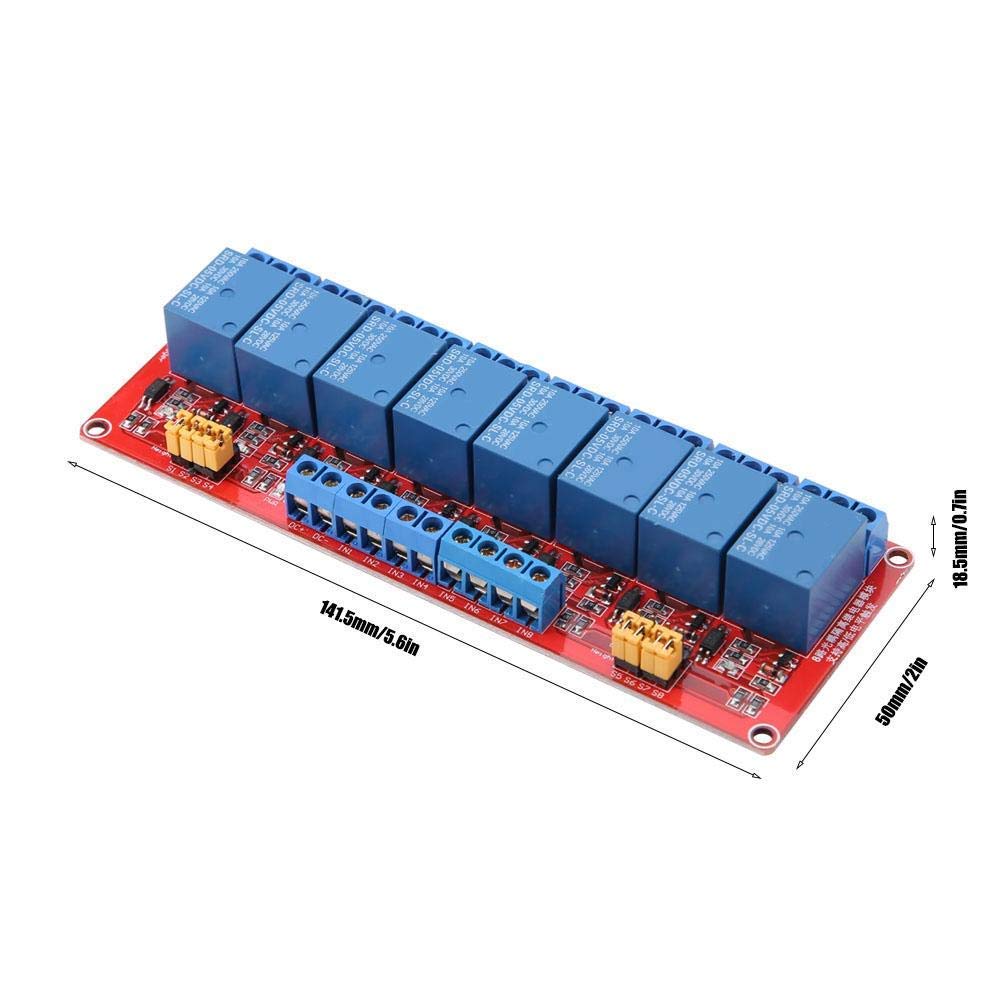

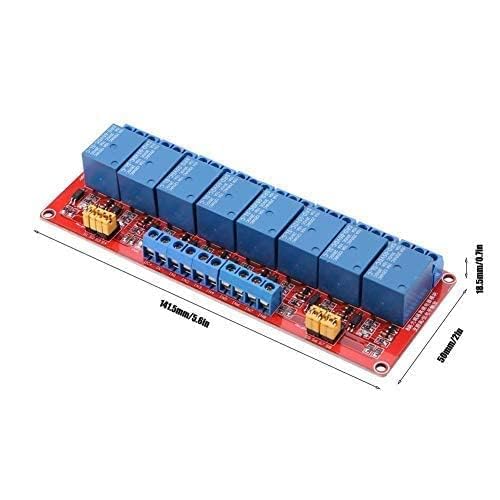

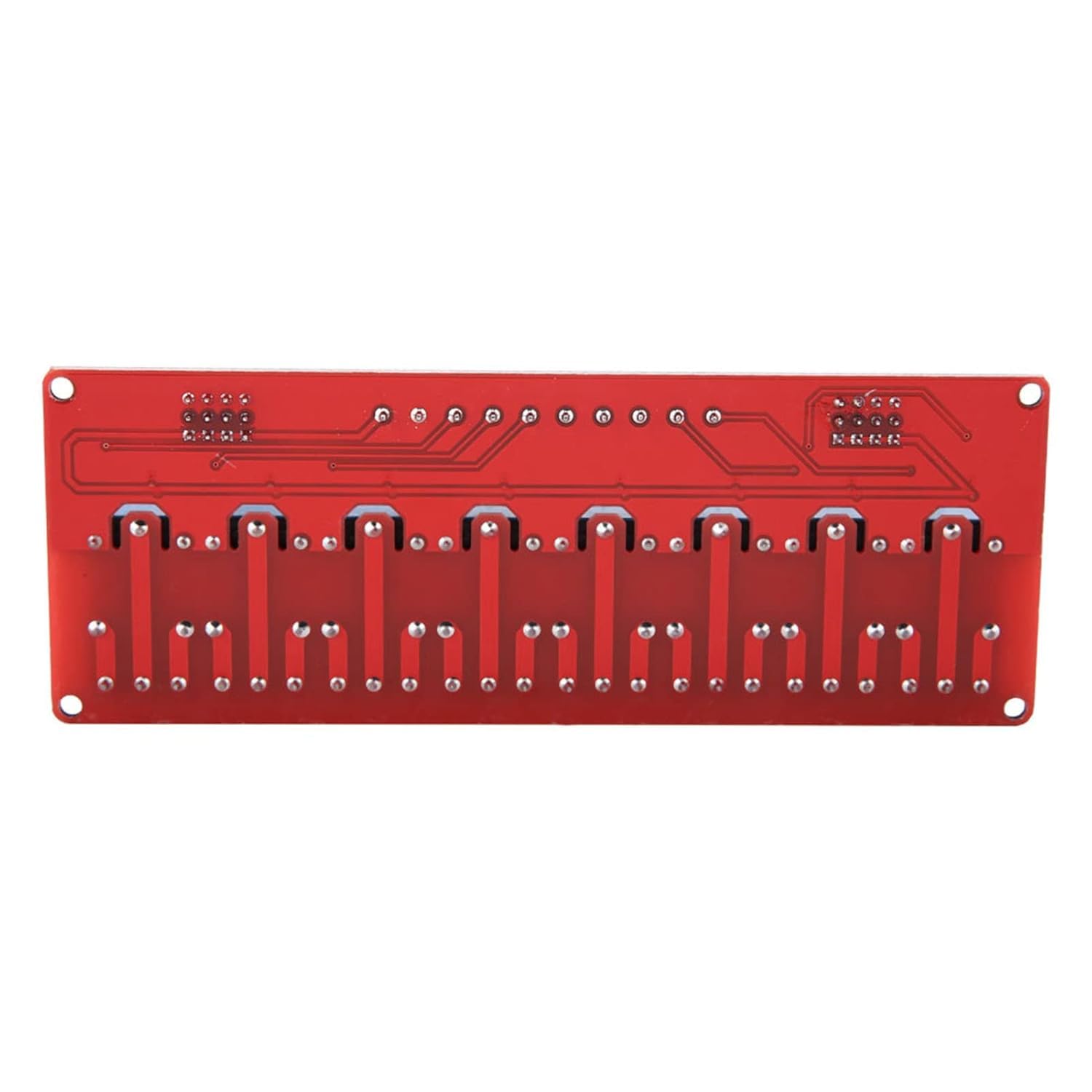

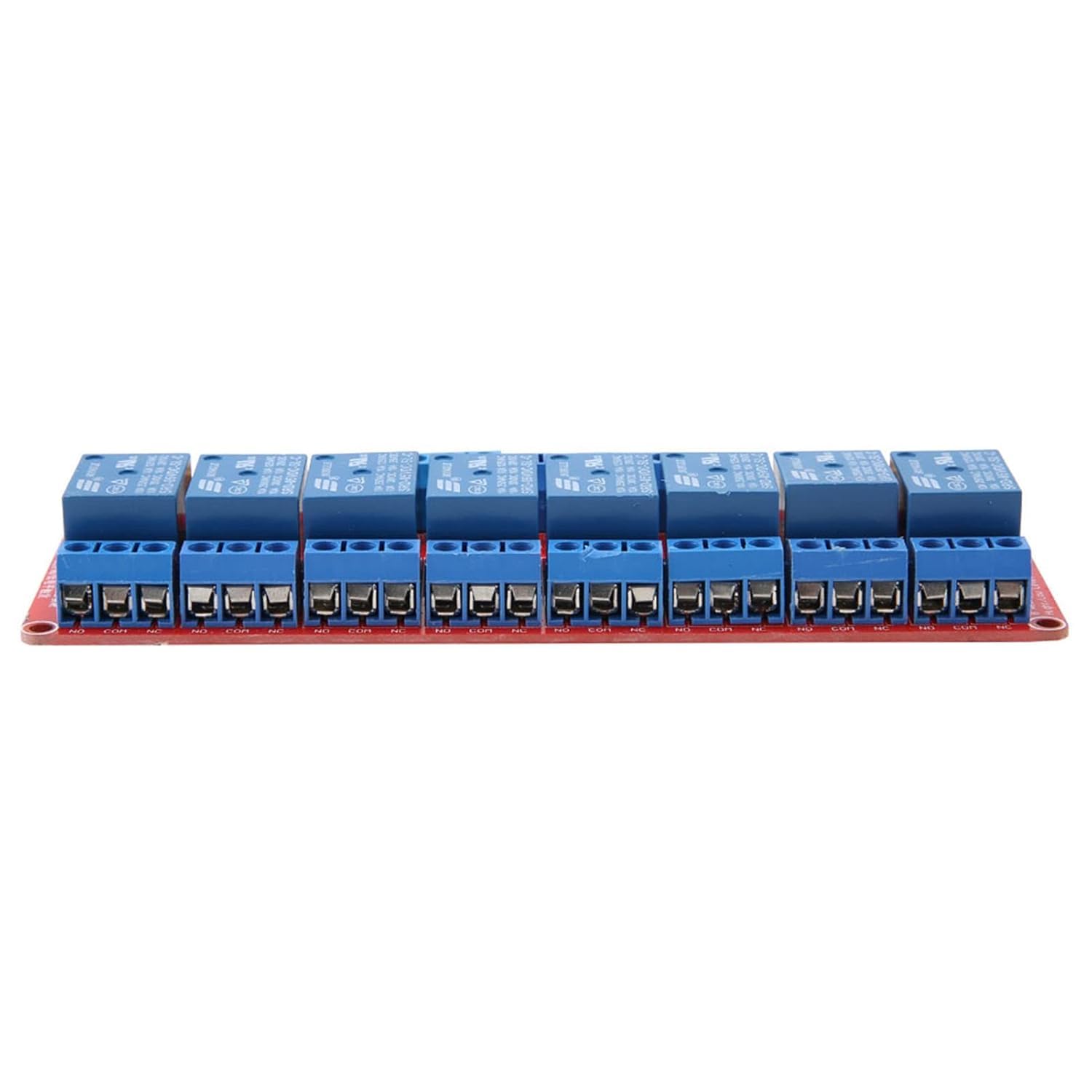

Specification:Weight: 118g/4.2oz Common interface load: AC 250V/10A, DC 30V/10A Module Size (L*W*H): 141.5*50*18.5mm/5.6*2*0.7inch Bolt Hole: 3.1 mm; 136*44.5mm (spacing) Voltage: 5V, 12V, 24V (Optional) Module interface: 1. DC+ : connect to the positive pole of the power supply (5V.9V. 2. DC- : connect to the power negative pole 3. In1-in8: according to the setting of each circuit, the corresponding relay can be controlled with high or low level to suck in Relay output terminal: there are 24 wire interfaces, all interfaces can be directly connected to lead, convenient for users to use 1. NO1--NO8: the relay normally opens the interface, and the relay is suspended before it is sucked in, and then it is connected with COM short after it is sucked in; 2. COM1--COM8: relay common interface; 3. NC1--NC8: relay normally closed interface. The relay is short connected with COM before it is sucked in and suspended after it is sucked in. High and low level trigger selection terminal: 1. S1-S8 is the high-low level trigger selection of relay 1-8 channels successively; 2. Com and low short connection, the corresponding relay for low level trigger, com and high short connection for high level trigger. Package List: 1 x Relay Module
