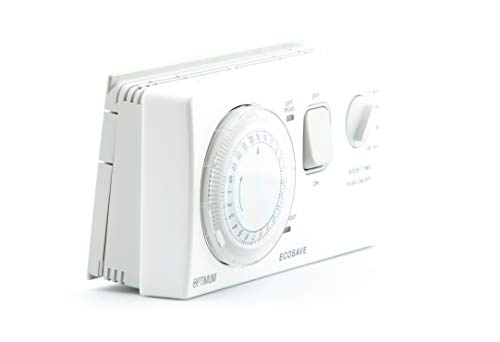

Optimum- Ecosave Economy 7 Off Peak Immersion Storage Heater Time Switch Boost Timer 24 hour time control- 230V White

• 24 hour water Heater time switch for single/dual or twin immersion Heater applications programmable every 15 minutes
• Suitable for combination storage/convector heaters with a 15 to 120 minute adjustable boost

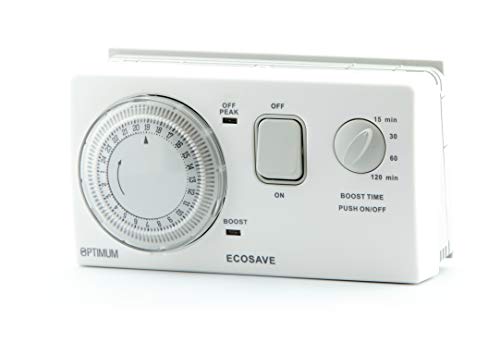

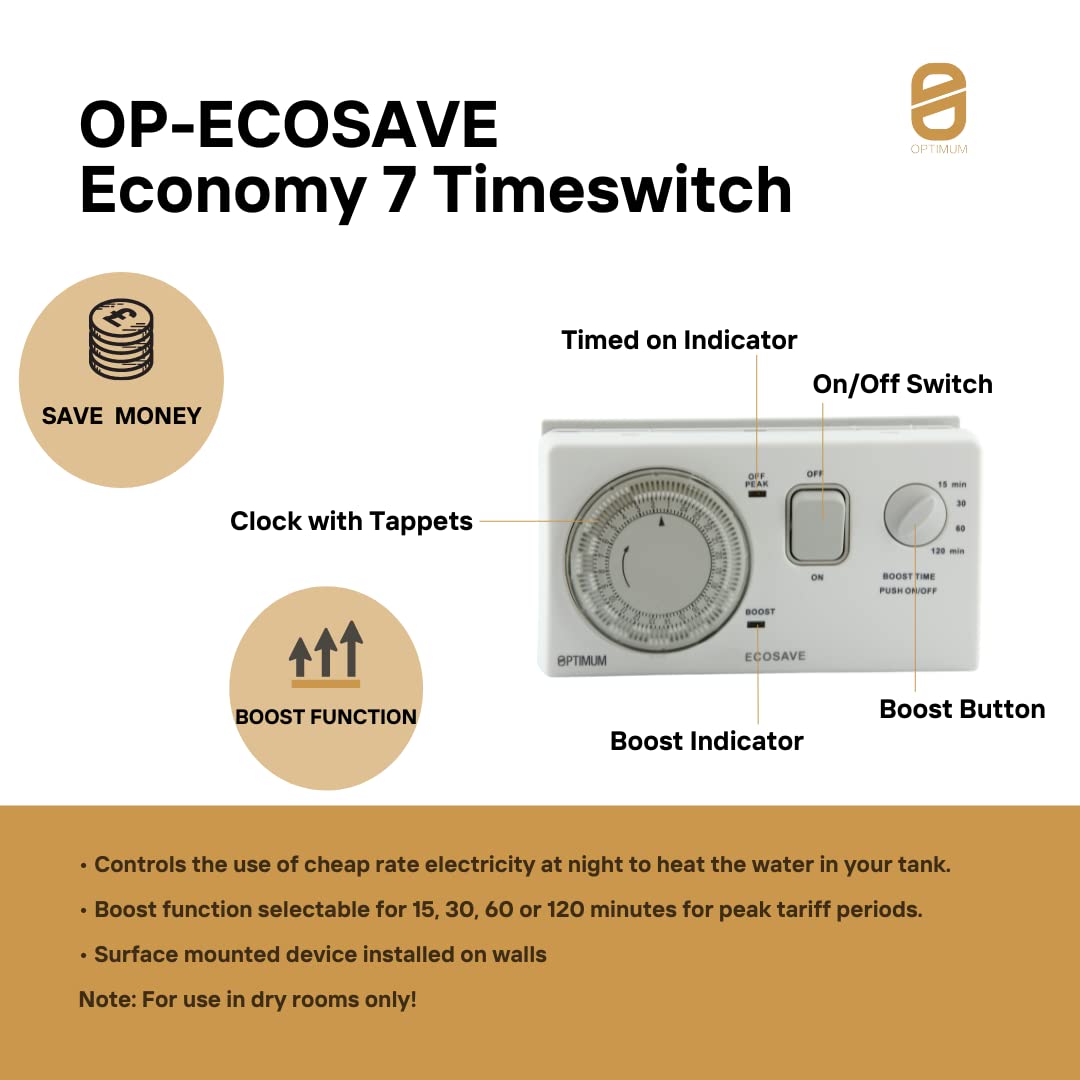

• Indicator lights display on, Peak and boost outputs
• Contact rating of 16A at 230V 50Hz and a running reserve of 72 hours
• Comes with manual on/off switch
• Note Ensure that the On/Off switch on the back of the unit is switched to “On” when the product is installed
• Ensure the on/off switch on the back of the product is set to the “ON” position before mounting. If using one immersion element add a link between the off-peak and boost terminals using a solid copper core that is rated to carry at least 13 Amps. Also, check that the immersion element you are trying to switch is functioning by checking its resistance using an ohm meter. If unsure how to do this, employ the services of an electrician.

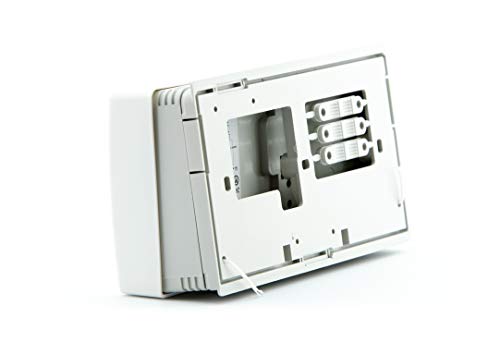

OP-ECOSAVE is a mechanical quartz multi-tariff time switch used to control 3Kw electric immersion heater elements for the timing of water heating during low tariff electricity supply periods. It is suitable for single / dual or twin immersion heater applications as well as combination storage & convector heaters. This comes fully equipped with an adjustable boost function for 15, 30, 60 or 120 minutes for peak tariff periods. It is programmable for 24 hour operation with a program able to be set every 15 minutes and comes with a 72 hour running reserve so you don't have to re-program after power cuts. The time switch comes with a separate wiring base to make easy installation and fixing to the wall as this is a surface mounted device. User friendly indicator lights are pre-installed to display On, Peak and Boost outputs. A manual On / Off override switch is also pre-installed so you don't have to change your pre-set programs. This timer has a contact rating of 16 Amperes and falls under the IP20 protection category. Running voltage of 220-240V AC 50Hz. The OP-ECOSAVE is suitable for use in dry rooms only, do not install in the vicinity of devices which generate inductive discharges (motors, transformers etc.) Compliant with European Norm EN60730-1: 2011 Automatic Electrical Controls for Household and similar use, and European Directives: LVD (Low Voltage Directive), EMC (Electro magnetic capability) & RoHS (Restriction of Hazardous Substances). Dimensions of the timer are: 86mm (h) x 155mm (w) 55mm (d), and the weight is 394g.
