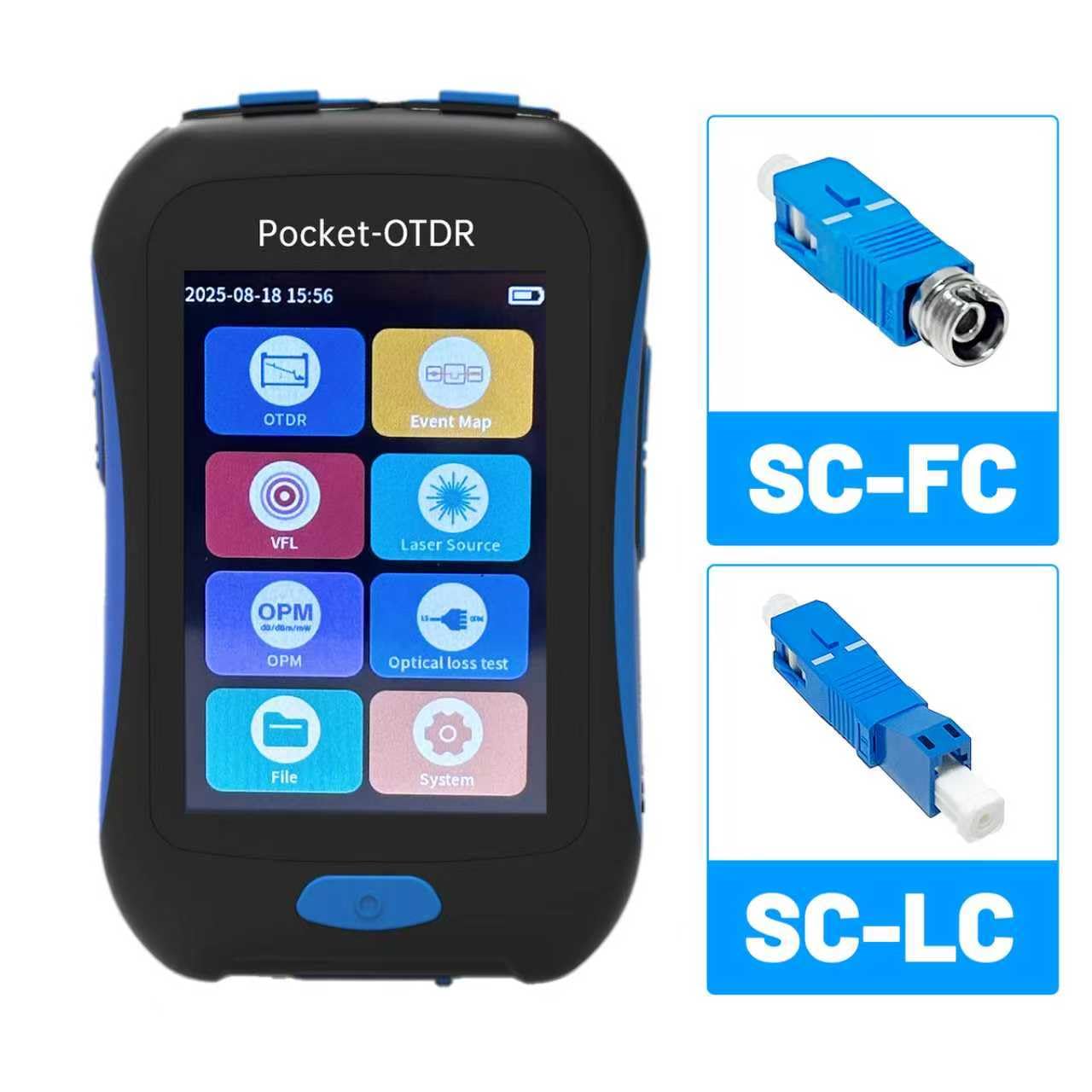

Optical Time Domain Reflectometer 3.5-inch Touch Screen Mini-Pro Fiber Optic Tester 1310/1550 with Event Map, OPM, VFL, LS, Internal Storage

• 【5 in 1 Protable OTDR Tester】 RSO-2800 mini fiber optic tester is used to measure the length, loss, connection quality and other parameters of the optical fiber. 3.5-inch 320x480 touch screen. Easy to carry. High-performance processor, smooth control. Support OTDR Test, Event Map, and other functions in one, to meet various test needs in different occasions. Connector: SC/UPC, and also equipped with SC/UPC-FC/UPC, SC/UPC-LC/UPC.
• 【1550nm wavelength & 20dB Test】The OTDR function adopts 1550nm wavelength and the dynamic range of 20dB. The maximum test range is 80km/50mi, After setting parameters such as wavelength, test range and pulse width etc, curves / lists / maps will be displayed. Support live test, built-in high-efficiency wavelength isolator. It can perform optical test on 1490nm and 1577nm links and up to about +10dBm with optical test capability.
• 【Event Map & OPM VFL LS OLS Tools】Event map can one key automatic test, and the information such as the length of the optical fiber link to be measured,the type of the joint and the position of the breakpoint are displayed graphically. Built-in optical power meter,vfl, ls and ols. Type: Class 2; Power<1mW,Wavelength:650nm.
• 【Data Storage】Optical Time Domain Reflectometer support more than 2000 test curves (sor files) can be stored internally, and data can be transferred via external USB type C cable. B. English operation language. OTDR tester Net weight/Dimension: 0.23kg(0.51lbs)/126x80x37mm(4.96x3.15x1.46inch).
• 【Friendly Sevice】Before test or test result is not accurate, please using the alcohol cotton to clean the fiber connector.

Optical Time Domain Reflectometer 3.5-inch Touch Screen Mini-Pro Fiber Optic Tester 1310/1550 With Event Map, OPM, VFL, LS, Internal Storage
