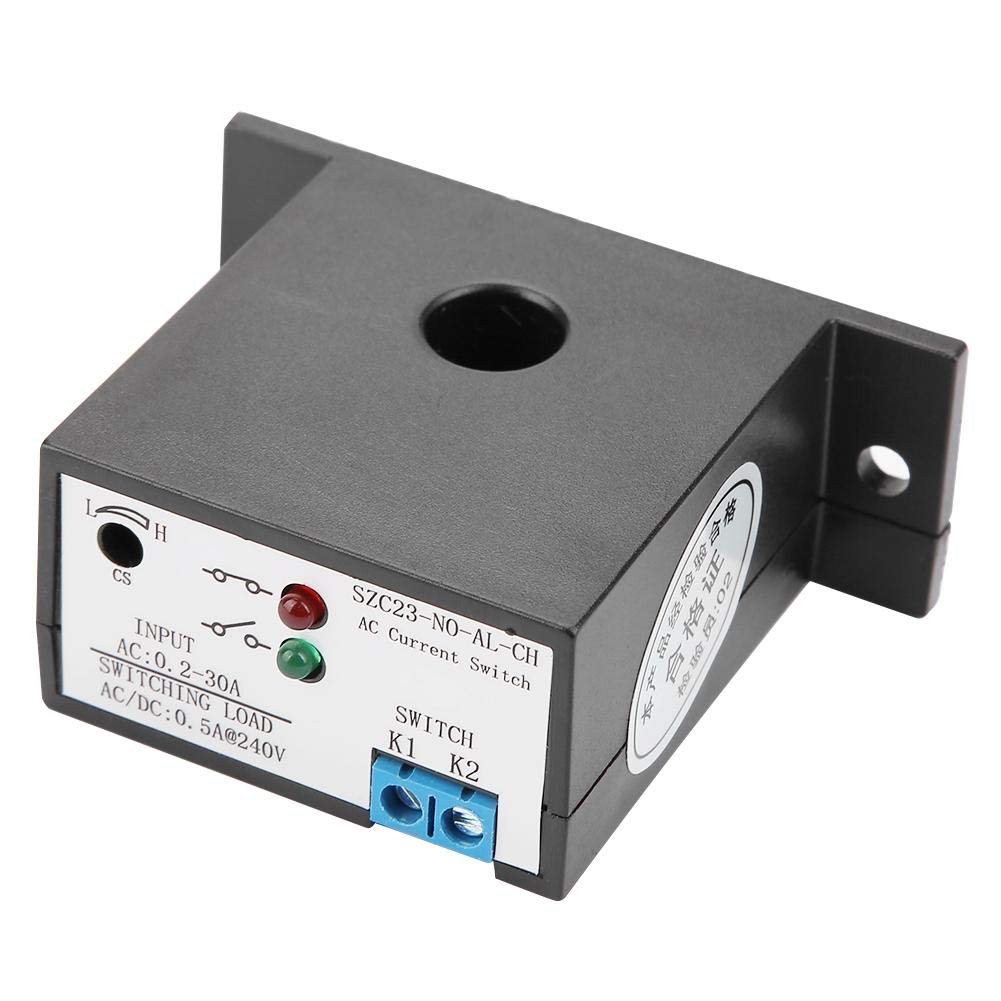

Current Sensing Relay, Current Sensing Switch, SZC23-NO-AL-CH AC Normally Open Current Operated Switch, Adjustable AC 0.2-30A Current Monitoring Relays with LED Indicator

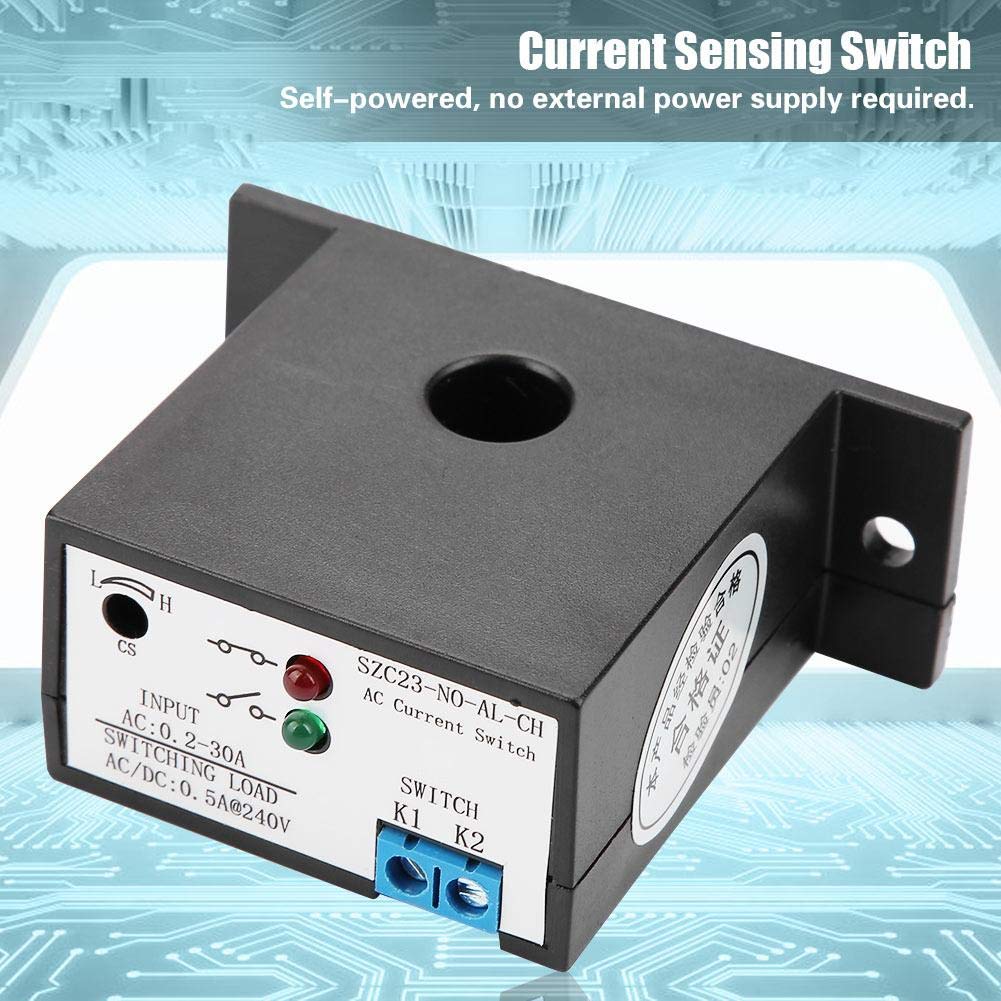

• SELF-POWERED DESIGN: The AC current sensing switch does not require external power supply. The action current is 0.2-30A AC and the potentiometer is adjustable. Straight-through structure design, isolation withstand voltage up to 2000 V. Hysteresis less than 1%, can be used under strong magnetic conditions.
• ACCURATE AND TIMELY: This current sensing control is designed to monitor AC current, which not only provides more accurate and timely control, but also greatly simplifies design and reduces costs. There is no limit to the number of times the AC current sensing switch can be opened and closed, and the response speed reaches milliseconds.
• FAST SWITCHING RESPONSE: Adjustable current sensing switches use high power MOS tubes for non-contact electronic switching, with unlimited switching times and millisecond response times.

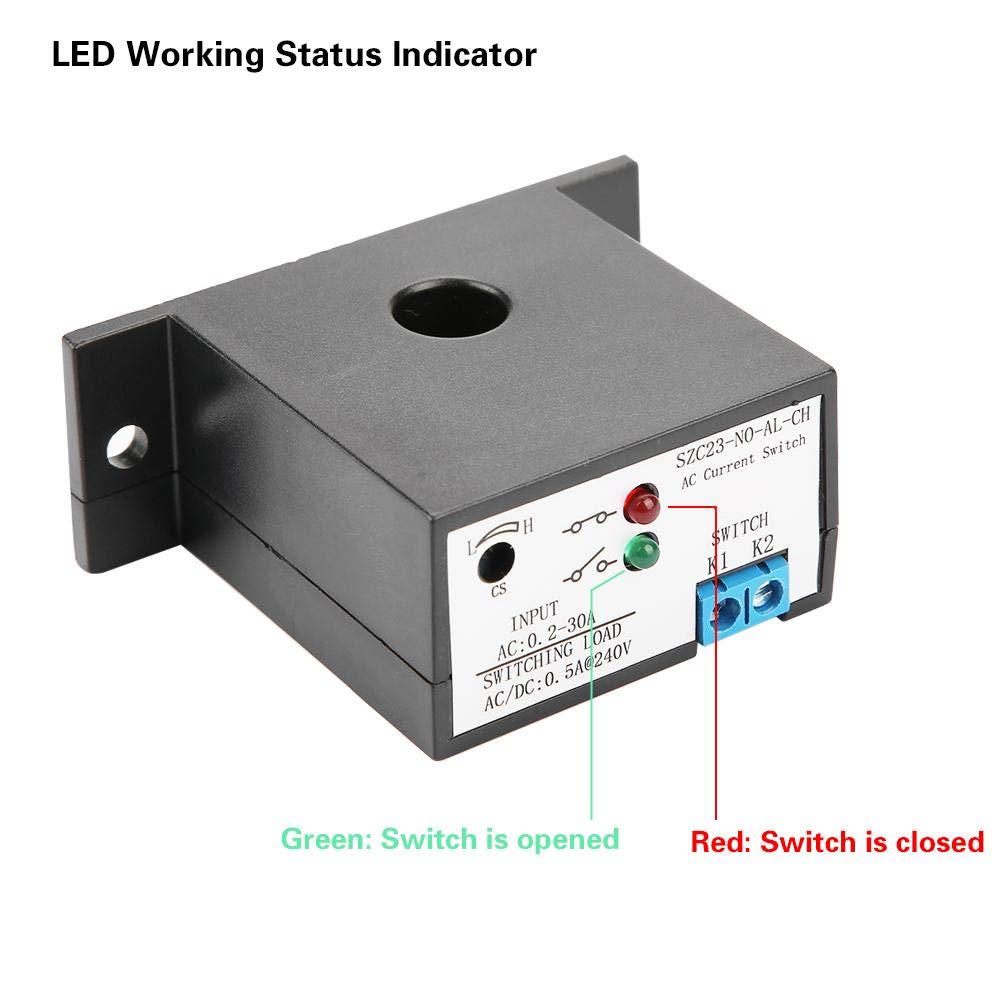

• LED INDICATOR: The sensor-controlled switch's enclosure is made of self-extinguishing ABS material, and the LED indicator provides a convenient visual indication of the switch's operating status. Compared with traditional transformers, AC current sensing switches have more accurate and timely control, and are simple in design and low cost.
• A WIDE RANGE OF APPLICATIONS: Normally open current sensing switches are suitable for AC current measurement and monitoring, AC motor overload protection, and electronic switches for automatic control systems. Widely used in substations, frequency conversion speed control devices, electric locomotives, street light monitoring and other automation industries that require current monitoring.

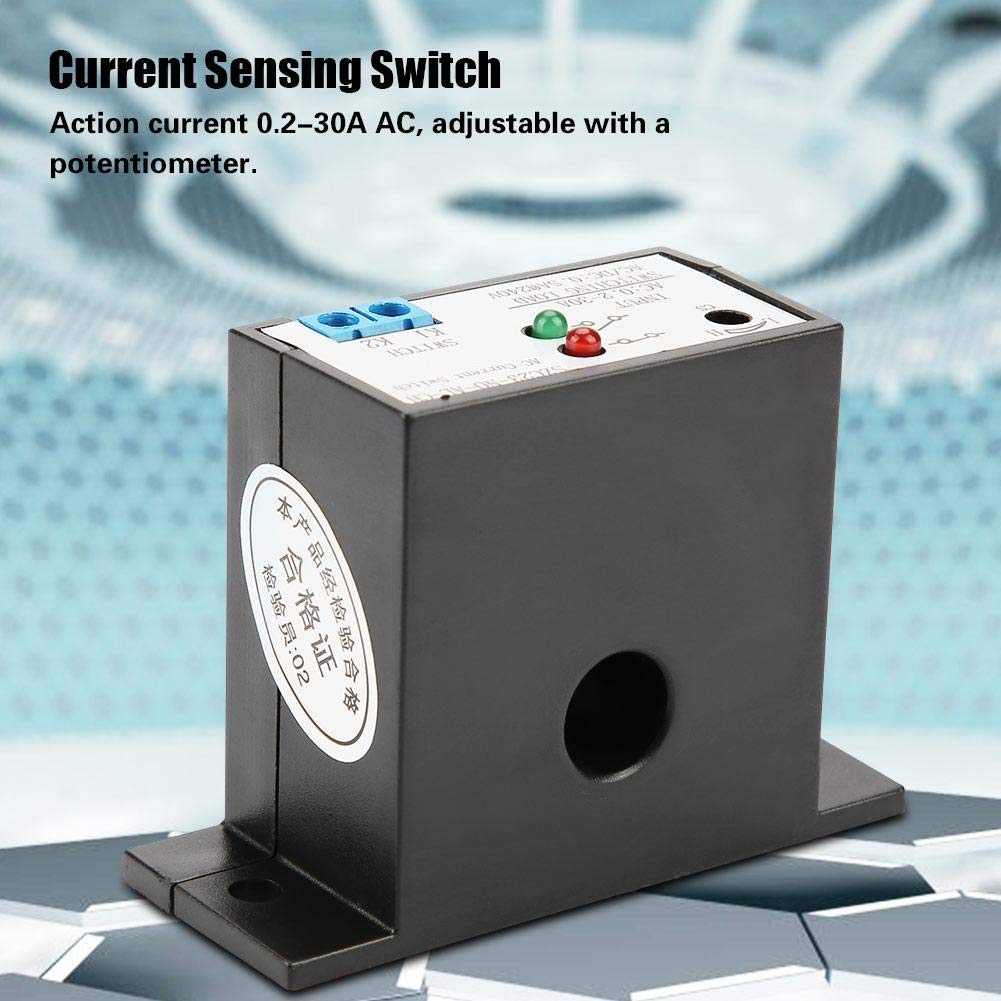

Features: 1. Self-powered, no external power supply required. 2. Action current 0.2-30A AC, adjustable with a potentiometer. 3. LED indicator can conveniently and intuitively indicate the working status of the switch. 4. High-power MOS tube contactless electronic switch. 5. The switch has no limit on the number of opening and closing, and the reaction speed reaches the ms level. 6. Straight-through structure design, isolation withstand voltage up to 2000V. 7. Hysteresis is less than 1% and can be used under strong magnetic conditions. 8. The outer casing is made of self-extinguishing material ABS. 9. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so on. Specification: Model: SZC23-NO-AL-CH Power supply: Not required Rated load: ≤ 0.5A@240V AC/DC Input current: 0.2-30A AC Switch on minimum: 0.5±0.2A Maximum overload: 100% Leakage current: ≤0.1A Accuracy: 1% Hysteresis: ≤1% Response time: ≤200ms Repeatability: 100% Working temperature: -20~60℃ Waterproof: IP30 Dimensions: 65*25*47mm / 2.56*0.98*1.85in Hole diameter: 10mm / 0.4in Package weight: Approx. 56g/2.0oz Package list: 1 * Current Sensing Switch Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.
