OMAX - 40X-2500X Trinocular Digital Compound Microscope with 5 MP USB Digital Camera and Double Layer Mechanical Stage - M83EZ-C50U

• Trinocular viewing head with sliding adjustable interpupillary distance

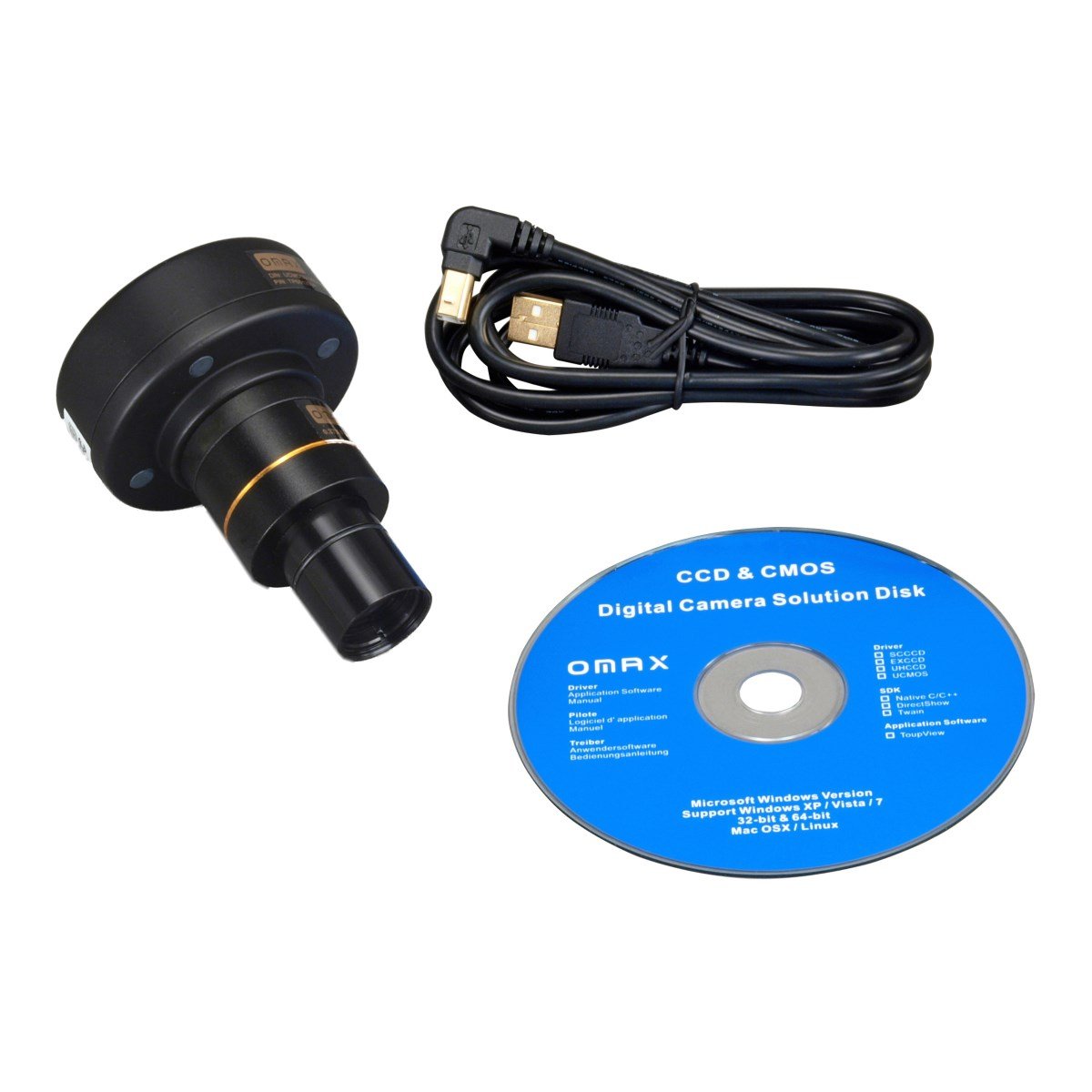

• 5MP (2592x1944 pixels) color digital camera with 0.5X reduction lens and 0.01mm calibration slide
• Double layer mechanical stage and coaxial coarse & fine focus knobs on both sides
• NA1.25 Abbe condenser with iris diaphragm & filters
• Variable intensity LED transmitted illumination

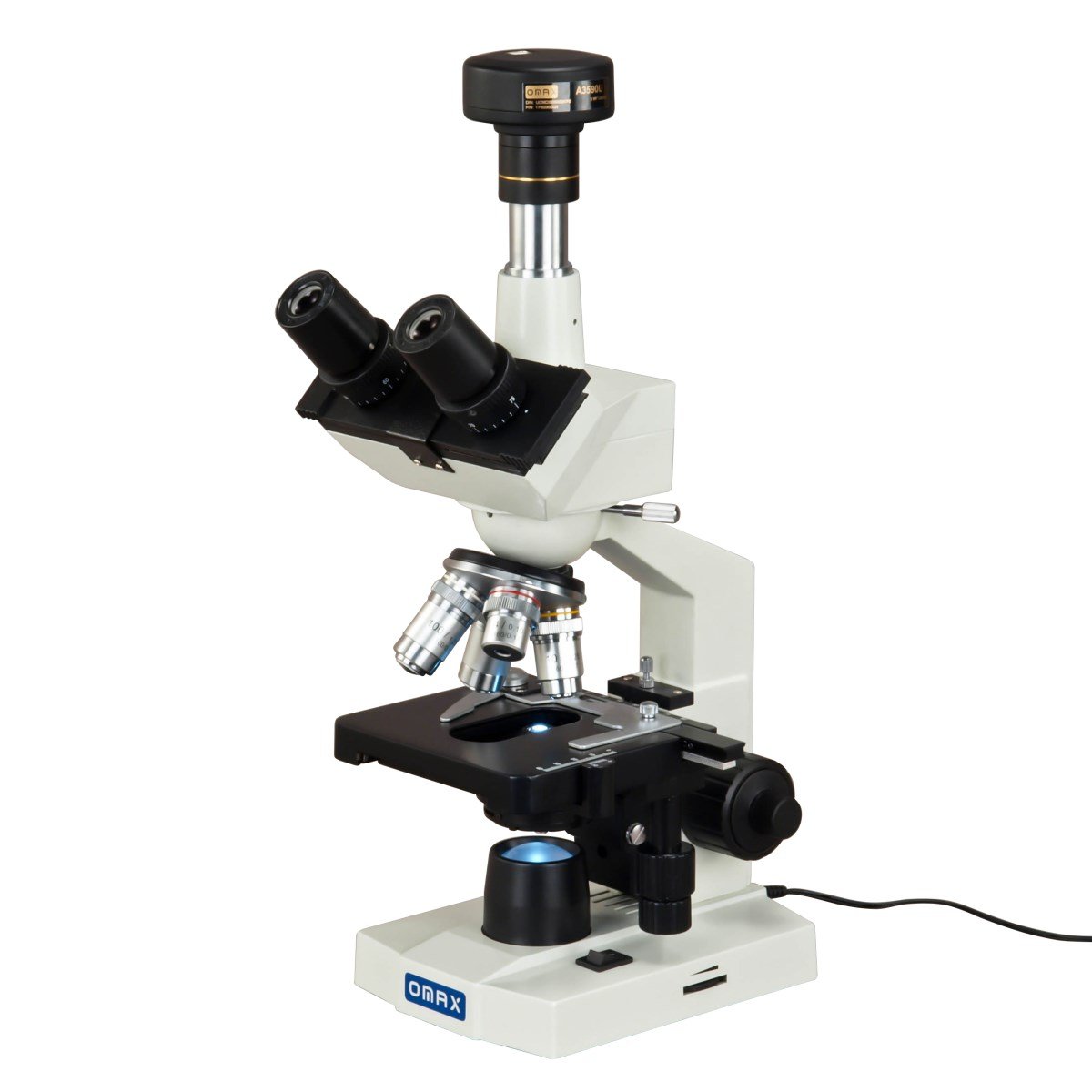

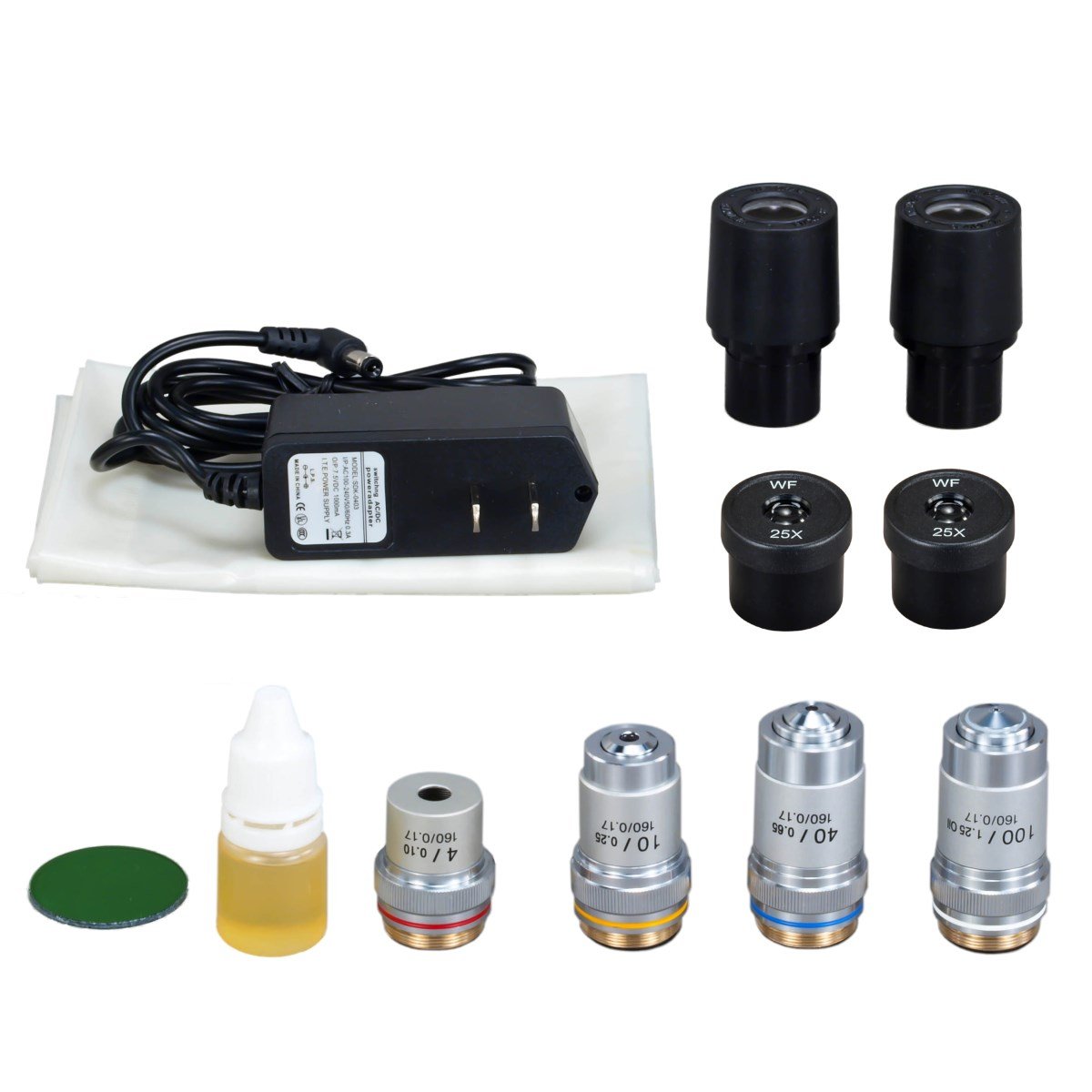

The OMAX M83EZ-C50U digital LED trinocular compound microscope includes a digital imaging system. It features a 45 degree inclined; 360 degree swiveling trinocular sliding viewing head, two pairs of widefield eyepieces, four achromatic objectives, stain-resistant double layer mechanical stage with scales, coarse and fine focusing, NA 1.25 Abbe condenser and variable intensity LED transmitted illumination system. It offers six levels of magnification power:40X-100X-250X-400X-1000X-2500X. The 5MP (2592x1944 pixels) USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with windows, Mac OS and Linux operating system can also be used to make measurements. This is perfect for teaching demonstration and clinical examination, laboratories and advanced applications. SPECIFICATIONS: Eyepieces: wide field WF10X and WF25X Objective: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil) Viewing head: 45 degree Inclined; 360 degree swiveling trinocular Sliding adjustable interpupillary distance: 2-3/16" ~ 2-15/16"(55~75mm) Stage: mechanical double layer size: 4-1/2"x 4-15/16" (115mm x 125mm) Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm Transmitted (lower) illuminator: LED light, intensity adjustable Focus adjustment: Coaxial coarse and fine knobs on both sides Power supply: AC/DC adapter, 100V-240V (UL approved) Digital camera: - True color 2592x1944 pixels (5 MP) - 0.5X reduction lens to get larger field of view -0.01 mm calibration slide: 1mm/100 division -Frame speed: 5fps at 2592x1944, 18fps at 1280x960, 60fps at 640x480 -Software compatible with Windows XP/Vista/7 (32/64-bit), Mac OS and Linux operating system -Captures images, records live video, measures lengths, angles, areas, edits images -USB 2.0 cable included
