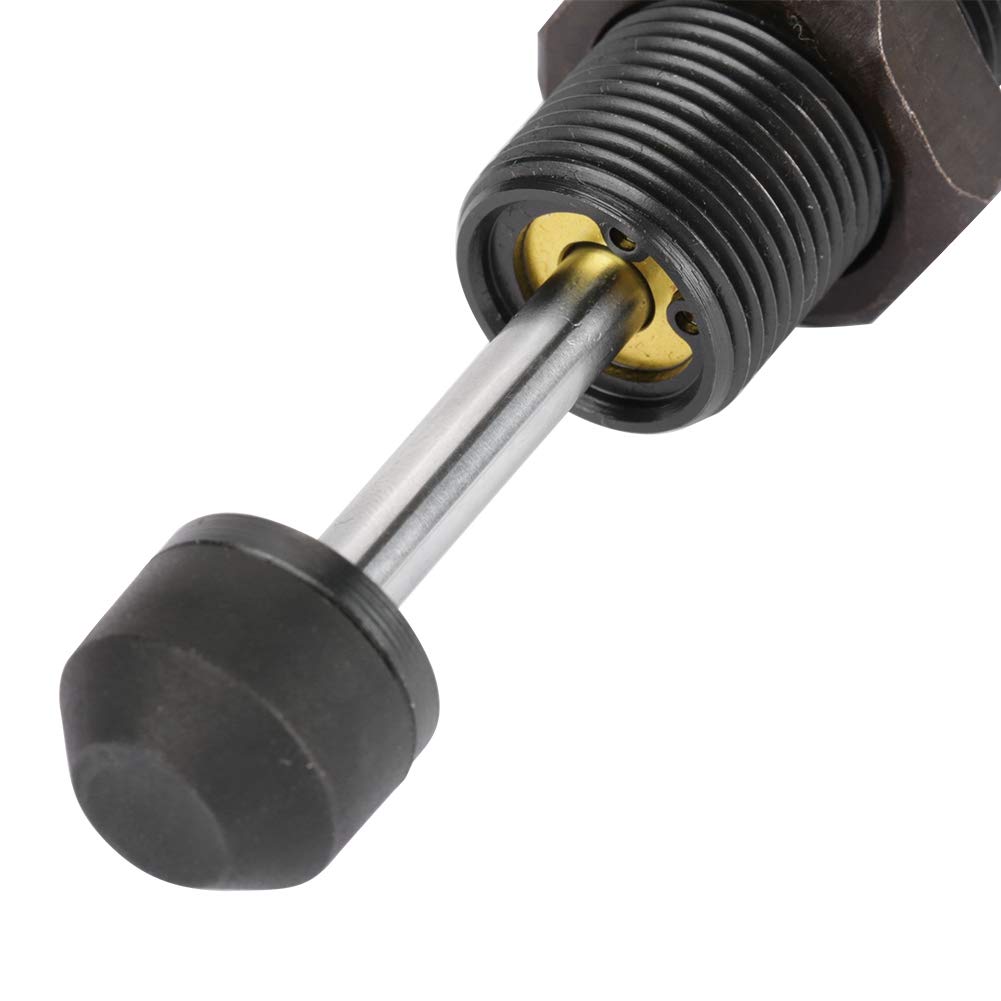

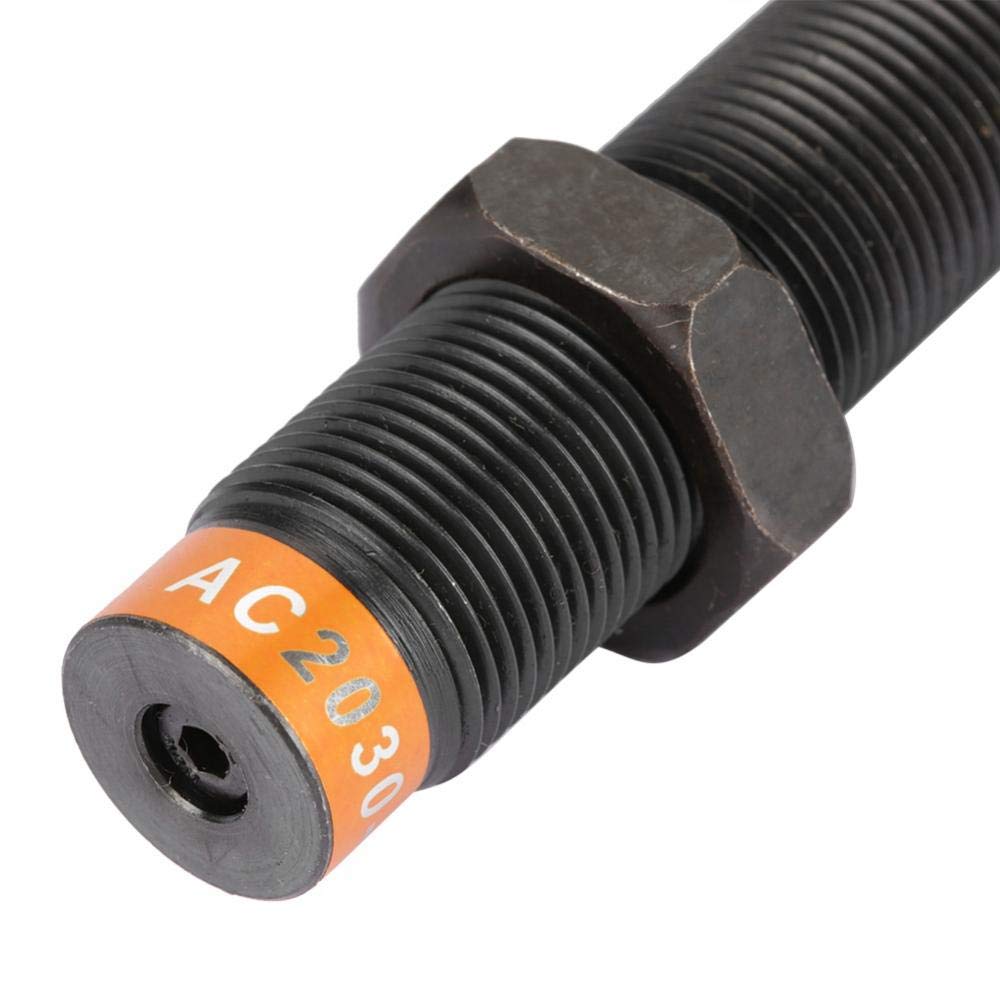

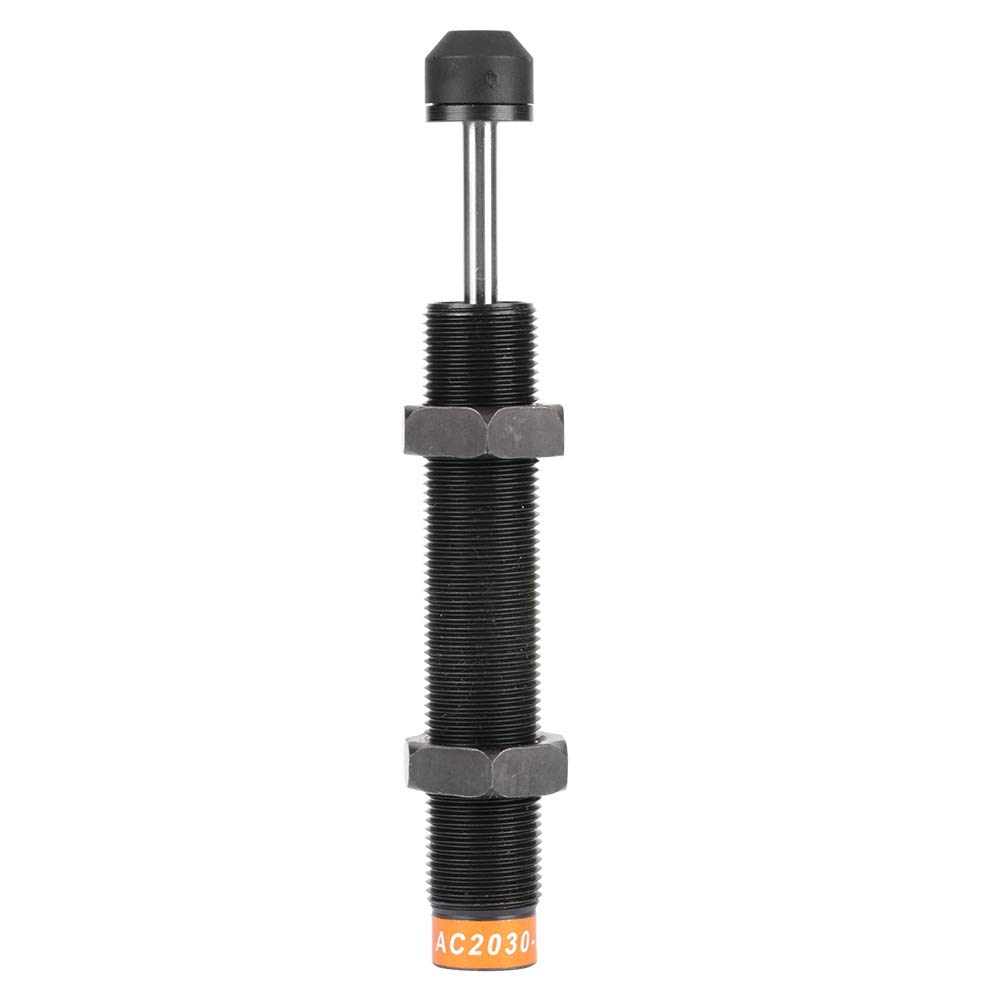

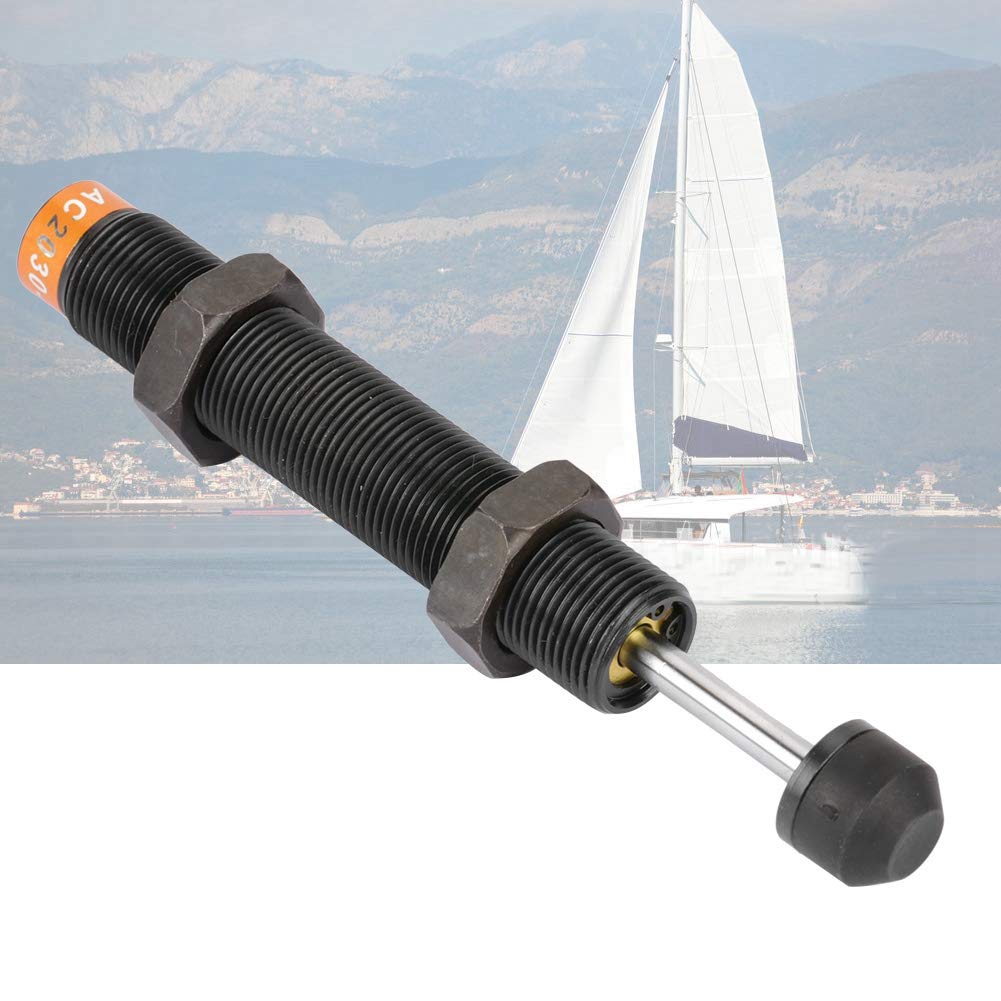

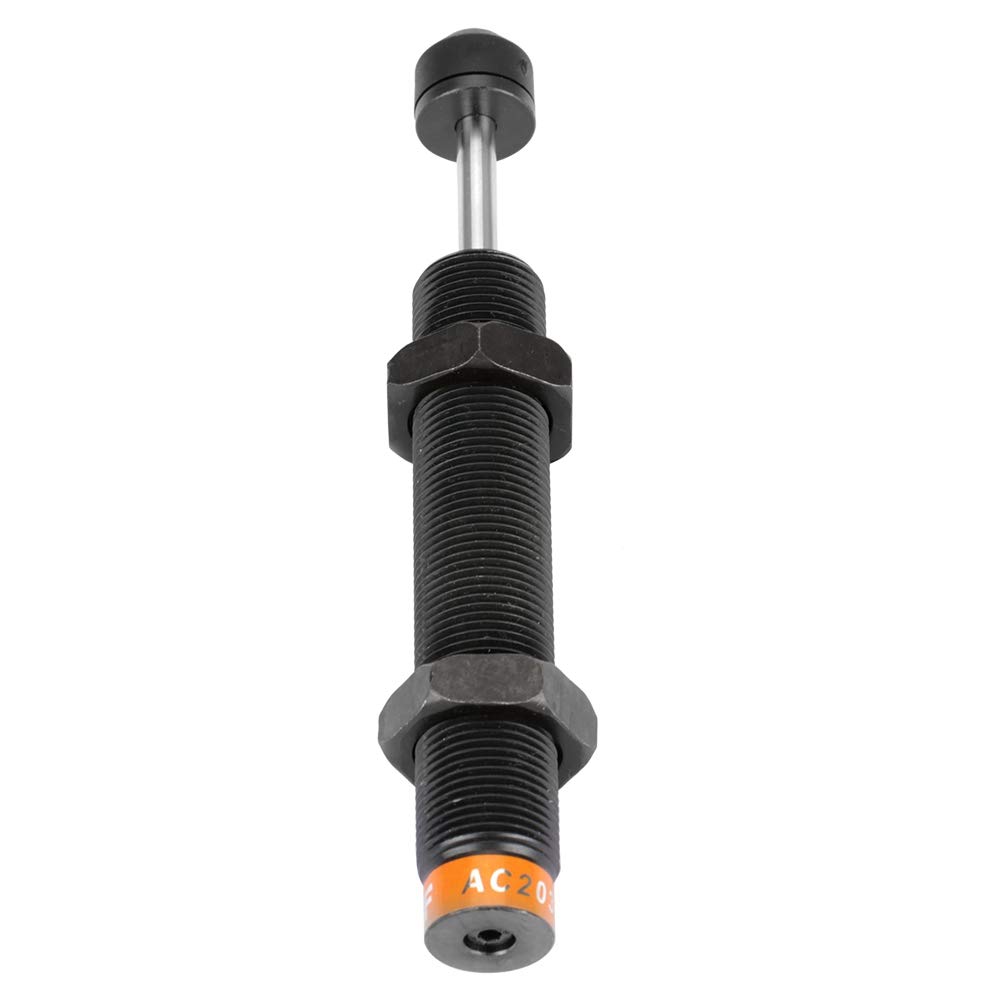

Oil Pressure Shock Absorber Alloy Hydraulic Buffer Stroke Oil Pressure Shock Absorber with Stainless Steel M20 x 30 mm Stroke for Pneumatic Air Cylinder AC2030-2

• 【self-pressure-regulation】This shock absorber has a soft shock absorbing effect because the self-pressure-regulation function.

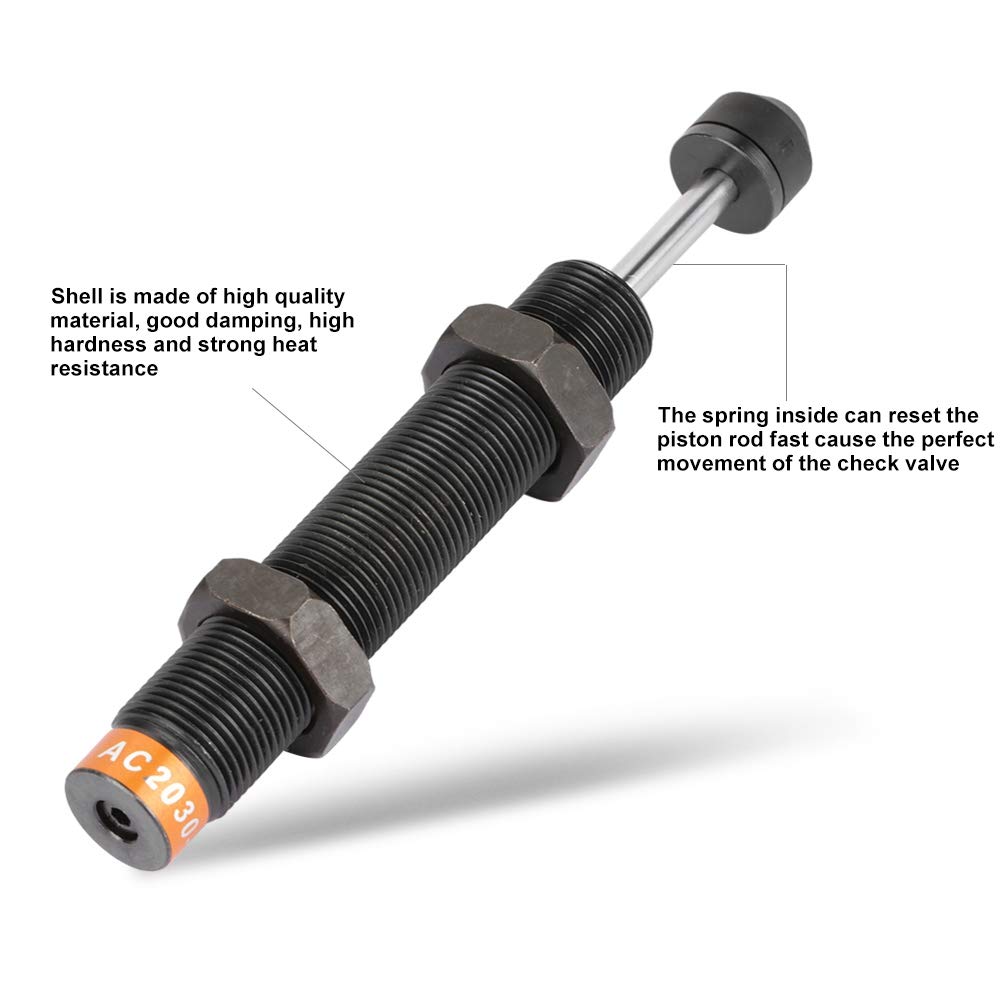

• 【alloy + stainless steel】Made of high quality material, good damping, high hardness and strong heat resistance.
• 【reset fast】The spring inside can reset the piston rod fast cause the perfect movement of the check valve.
• 【-10~80】This shock absorber works under -10~80, fit for different situations.

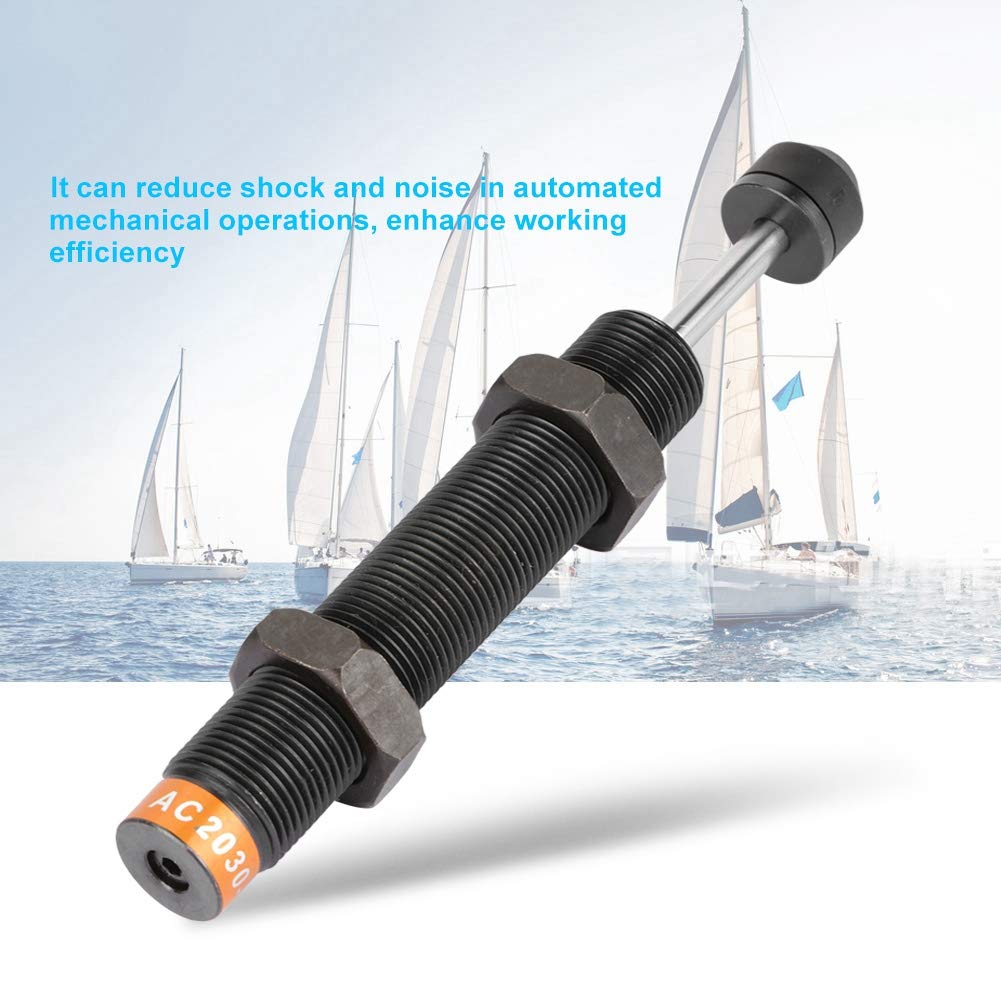

• 【effective】It can reduce shock and noise in automated mechanical operations, enhance working efficiency. Greatly reduce the shock and improve the stability.

Specifications: Material: Alloy + Stainless steel Color: Black Stroke: 30mm Max absorbed energy: 50Nm Energy absorb: 48000Nm/h Effective weight: 40-800WE(KG) Allowable speed: 1.0-3.5m/s Working temperature: -10~80℃ Thread: M20 Length: Approx. 157mm / 6.18inch Weight: Approx. 255g Package Included: 1 x Oil Pressure Shock Absorber Note: Please aim the impactor at the center of the shaft. Do not remove the front cap to use, because remove the cap will lengthen the piston rod and make it hit to the bottom, this may break the bottom. It is strictly prohibited to spray paint on the tube teeth and shaft hub, otherwise it will affect the heat dissipation effect and leak oil. Do not make the piston rod rust and other foreign matter. If there are two or more vibration absorbers are installed on the same side, Please confirm the synchronization. For safety, do not break it up to use.
