Ohamtes Momentary Push Button Switch 24V 22mm Mounting Hole Red LED DPST Switch for Electrical Equipment, 2 Pcs

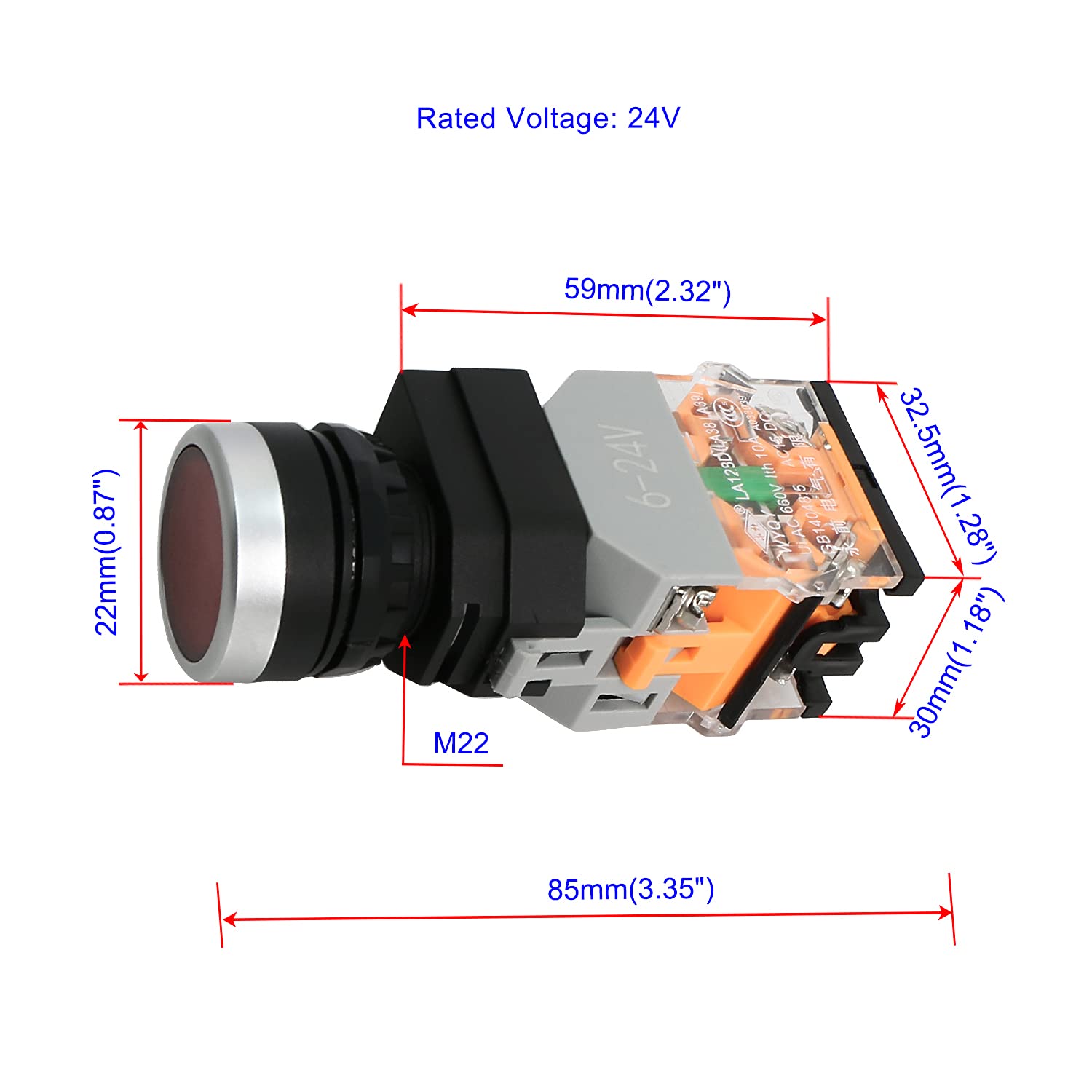

• Mounting Hole Dia: 22mm, Button Dia: 24mm, Total Length: 84mm, Protection Degree: IP20, Button Type: Flat.
• Widely used in electrified railway and power grid line insulation protection, device, control box or any DIY electrical controls.
• Switch Rated Voltage & Current: Ui: 660V, lth: 10A, Lamp Voltage: 6~24V.
• Contact Type: DPST 1 NO 1 NC. When momentary Button pressed, automatic reset, Refer to the wire diagram.
• High strength PC material, excellent electrical insulation, flame retardant, non-toxic, durable.

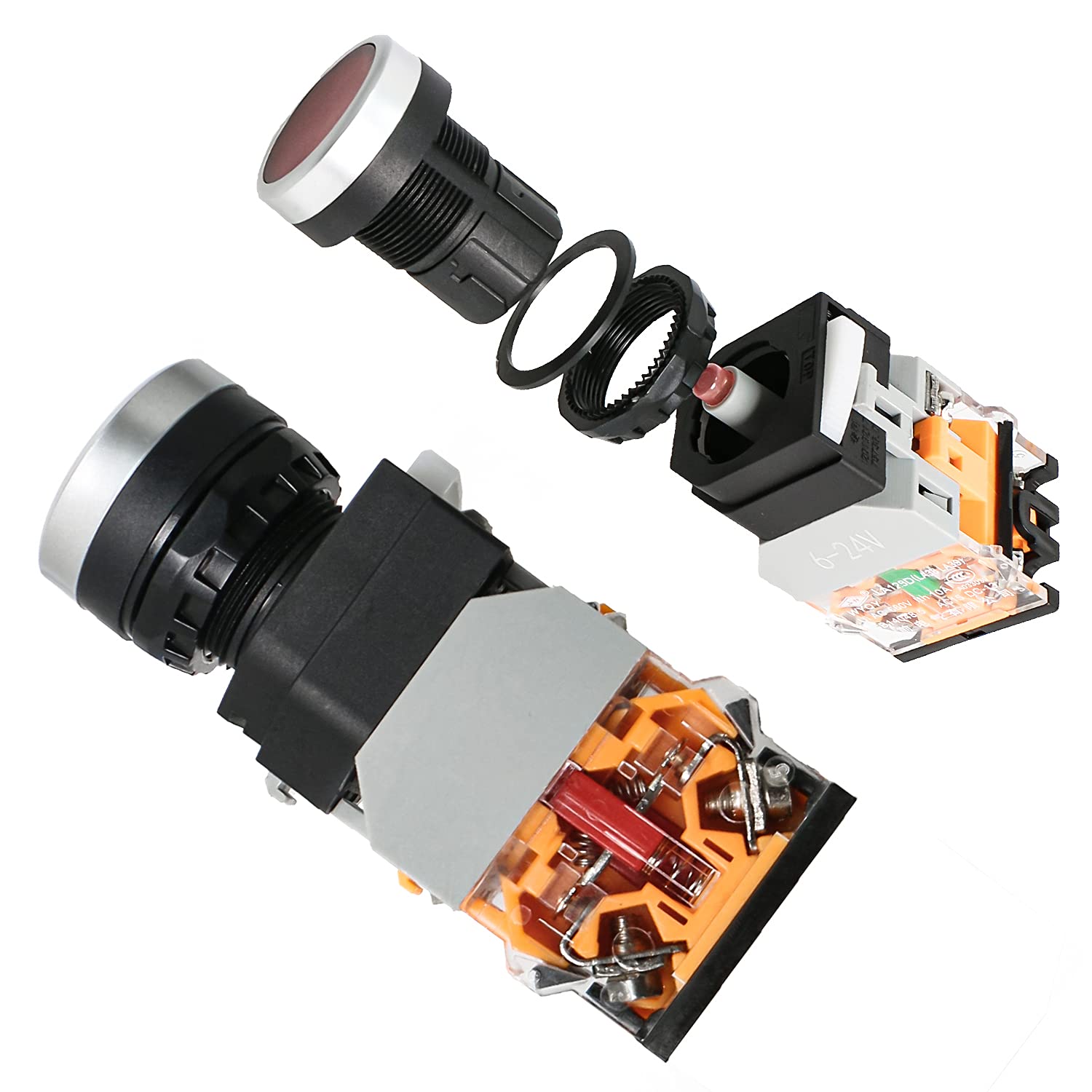

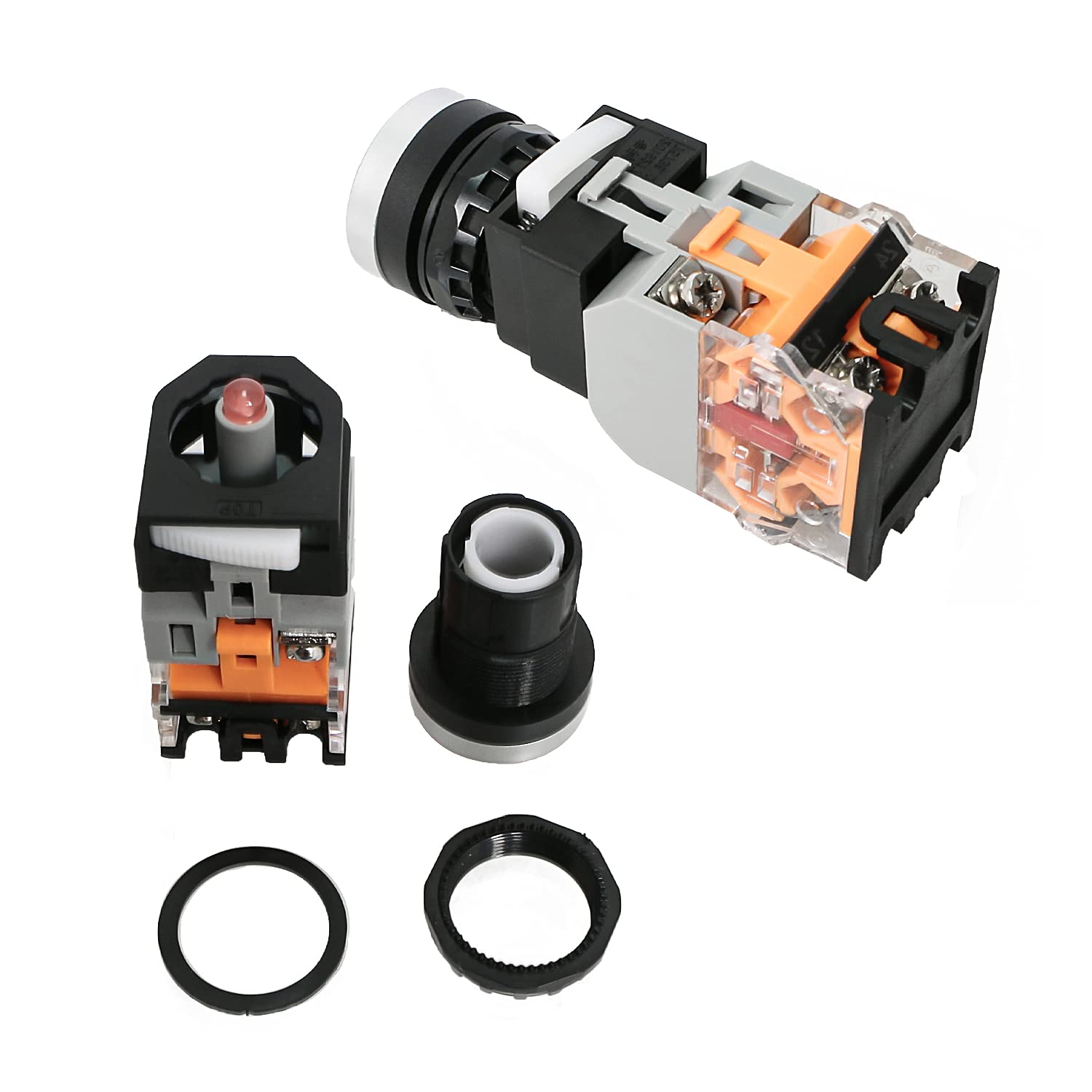

Aoje-Link Push Button Switch Push button switch, also known as control button, is a low-voltage electrical appliance that can be manually and generally reset automatically. Button switches are usually used in circuits to issue start or stop commands to control the on and off of coil currents such as electromagnetic starters, contactors, and relays. The button switch is a main electrical appliance with a simple structure and a very wide range of applications. Specification: Mounting Hole Dia: 22mm(0.87") Button Dia: 24mm(0.94") Operation: Momentary Switch parameter: Ui: 660V, lth: 10A. LED parameter: 6~24V Switch Material: PC Protection Degree: IP20 With LED Lamp How To Install: Press and hold the white button, unplug the button head, remove the nut and gasket of the button head, put the button head into the upper hole of the control panel, lock the nut and gasket at the bottom of the control panel, and put the lower half of the button into the bottom of the control panel. Note: When momentary Button pressed, automatic reset. Use this switch to ontrol the electromagnetic starter, contactor, relay and other automatic control electric circuits. Package Include: 2 x Aoje-Link Push Button Switch
