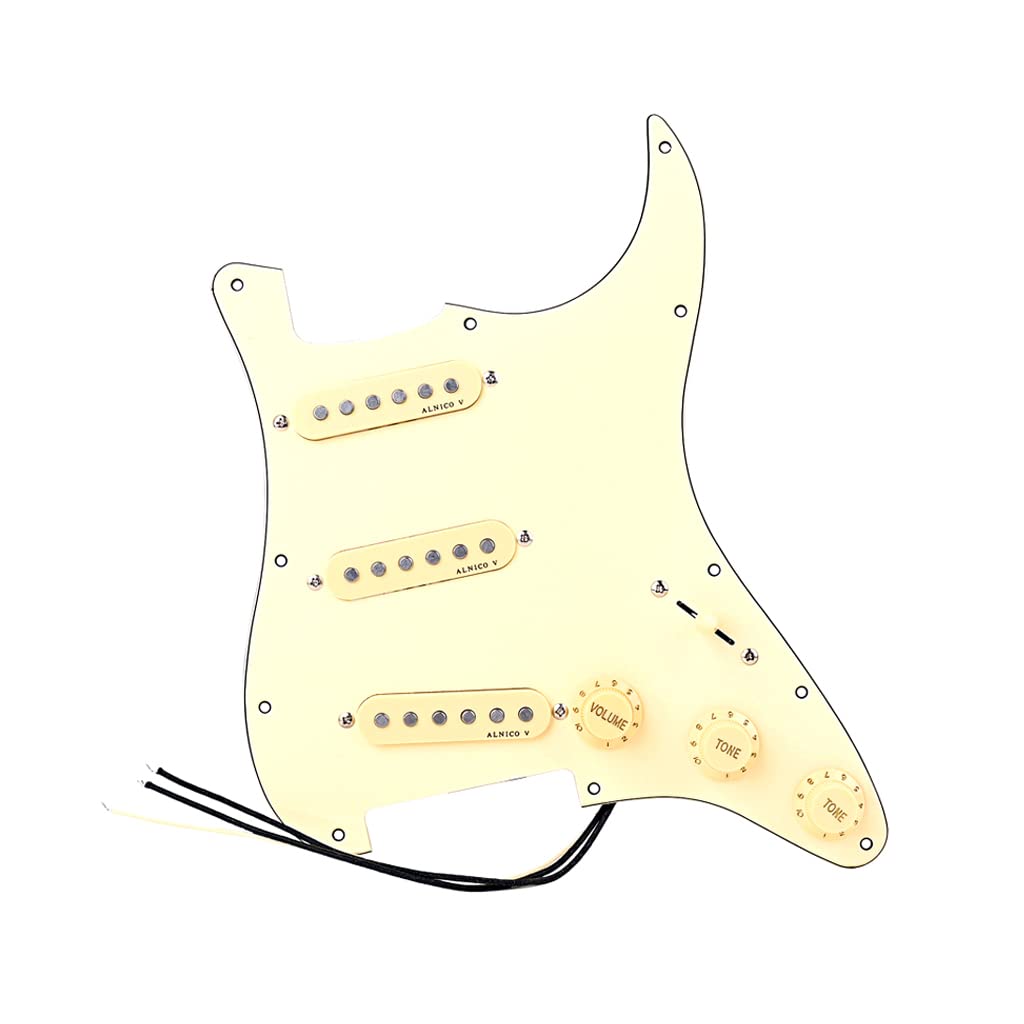

Ogdni 3-Ply SSS Prewired Loaded Pickguard with Alnico V Pickups Kit for Strat Electric Guitars Replacement Parts

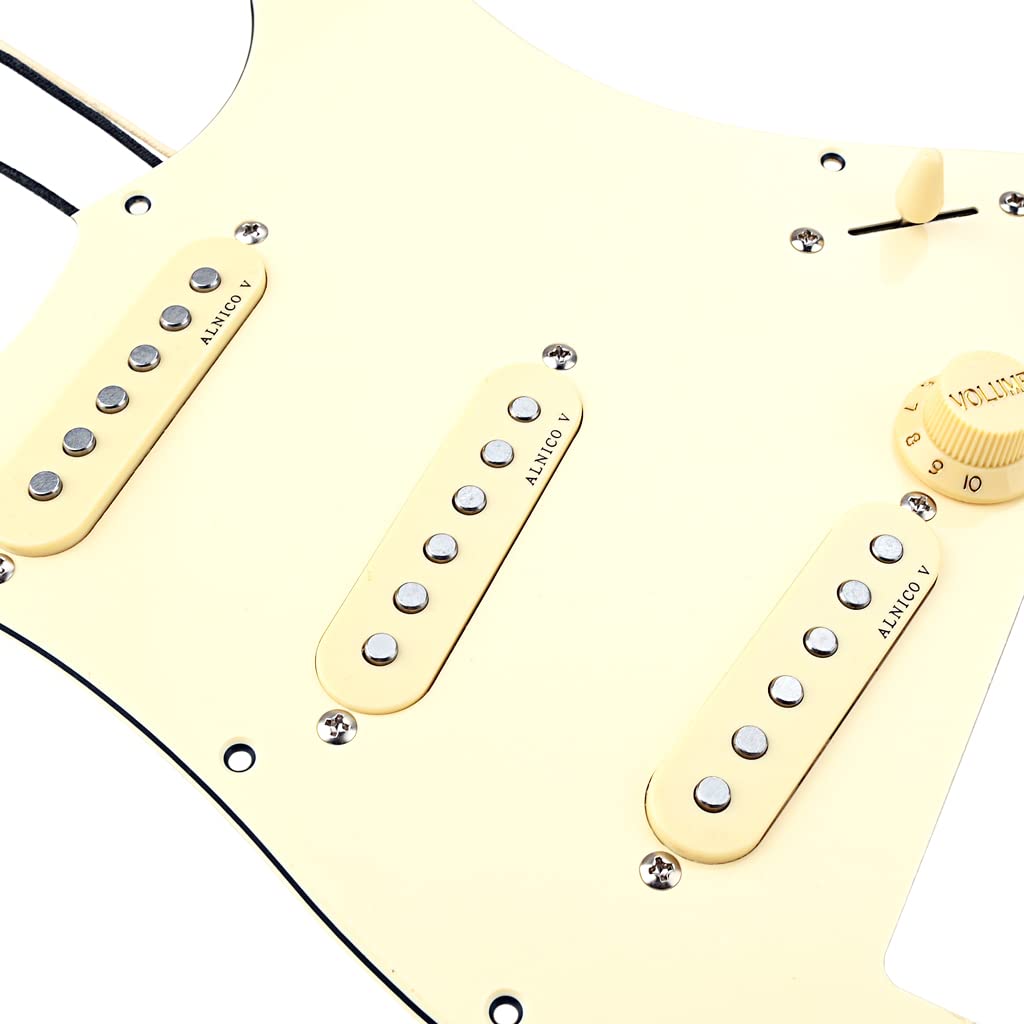

• ALNICO V PICKUPS SET - beveled pole piece top, removable pup's cover, stylish clear bobbins; output of neck pickup :7.4KΩ; middle pickup:8.6KΩ (reverse-wound to eliminate hum); bridge pickup R:9KΩ

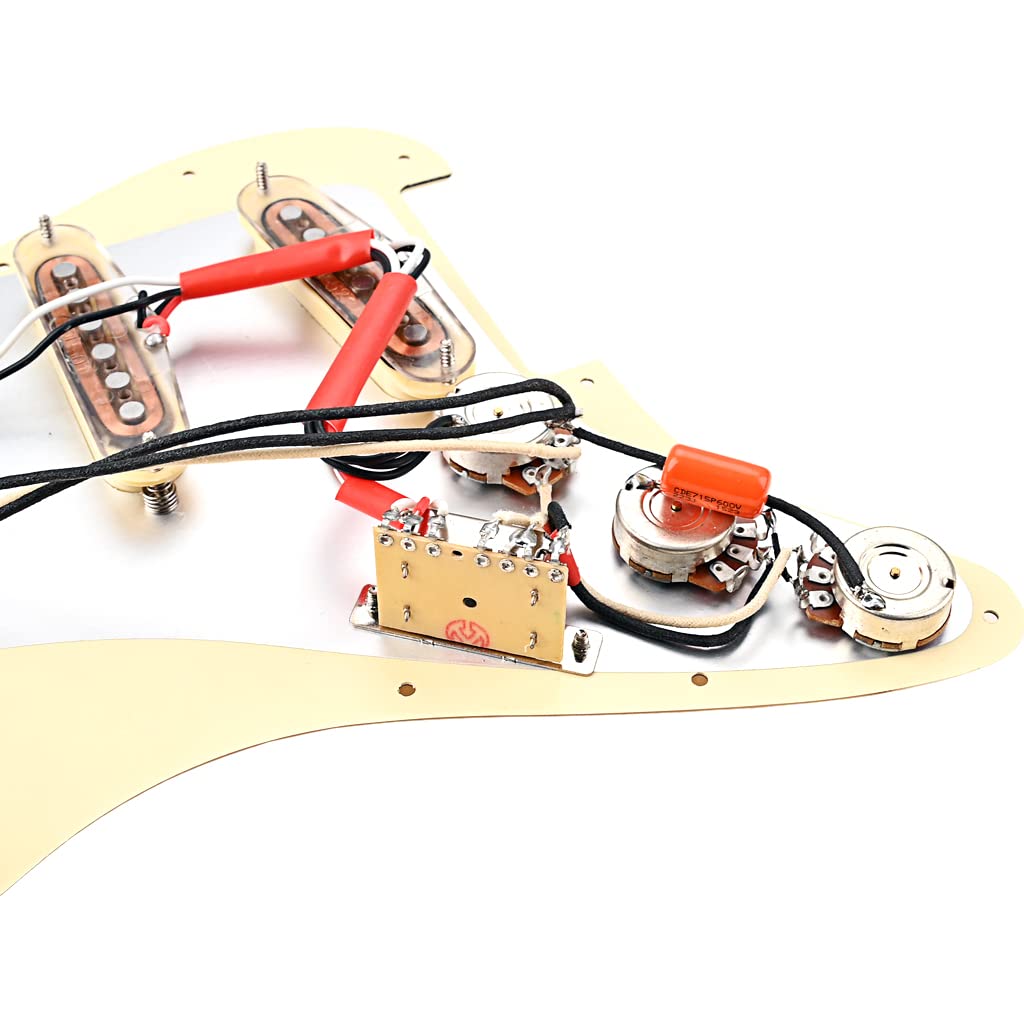

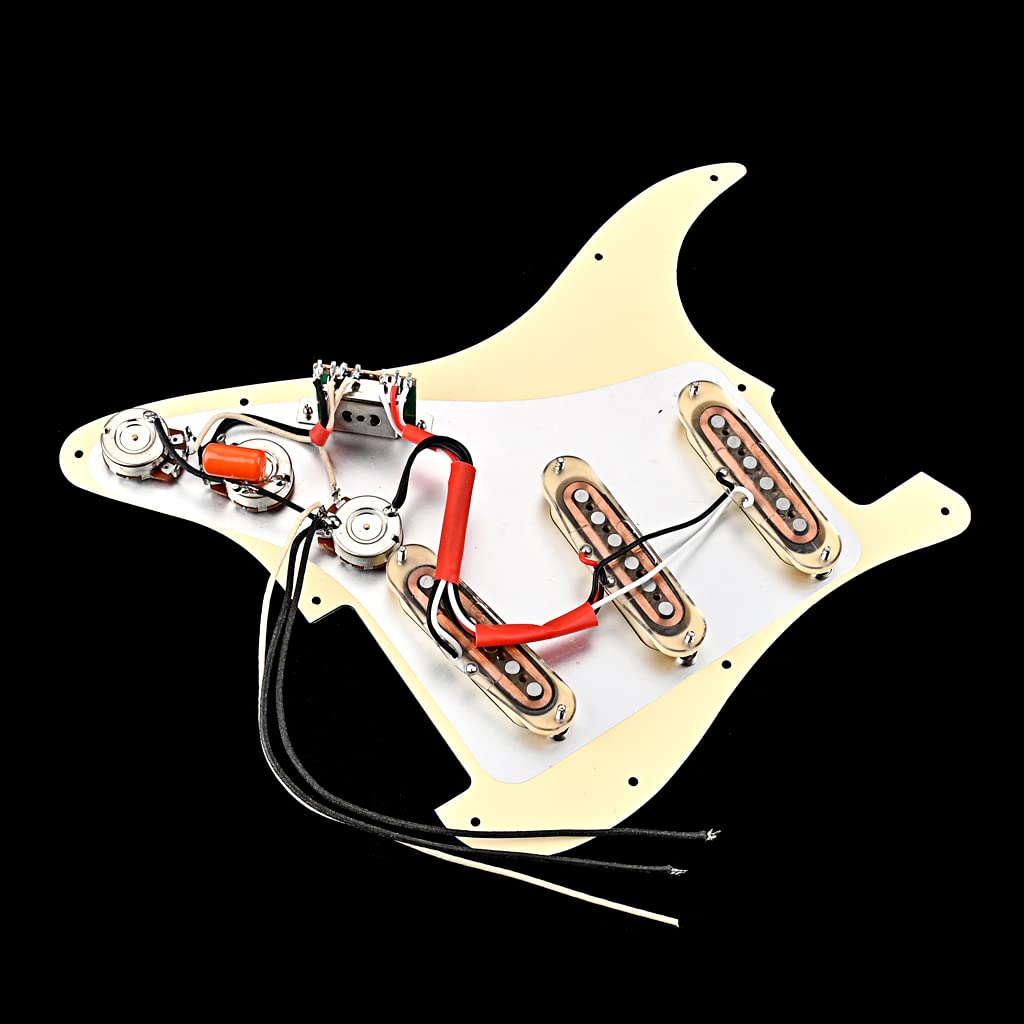

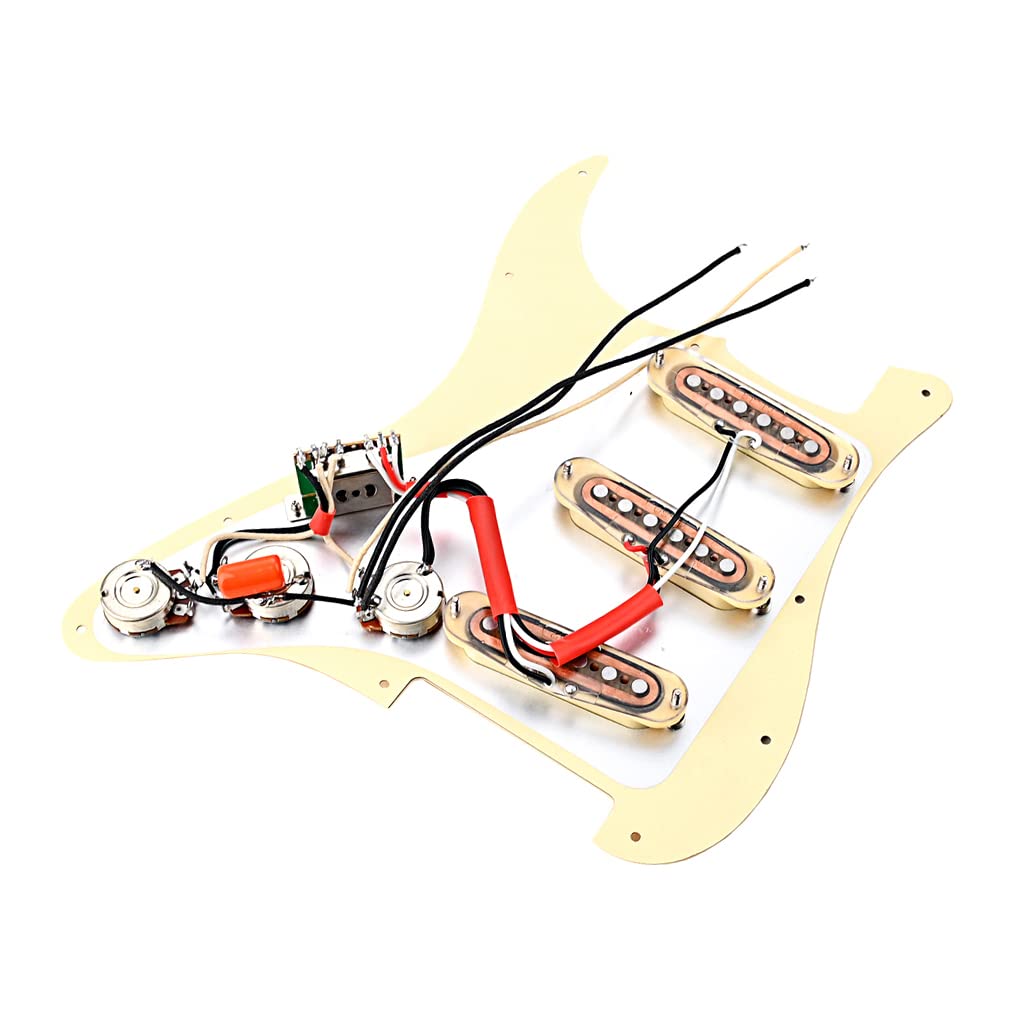

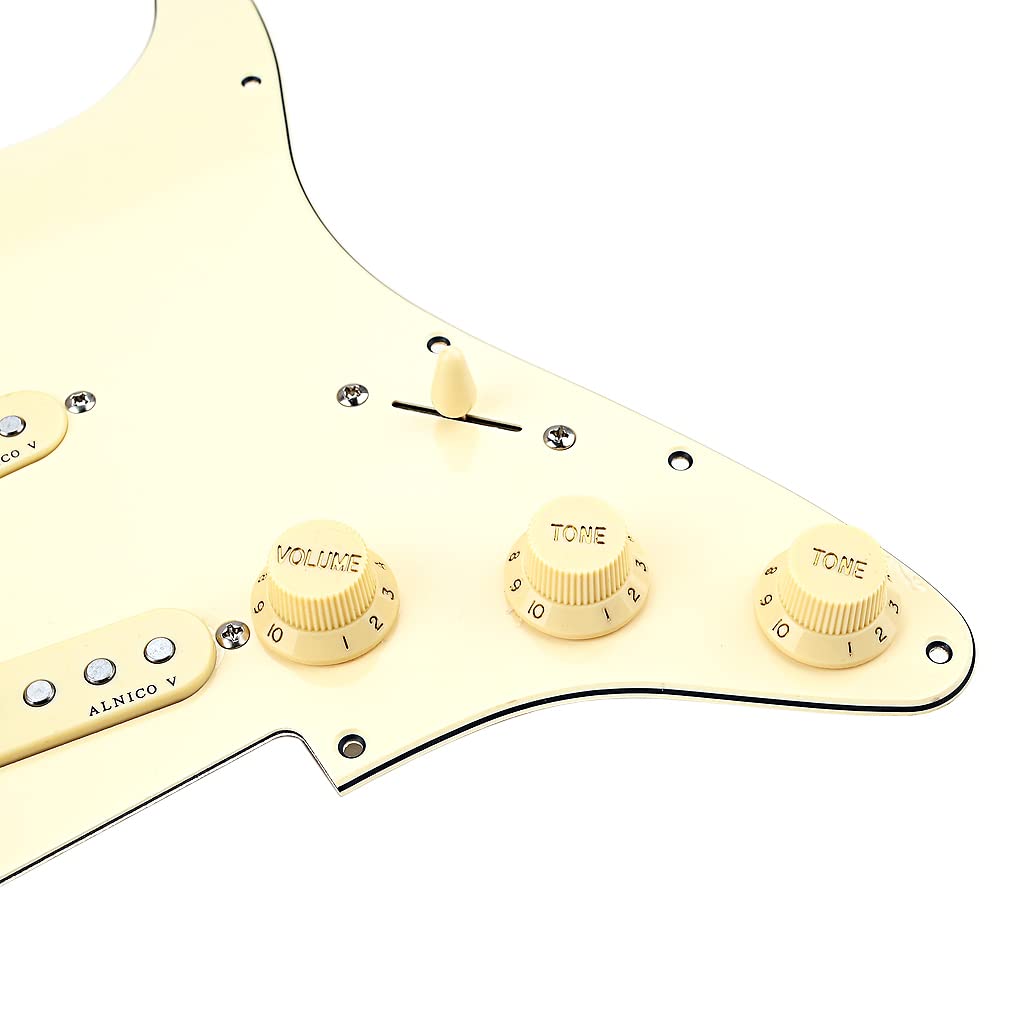

• JUST DROP INTO YOUR ST STYLE GUITAR - pick-ups and controls (5-position pickup selector switch, 1 volume and 2 tone pots) were fully loaded to the scratchplate; minimum soldering: simply connect 2 black wires to ground and white wire to hot of output jack
• ELECTRONICS - import 5 way pick-up switch; large A250/B250k pots; 0.022uf, 600V orange capacitance, (please contact us if need wiring diagram)
• APPLICATION - fit Fender ST or SQ series electric guitars with 11 mounting holes, standard SSS pickup configuration; 3-ply pick guards with large back shielding, please check the specifications on photo gallary, cream

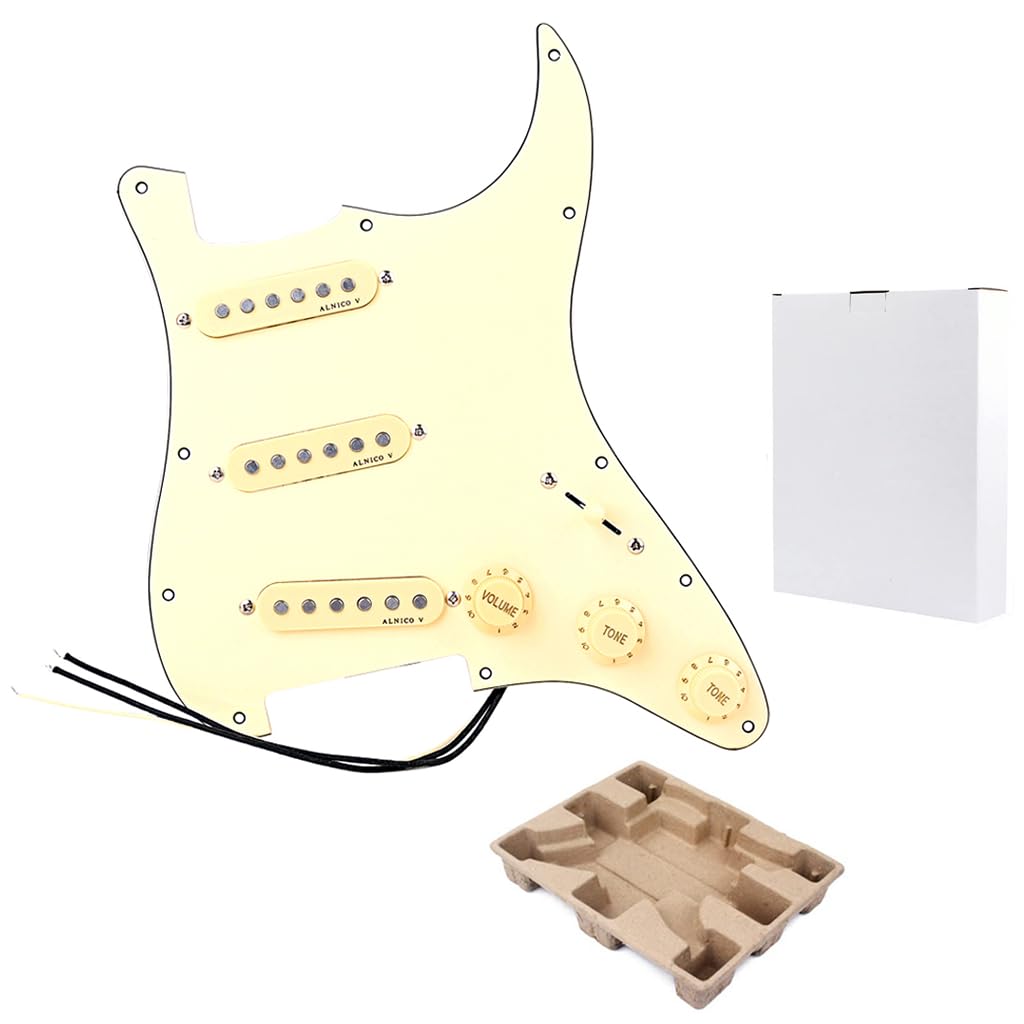

• PACKAGES - included 1 x prewired stratocaster style guitar pick guards; 1 x backplate; 17 x mounting screws

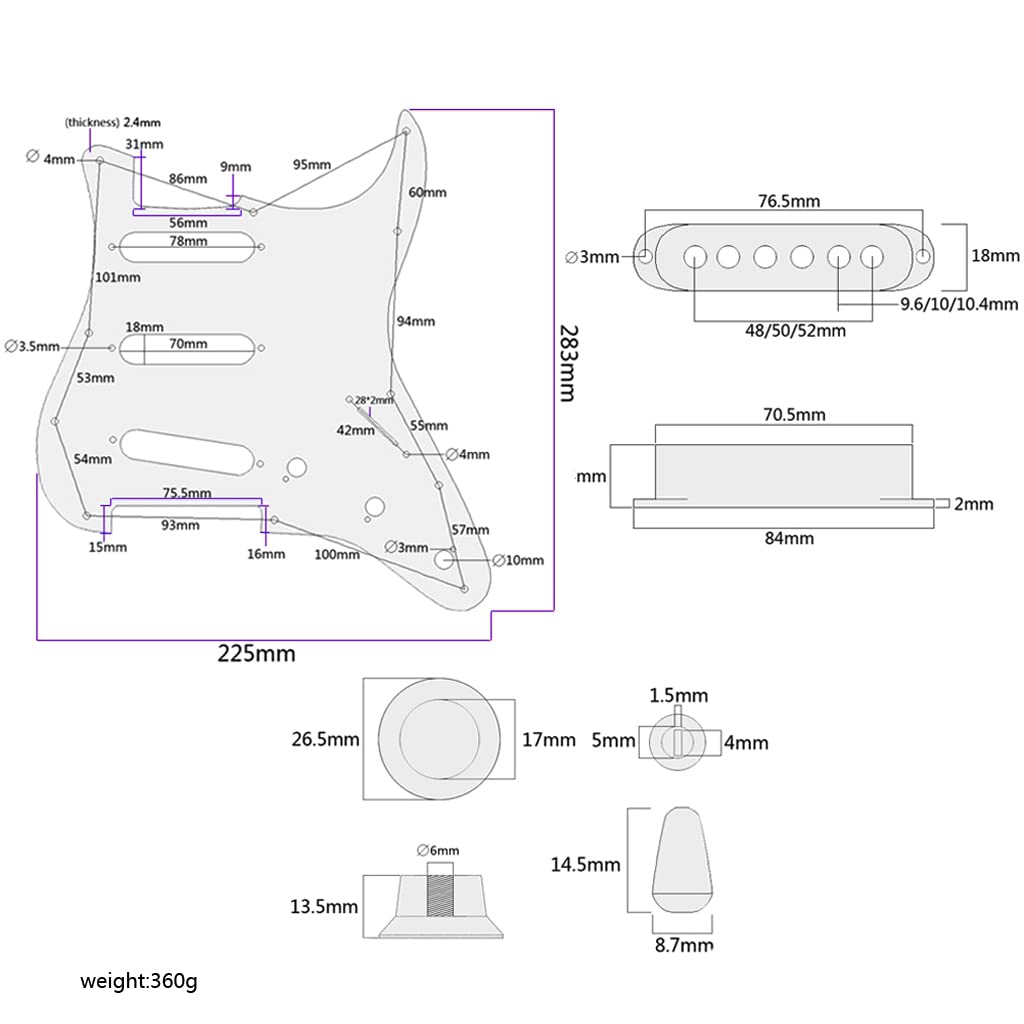

Specifications: - Material: Copper, Plastic, Alnico - Color: Yellow - Pickups Resistance: Neck 7.4K;Middle 8.6K;Bridge 9K. - Pickups Pole Spacing: 50mm (Neck); 50mm(Middle); 52mm(Bridge) - ️2T1V control knobs,two A250k pots for tone,B250k pot for volume. - ️5-way switch and 223J 600v capacitor. - Size: Approx. 28.3 x 22.5 x 0.22 cm (L x W x H). Package Included: 1 x Loaded Pickguard 11 x Pickguard Screws
