Offgridtec© Solar Panel Carrier 5 W - 30 W, Black, Bracket for Solar Panel

• Solid wall or Mast mounting kit for 5-50 W solar panels.
• Made of black, anodised aluminium.
• Includes all small parts like clamps, nuts and washers.

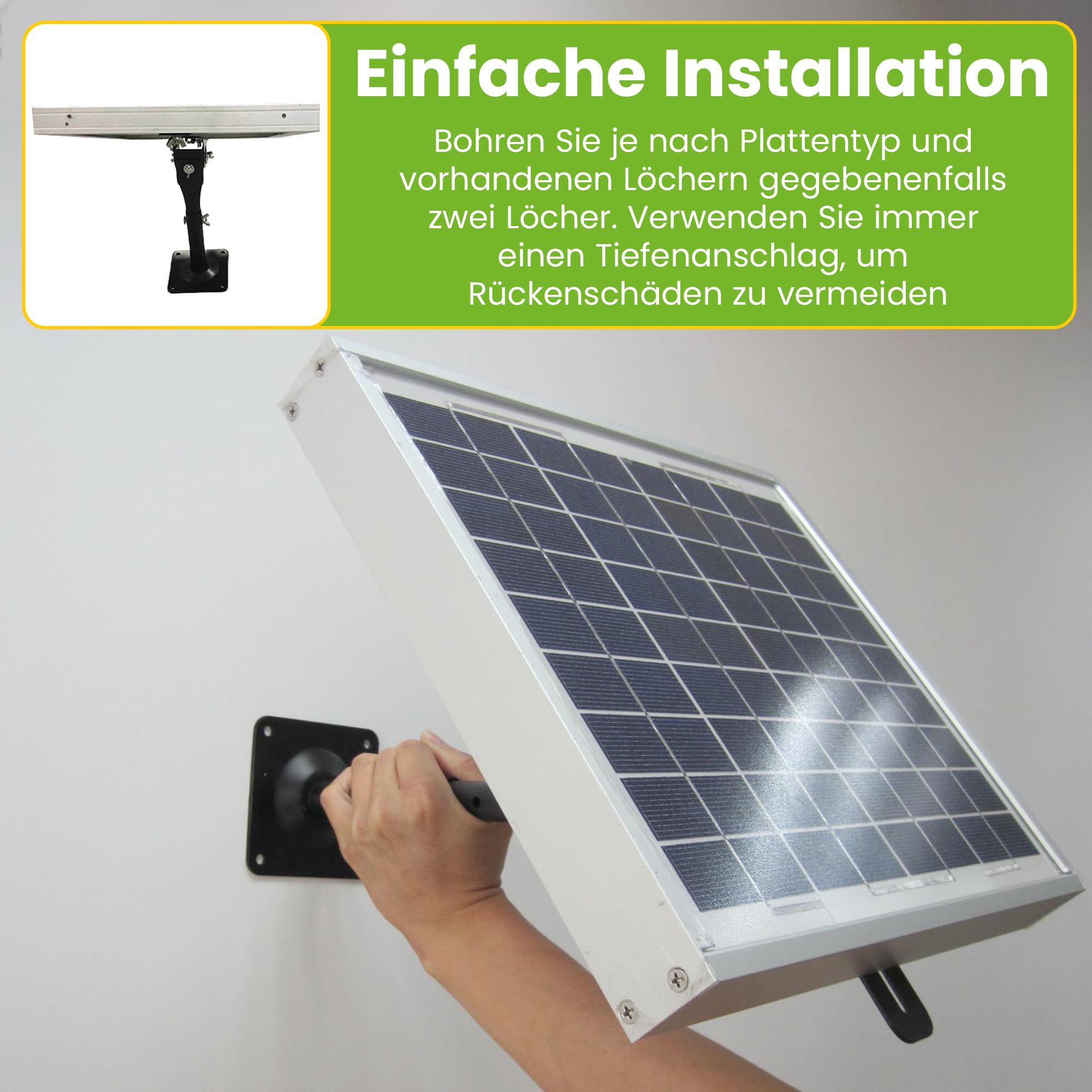

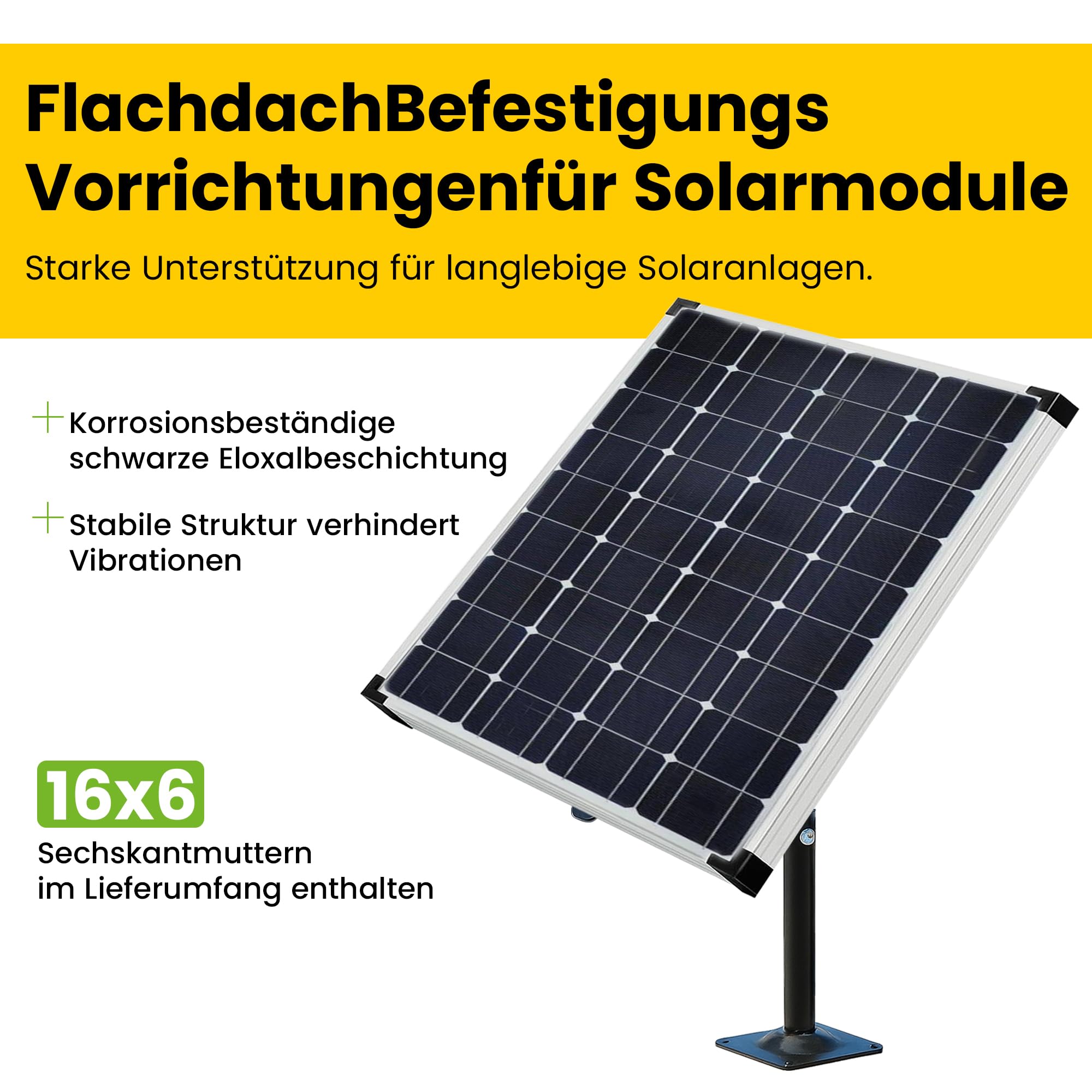

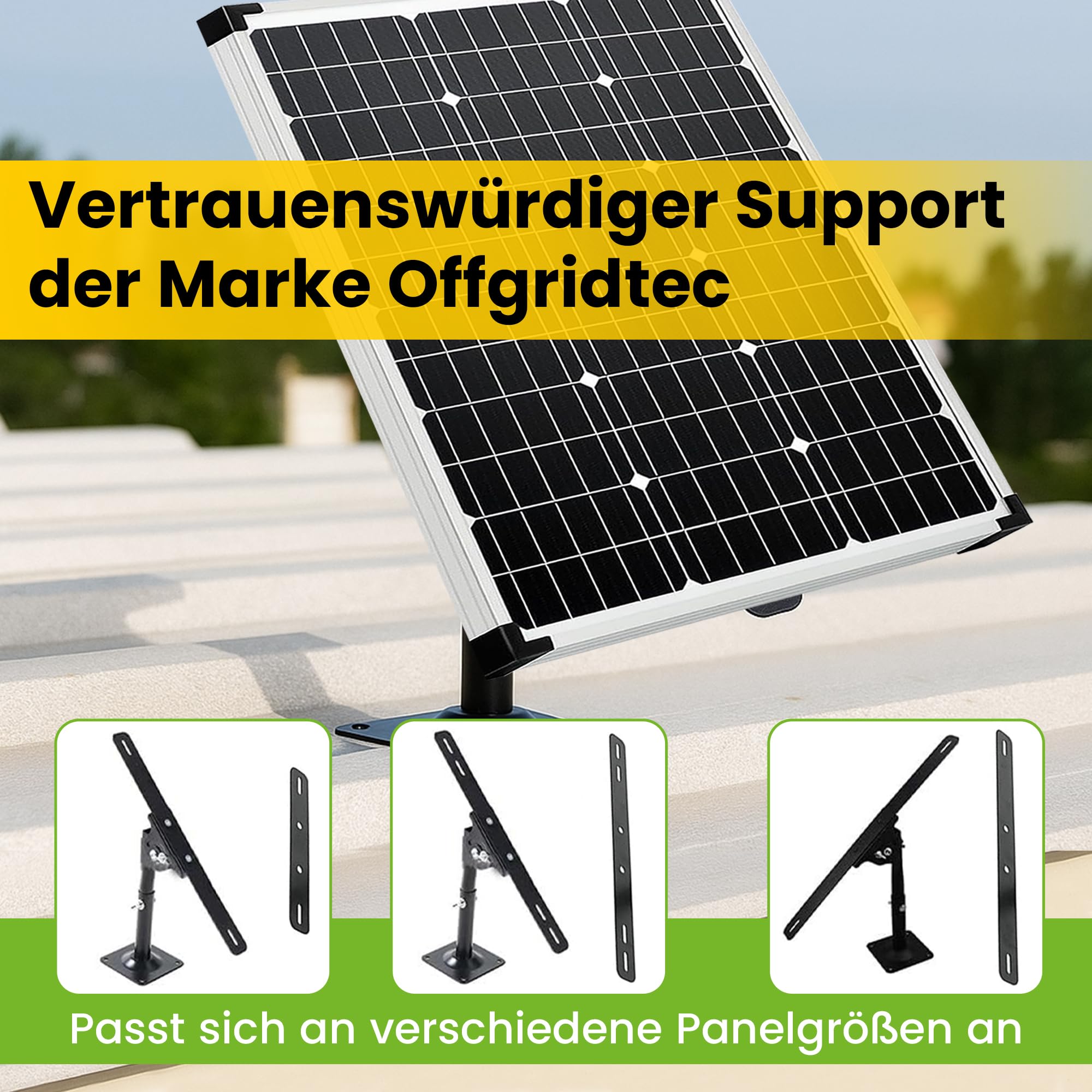

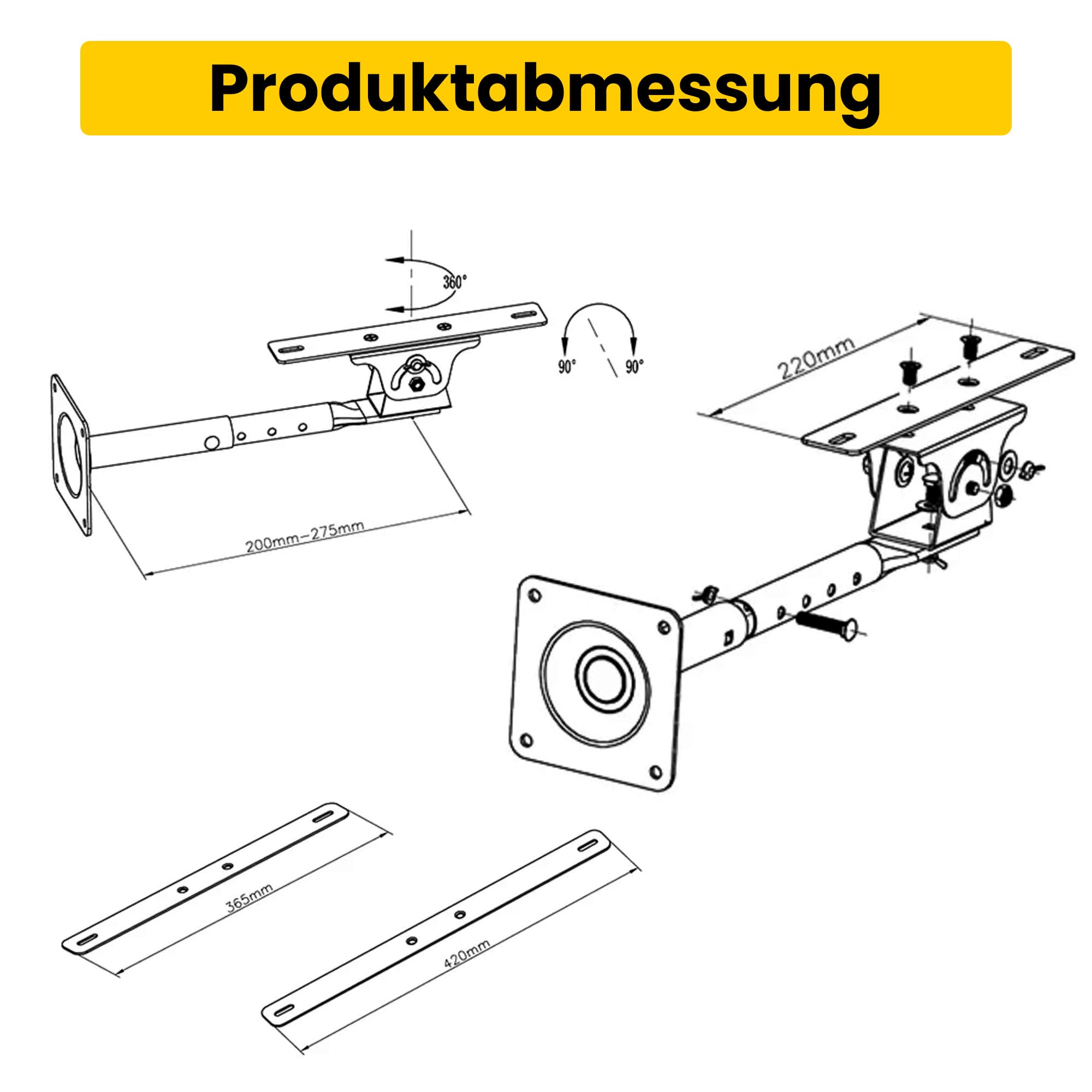

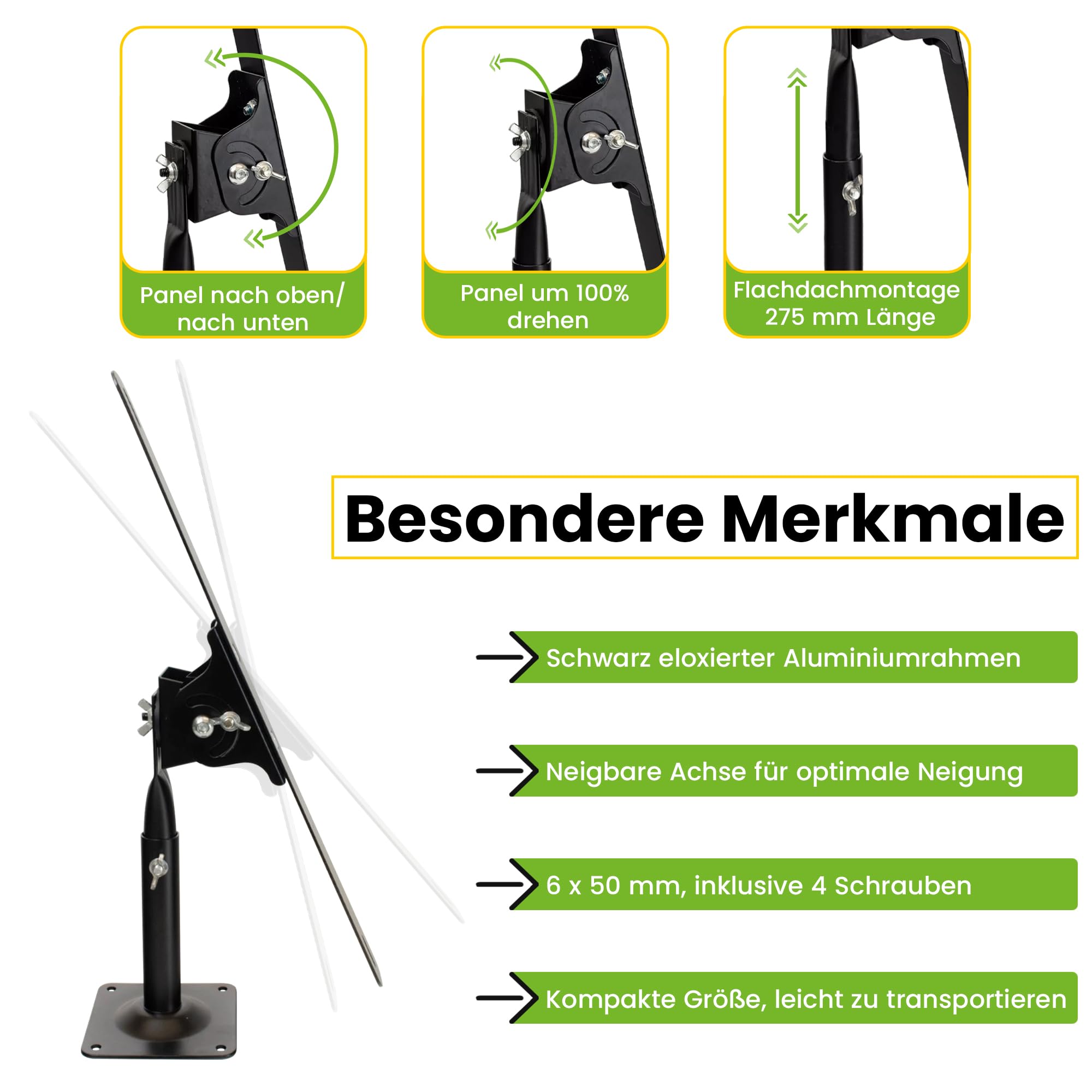

With this solar panel support stand, you can bolt your module "upright" onto a flat roof or any other surface with a corresponding load capacity. In the base, the set consists of a stand with tilting carrier axle. In addition, there are the different length module adapter strips with which the module can be attached to the carrier. The included module adapters are suitable for solar panels in the power range of 5-30 W. Thanks to the flexible tilt angle of the bracket, optimal alignment of the solar panel can be achieved. The carrier itself is connected to the surface by four drill holes. Offgridtec dowels and screws for mounting in reinforced concrete are included in the package. You can also mount the carrier with appropriate screws on wooden beams or stone walls. A pair of M6 wing nuts with snap ring and washer + matching 16 x 6 hexagonal nuts for screwing the module to the adapter strip are also included. Assembly note- Installation instructions: please note that, under certain circumstances, you will need to drill 2 holes on the frame of your solar module to screw the module onto the bracket. This depends entirely on the type of solar panel and of the factory-made drill holes. If you need to drill into the frame, we suggest you do not forget to use a depth stop when drilling in order not to damage the back of the solar panel. Box contents: module stand with tilting axle for optimal module tilting - module adapter strip 22 cm, 36.5 cm, 41.5 cm - galvanised wing nuts, snap rings and washers as well as 4 pieces. 6 x 16 mm nuts for module mounting on the adapter strip - 4 pieces 6 x 50 mm screws + dowels for mounting in brick walls or reinforced concrete walls.
