OCS.tec MID DIGITAL WATTMETER S0 IMPULSE & RS485 MODBUS ENERGY METER kWh DIN-RAIL ZW4

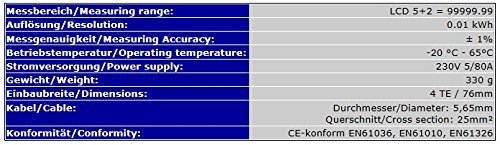

Product description Our TMT-353B-MID is a MID approved single phase 0,25-5(80)A wattmeter laid out for the fast installing on DIN rails and is therefore suitable for the installation in almost all fuse and distribution boxes. Ideally for the control of the used kWh houses, power sections or individual ranges. Ideally for the control of totally used kWh in houses, power sections or individual ranges. The a.c. meter is conform to EN61036 and fulfills the CE requirements as well as EN61010 and EN61326. It belongs to the highest accuracy class 1. The total power consumption can be determined due to its 5+2 digit display on a single view. Technical details: Voltage: 230 V AC +/- 30% Maximum current: 0,25 - 5 (80)A Measuring range: 0,05 ... 80 A Nominal frequency: 50 ... 60 Hz Power consuption: <0,8 VA / 0,4 W Operating temperature: -20°C +65°C LCD-Display 5+2-digit LED-impulse signal (red) S0 interface 1.600 Imp./kWh (ti = 90ms) Compatible with "S0" Din-Rail 43864 Standard, (27V, 27mA) Accuracy class B (Measuring error <1 %) Dimension: 4 TE Maximum 16 mm² CE-Certificate MID accredited Manual: http://www.my-messgeraet.com/JOM/index.php/suche?searchword=zw4&ordering=newest&searchphrase=all&limit=30 Legal Disclaimer The offered article is not a toy in the meaning of the toy guideline (2009/48/EG appendix I, 2C + D) and is exclusively intended for persons in the age of at least 14 years.
