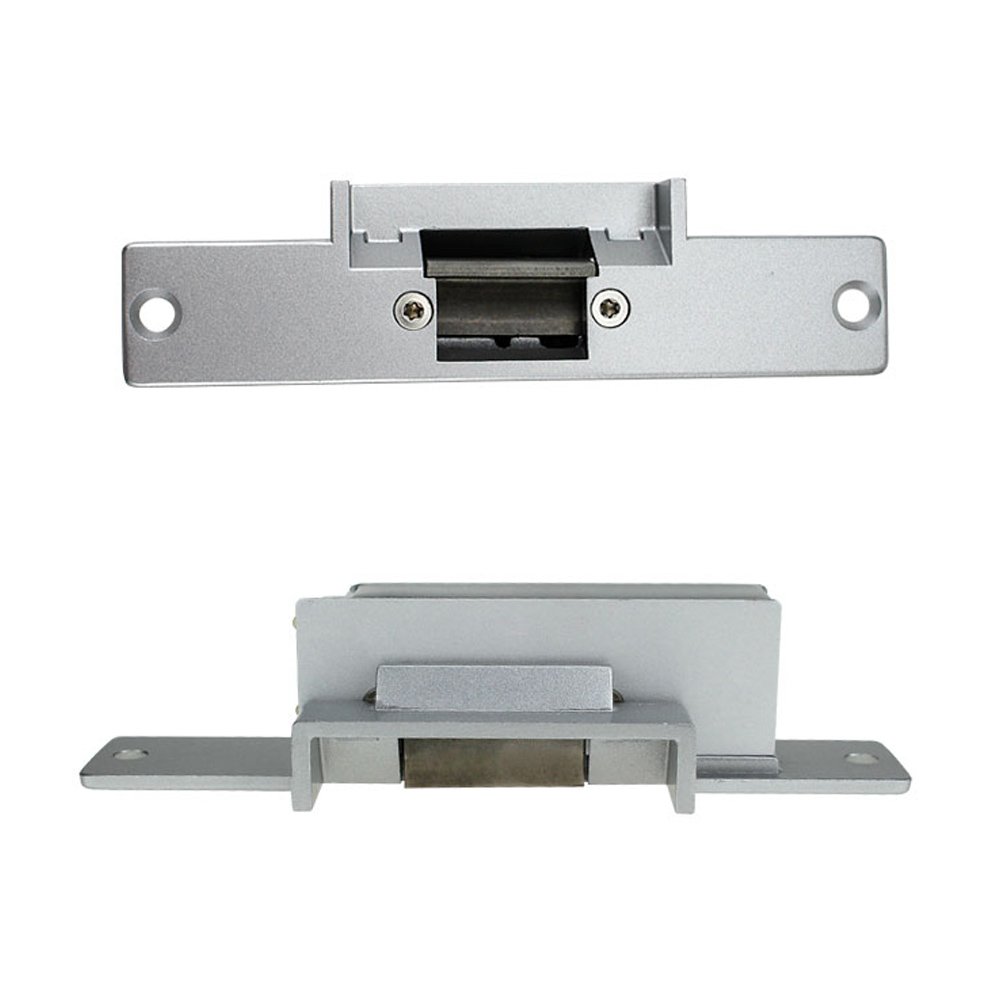

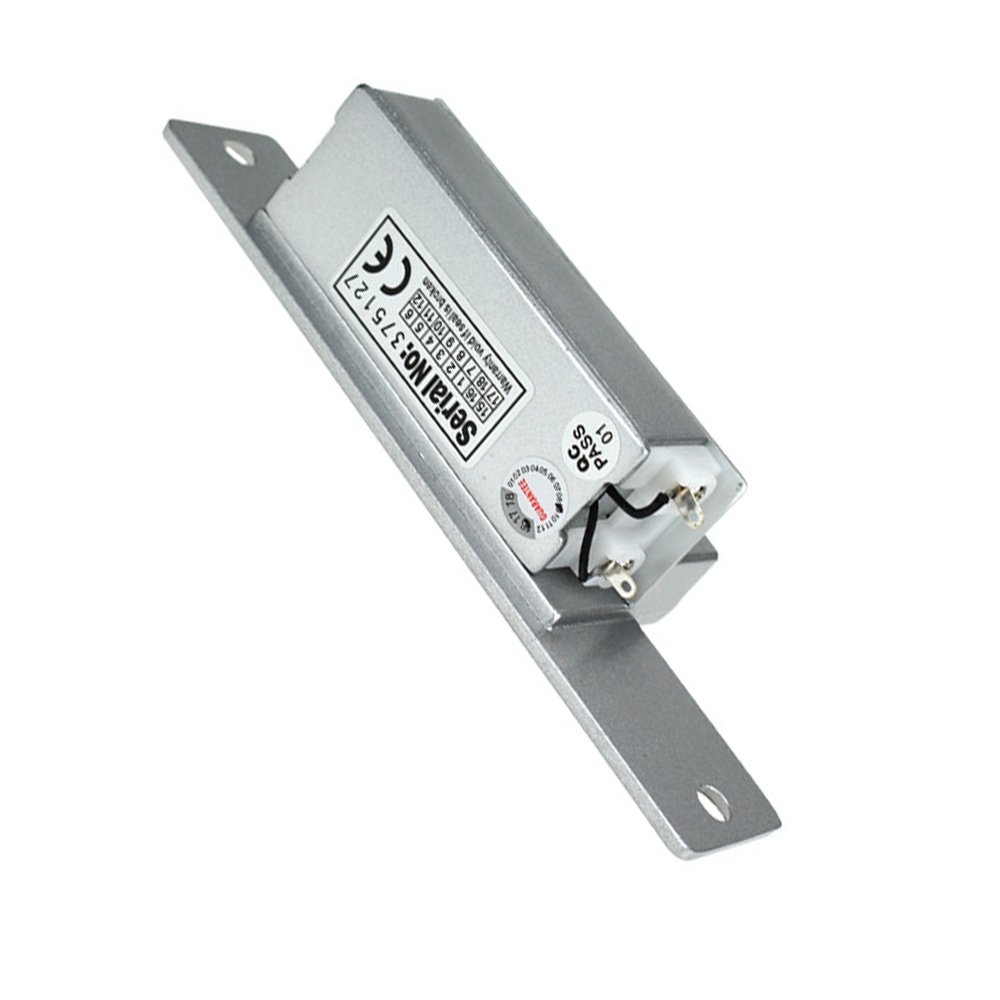

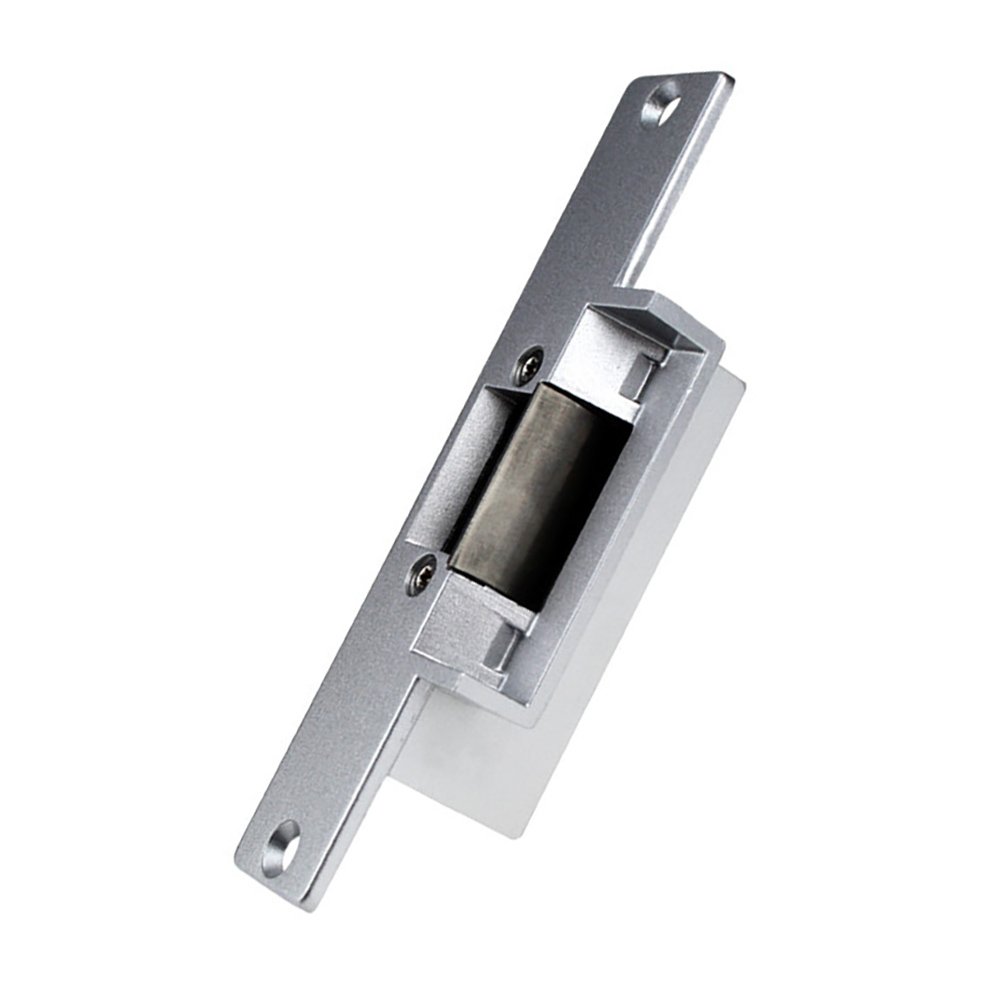

OBO HANDS 12V DC Fail Secure NO Type Door Electric Strike Lock for Access Control Smart Locks (NO Lock)

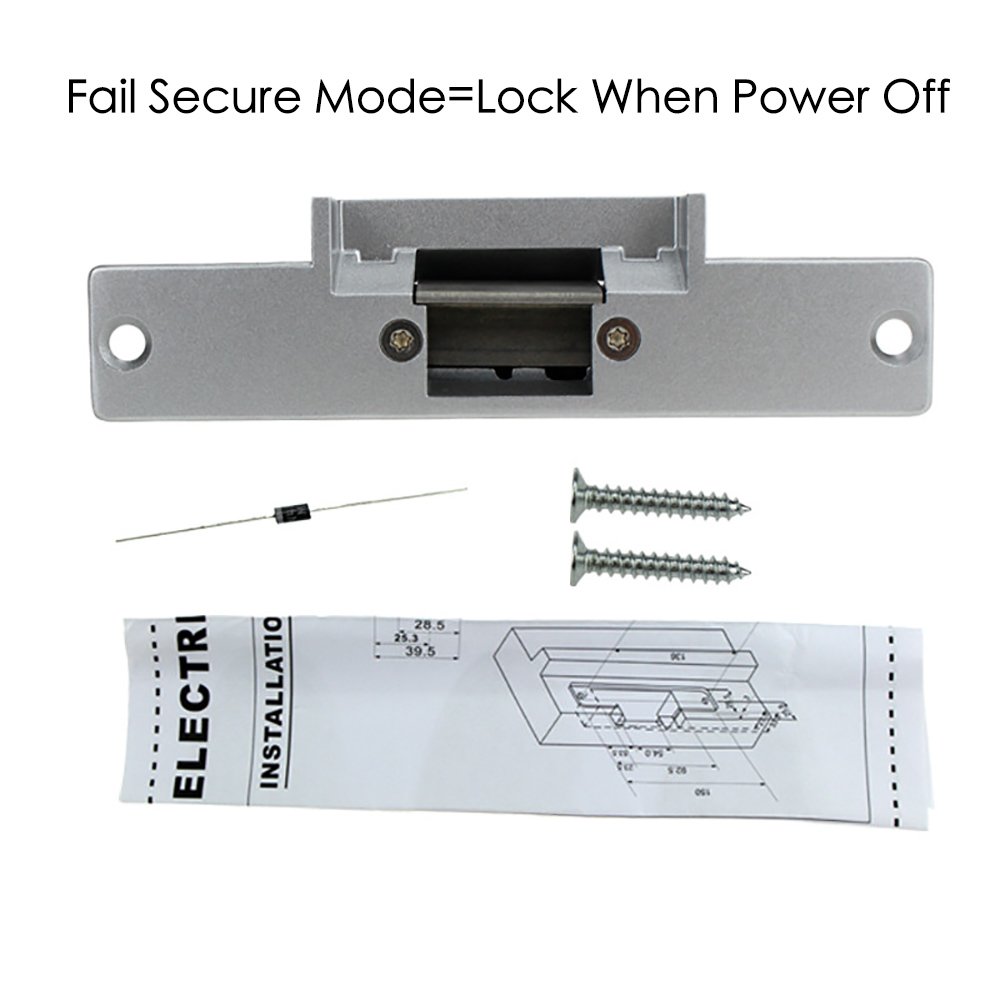

• 1. Fail secure, NO mode (Locked when power is removed)
• 2. Suitable for wooden door, glass door, metal door, fireproof door
• 3. Holding force: 500kg / 1100 pounds
• 4. Safety function: built-in voltage spike suppressor
• 5. It's a solenoid with one function, can be wired any way. With two contacts and no polarity requirement. (The lock will have polarity when a diode added.)

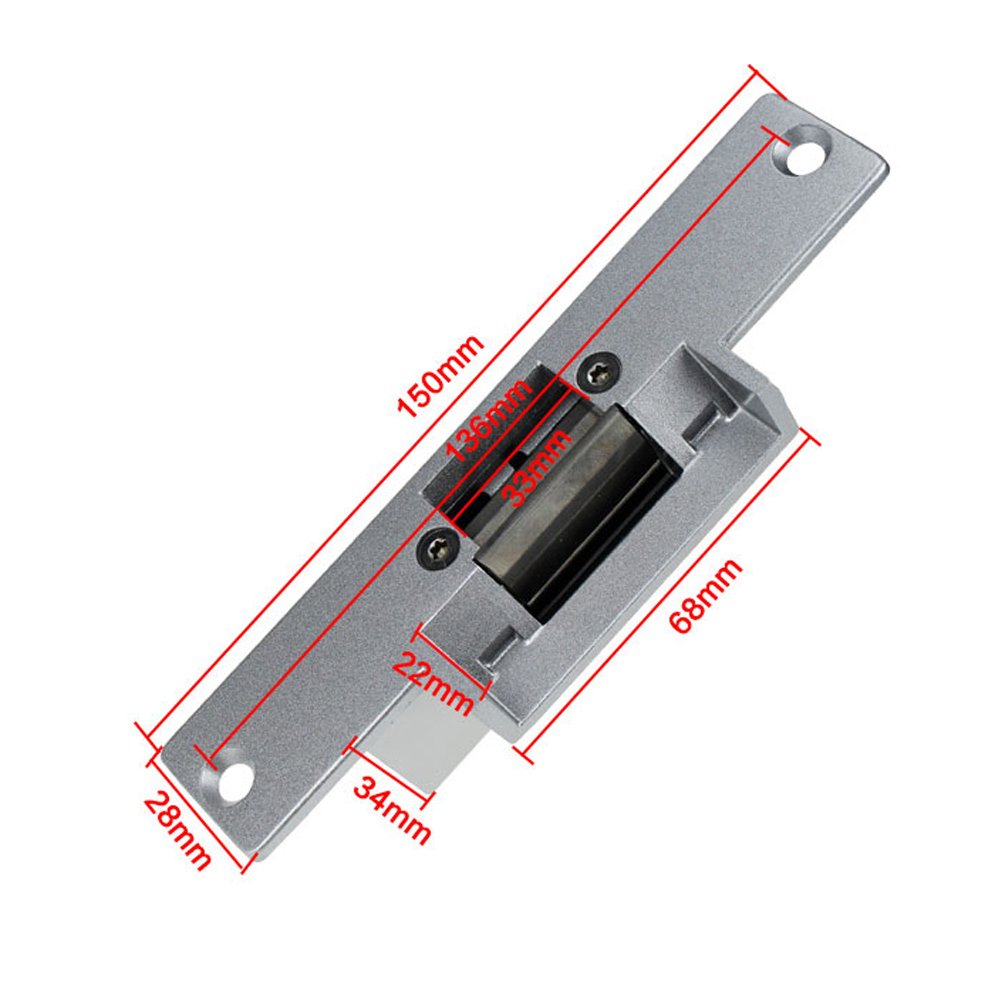

Advantage: Holding 500kg (1100 pounds) Aluminum, Stainless Steel Bolt Testing to 1000000 cycles High-Temperature Painted, Duable and Beatiful Artical CE Certificate by European Union, MA Certificate by China Public Security office Specifications: Lock Size: 150Lx39.5Wx34H(mm) It structure: Zinc alloy Finishing: Electroplating Holding Stength: 500kg / 1100 pounds Voltage: DC12V Current: 200mA Fail secure, NO mode (Locked when power is removed) Suitable For: Wooden Door, Metal Door, PVC Door Surface Temperature: Within +20℃ Suitable Temperature: -10~+55℃(14-131F) Operating Humidity: 0~90% (non-condensing) Function: Built-out MOV Weight: 0.29kg Package: 1 x Electric Lock (NO Mode) 1 x User manual 2 x Screw
