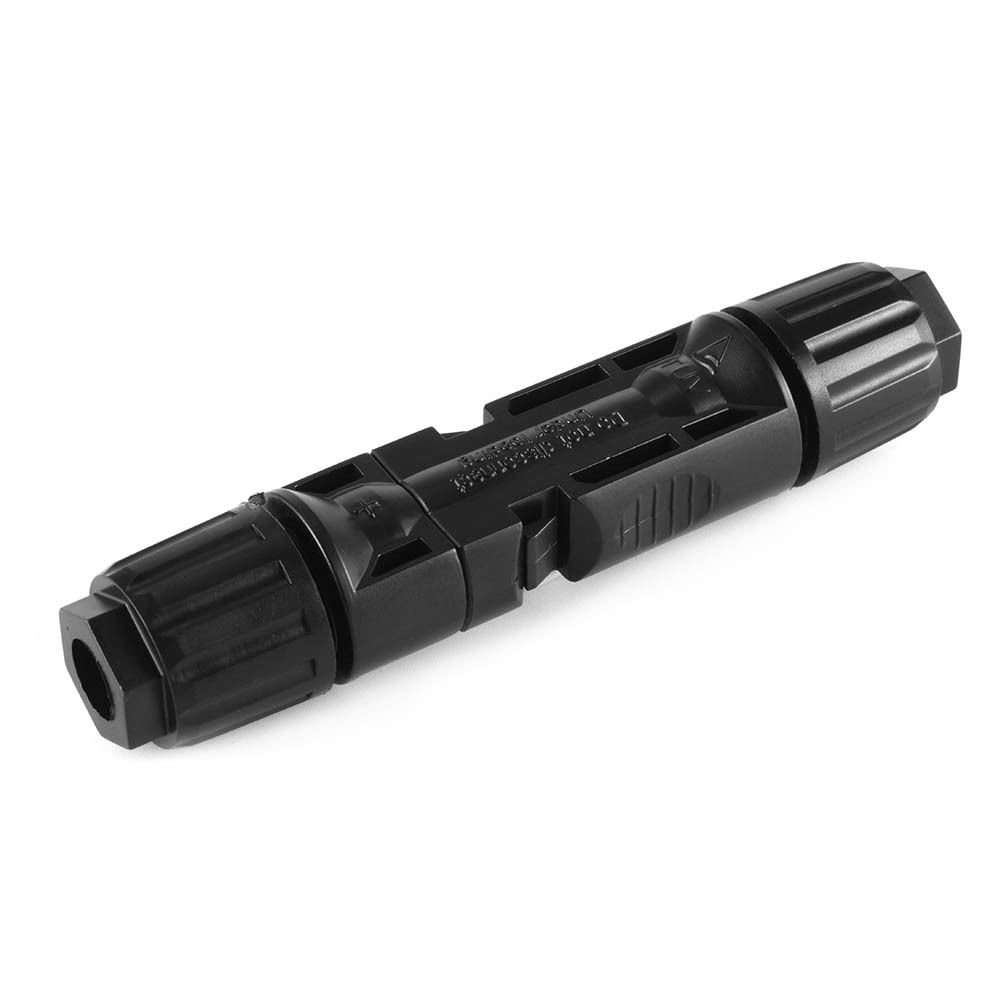

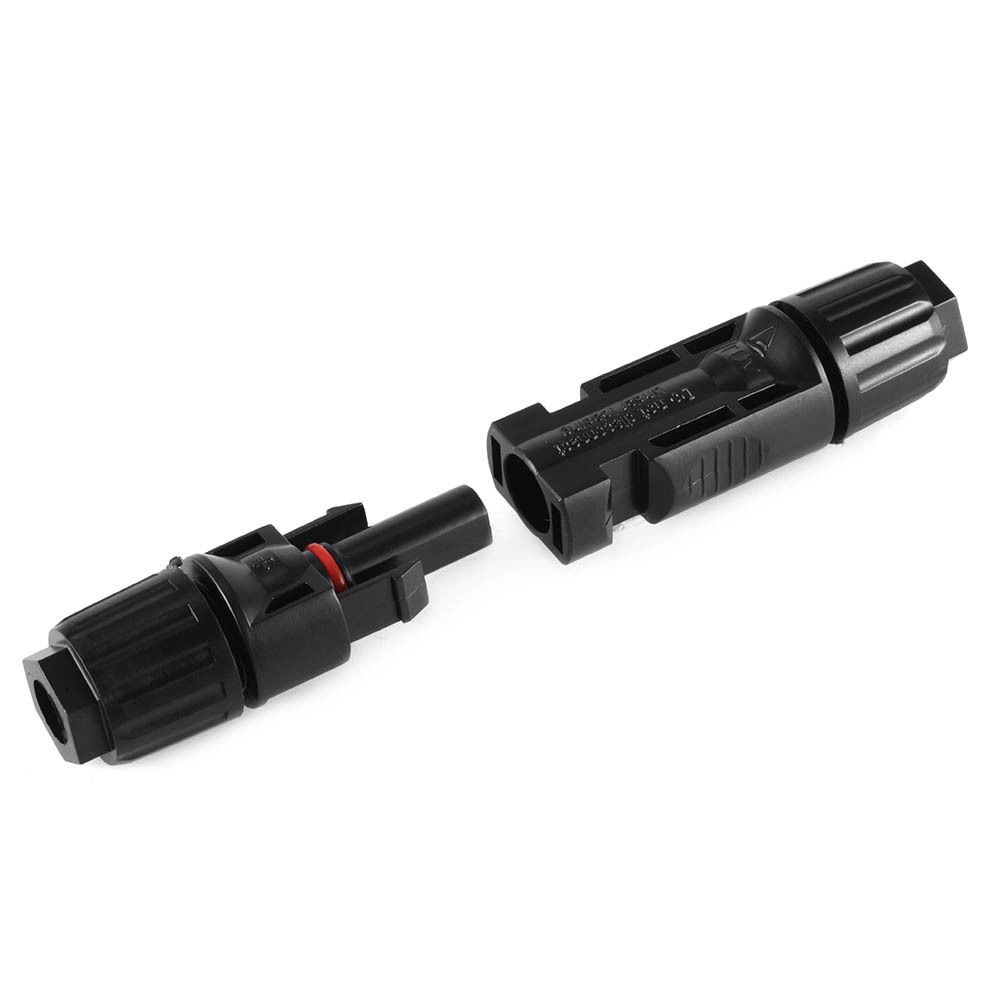

NUZAMAS NEW 10 Sets of Solar Panel Connectors Male Female for PV Solar Panel Cable
About this item
- Simple, safe, quick effective field assembly.
- Double seal rings for better waterproof effect, Low transition resistance.
- Resistance of extra high / low temperature
- High current and voltage carring capacity.
- Self-locking design, high mechanical endurance.
Product description
Specifications: Rate voltage: 1000V Rated current: 30A(4mm², 6mm²) Test voltage: 6KV(50Hz) Protect degree: IP67 Insulation material: PPO Contact material: Copper sliver plated Operating temperature: -40°C~+90°C Safe class: 2 Flame class: UL94-V0 Contact resistance of plug connectors: ≤5mΩ Insertion force: ≤50N Withdraw force: ≥50N Suitable cable: 2.5mm²/ 4mm²/ 6mm²(AWG14/12/10) Locking system snap in Drawing Package Includes: 10 x NUZAMAS Male Solar Panel Cable Connectors 10 x NUZAMAS Female Solar Panel Cable Connectors
