NUTKIT 35mm Concealed Hinge Jig, Metal Cabinet Door Hinge Jig, Drilling Hole Puncher Hole Guide Locator with Quick Clamp, Accurate Hinges Drill Woodwork Tool for Doors Cabinets Mounting (Single Clip)

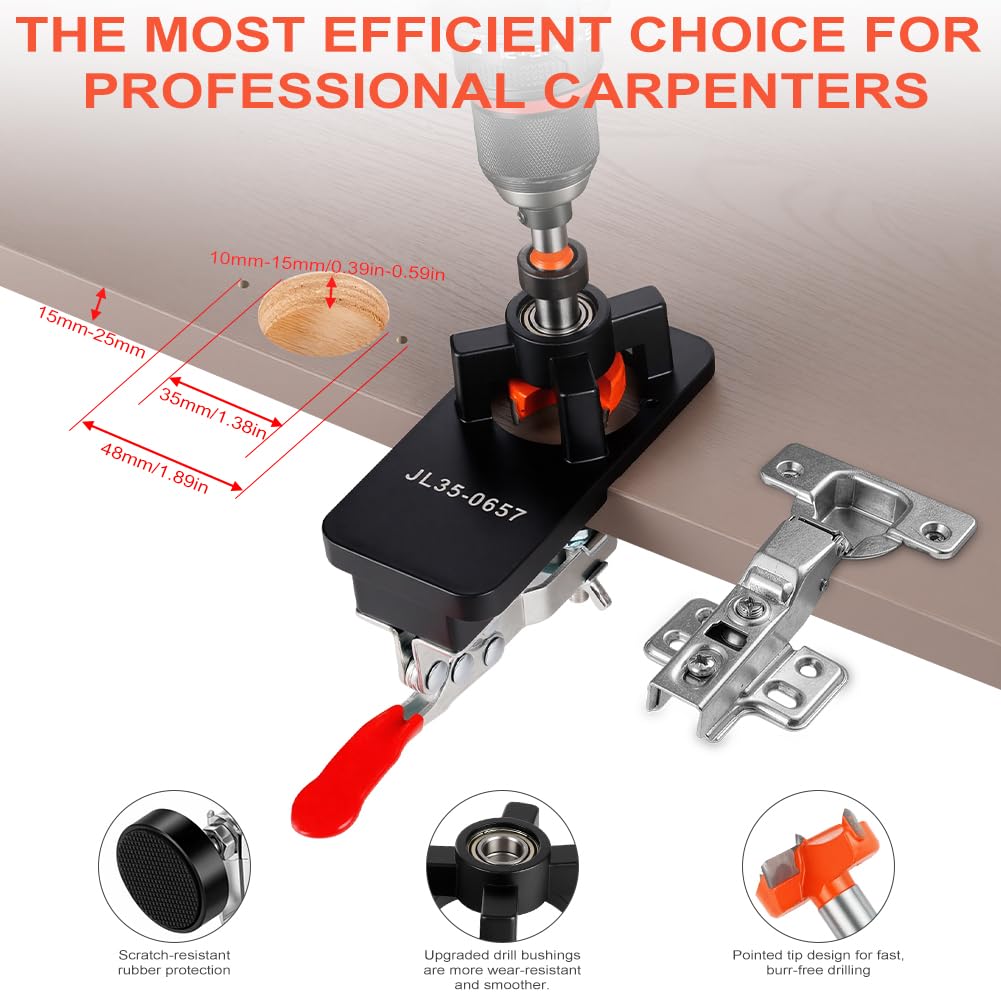

• 【PREMIUM MATERIAL】This concealed hinge jig is made of high-quality aluminum and steel with an ultra-flat base, which is much more durable than plastic. Equipped with a 35mm hard alloy drill bit, it’s sharp, wear & impact resistant for smooth, jam-free drilling. The rubber pressure head prevents door panel scratches, boosts grip and firmly fixes wood during the drilling process for precise hinge installation.

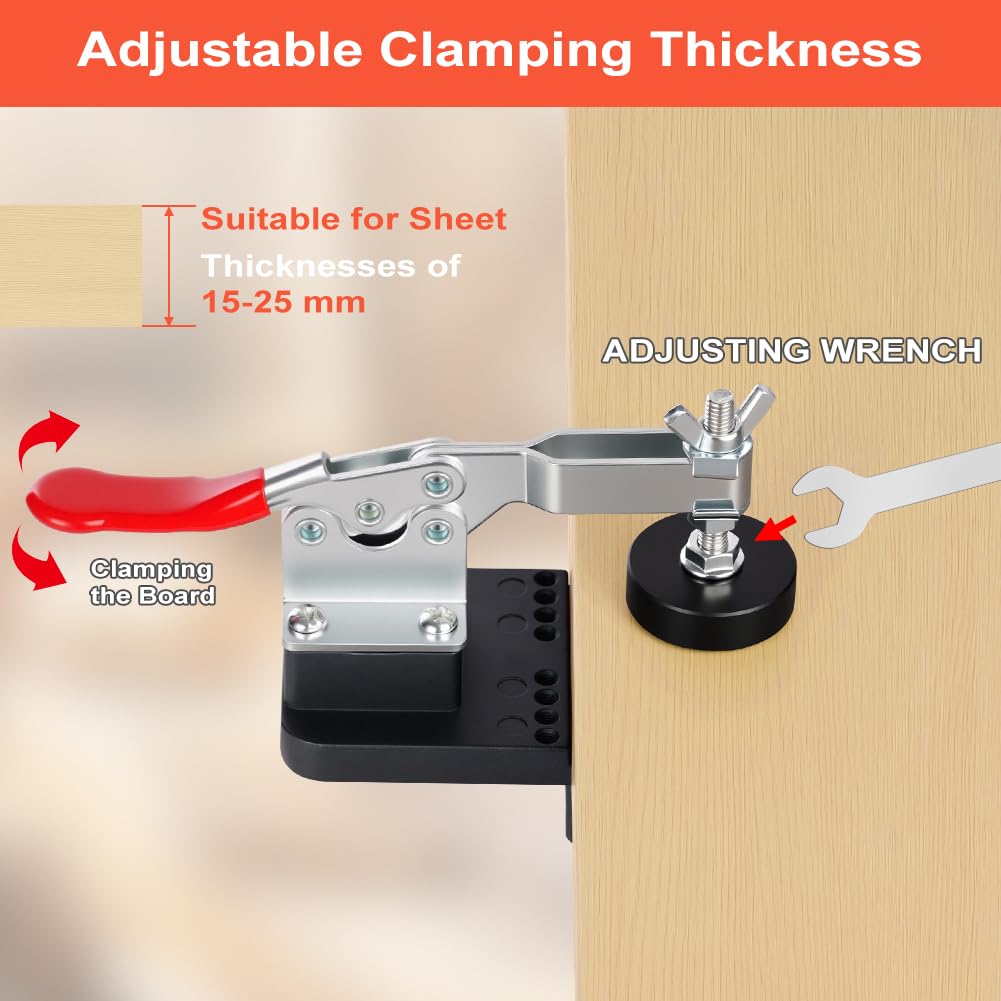

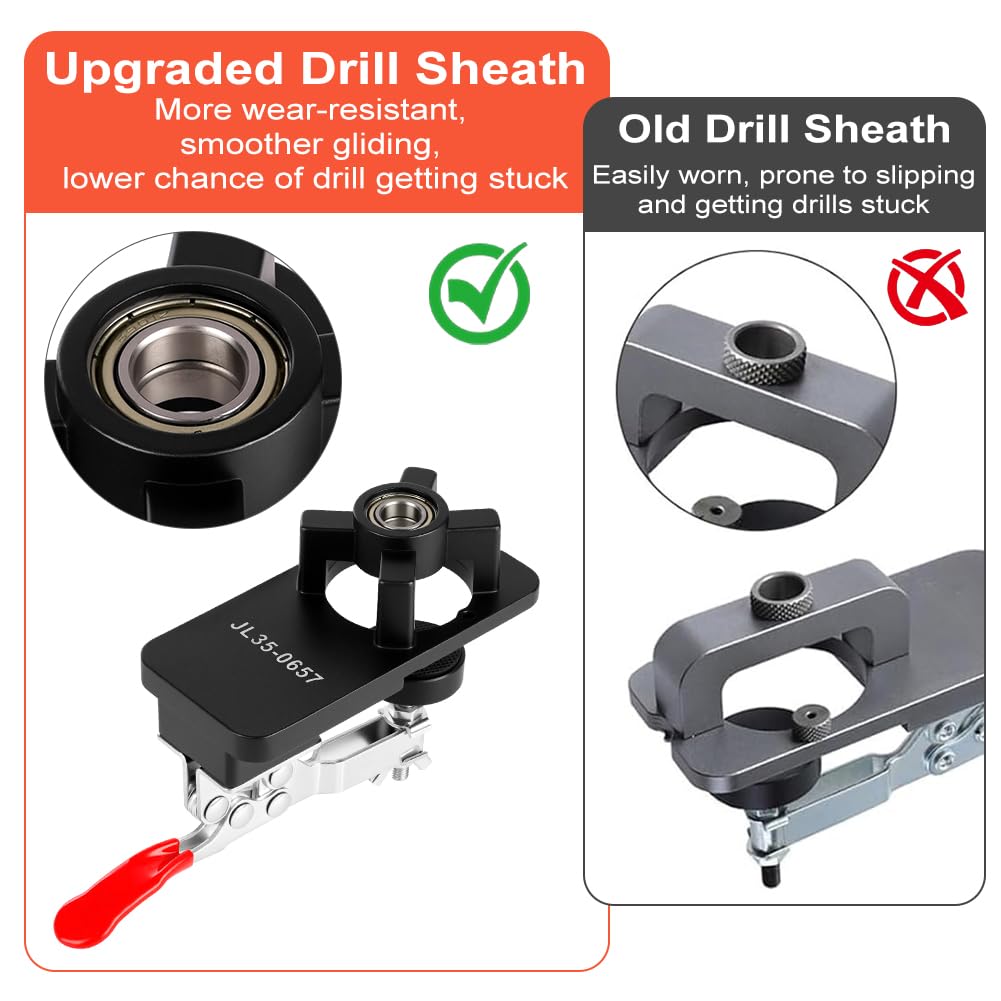

• 【PRECISE POSITIONING】This 35MM concealed hinge jig features an adjustable single-clamp design that locks boards instantly, minimizing sliding and drilling deviation to the greatest extent. Its double-bearing drill sleeve significantly reduces bit wobble for higher precision. Just clamp it and start drilling—no more hassle with manual measuring and marking of hinge positions.

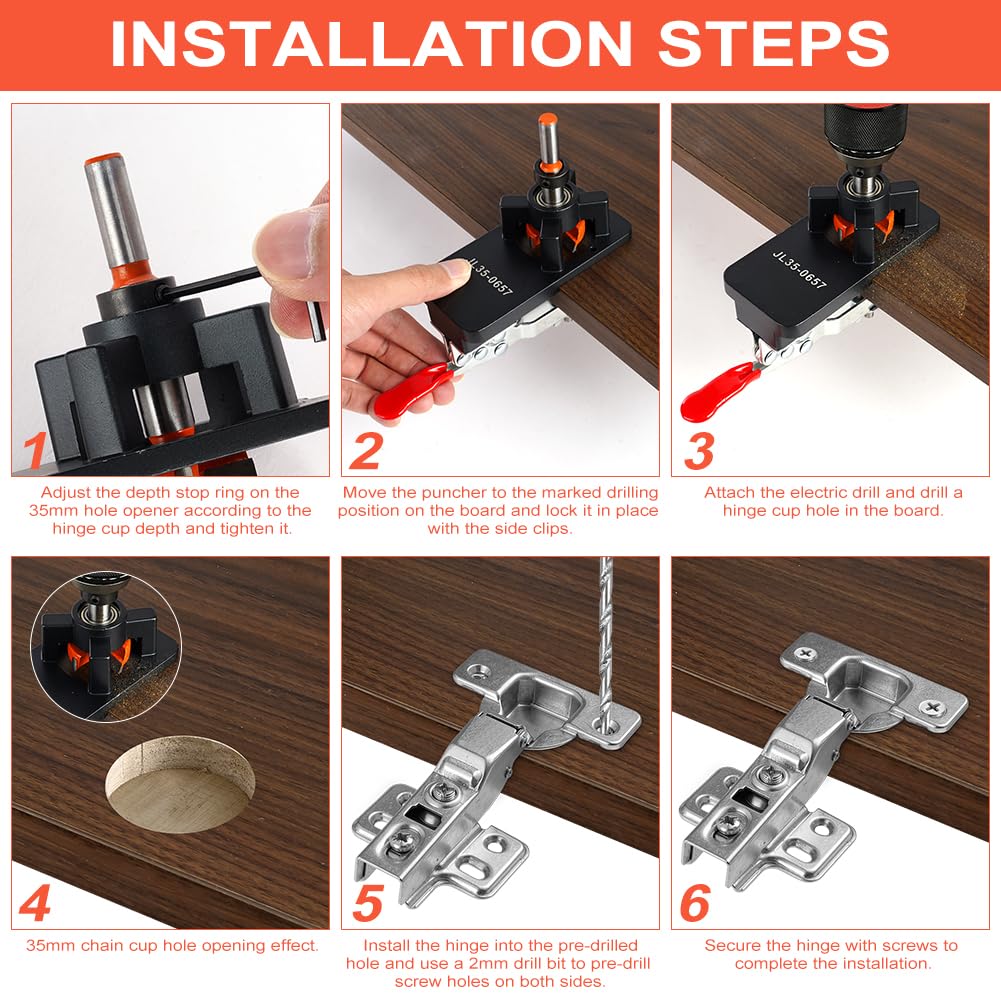

• 【EASY OPERATION】① Insert the drill bit into the hole saw → ② Install the top linkage bearing and stop ring → ③ Adjust the stop ring to set the drilling depth (10-15mm) → ④ Resize to fit the board thickness (15-25mm) → ⑤ Align the mark and clamp the board tightly → ⑥ First drill the 35mm main hole, then drill two 2.5mm screw holes according to the hinge positions → ⑦ Install the hinge after checking the hole positions. The whole process is simple and accessible to all.

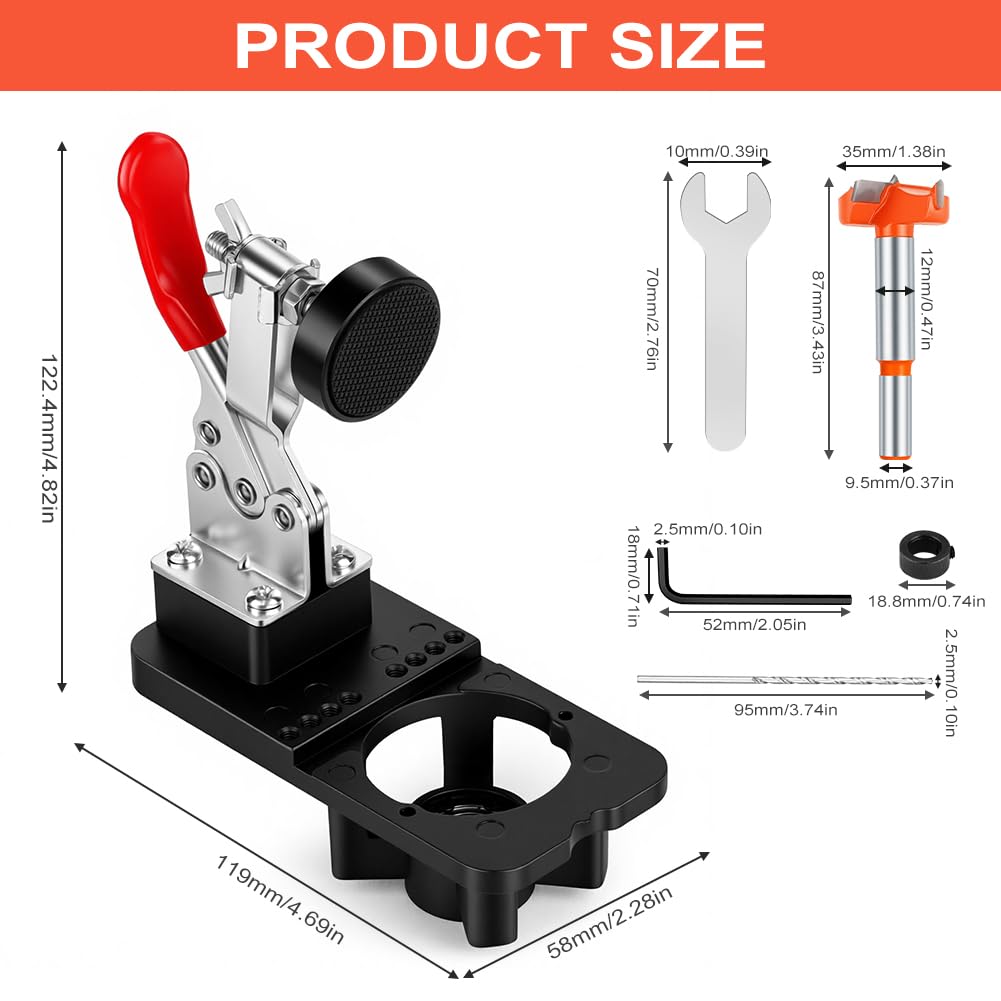

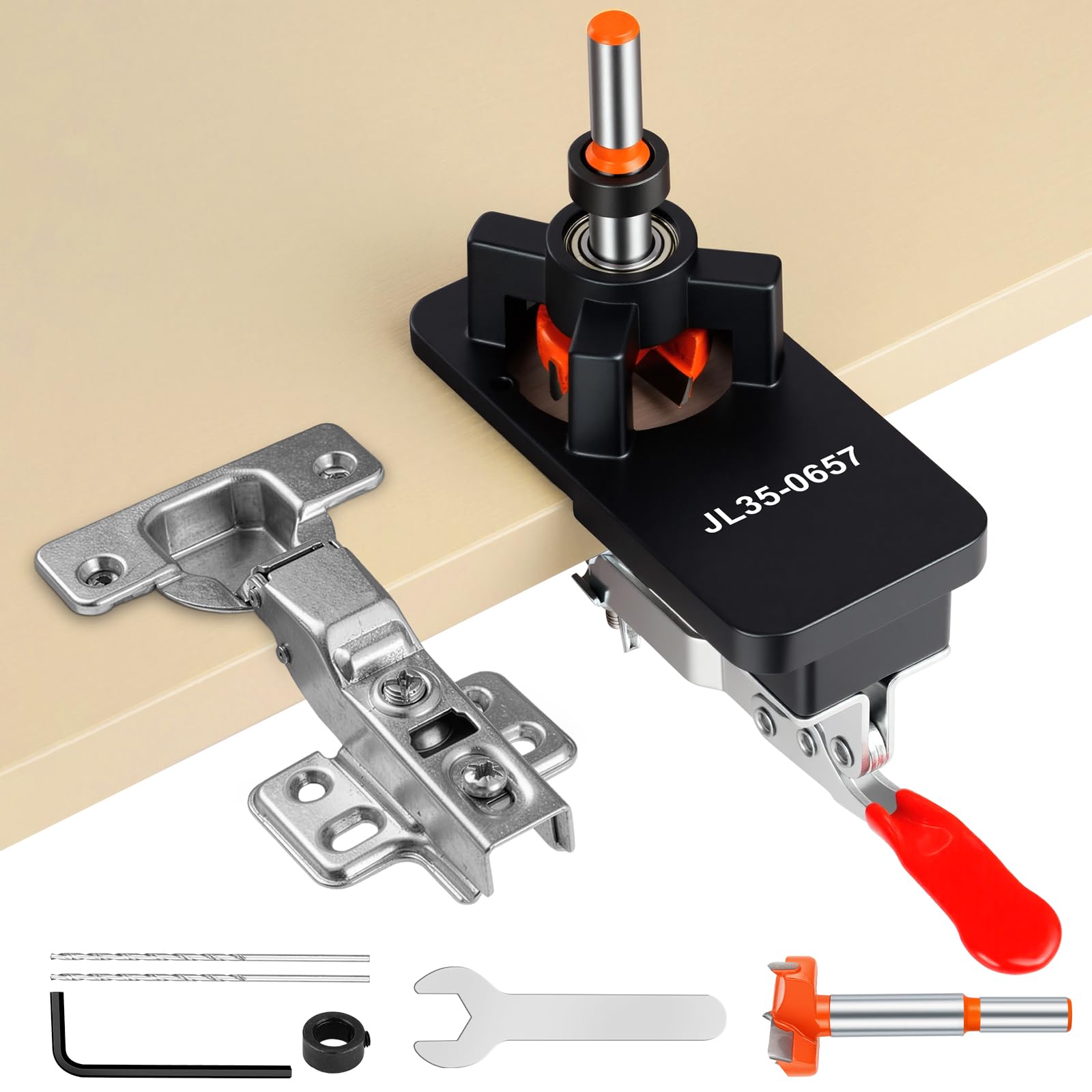

• 【COMPLETE ACCESSORIES】Package includes: 1*concealed hinge jig main body, 1*35mm drill bit, 2*2.5mm drill bit, 1*stop ring, 1*open-end wrenches and 1*hex wrench. A full and complete set of accessories for immediate use. This product has an adjustable edge distance of 5mm, suitable for different hinge installations on 15-25mm thick wood, meeting all kinds of project needs.

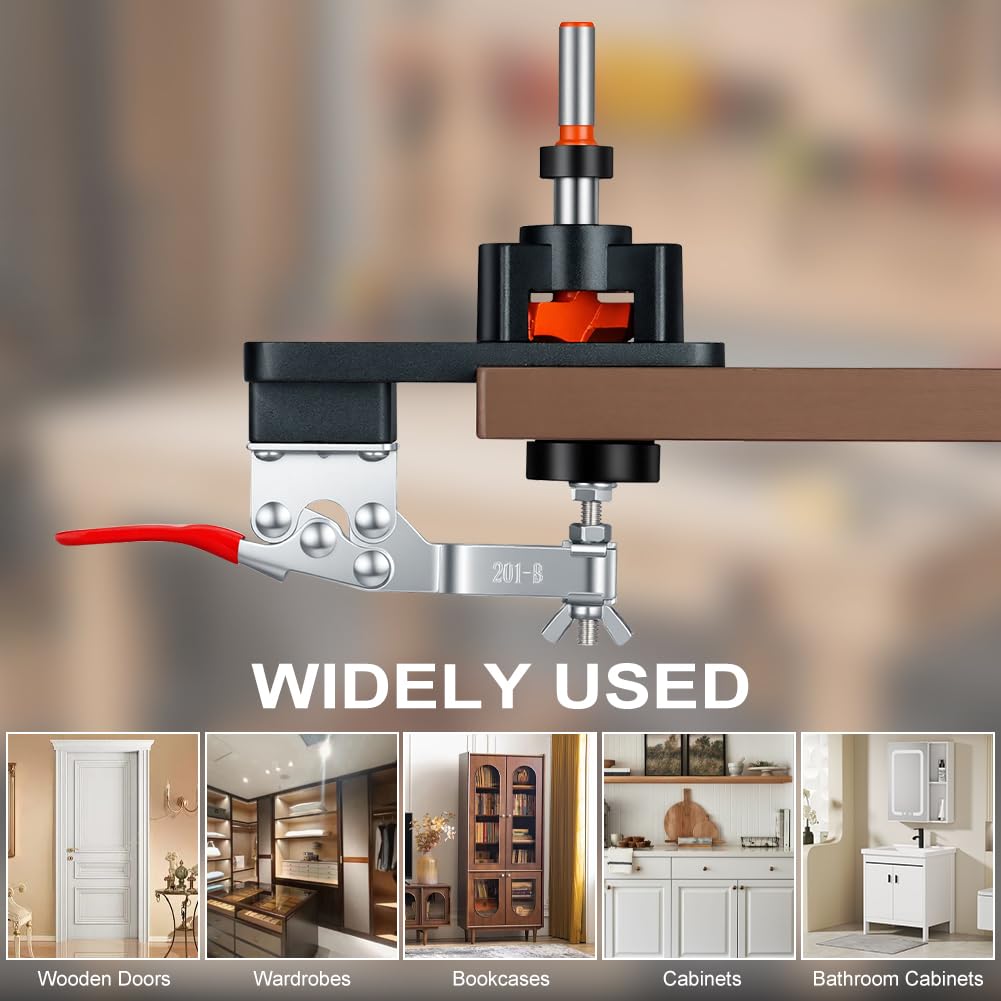

• 【WIDE COMPATIBILITY】Fits most 35mm standard concealed cabinet hinges on the market and is compatible with all types of electric drills. Ideal for installing and repairing hinges on cabinets, wardrobes, doors, windows and countertops. This tool is perfect for both professional carpenters and DIY enthusiasts. Pro Tip: Regularly apply lubricant to the bearing and shank to effectively reduce component wear and extend the tool's service life.

NUTKIT 35mm Concealed Hinge Jig 1.Made with premium materials – the main body is made of high-quality aluminum+ Steel, and the drill bit is made of carbide. 2.This 35mm hinge positioning hole opener is specifically designed for drilling and positioning hinges in cabinets, wardrobes, and other cabinets. 3.It is compatible with 15-25mm thick wood, with an adjustable opening depth of 10-15mm and a drill edge distance of 5mm. It is a practical tool for DIY hinge installation. Product Details: Product Material: Aluminum + Steel Big Drill bit material: Carbide Big Drill bit size: 35mm Color: As shown in the picture Packing List: 1* Concealed Hinge Jig Body 1* 35mm Drill Bit 2* 2.5mm Drill Bit 1* Limit Ring 1* Open-End Wrenches 1* Hex Wrench Note: 1. Due to manual measurement, there may be a certain size error; 2. Due to the shooting environment, there may be a certain color difference. If you have any questions, please feel free to send a message and we will provide you with a satisfactory solution.
