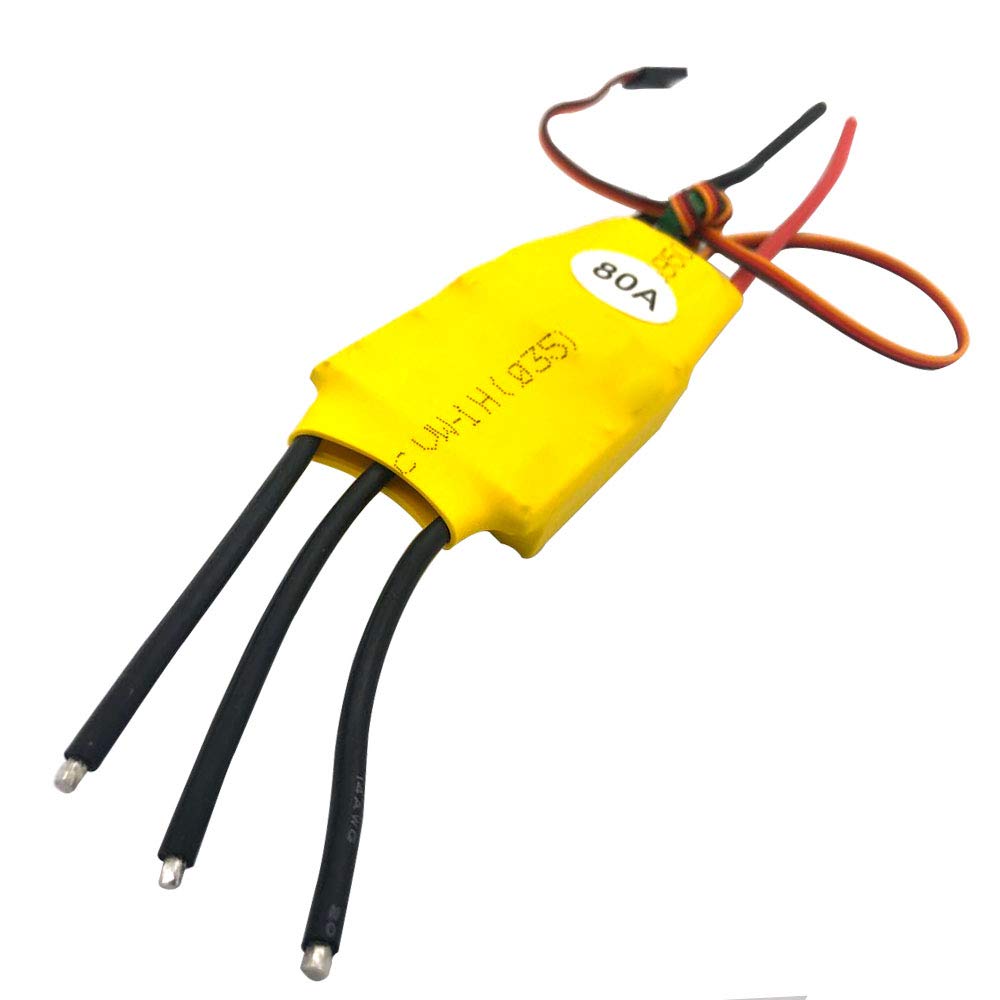

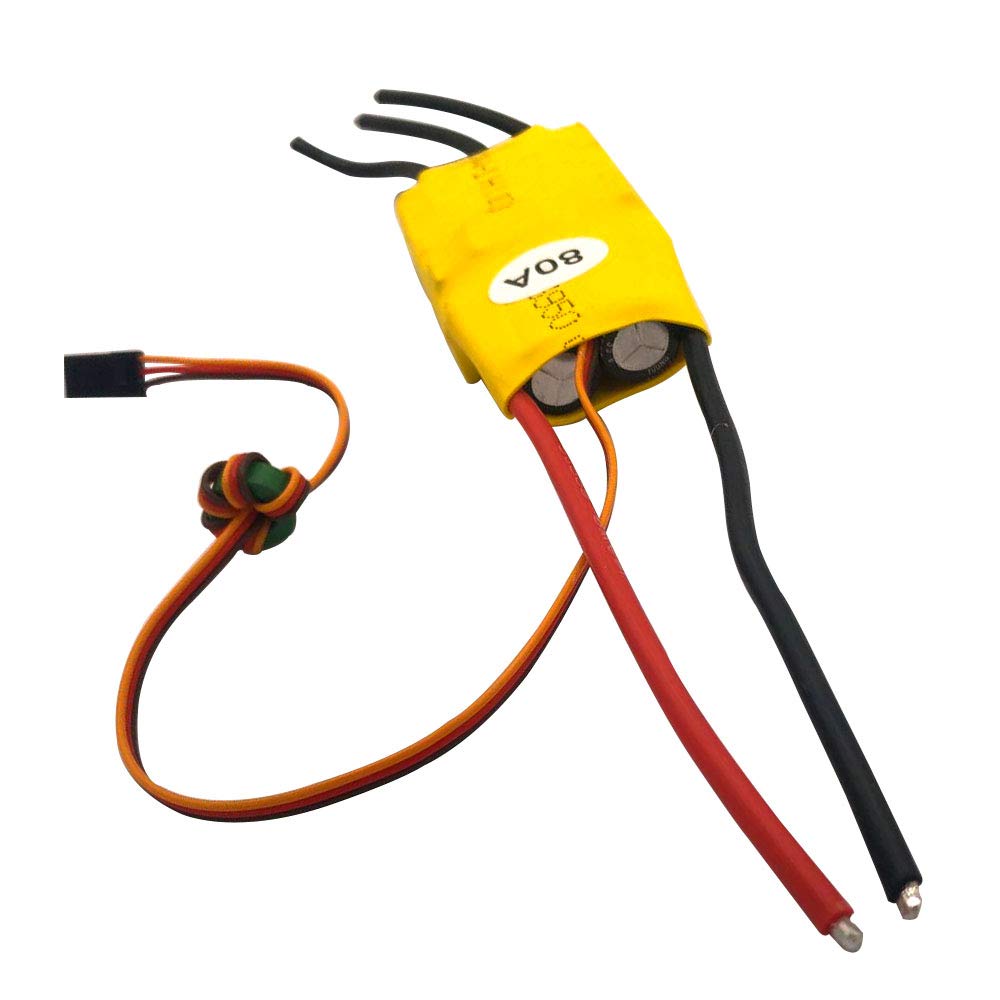

Nuofan 80A ESC 2S-6S Lipo Brushless ESC Speed Controller for RC FPV Airplane Helicopter Drone

• Brushless ESC :Output Con.Current 80A ; In.Current 100A;Input : 2-6S.
• BEC ; 5V@5A ( Built-in switch mode BEC Regulators ).
• Throttle range calibrated function: to adapt the throttle differences between different stroke, improve the linearity of throttle response.
• Programmable - Programming card or using Transmitter
• Low Battery Protection, Overheat Protection, Startup Throttle Protection, Signal Loss Protection, and Abnormal Voltage Protection

Specifications: Output : Con.current 80A ; In.Current 100A ( No less 10s) Input : 2-6S Lipo Or 5-118 NiMH / NiCd battery pack BEC ; 5V@5A ( Built-in switch mode BEC Regulators ) Throttle signal refresh rate : 50Hz-432Hz Maximum speed: 210000 2-pole motor rev / min, 6-pole motors 70,000 rev / min, 12 pole motors 35,000 rev / min Size : 89 x 40 x 12 mm
