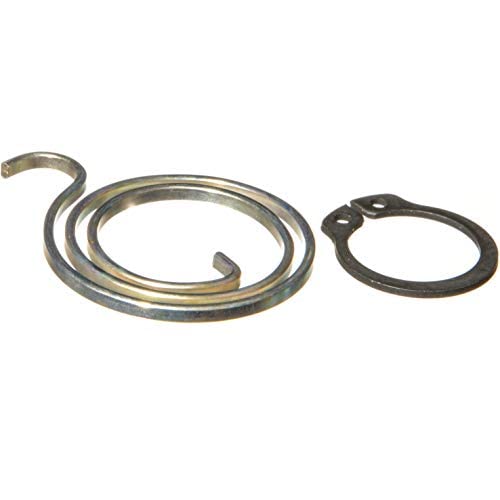

Northern DIY Door Handle Spring Repair Kit (six 2.5-Turn, 2mm Thick, 27.5mm Diameter coils Plus six circlips)

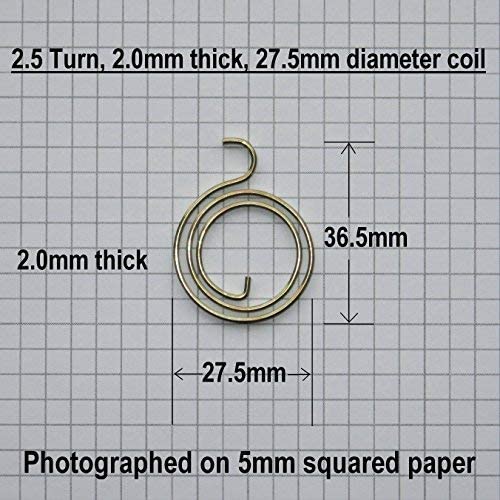

• Pack of 6 zinc plated door lever springs plus 6 circlips. See additional photo for full dimensions of the spring
• Can be used on both right handed and left handed handles
• Spring diameter 27.5mm. A repair kit with a 30mm diameter spring is also available
• Circlips are 13.8mm internal diameter (to fit 15mm shaft with 14.3mm groove)
• To see our full range (organised by spring type and size) please click ‘visit the Northern DIY store’ by the title above

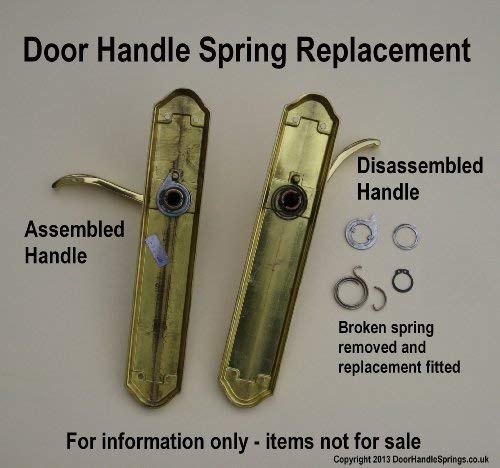

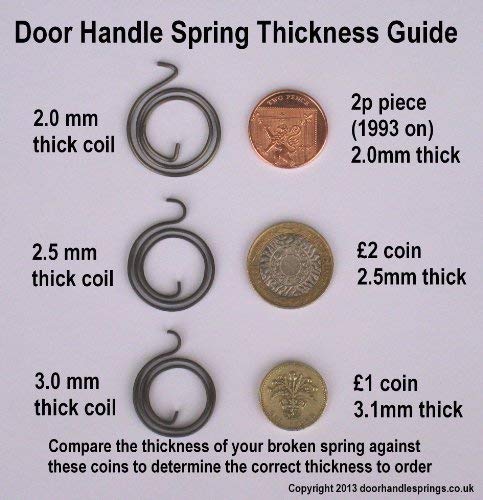

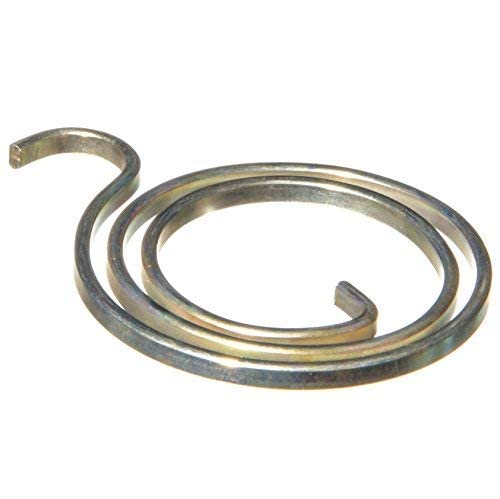

Pack of 6 coil springs plus 6 circlips for internal door handles. Can be used on both right handed and left handed handles. Spring dimensions are shown in the additional photograph. The springs are made from flat wire with a cross section of 2.0mm X 1.1mm. The springs are zinc plated, followed by the application of a passivating coating. Circlips are 13.8mm internal diameter (to fit a 15mm shaft with a 14.3mm groove). When replacing a door handle spring the two most important things to check are a) The orientation of the external hook compared to the internal hook eg. is it a 2-turn coil or a 2.5-turn coil and b) the thickness of the spring (we define thickness as the height of the spring when laid flat). Most springs are retained with a circlip, which can be removed and replaced using external circlip pliers. External circlip pliers are available quite cheaply elsewhere on Amazon. 2.5mm thick coils and 3.0mm thick coils are also available. Please note that if you fit a thinner spring than originally fitted the handle will have some excess play. If you fit a thicker spring than originally fitted it may be difficult to replace the circlip and the handle may have a tendency to stick. The circlips included are the most common size, as used in the vast majority of door handles. If you wish to check the size of circlip for your handle it is better to measure the shaft rather than the old circlip as some poor quality circlips can become distorted. To see the different types of door handle spring we sell please click the ‘Visit the Northern DIY Store’ link below the title at the top of this listing. Tip: When fitting a new spring a little grease will give better wear and movement. Fitting instructions are available on the Northern DIY website.
