Norbar HT3 1300Nm Torque Multiplier Kit

• 5:1 torque multiplication, accuracy guaranteed better than +/-4%
• Robust construction means minimal maintenance and long life
• Provide higher torques than would otherwise be possible due to limitations of space or operator strength
• Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque
• Has a 5:1 torque multiplication.
• Accuracy guaranteed to better than ±4%.

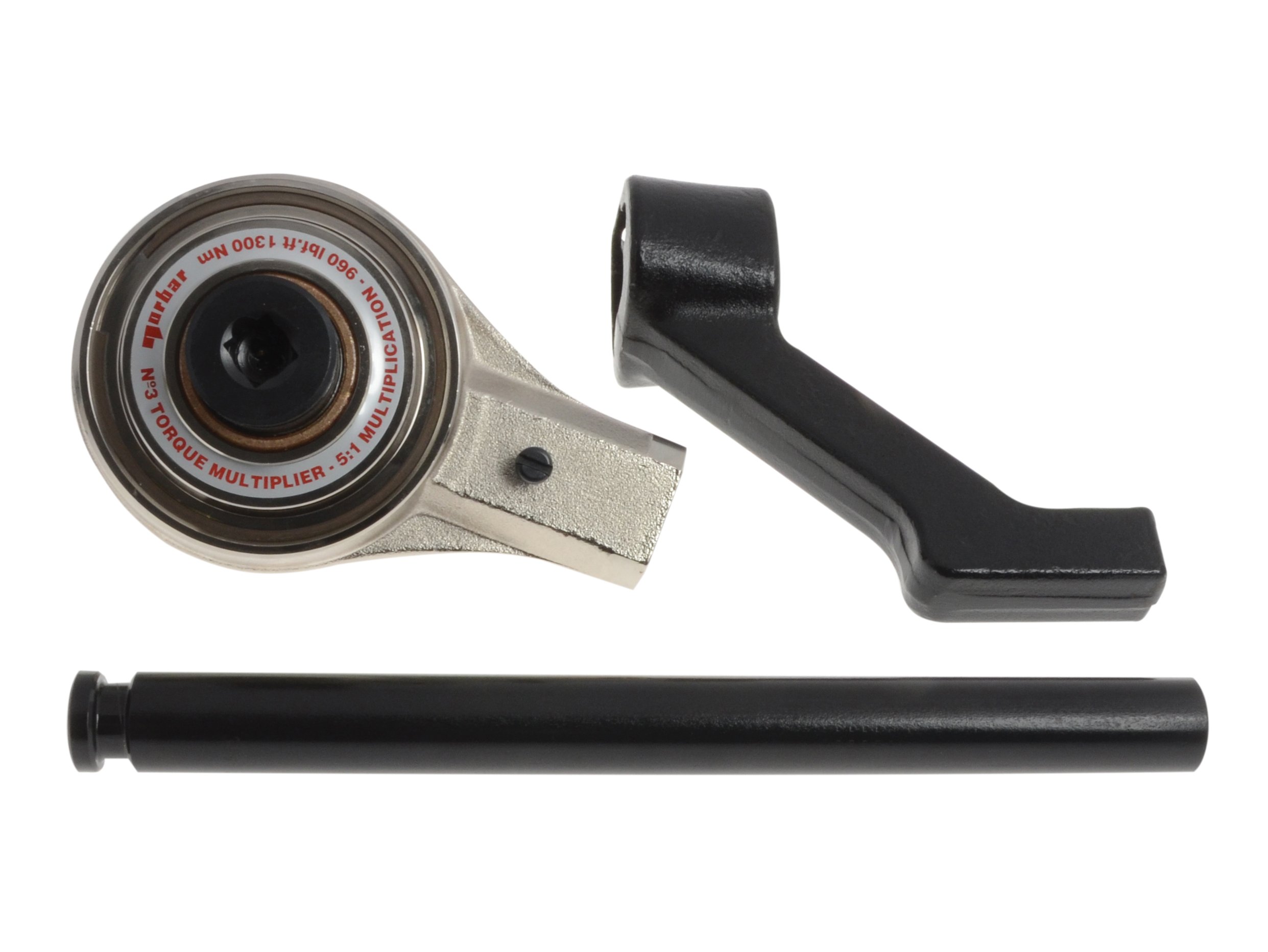

• 2 reaction bar styles for maximum versatility.
• Robust construction for minimal maintenance, whilst maximising working life.

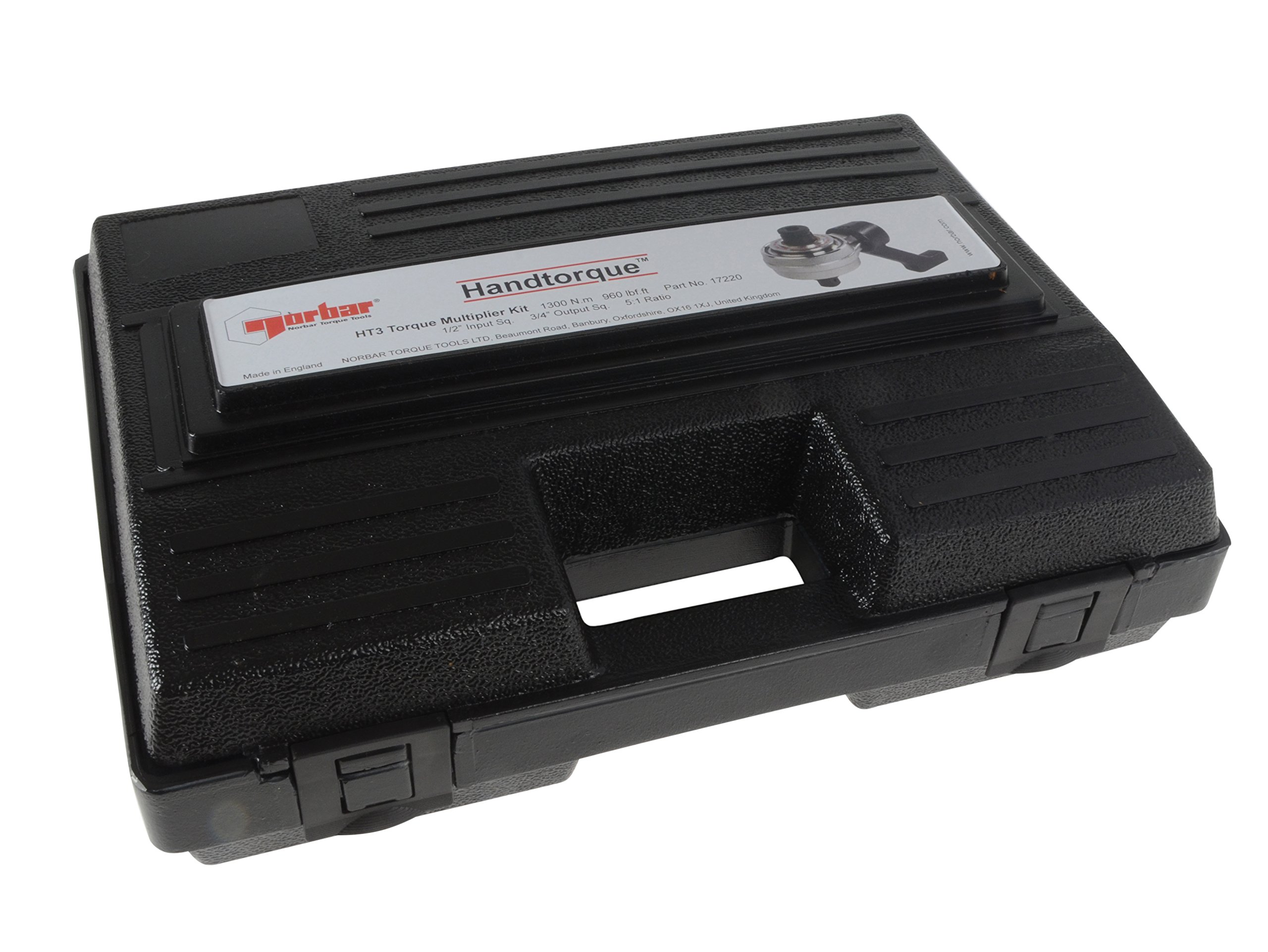

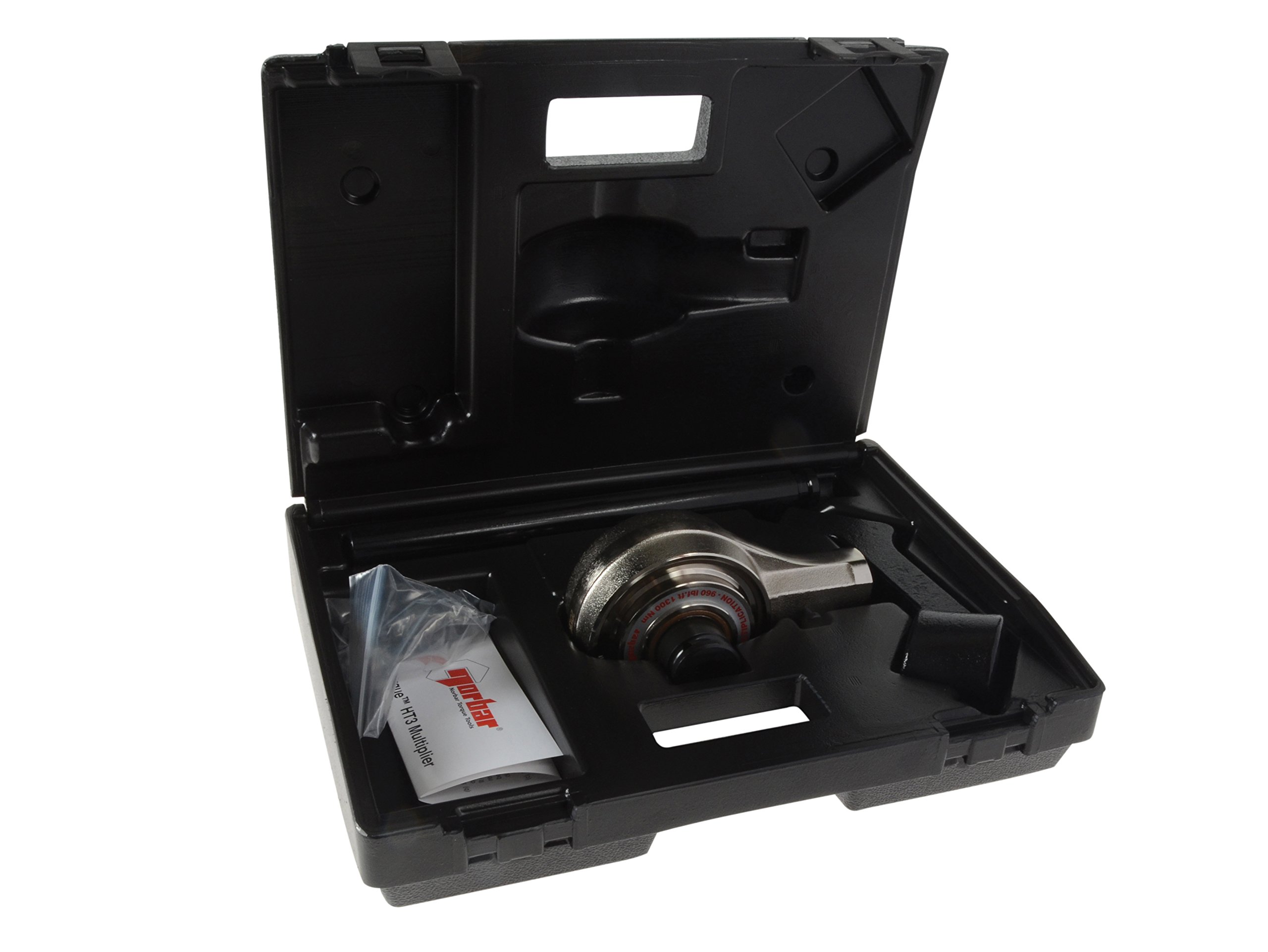

• Supplied in a carrying case.

Norbar HT3 torque multiplier with a 5:1 torque multiplication, and accuracy guaranteed to better than plus/ minus4%. it comes with two reaction bar styles to offer maximum versatility. It has a robust construction that allows for minimal maintenance, whilst maximising working life. Supplied in a carrying case, it is ideal for inclusion in the heavy Vehicle tool kit. The 1300 Nm version has a spare 3/4in output square included in the kit. Norbar HT3 torque multiplier specification range: 130-1,300Nm (96-960 /13-130 KGF. M).multiplication ratio: 5:1.Velocity ratio: 5.333:1.Output square: 3/4in.Input square: 1/2in.Plate weight: 1.3kg.Tool weight: 3.8kg. In 1942 the "north bar tool company" (as Norbar was then known), became the first company in Britain to commercially manufacture a torque wrench. The initial demand was driven by the need for the gasket-less cylinder head of the rolls Royce Merlin engine to be accurately tightened. Bill brodey and his partner Ernest thornitt obtained a licence from Britain's war-time government to begin manufacture of torque wrenches and Norbar was born. Since then, Norbar has continued to invest in the very latest design, manufacturing and quality control technology to achieve the highest level of innovation and precision in the field of torque control equipment. The company has grown from strength to strength and now is the world's leading torque specialist with one of the largest and most modern plants in the world devoted exclusively to the design, development and production of torque tightening and measuring equipment. Norbar is the only torque equipment manufacturer to be able to offer torque tool and instrument calibration and recalibration services
