Nooelec UWB Surveyor Antenna - Extremely Wide Bandwidth Biconical Low-Profile PCB Antenna. Frequency Range of 700MHz to 10GHz, Average Gain of 3dBi. Very Small and Portable with SMA Female Connector

• Extremely wideband response (700MHz to more than 10GHz). Can be utilized in transmission (TX), reception (RX), and TRX systems
• We recommend using it in conjunction with NESDR Smart SDR, LaNA, and VGA (available on Amazon, product IDs: B01HA642SW, B07XNLJ9X2, and B08LNYKHSM, respectively)
• SMA input/output connector. Small size of 120mm (4.7") by 120mm (4.7")
• Full 2-year warranty and support direct through Nooelec!
• Full datasheet available: https://www.nooelec.com/datasheets/100840

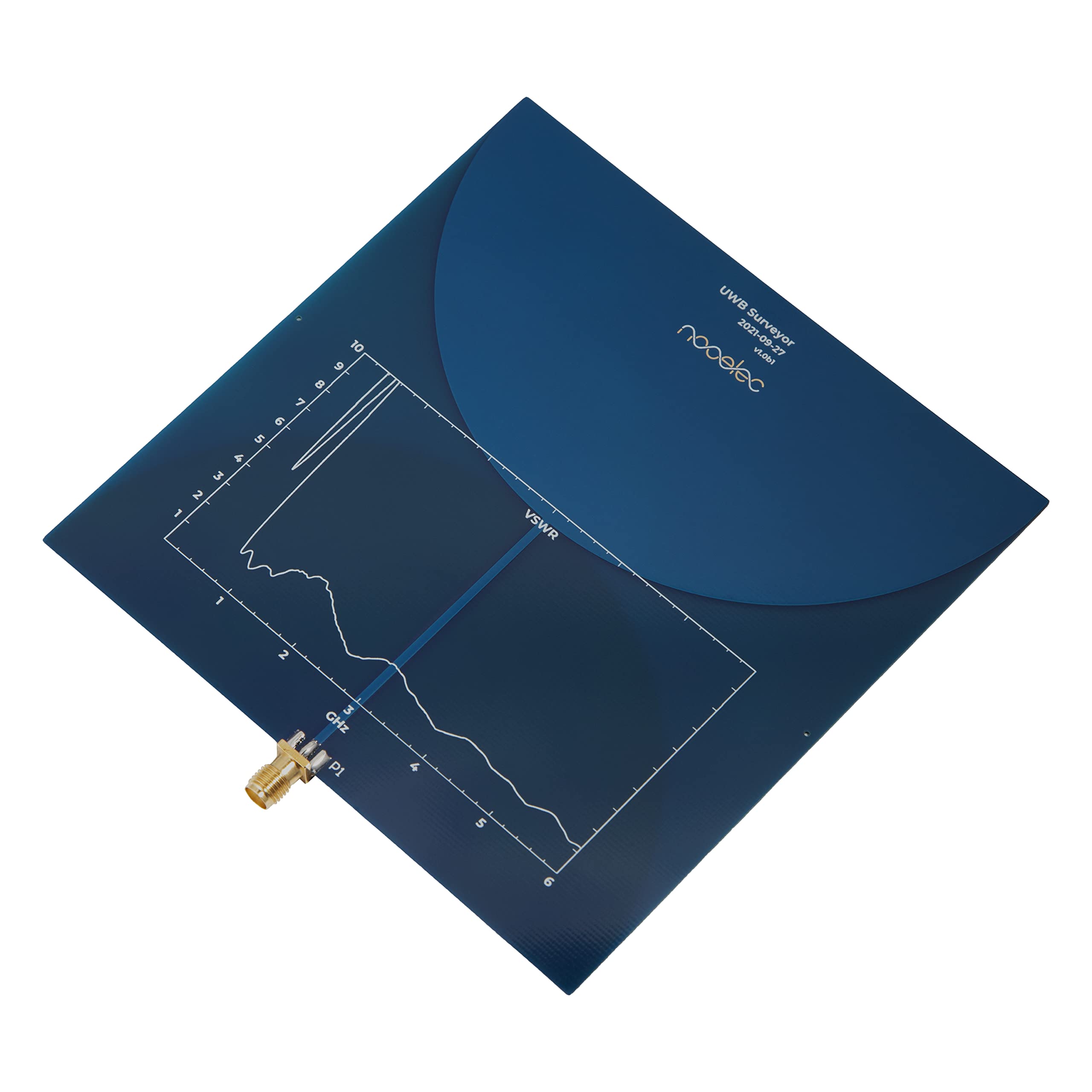

For full product details, please visit the product page at nooelec.com or download the datasheet: https://www.nooelec.com/datasheets/100840 UWB Surveyor is an extremely wide bandwidth antenna designed using PCB technology for use in TX, RX, and TRX applications. It provides a low profile, lightweight (only 26 grams), and cost-effective solution for use in software-defined radio applications as well as for quick EMC testing, wideband signal analysis, large bandwidth spectrum surveying, and UWB technology-related applications such as sensors, indoor localization, and IoT. The antenna provides a symmetrical omnidirectional linear polarization radiation pattern across a wide range of frequencies and a variable gain throughout the operating range, with an average of 3dBi. It can be deployed for indoor and outdoor use and matched for 50Ω systems. The size is only 12cm x 12cm with a maximum thickness equal to that of the SMA connector!
