NooElec SAWbird iO Barebones, 5.5V, 1542MHz, 4 Channels, 100722 - Premium L-Band (Inmarsat AERO/STD-C) Ultra-Low Noise Amplifier (LNA) & SAW Filter Module

• A complete LNA & SAW filter module for Inmarsat applications like the Outernet project

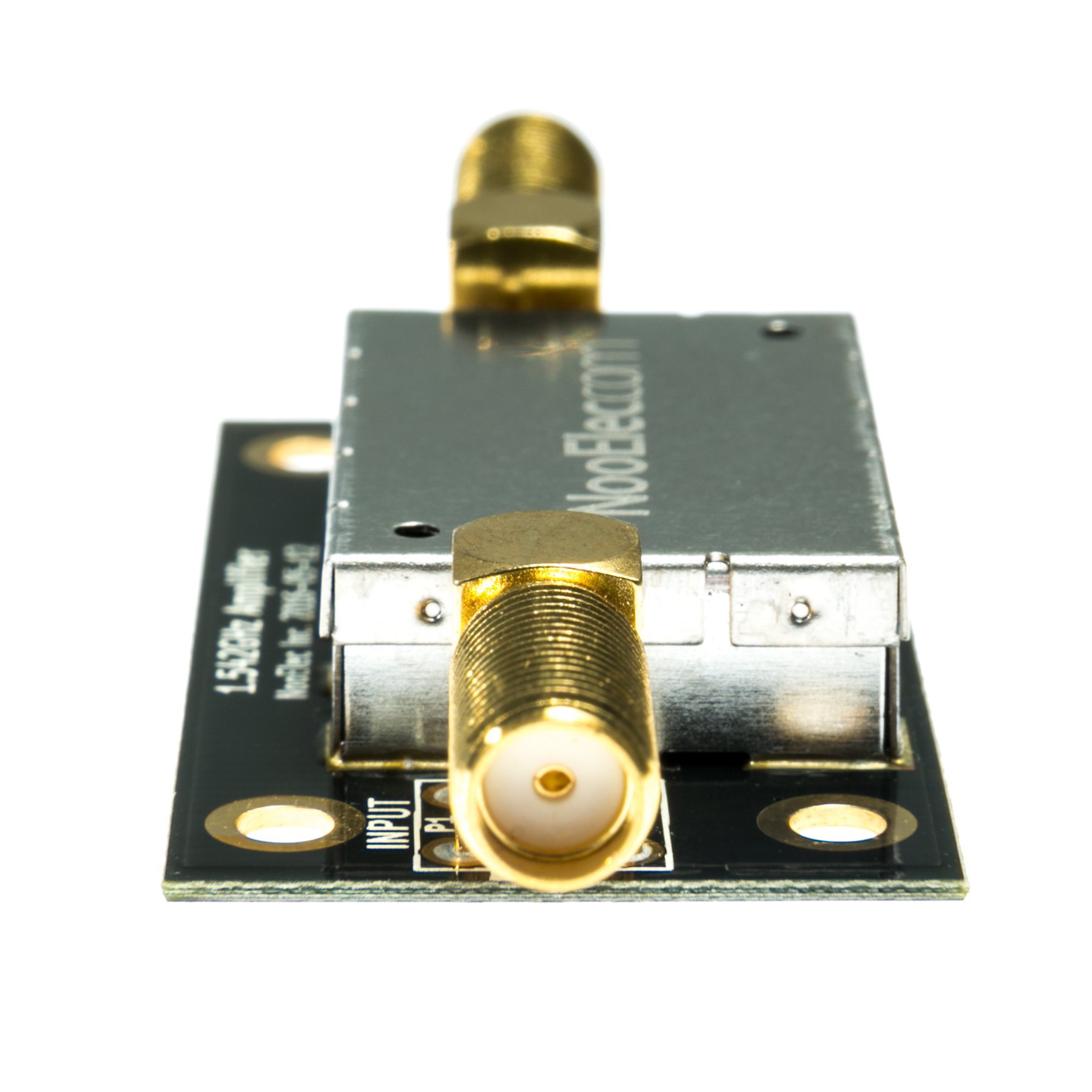

• Female SMA connectors on input and output for easy connectivity
• Powered via bias-tee, 3.0-5.5VDC. Low current consumption requirements of 35mA (max). Works great with NESDR SMArTee XTR (Amazon SKU: B06Y1D7P48)

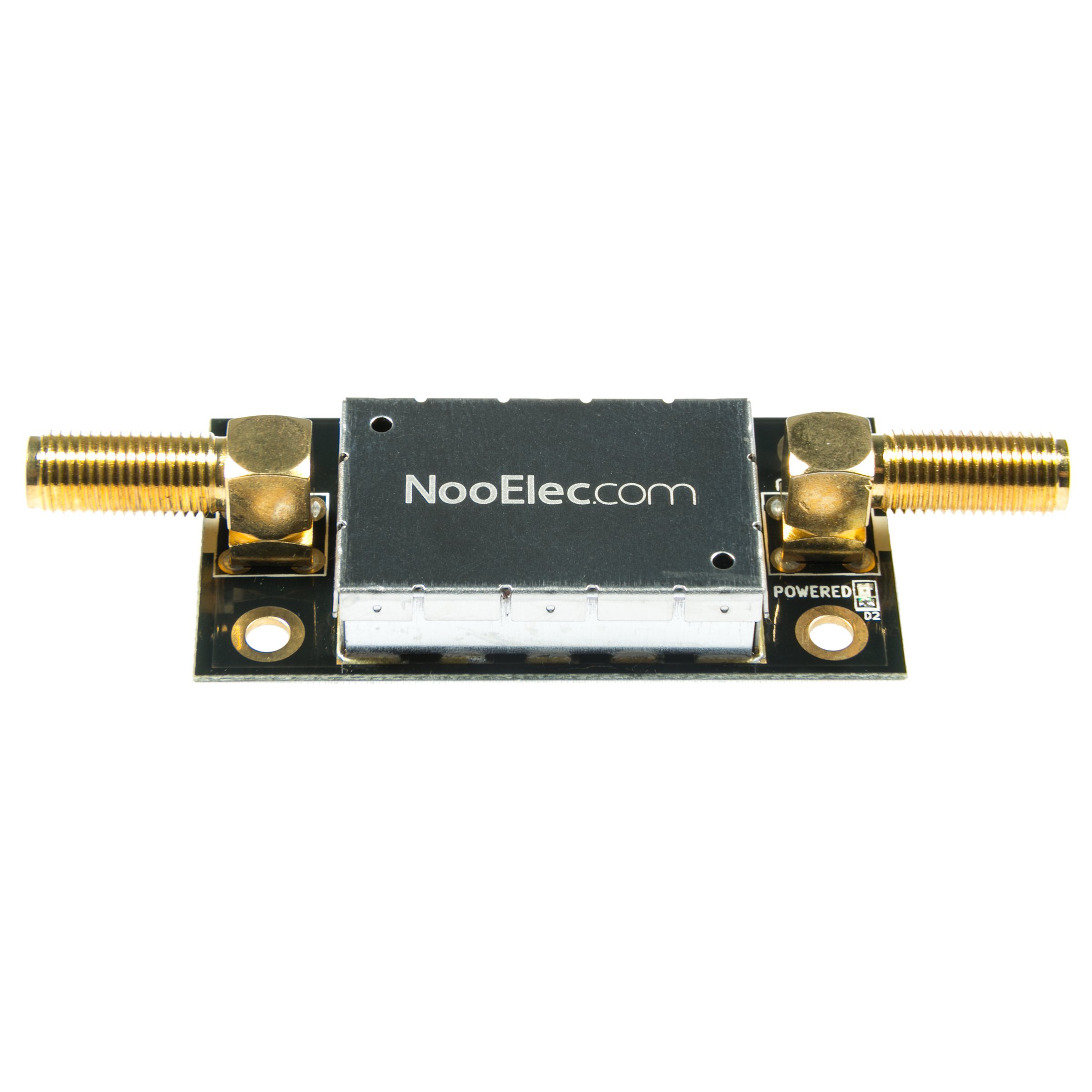

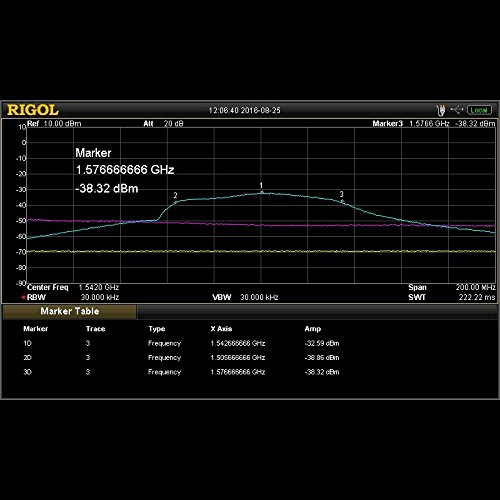

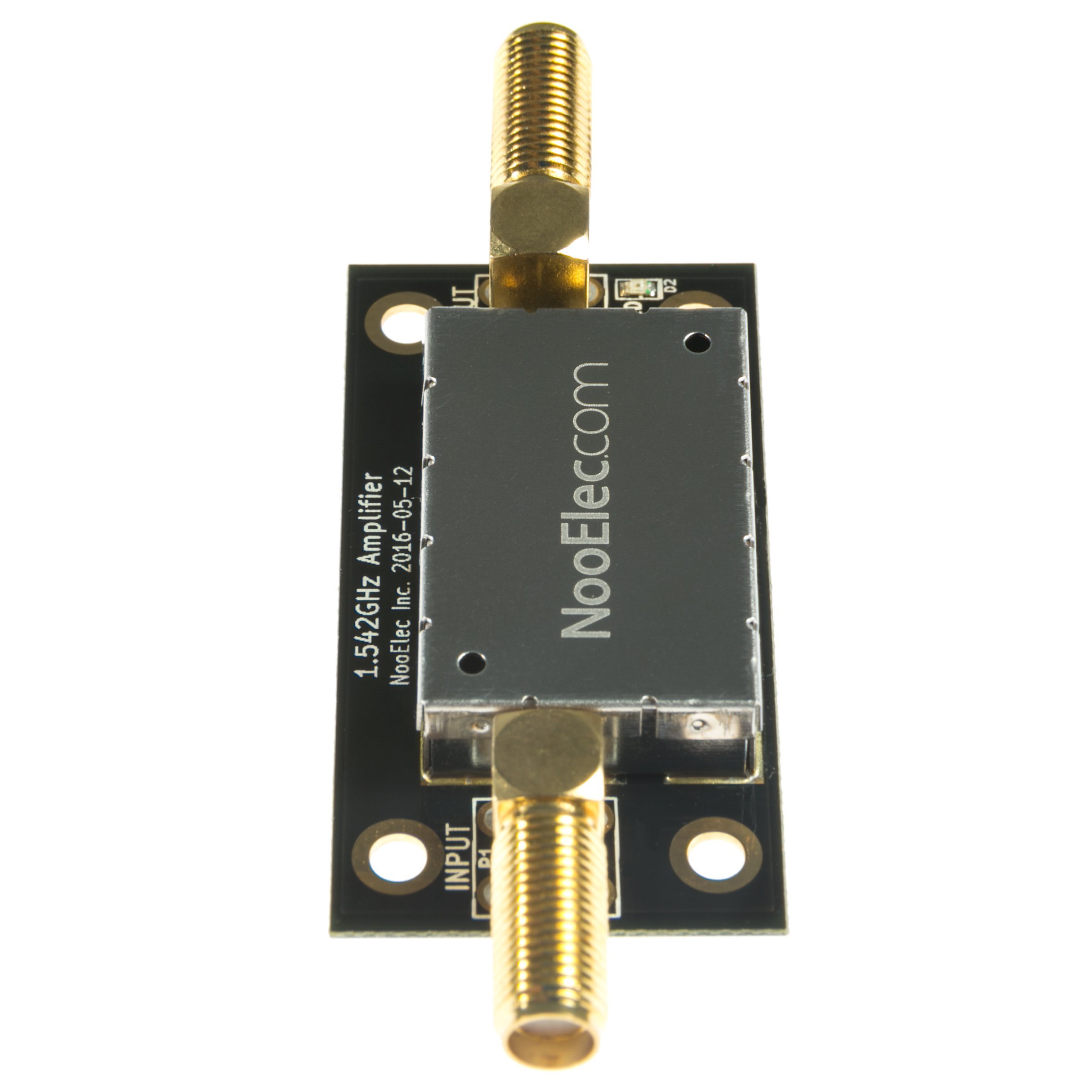

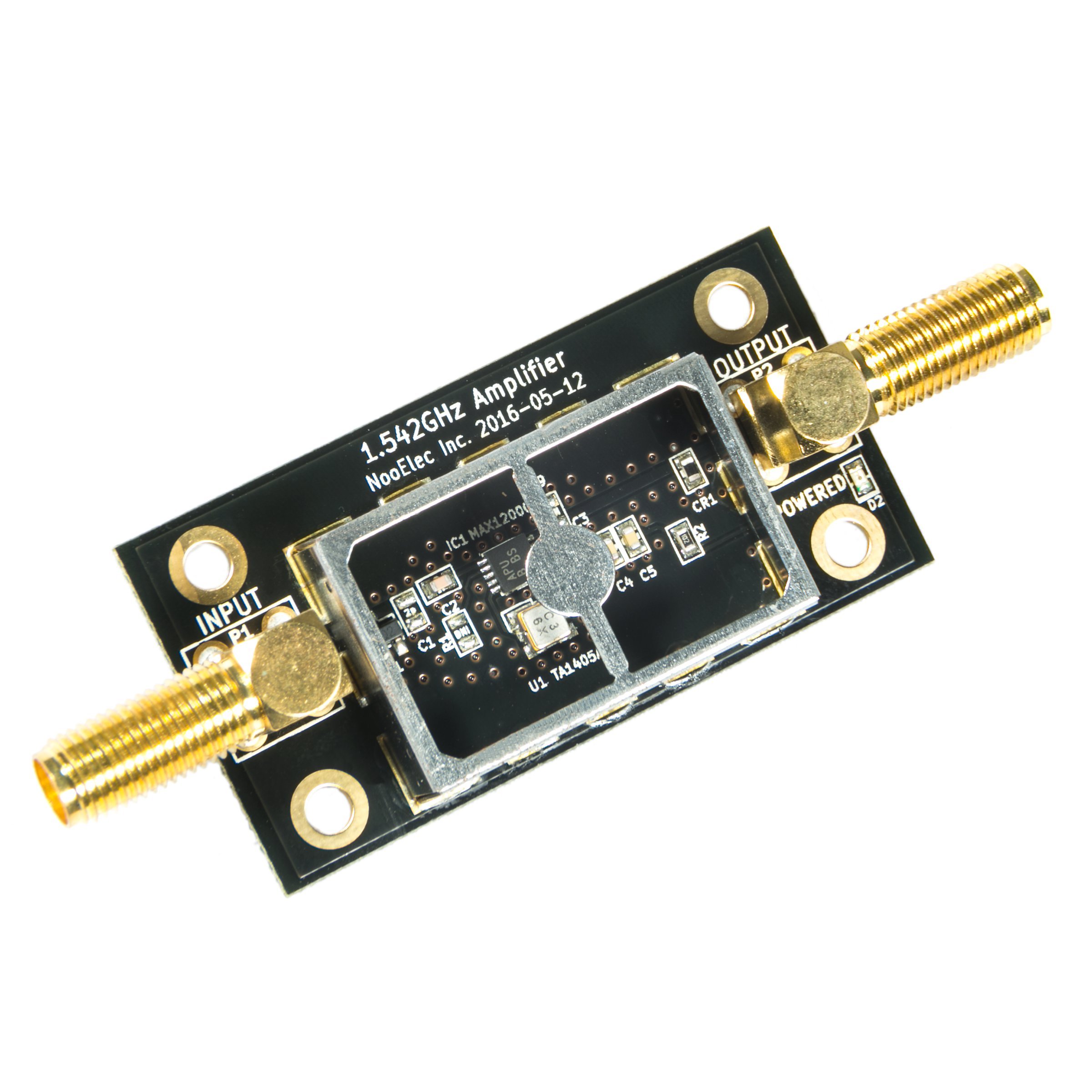

A high-quality, high-performance, complete LNA & SAW filter module for Inmarsat at a very affordable price. Perfect for Outernet projects The module should be powered via low-noise bias-tee which supplies between 3.0V-5.5V. It must be capable of supplying a minimum of 35mA of current. Works great with NESDR SMArTee XTR Amazon SKUs: B06Y1D7P48 and B06Y1GN5RP As with all other high-frequency applications, we recommend using in conjunction with an SDR specifically designed for long-term, high-frequency performance without degradation, such as an E4000-based RTL-SDR or a HackRF. The center frequency of the module is 1.542GHz with approximately 80MHz of bandwidth -6dB rolloff . As such, it should be used for reception of frequencies between 1.50GHz-1.58GHz. The LNA is a dual-stage design with a very low noise figure of 1dB nominal . 4 mounting holes are available on the PCB for various mounting options. The input and output connectors are female SMA.
