NooElec SAWbird+ ADS-B: Premium, Dual-Channel, Cascaded Ultra-Low Noise Amplifier (LNA) & Filter Module for Airplane Tracking Applications. 1090MHz (ADSB) and 978MHz (UAT) Center Frequencies

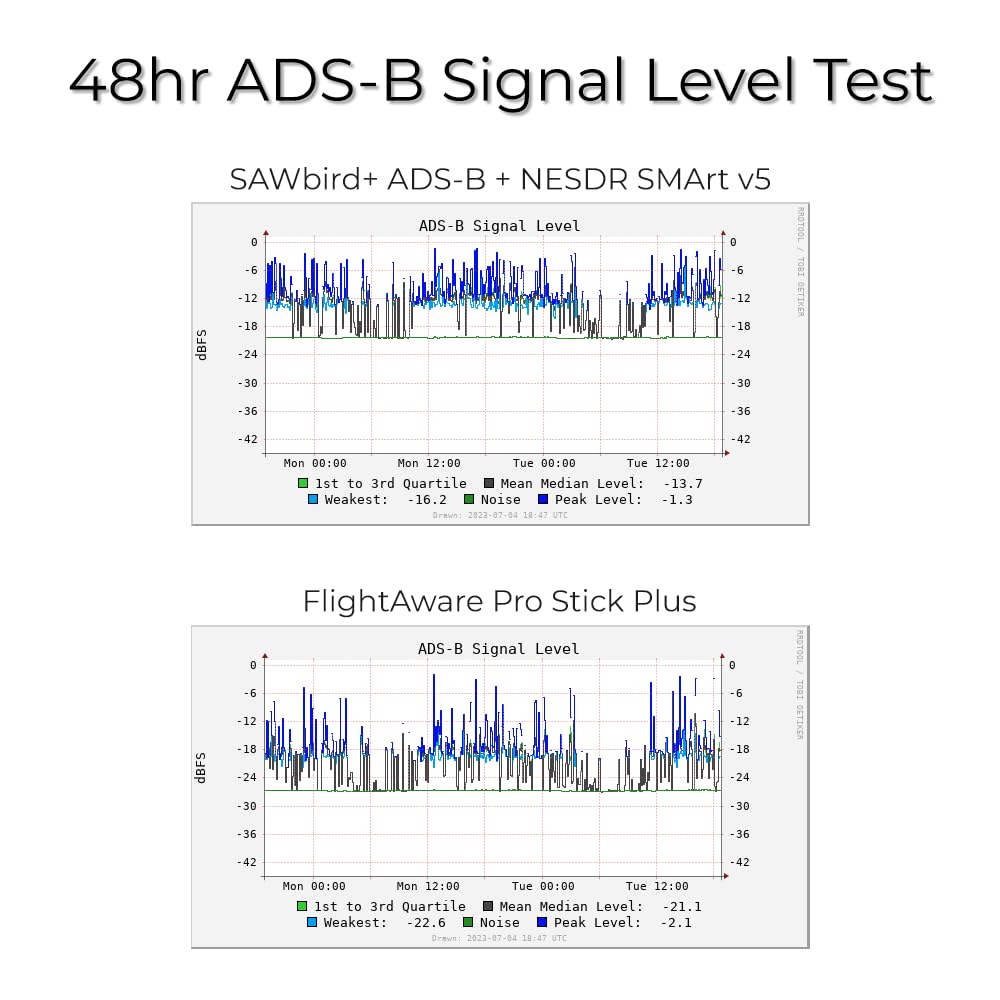

• This product is designed to massively increase plane tracking signal strength (SNR) compared to competing products. Drastically outperforms all available, low-cost ADS-B amplifiers and filters!
• SAWbird+ ADS-B increases SNR, and therefore signal range, by providing an industry lowest-in-class noise figure (0.9dB or lower) and substantial gain (34dB or higher) for BOTH ADS-B and UAT applications

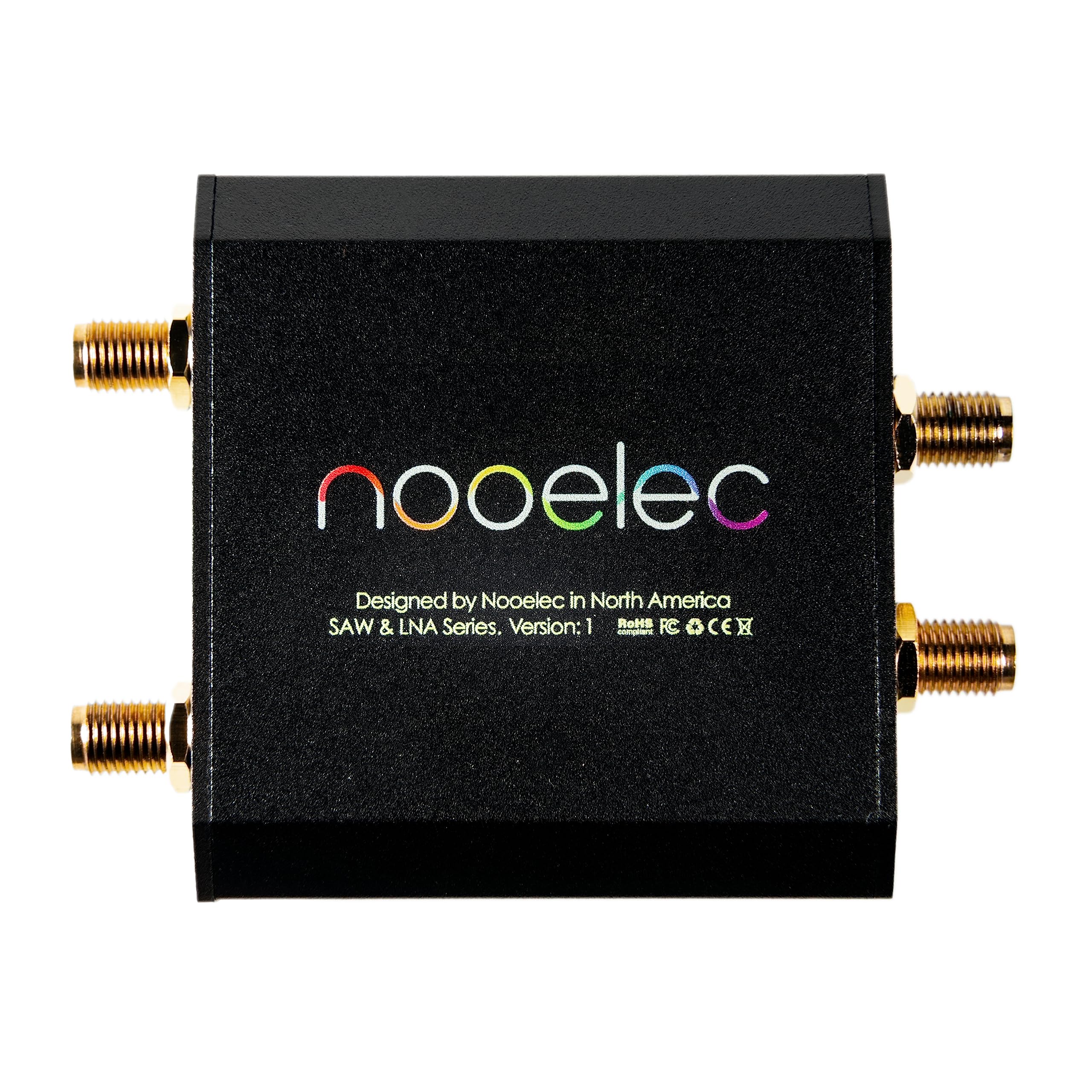

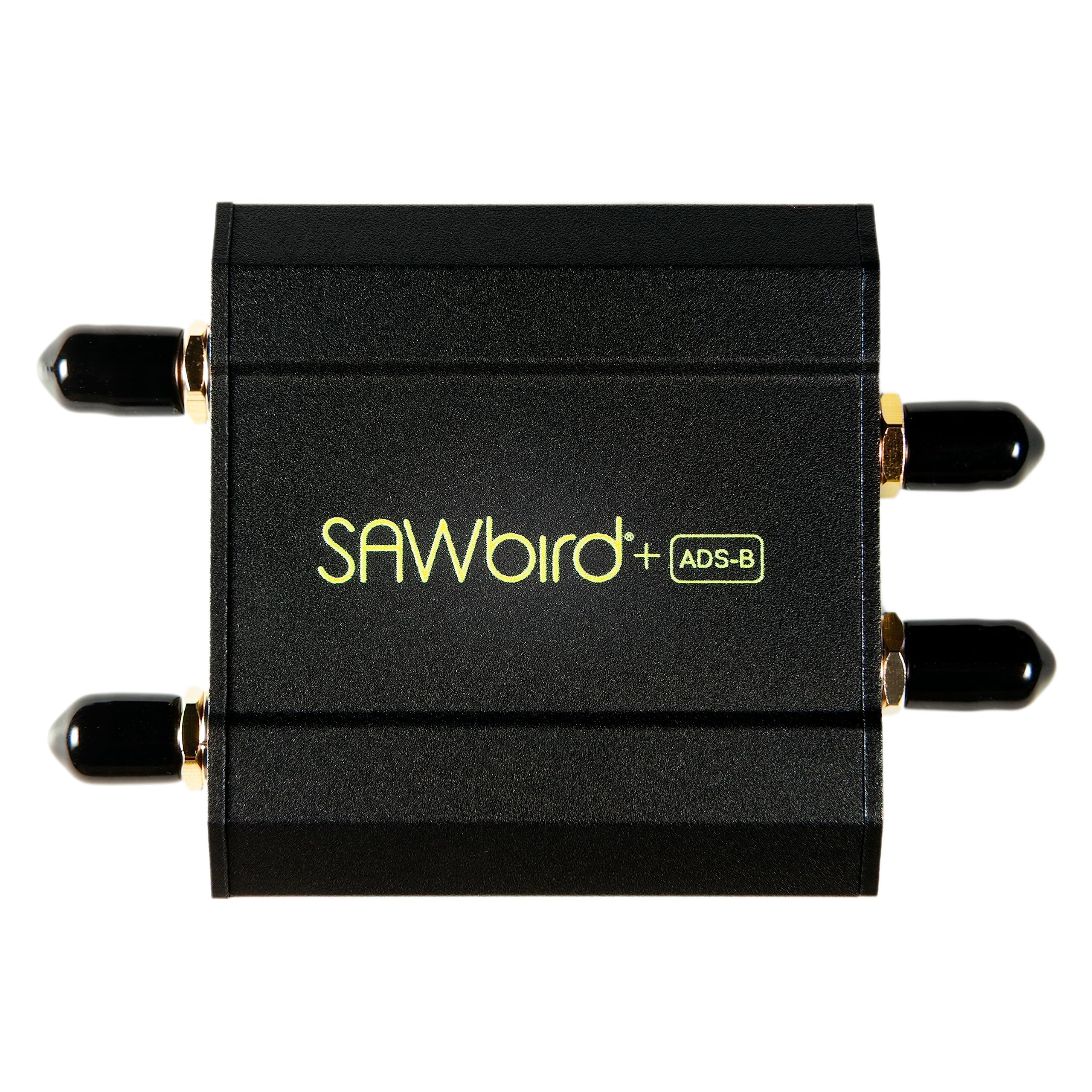

• Your purchase includes a fully assembled SAWbird+ ADS-B module pre-installed into a beautiful black custom aluminum enclosure, two male to male SMA adapters, and a micro USB to DC barrel connector adapter cable
• NOTE: Like any other amplifier, you MUST LOWER YOUR GAIN LEVELS AND/OR REMOVE OTHER AMPLIFIERS IN YOUR SIGNAL CHAIN to see the resulting reception increase! Otherwise, you WILL OVERLOAD YOUR RADIO, RESULTING IN REDUCED OR ZERO RECEPTION! When set up as intended, SAWbird+ ADS-B will greatly increase the performance of nearly every flight tracking setup

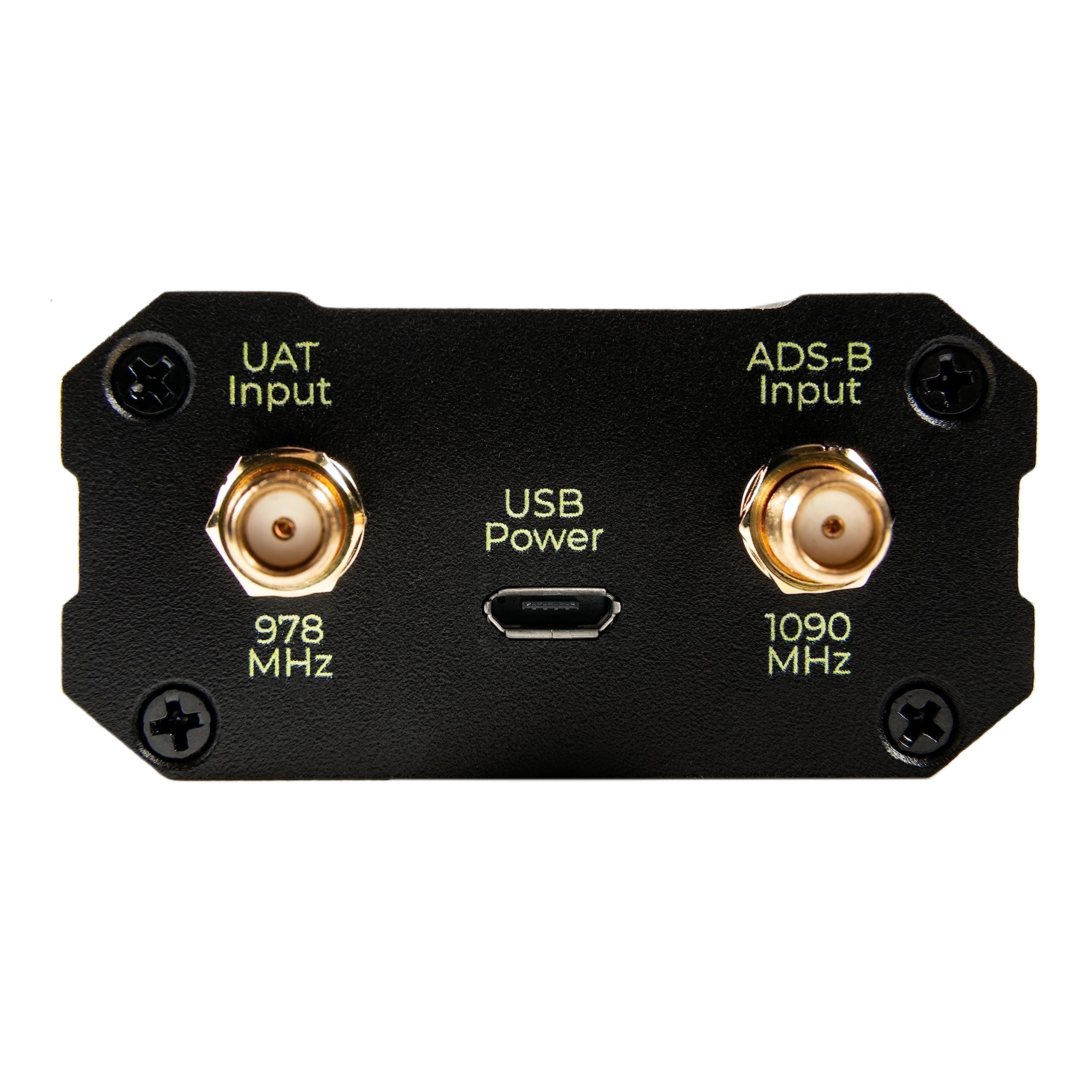

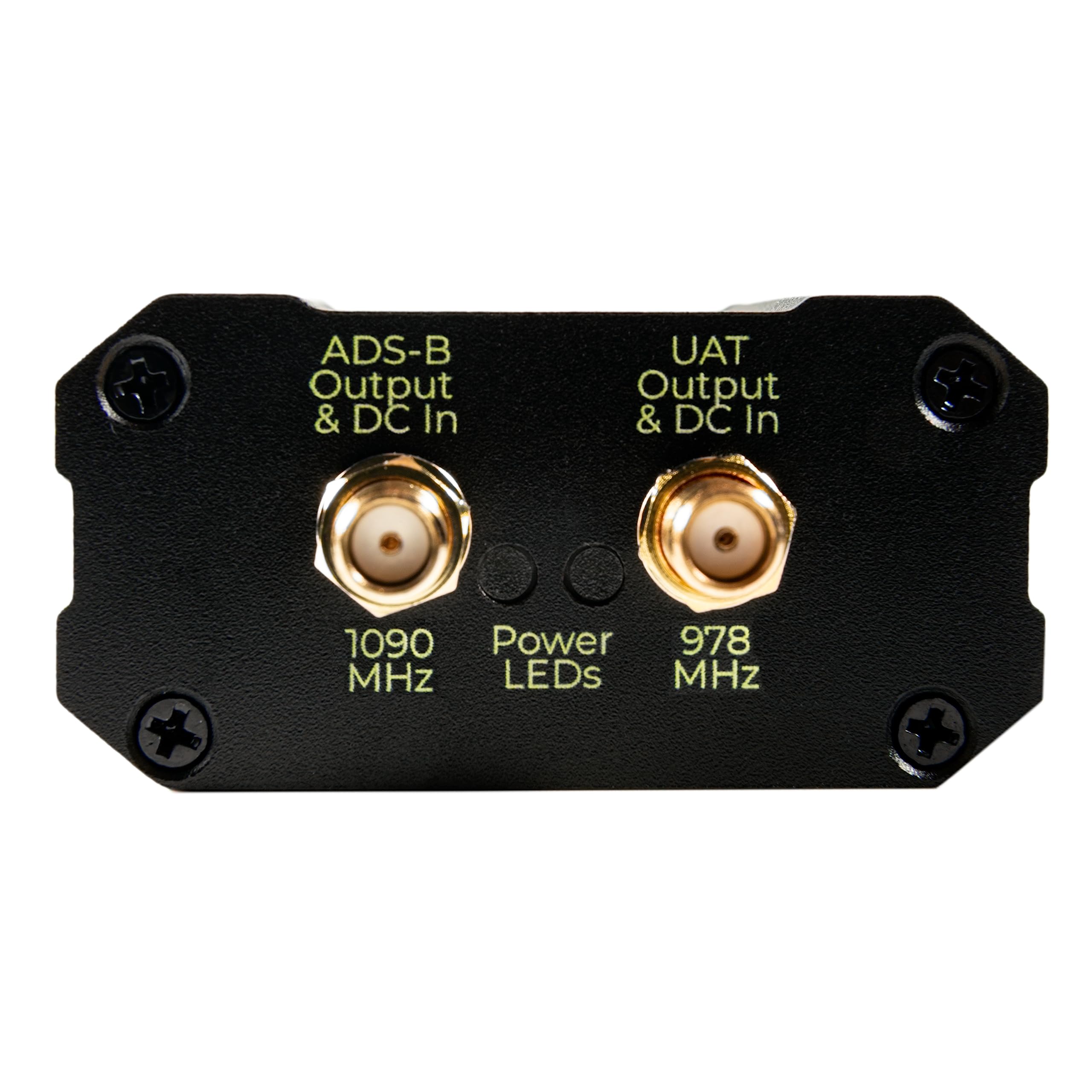

• Both sides of the device offer a bias tee power option (3 to 5V DC and 140mA or higher current availability). Alternatively, a micro USB port is available to provide external power when bias tee power is unavailable or unsuitable

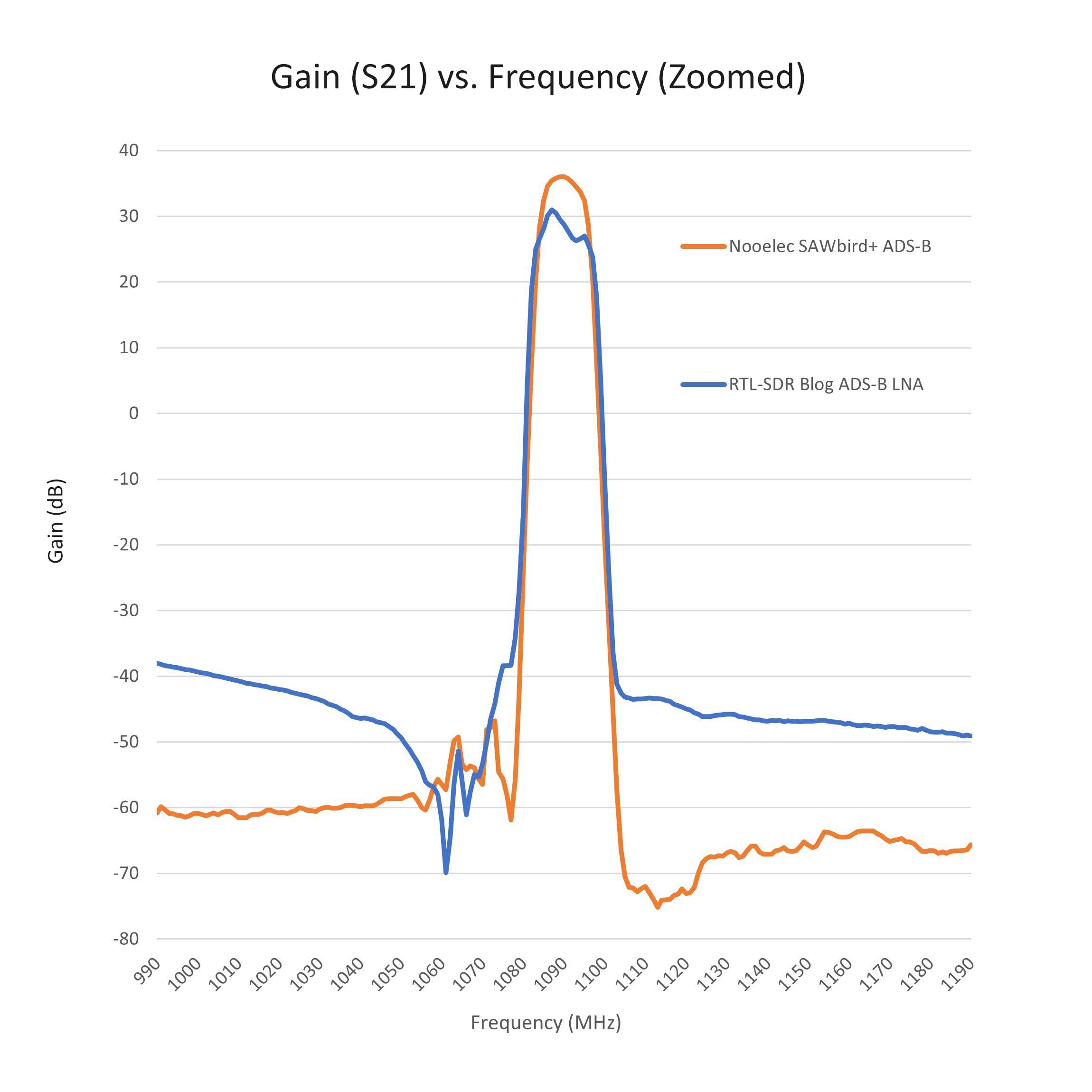

• Exceptional out-of-band rejection levels of +85dB for cleaner signals
• 50Ω matched input/output for optimal signal transfer
• Proudly made in North America, ensuring exceptional quality and reliability. Backed by a generous 2-year warranty for peace of mind
• For more information review the product page or datasheet: https://www.nooelec.com/datasheets/100847

FOR FULL SPECIFICATIONS AND DETAILS, PLEASE REVIEW THE PRODUCT PAGE AT NOOELEC.COM Introducing the Nooelec SAWbird+ ADS-B Dual-Channel Low Noise Amplifier (LNA) – the ultimate solution for enhancing weak signals in ADS-B and UAT applications. This premium SAW filter and cascaded LNA module is designed to improve the noise figure of each channel, providing unparalleled performance for your reception needs. With center frequencies of 1090MHz and 978MHz for ADS-B and UAT respectively, the SAWbird+ ADS-B LNA module delivers approximately +35 dB gain for each side, with an ultra-low noise figure of less than 0.9dB. Boost your weak signals and improve reception range with ease. Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee) is 3V-5V DC. Alternatively, if you don't have a bias-tee capable SDR, you can use the external power options--the micro USB port, or DC barrel connector via the included micro USB to DC barrel connector adapter. The recommended external power input is 3.3V-5.5V DC. With the Nooelec SAWbird+ ADS-B LNA, you can take your plane tracking to new heights. Enhance the performance of your surveillance, monitoring, and communication systems with the best-in-class noise figure optimization. Experience unparalleled signal quality and reliability. Order yours today!
