Nooelec NanoVNA v2 (S-A-A-2) Bundle - 50kHz-3GHz Vector Network Analyzer w/Shielding, Calibration Kit, 6pc Attenuators and More! Support Innovation-Portion of Profits Donated to Original VNA Designer

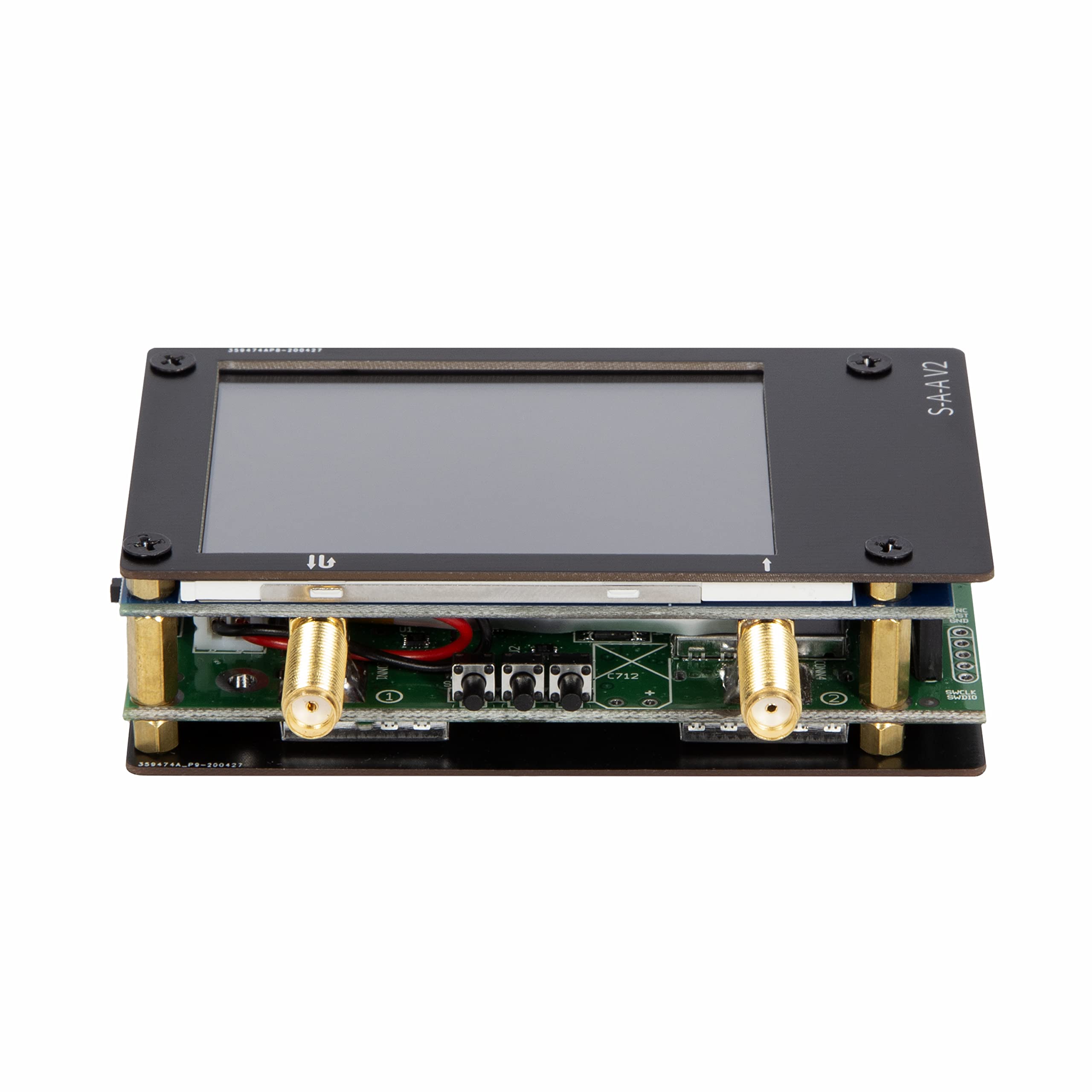

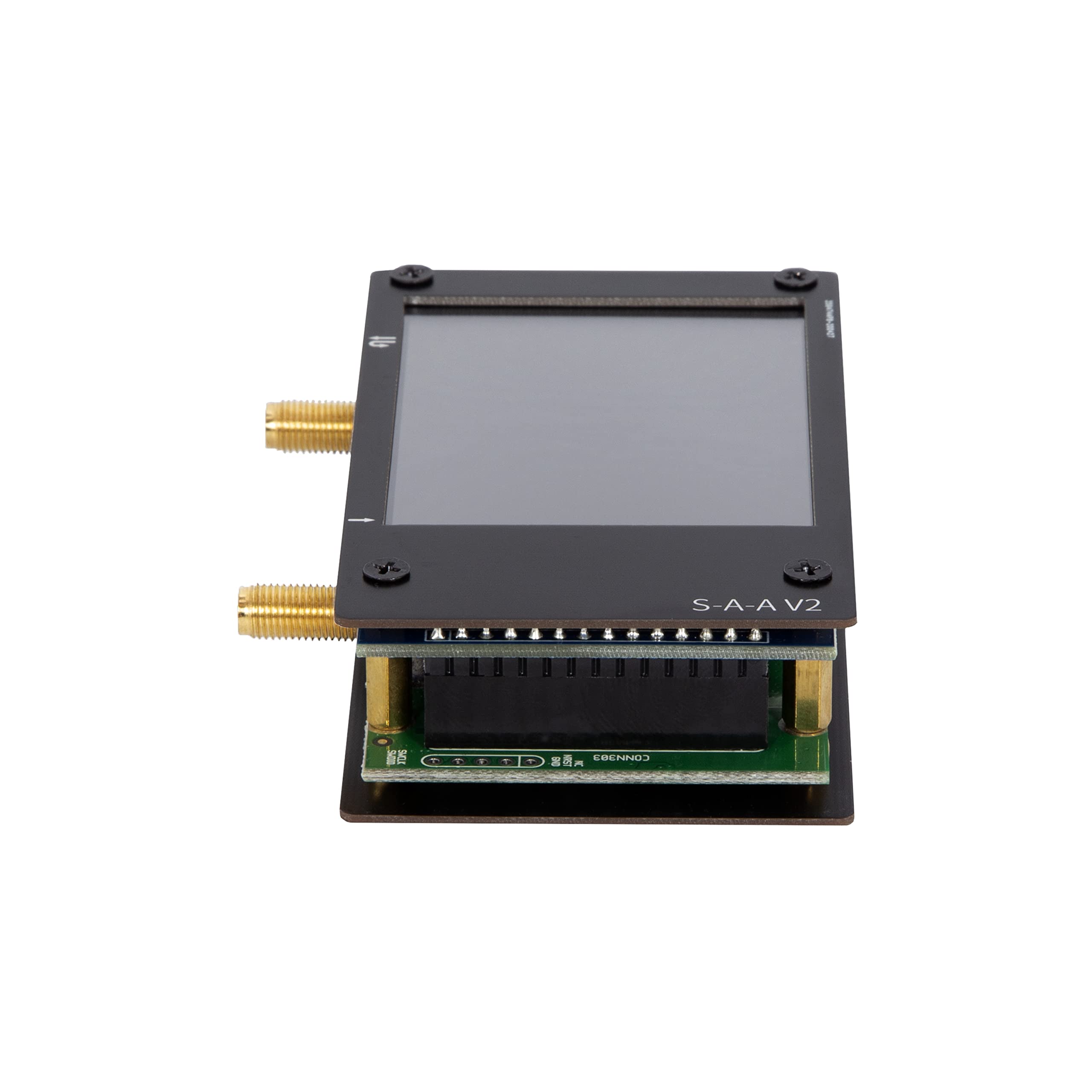

• A small, portable, battery powered vector network analyzer with a wide frequency range from 50kHz to 3GHz

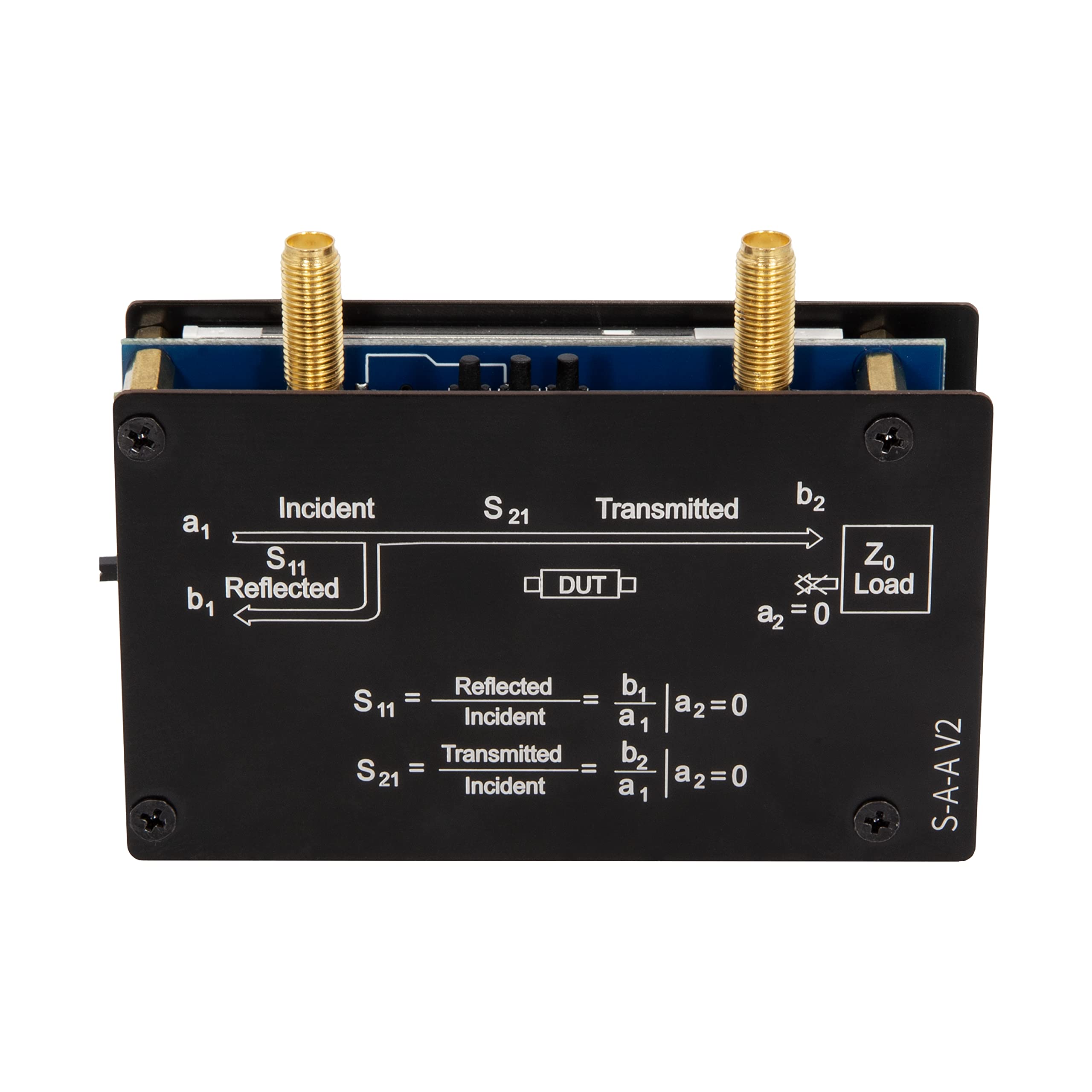

• Able to measure S11 reflection coefficient and S21 transmission coefficient

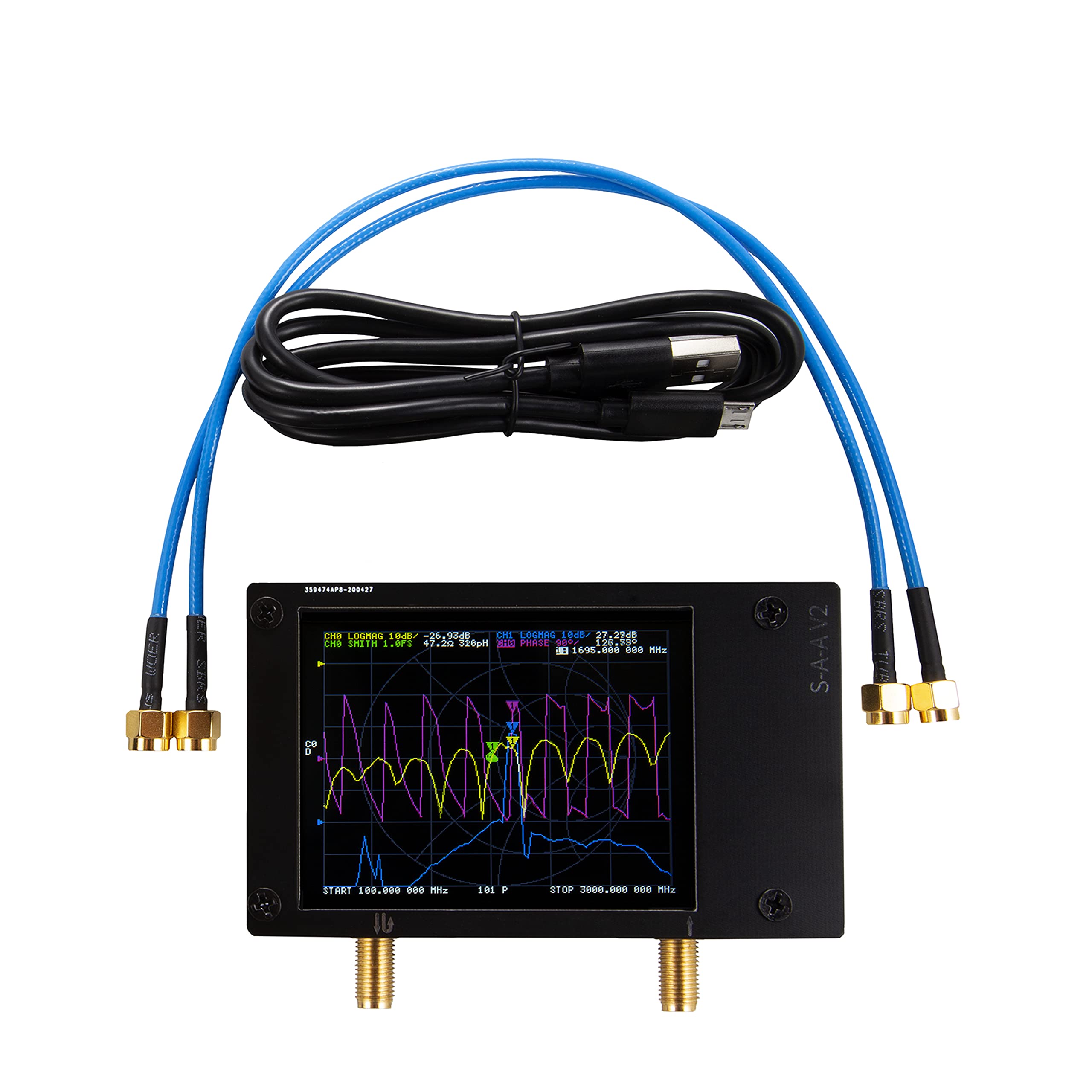

• A beautiful 3" inch, 320*240 display with 1950mAh rechargeable lithium-ion battery
• System dynamic range when calibrated is 70dB from 50kHz to 1.5GHz and 60dB from 1.5GHz to 3GHz
• Minimum return loss is 20dB at 1.5GHz and 13dB at 3GHz
• 1024 sweep points with USB mode along with NanoVNA-QT software and 201 points when data is displayed on the screen

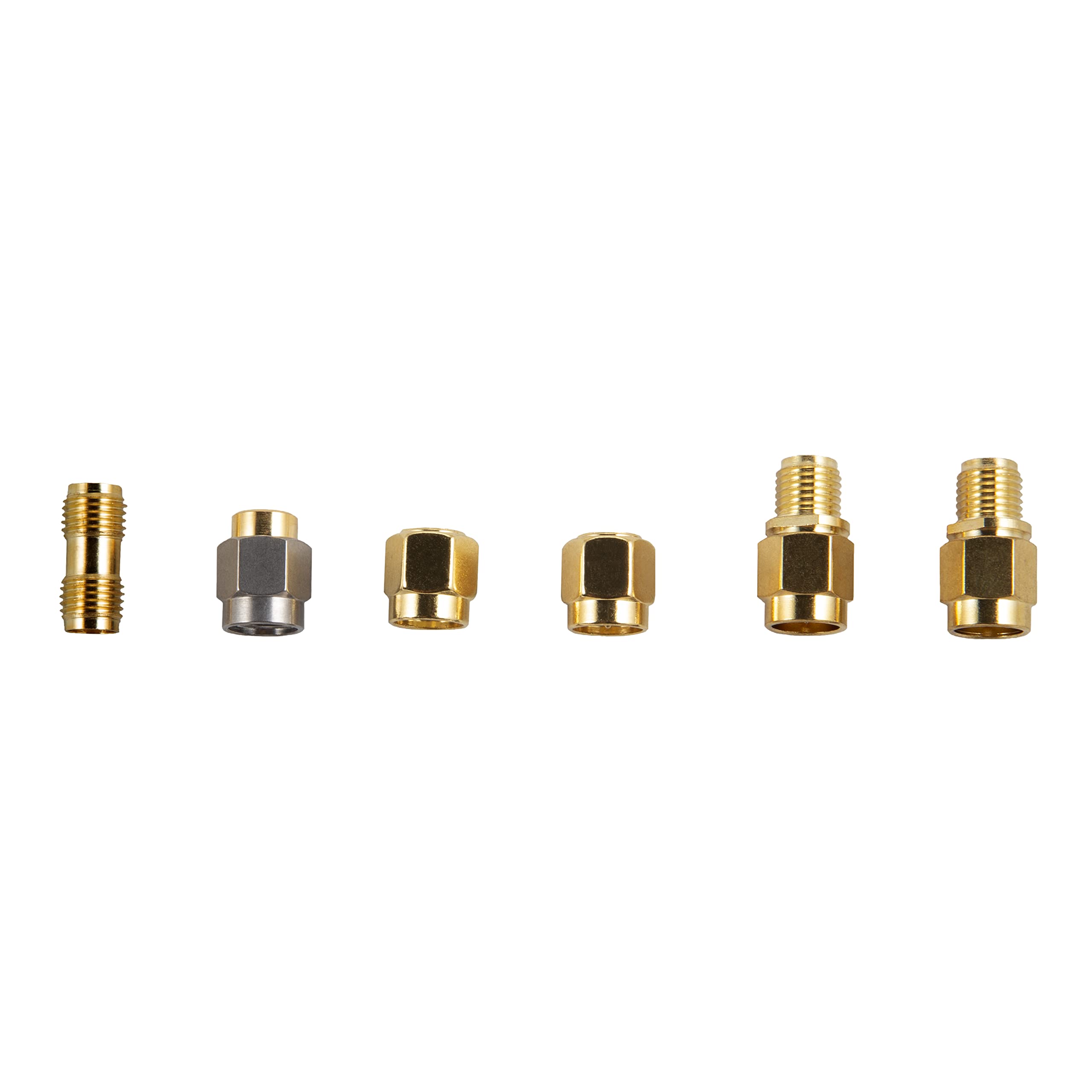

• A SOLT calibration kit is included in the package, 4 male to male SMA RF coaxial cables (2 original + 2 high quality LMR200), and a set of 6 male-female attenuators (1, 2, 3, 6, 10, and 20dB)
• MicroUSB interface for charging and personal computer connection is included in the package

The original NanoVNA v2, model: S-A-A-2, is used to measure and characterize RF components such as antennas, amplifiers, filters, attenuators, etc. It comes with stable firmware and the ability to connect to personal computers as well as charging via the included micro-USB cable. The kit also comes with a short, open, loaded and through calibration kit (SOLT) with 4 RF cables (2 x 30 cm original + 2 x 60 cm high quality LMR200) and a set of male-female attenuators (1, 2, 3, 6, 10 and 20dB). It can measure reflection and transmission coefficients (S11 and S21) with 1,024 scan points using USB mode and NanoVNA-QT software, and 201 points when the data is displayed on the screen.
