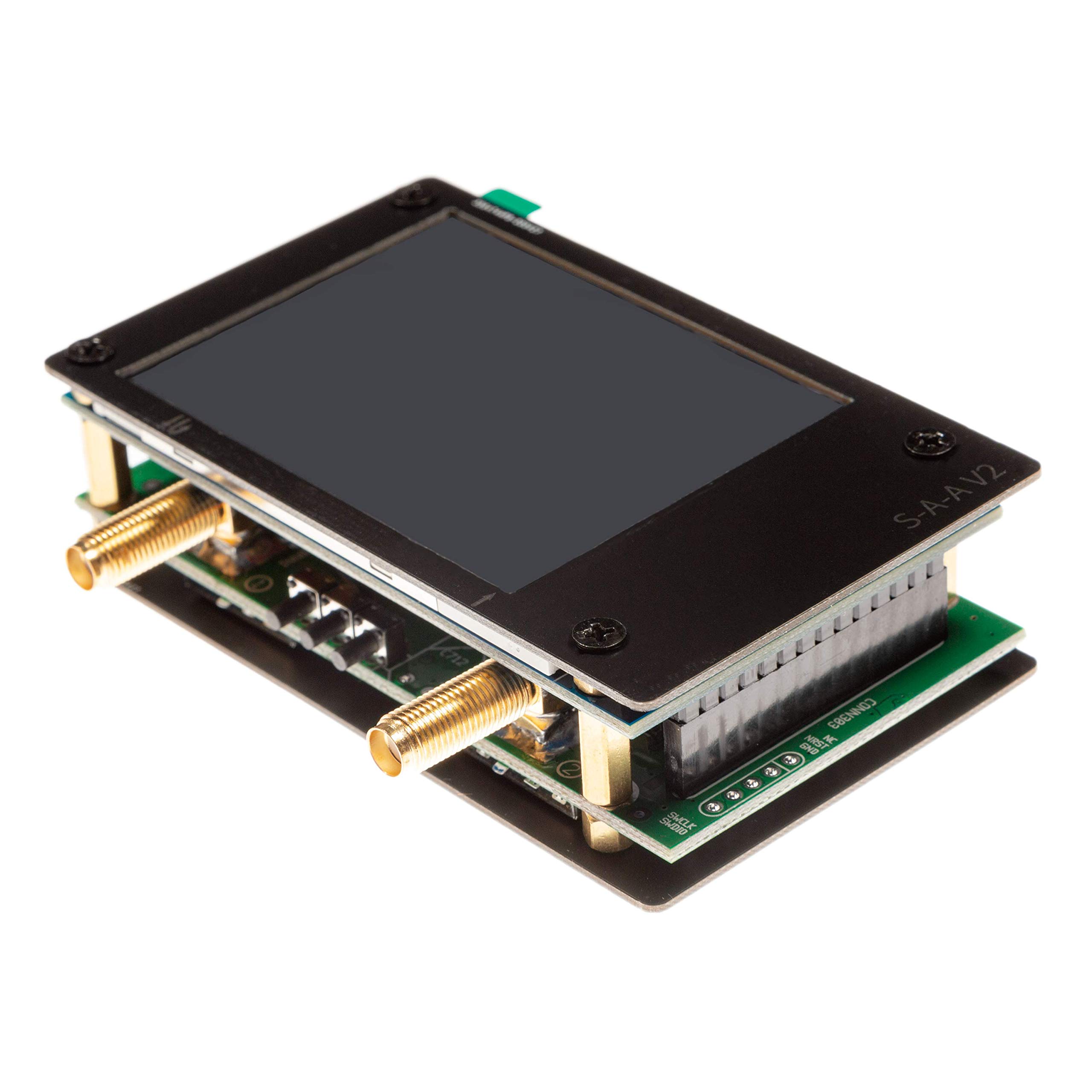

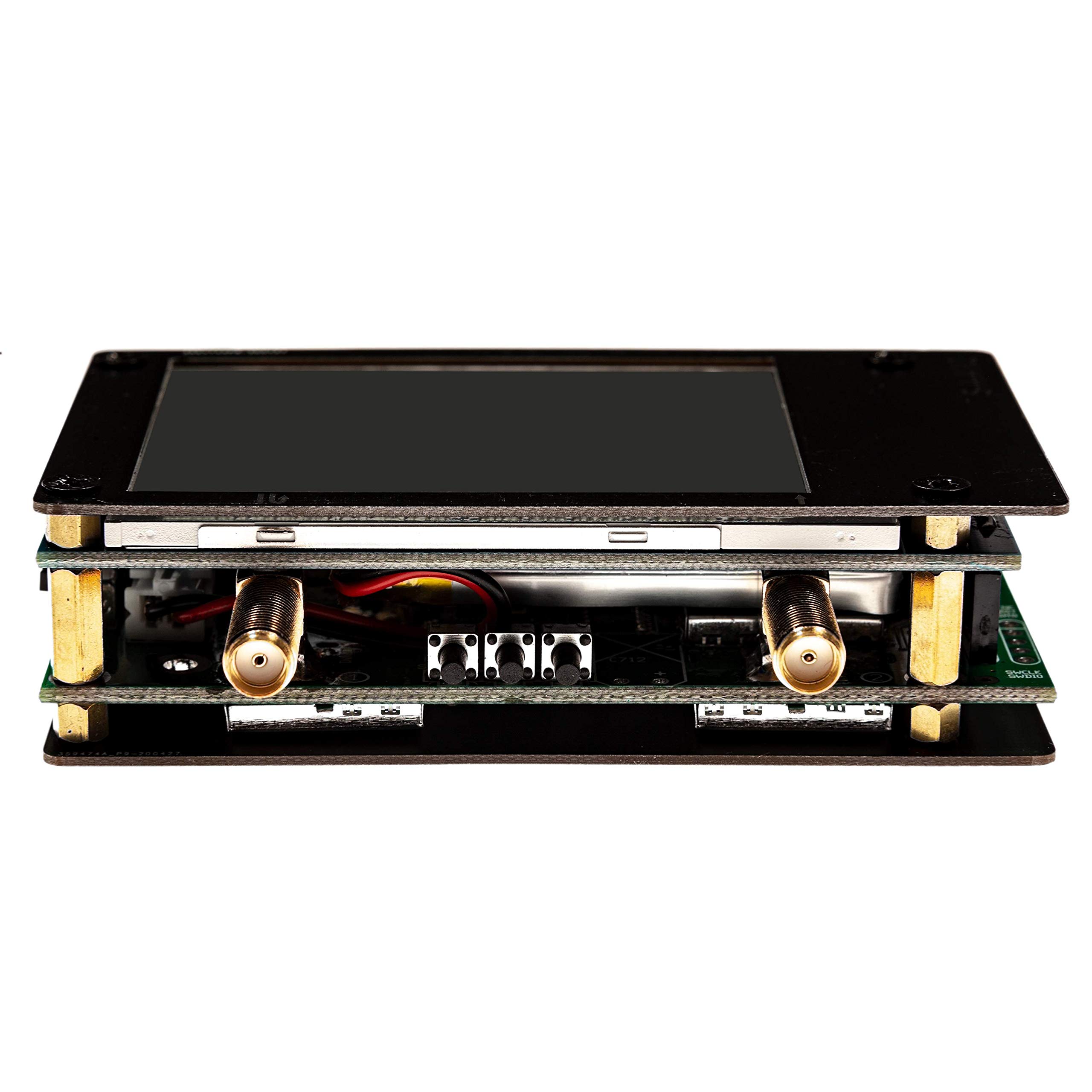

Nooelec NanoVNA v2 (S-A-A-2) - 50kHz-3GHz Open Hardware Vector Network Analyzer w/EMI Shielding, SOLT Calibration Kit & Cables. Support Innovation-Portion of Profits Donated to Original VNA Designer

• A small, portable, battery powered vector network analyzer with a wide frequency range from 50kHz to 3GHz

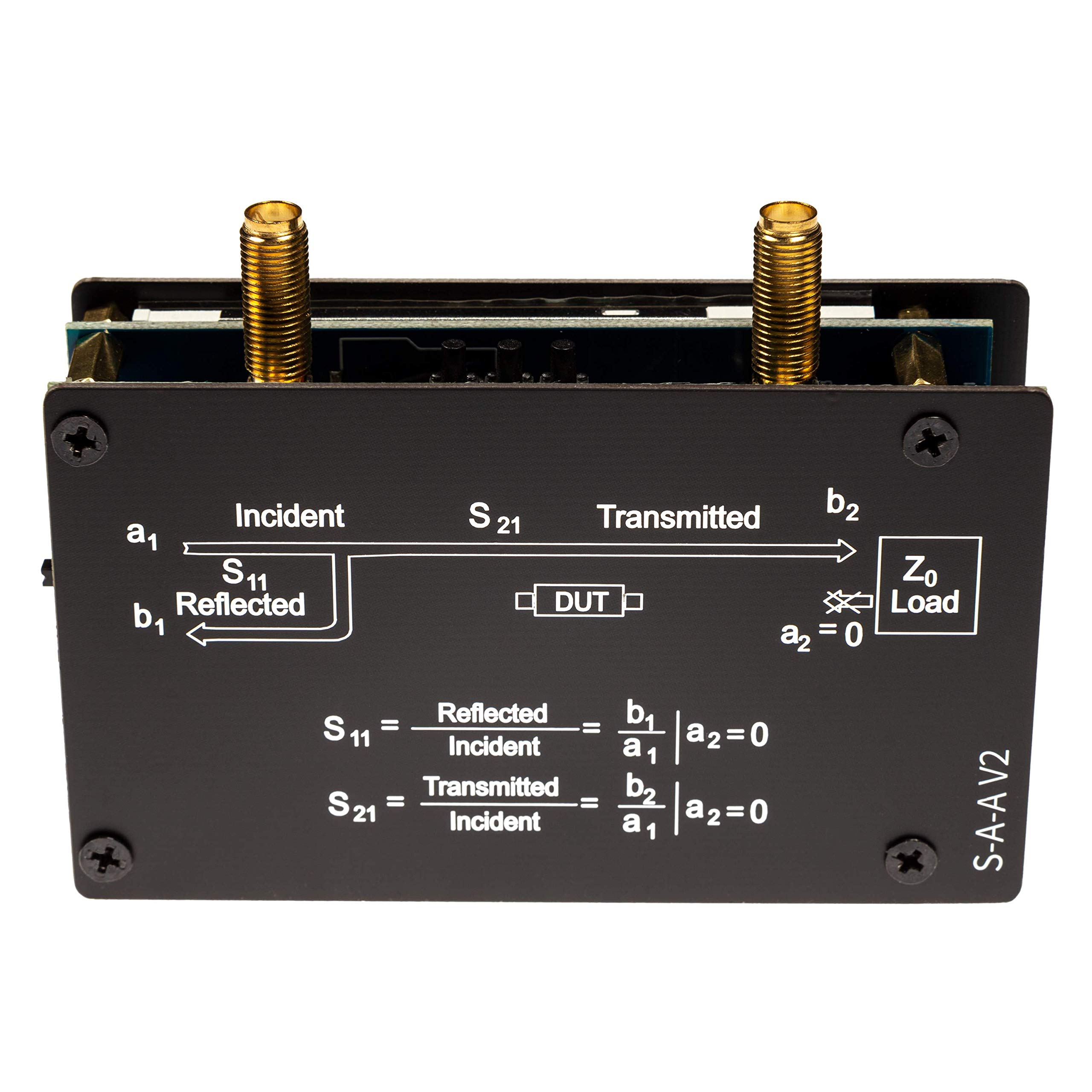

• Able to measure S11 reflection coefficient and S21 transmission coefficient
• A beautiful 3" inch, 320*240 display with 1950mAh rechargeable lithium-ion battery
• System dynamic range when calibrated is 70dB from 50kHz to 1.5GHz and 60dB from 1.5GHz to 3GHz
• Minimum return loss is 20dB at 1.5GHz and 13dB at 3GHz
• 1024 sweep points with USB mode along with NanoVNA-QT software and 201 points when data is displayed on the screen
• A SOLT calibration kit is included in the package along with 2 male to male SMA RF coaxial cables
• A MicroUSB cable for charging and computer connection is included in the package

The original NanoVNA v2, model: S-A-A-2, is used for measuring and characterizing RF components such as antennas, amplifiers, filters, attenuators, etc. It comes with stable firmware and the ability to connect to personal computers as well as charge via the included Micro-USB cable. The kit also comes with a short, open, load, and through (SOLT) calibration kit with 2 RF cables, each with a length of 30cm. Can measure the reflection and transmission coefficients (S11 and S21) with 1024 sweep points using USB mode and NanoVNA-QT software, and 201 points when data is displayed on-screen.
