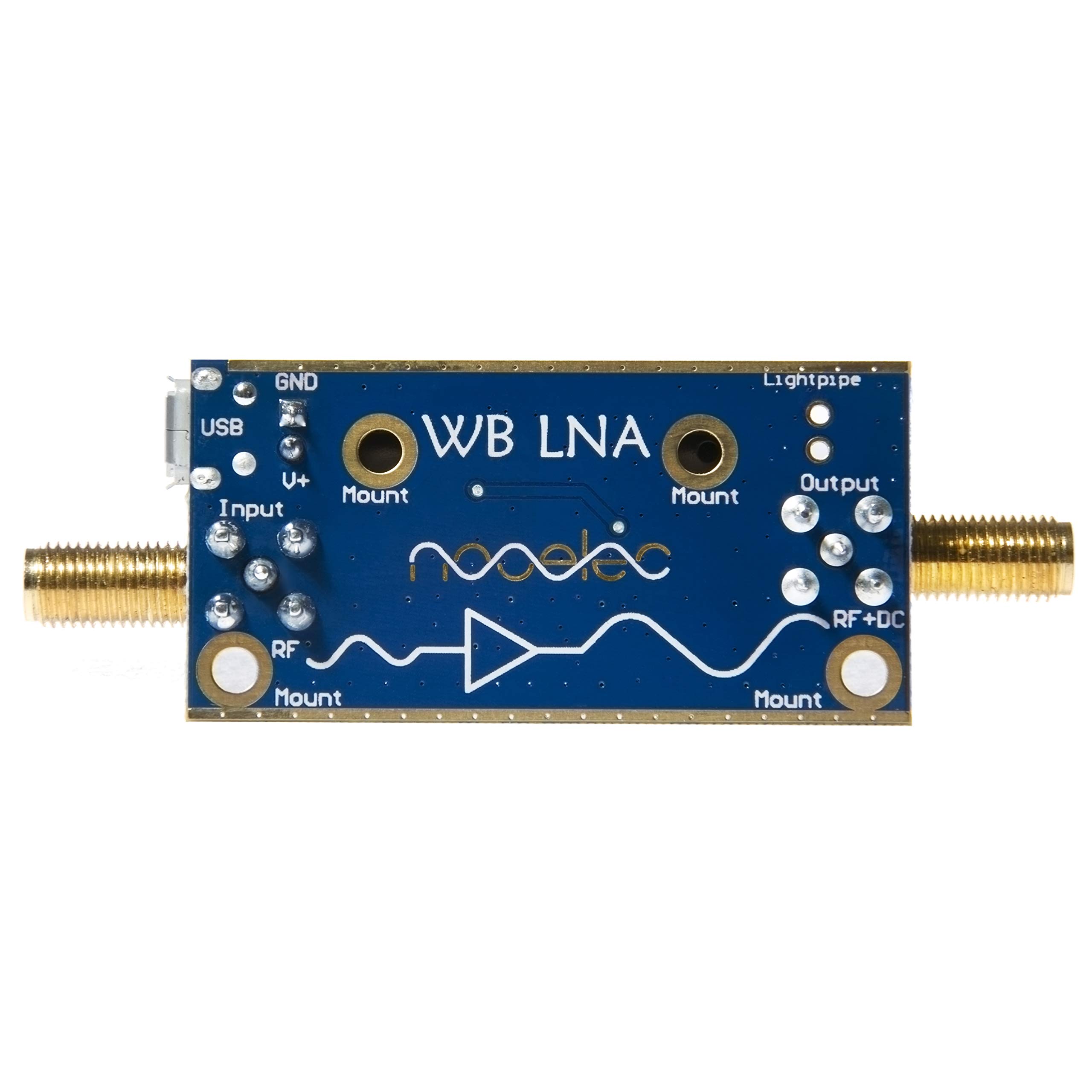

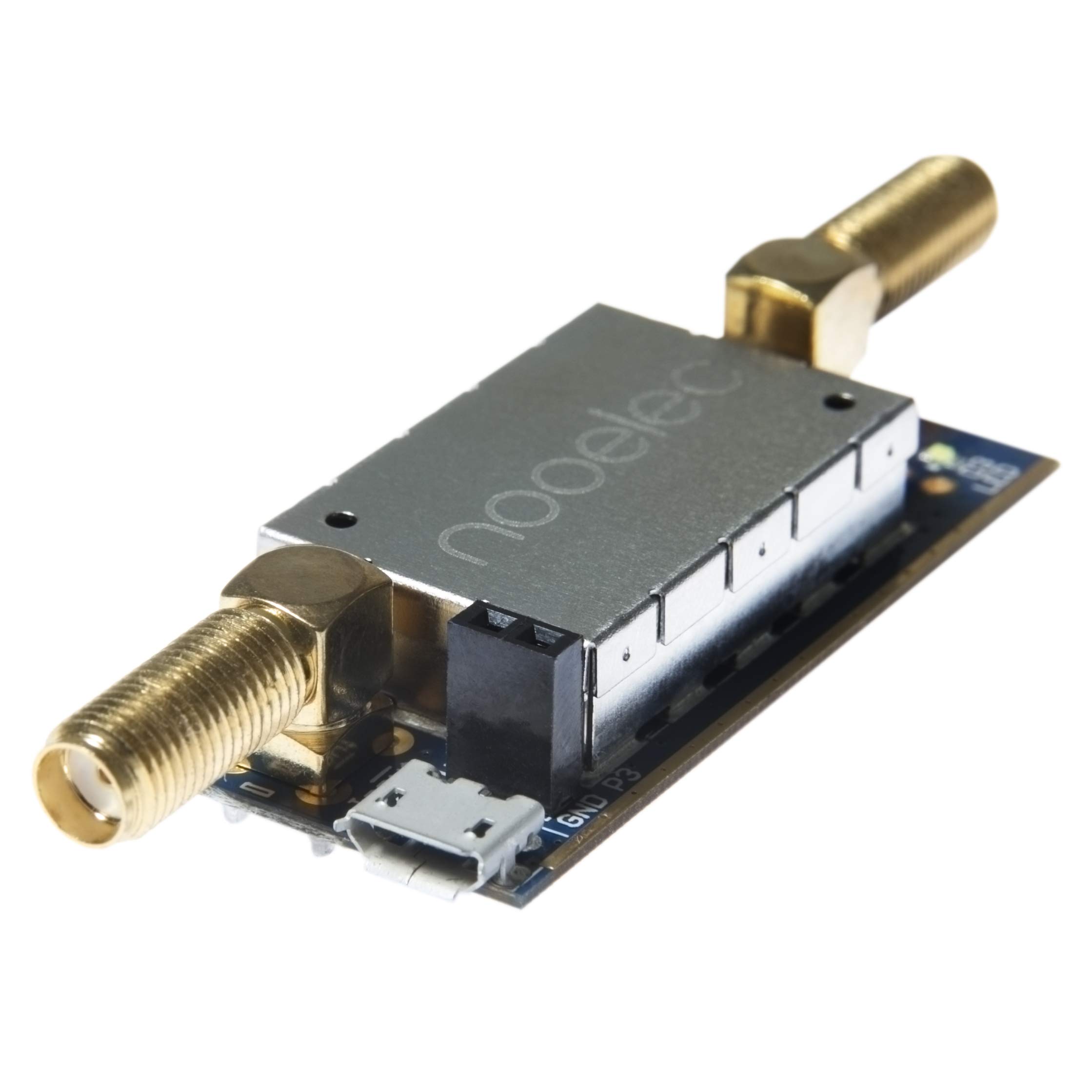

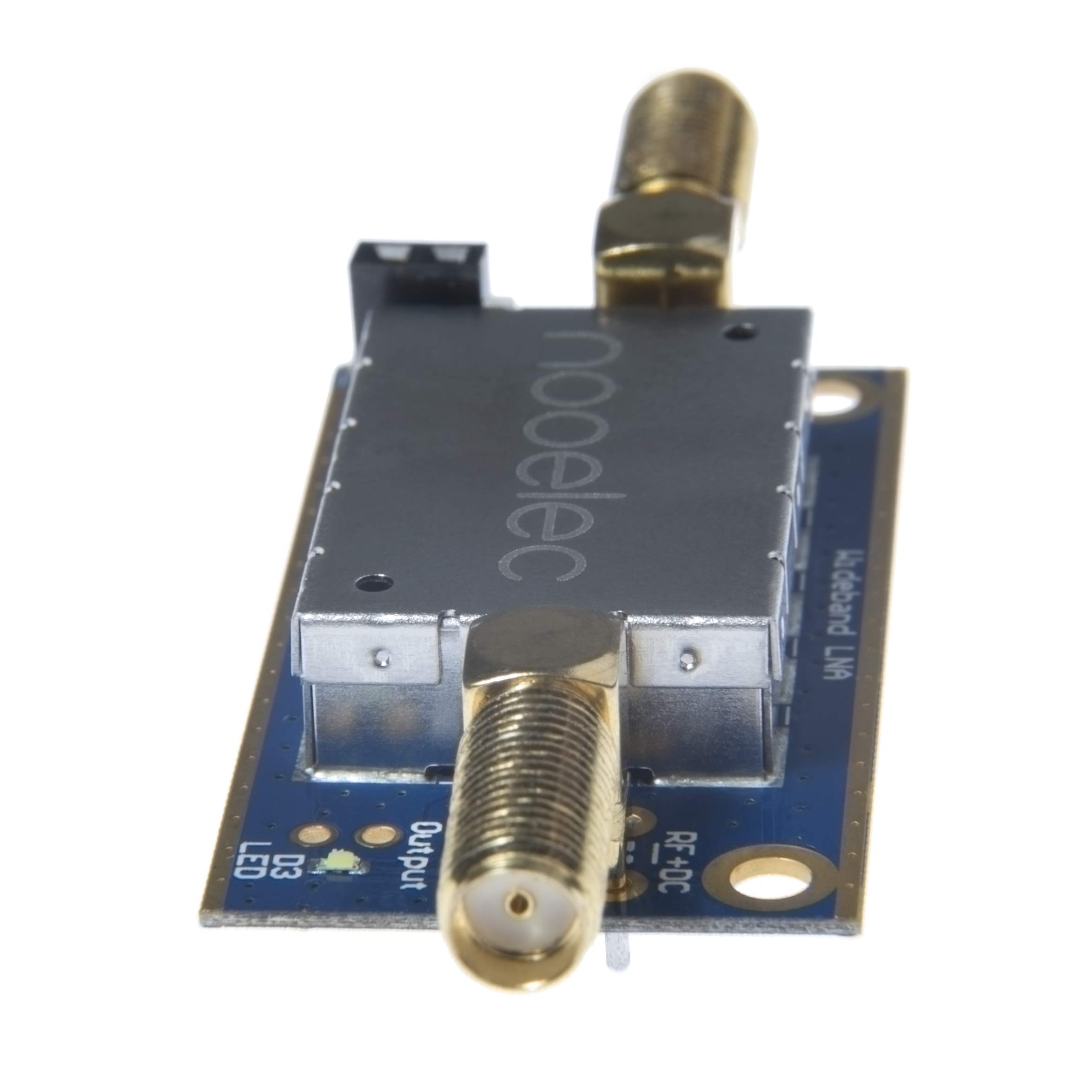

Nooelec LaNA Barebones - Ultra Low-Noise Amplifier (LNA) Module for RF & Software Defined Radio (SDR). Wideband and Linear 20MHz-4000MHz Frequency Capability with Bias Tee & USB Power Options

• A wideband (20MHz - 4GHz), high-performance, general purpose LNA module
• Higher gain, lower noise figure, lower power consumption and better linearity than modules based on SPF5189Z and similar LNA MMICs
• Can be powered through bias tee (3.3V-5V), USB, or DC power
• Made in North America. 1 year support & service! A retail version with aluminum enclosure is also available, see Amazon product ID B07XNLJ9X2
• NOTE: Some SDRs will require a DC block between the LNA and SDR if utilizing the external power options. For more information review the product page or datasheet: https://www.nooelec.com/datasheets/100802

FOR FULL SPECIFICATIONS AND DETAILS, PLEASE REVIEW THE PRODUCT PAGE AT NOOELEC.COM LaNA is a very high performance, wideband LNA module designed for general purpose SDR applications. Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee XTR) is 3V-5V DC. Alternatively, if you don't have a bias-tee capable SDR, you can use the external power options--the microUSB port, or DC barrel connector via the included DC to microUSB adapter. The recommended external power input is 3.3V-5.5V DC. Though there is protection circuitry on LaNA for overvoltage conditions--and voltages of up to 12V DC should still work and will not damage the device--it is not recommended for long-term usage. Each LaNA module has an internal EMI shield to protect the sensitive circuitry from external interference and is fully ESD-protected.
