Nooelec Iridium Patch Antenna - High Gain (3dBi) 1620MHz PCB Antenna with SMA Connector for Iridium and Other L-Band Applications. 1.62GHz Center Frequency and 80MHz+ Bandwidth

• This small Iridium patch antenna is meant for size-sensitive and portable applications. It is only 82mm x 80mm (3.25" x 3.10") and weighs just 25g (0.9oz)!
• The antenna has 3.1dBi of gain, a center frequency of 1620MHz, and a bandwidth of about 80MHz
• As this is a passive antenna, for most applications you will want to pair this with a quality LNA such as our SAWbird IR and SAWbird+ IR LNA modules (available on Amazon separately, product IDs B07K1KD4T9 and B07K1LW983 respectively)
• Full 2 year support & service directly through Nooelec
• Datasheet: https://www.nooelec.com/datasheets/100824

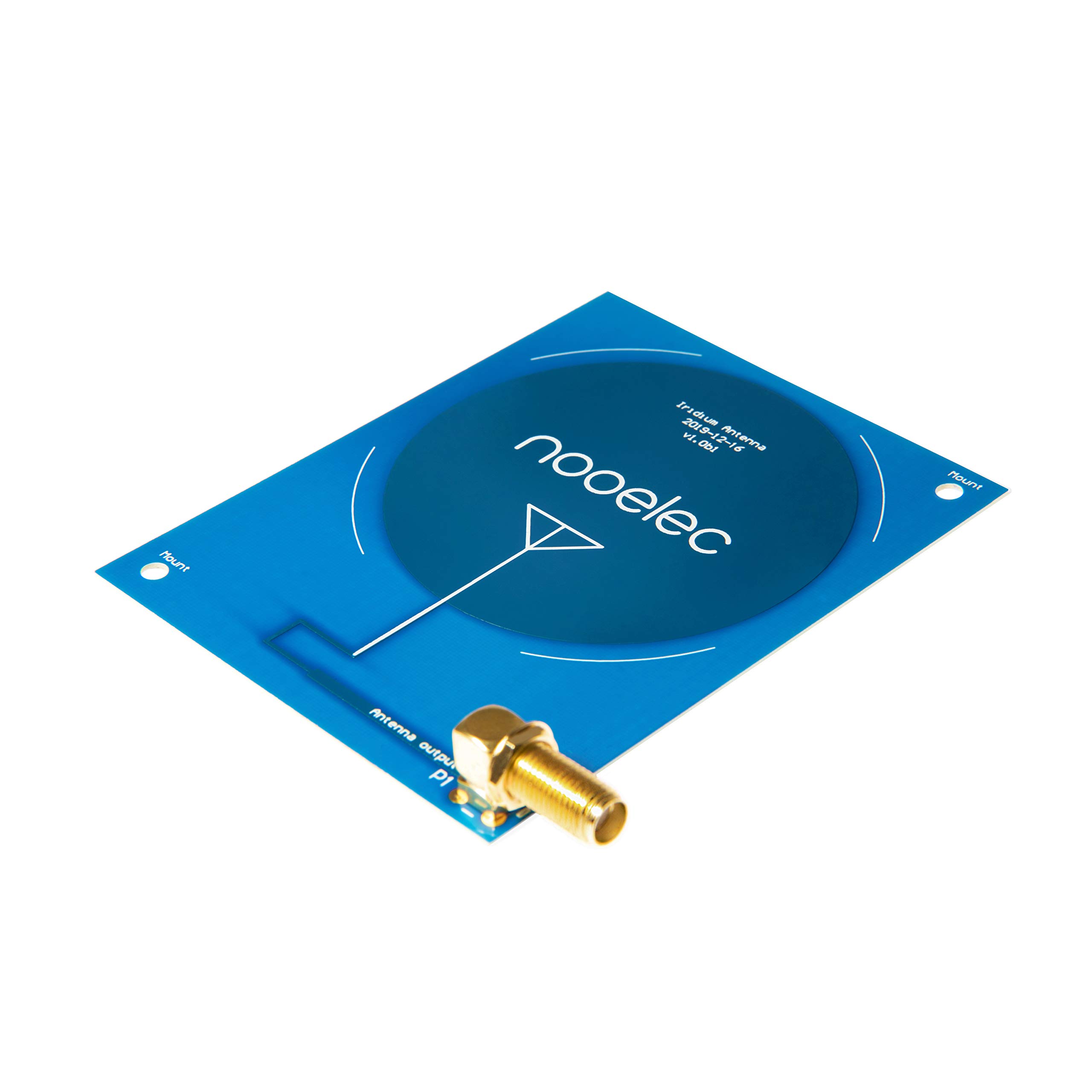

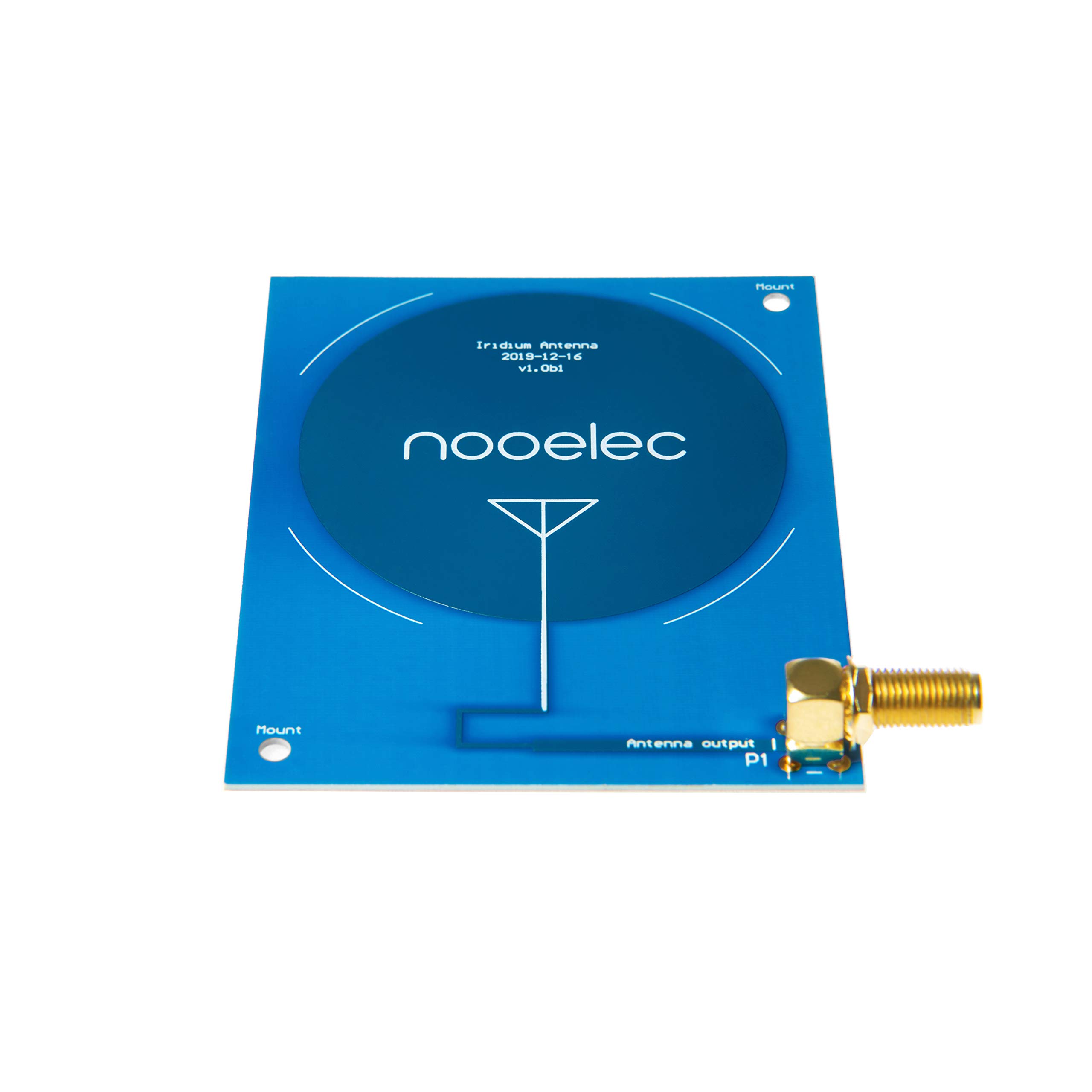

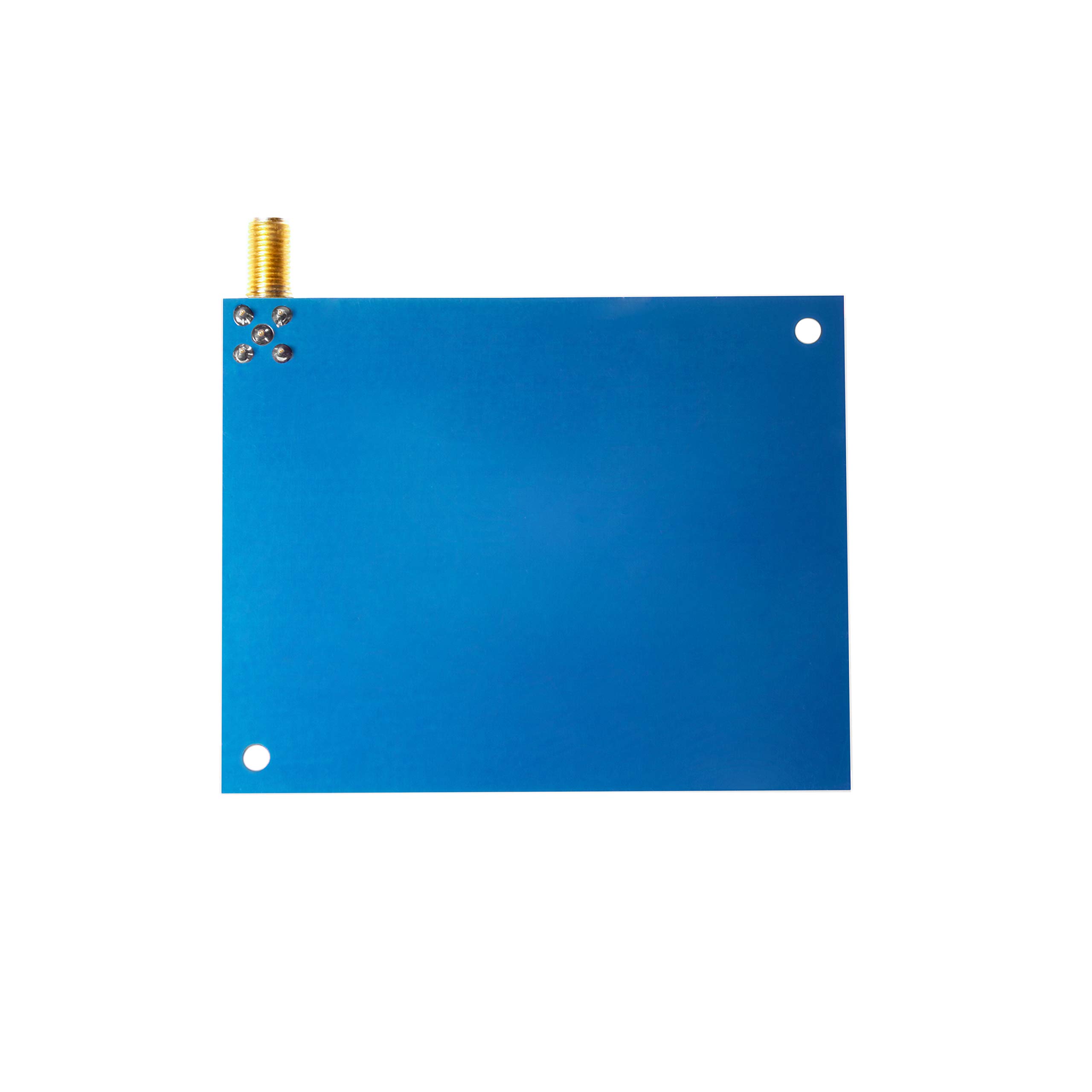

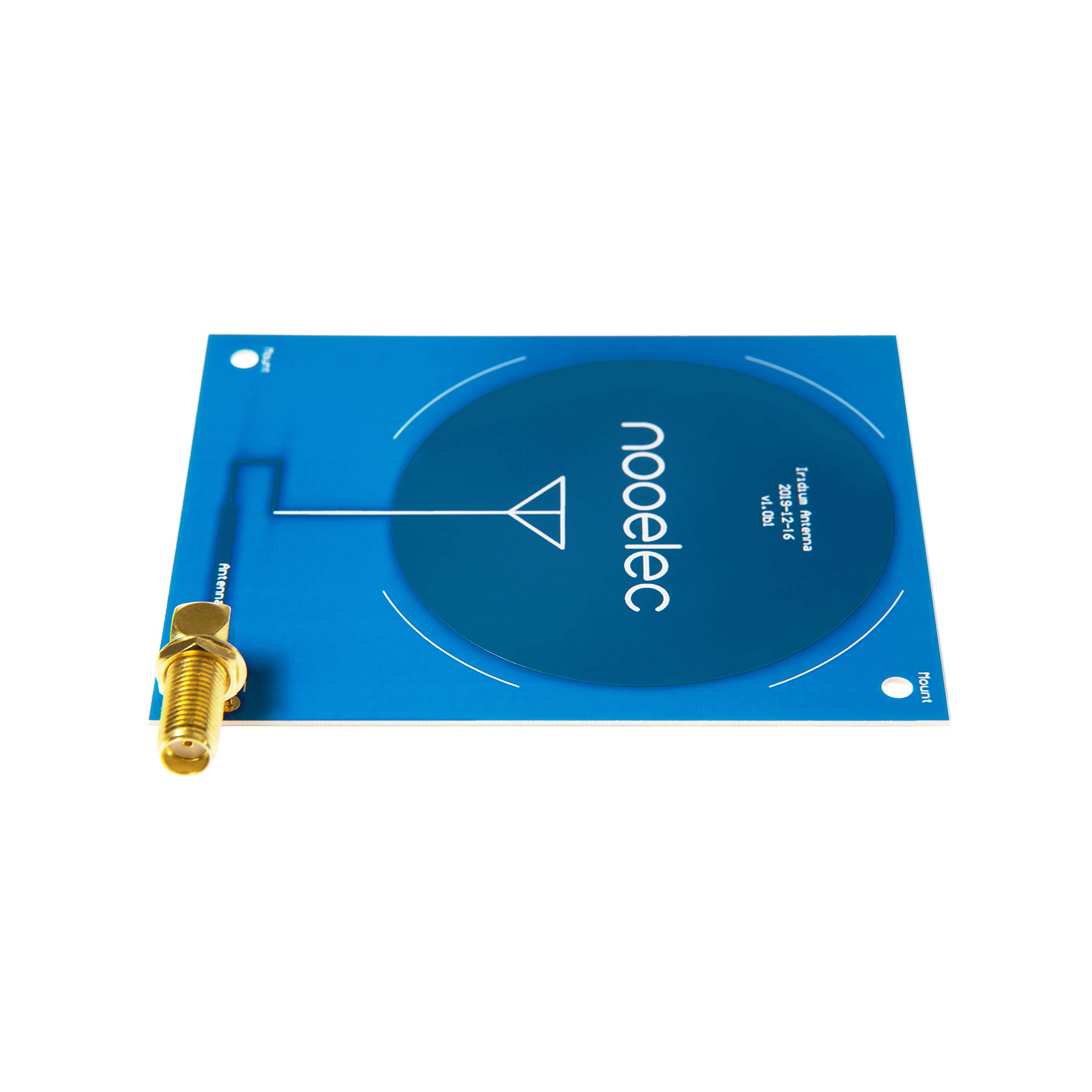

A high performance L-Band (Iridium) patch antenna with a gain of ~3.1dBi and a female SMA connector. A male to male SMA connector is included to connect to your gear. The antenna works very well for both right hand circularly polarized (RHCP) and linear signal types, and has excellent performance over the entire range of Iridium signals. The antenna is only 82mm x 80mm (3.25" x 3.10") and weighs just 25g (0.90oz)! Receives Iridium broadcasts with ease, even when not well pointed at the appropriate satellites, which drastically simplifies setup. Our Iridium antenna is especially effective when paired with our Iridium LNA modules, SAWbird IR and SAWbird+ IR. For more information on these modules, please visit their respective product pages. For further technical information, please download the datasheet: https://www.nooelec.com/datasheets/100824
