Non-Isolated Step Up/Down Power Supply Module,DC-DC 5-32V to 1V-30V Automatic Boost/Buck Converter CC CV Power Supply Module,Voltage Regulator

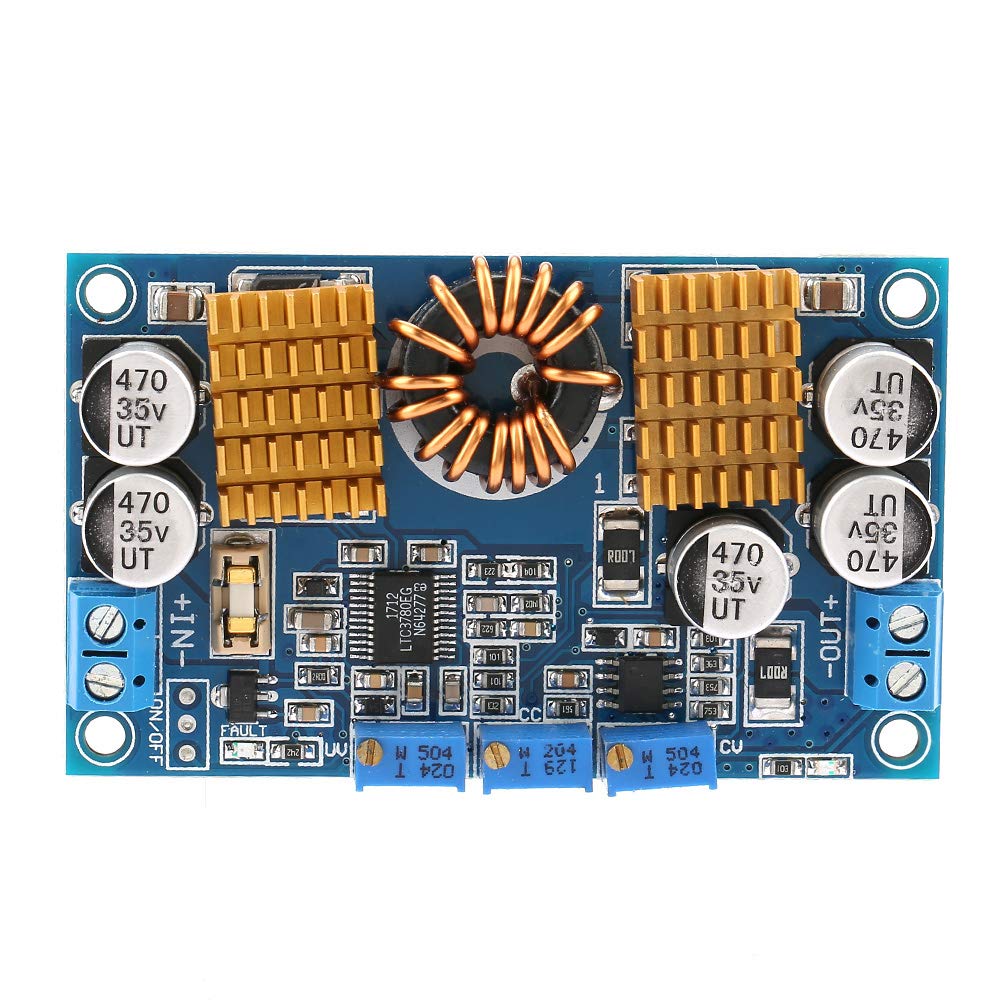

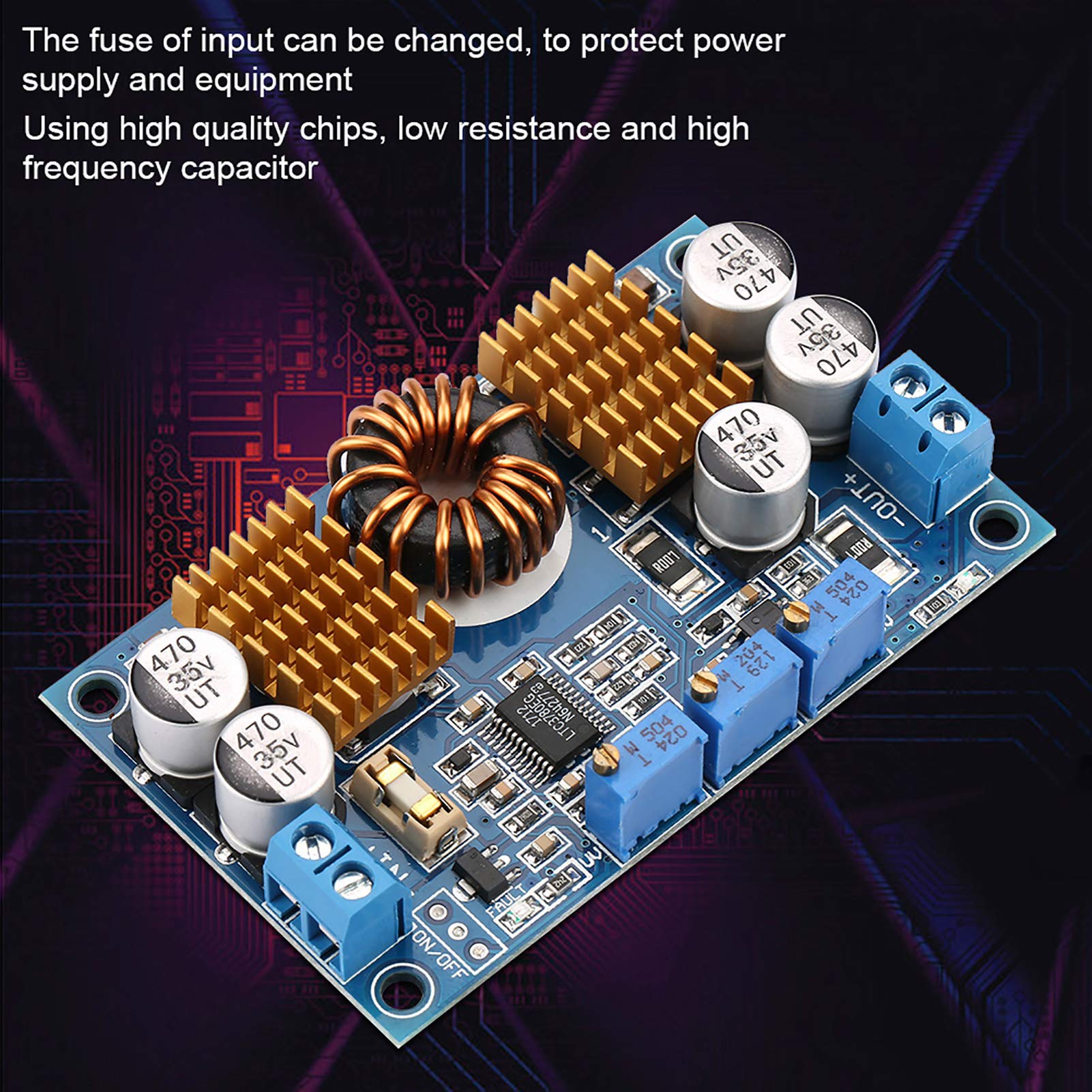

• The circuit board is thickly plated .The of input can be changed, to protect power supply and equipment.Using high quality chips, low resistance and high frequency capacitor.
• This power supply is a high efficiency regulated power supply module. Output voltage can keep stable when input voltage is below, above or equal to the output voltage.For example, if the output voltage is set as 12V, then even the input voltage changes from 5V to 32V, the output voltage will still be 12V.This module has well protection function, which can be applied to solar battery charging.
• This power supply is an automatic step up/down power supply module. Output voltage can keep stable when input voltage is below, above or equal to the output voltage.

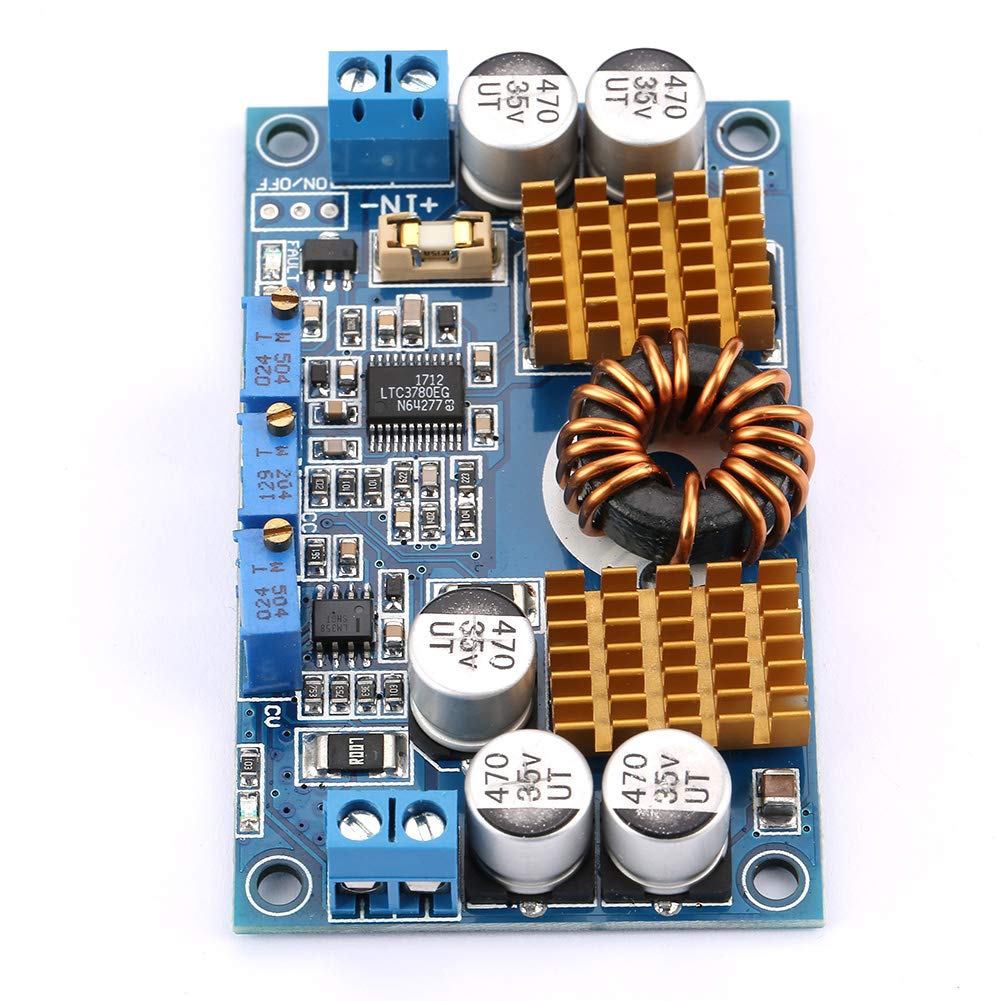

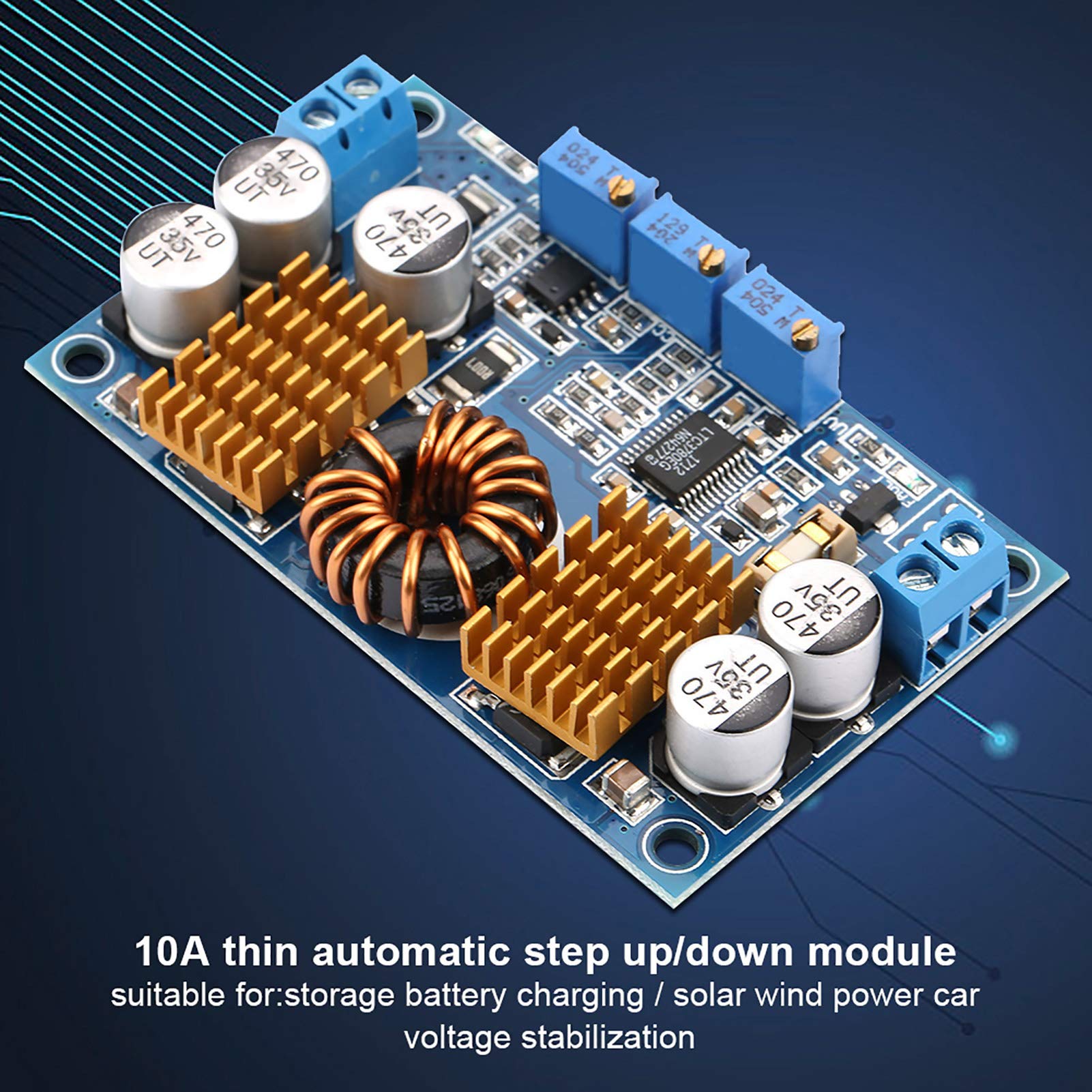

• Fault indicator function, output over current, over voltage, short circuit protection;all components can achieve industrial applications.Can be perfectly used in various occasions,such as charging, high power LED driver, device power supply, car power source, etc.

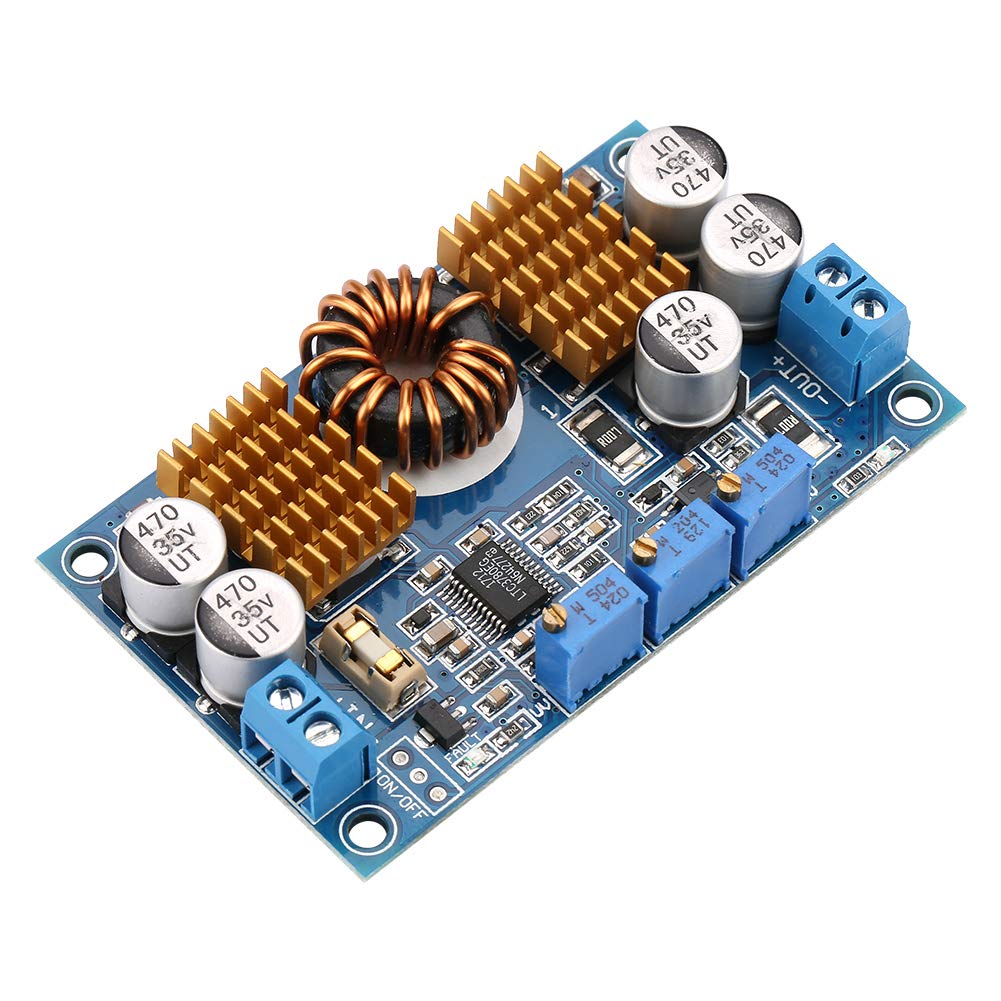

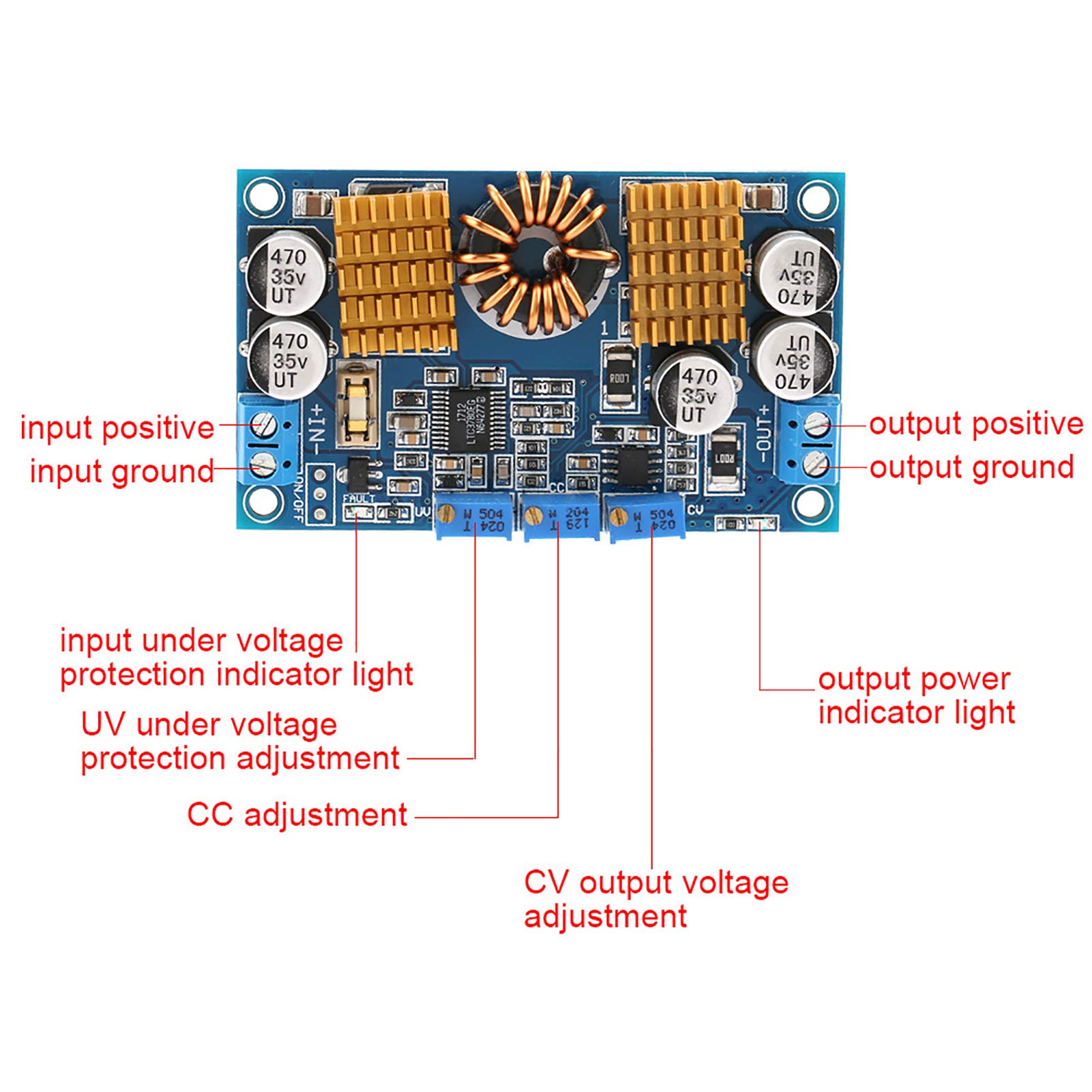

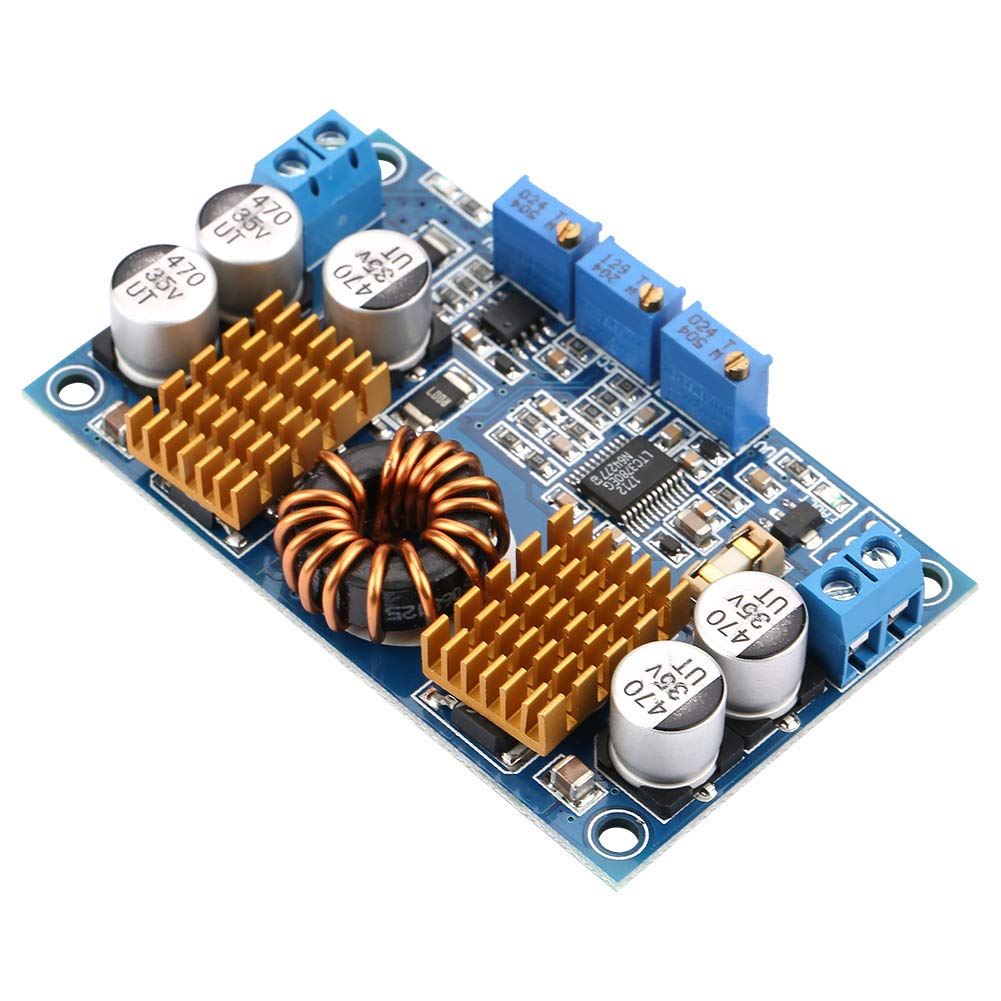

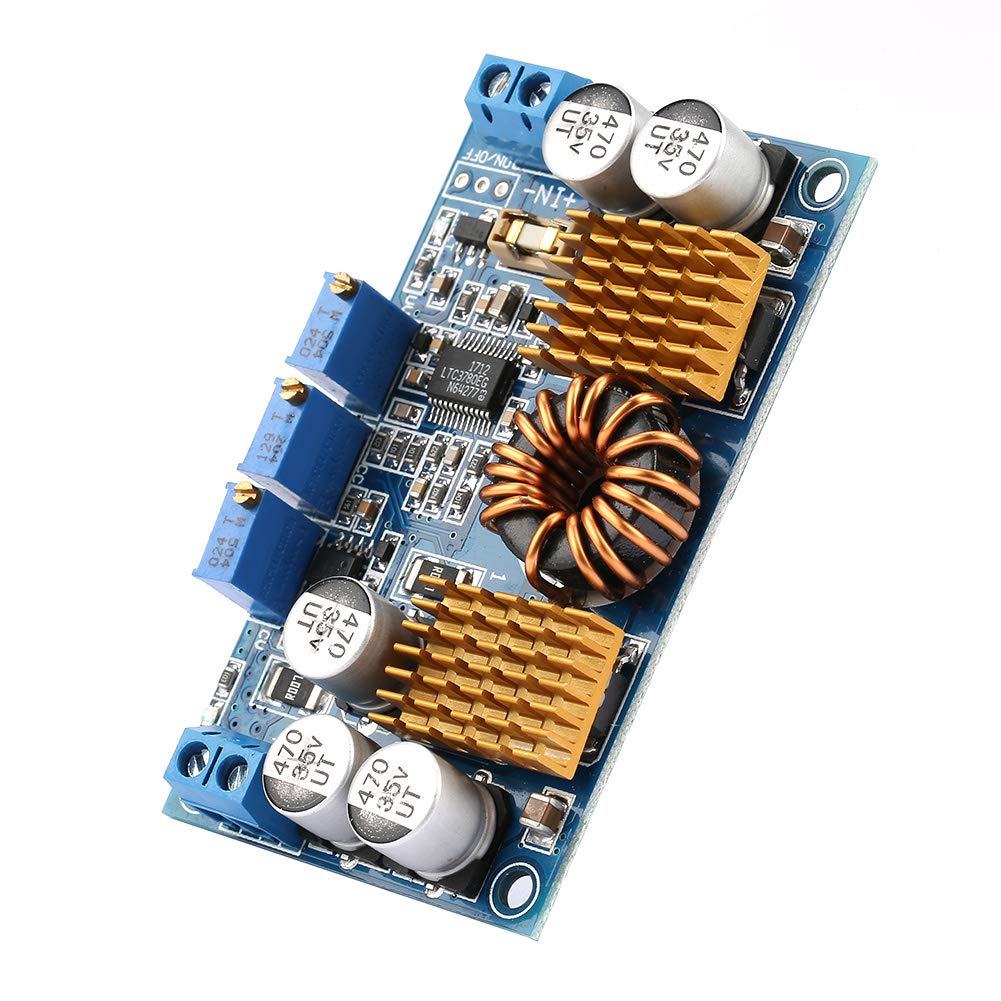

Specification: Type: Non-isolated step up/down module Input Voltage: DC 5V-32V(suggest 10V ) Output Voltage: DC 1V-30V(continuously adjustable) Output Current: 10A(max),less than 7A for long-term use Output Power: 80W(suggested), 130W(max). Please enhance heat dissipation when power is more than 80W. Output Ripple: 50mV (measured at 5A, 12V to 12V) Reverse Input Protection: Not support. If needed, a schottky diode can be added in series at input. Output Back Protection: Not support. If used for storage battery charging or powered inductive load, a schottky diode can be added in series at output. Short Circuit Protection: Yes Weight: 45g / 1.6oz (approx.) Adjustment Method: 1. Battery under voltage protection adjustment method:(take 12V lead-acid battery as an example, set 10V under-voltage protection, shut off output) Input is connected to regulated power supply adjusted to 10V, adjust under-voltage protection potentiometer (clockwise to increase, counterclockwise to reduce), till the failure indicator (red) light is on. Then when the battery discharge to 10V, it will automatically cut off power supply to protect battery from damage. Note:If not powered by batteries, you can skip this setting. 2. Output voltage adjustment methods:Input is connected to power source (voltage is higher than the under-voltage protection value), the red light is off while blue light is on. Output is connected to multimeter, adjust output voltage potentiometer (clockwise to increase, counterclockwise to reduce) till the required voltage; Note: Normally the red light is off, blue light is on, otherwise there is fault, input under-voltage protection, output over-current protection, output short circuit protection, please troubleshoot and power on again. 2. Output current adjustment methods:(
