NN99 DC12V 180KG/350lbs Electronic Magnetic Lock Electromagnetic Locks Access Control Door Lock System Waterproof + 180KG ZL Bracket

• 1. Made of high quality Aluminum alloy shell + iron plate, durable for use.
• 2. Working with DC12V. Fail safe model, Locked when power on, unlocked when power off.
• 3. This 180KG electric magnetic lock is waterproof, can be installed outdoor.
• 4. Can be opened by push button, remote controller, etc. Very suitable for wooden, metal, glass single door.

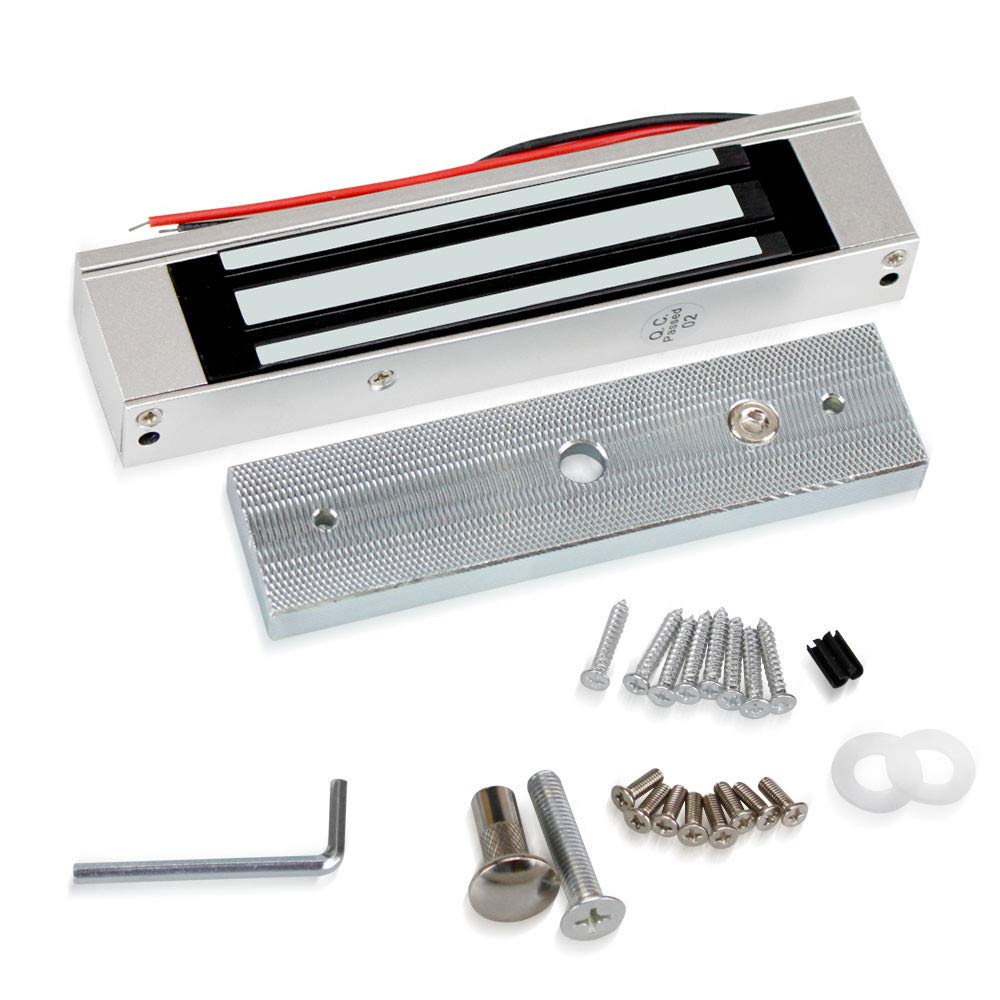

• 5. Holding force: 180KG/350lbs. Package including 180KG magnetic Lock + ZL bracket.

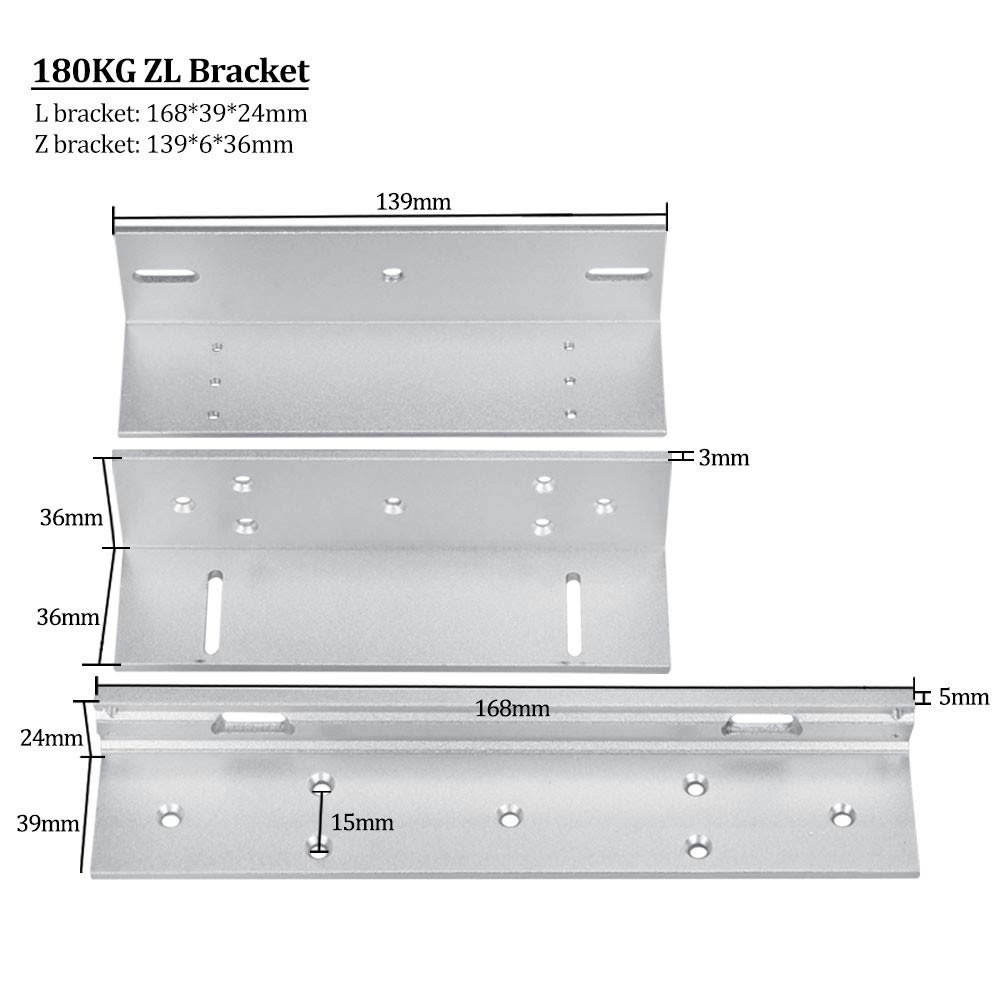

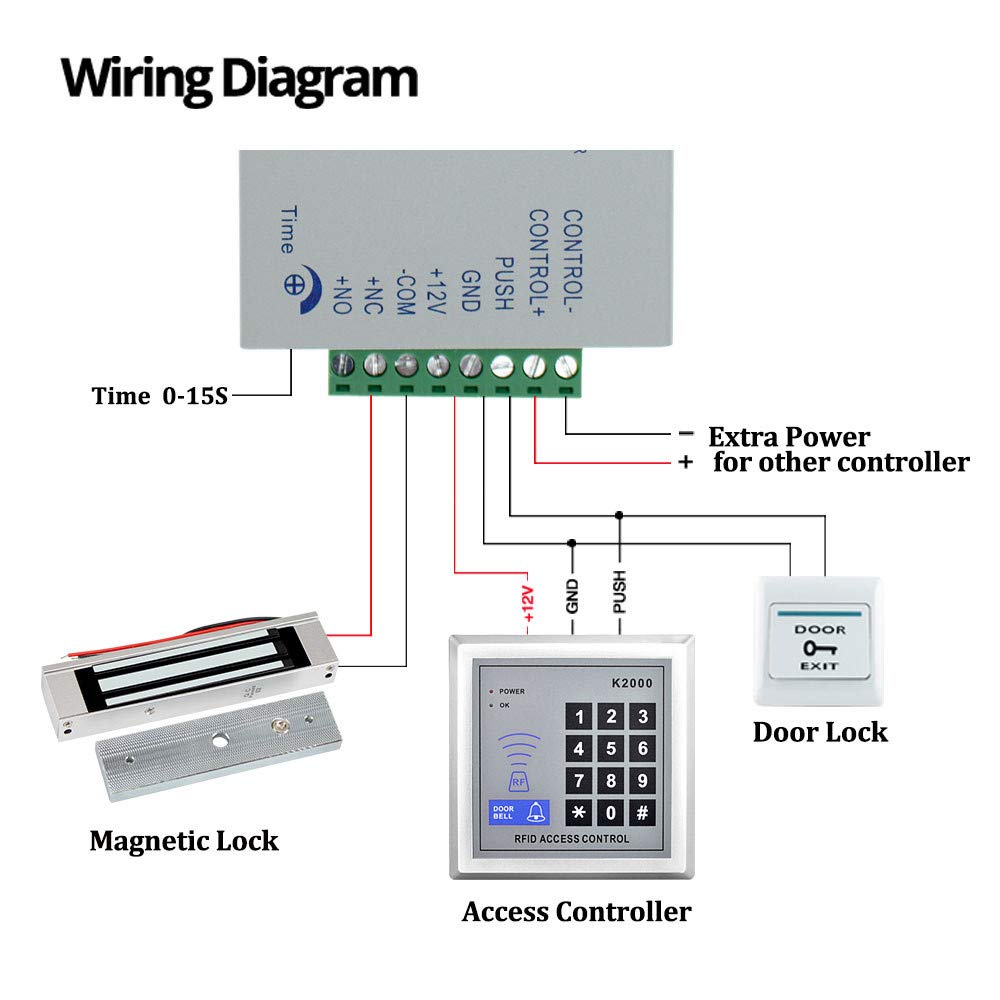

Product Features 1. Made of aluminum alloy shell, high quality, durable for use 2. Fail safe model, Locked when power on, unlocked when power off 3. Especially suitable for wooden/ glass/ metal/ security doors. 4. Working with DC12V power supply system 5. Can be opened by push button, remote controller, etc. 6. Built-in reverse current protection device (MOV). 7. Waterproof, can be install outside. Suitable for singele door Product Specifications Type: 180KG Electric Magnetic Lock Material: Aluminum alloy shell + iron plate Holding force: 180KG/350lbs Working Voltage: DC12V Working Current: 380-430mA Humidity: 0 to 95% Working Temperature: -30 to 55 Celsius degree Working mode: power on to lock, power off to unlock Waterproof: Yes. Can be installed outside ZL Bracket Material Selection: High strength aluminum, sandblast finished Suitable for Door: Inward door Opening Mode: 90 degrees door Use with: Magnetic lock series of 180kg/350Lbs Finished for Shell: Anodized aluminum Made of special aluminum, firm and durable Special design, the inward door bracket is suitable for all kinds of the inward door Z bracket: 139*6*36mm L bracket: 168*39*24mm Wiring Diagram Red Wire: +12VDC Black Wire: -GND If you want to test the lock, please connect the red cable to "+12v”, and black cable to “GND" of the 12VDC power supply. When you install completed access control system kit set, please connect red cable to "NC", black cable to "COM" of the power supply. Package Including 1 x electric 180KG magnetic lock 1x ZL bracket 1 x Package of screws 1 x Installation Instructions
