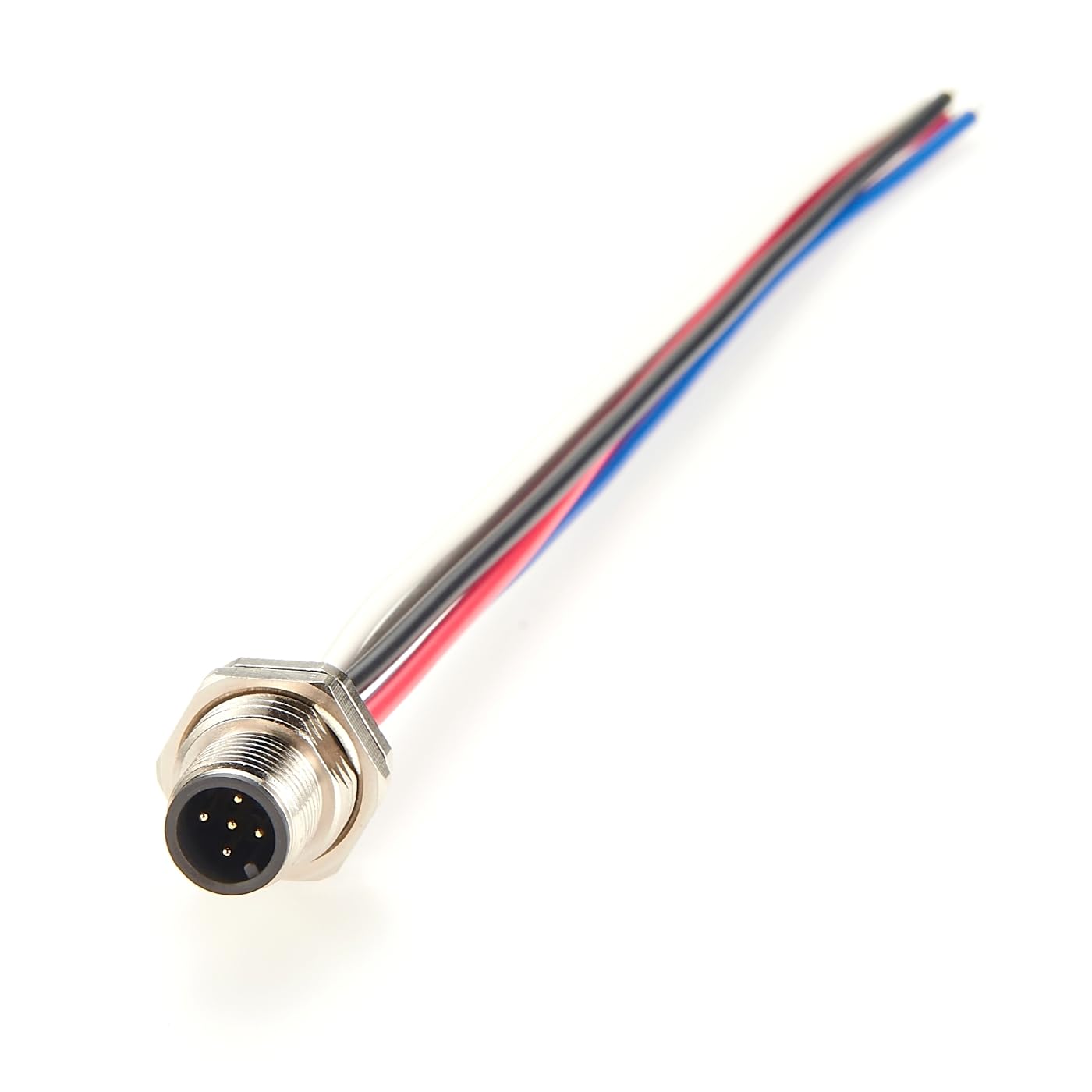

NMEA 2000 M12 5Pin A Code Male Connector Cable Straight Bulkhead Chassis Front Panel Mount IP67 M12 Pre-Assembly Pigtail Wireable Electrical Cable Aviation Socket Sensor Receptacle (0.2M/0.66FT)

• ✔Product Parameter – Connector A: M12 A-Coded 5Pin Male; Cable Length: 0.2M/0.66FT; Wire Gauge: 22AWG; Material: PVC; Protection Class: IP67; Panel Cutout Size: 15.5 ~ 16mm.
• ✔Threaded Connection – thread locking mechanism, anti vibration locking design, 12mm thread joint can be easily connected to sensor devices and ctuator devices and field bus components.

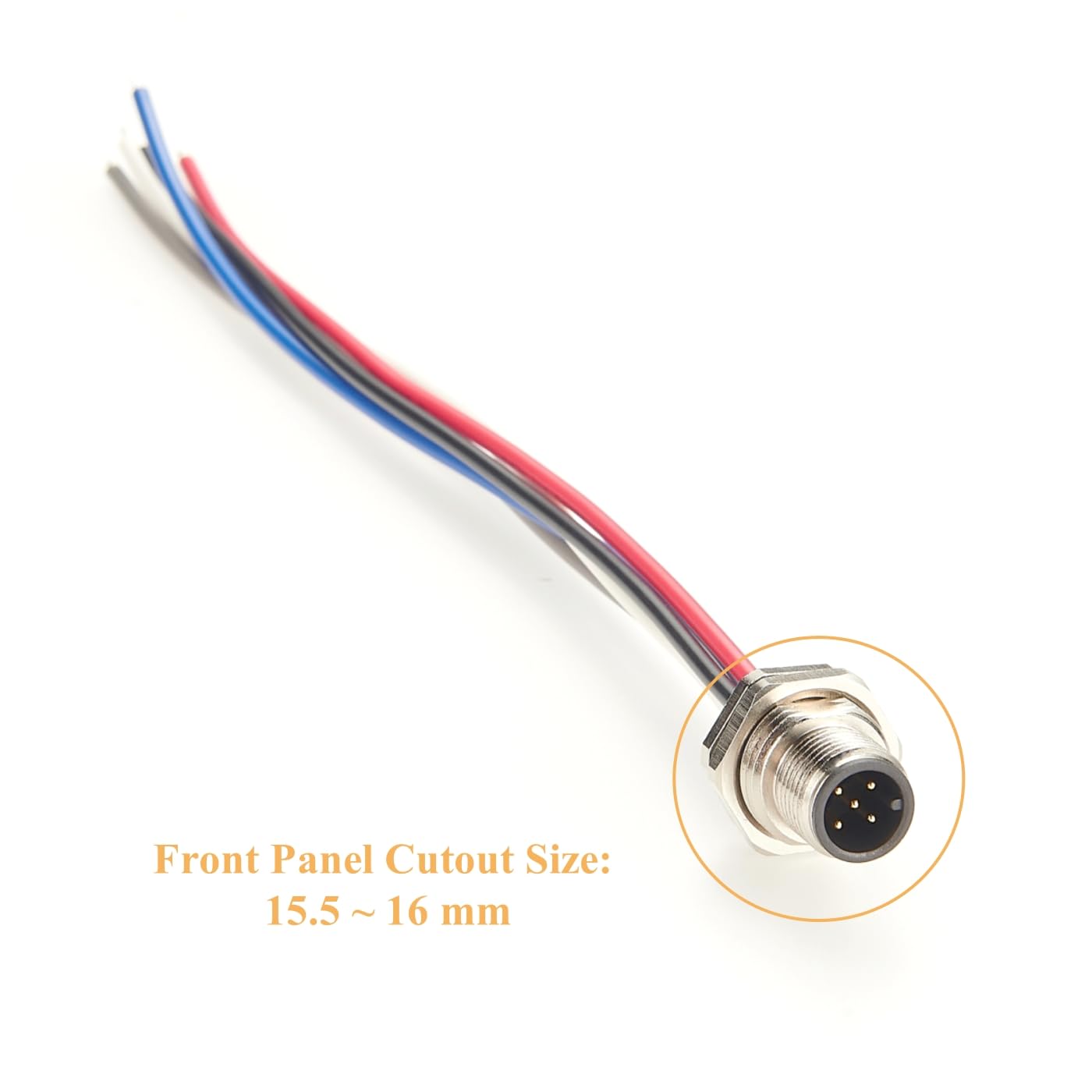

• ✔Front Panel Mount – Simply cut a 15.5mm ~ 16 mm hole in the board and secure with the nut,Eesy to install.making it suitable for control panels, automation systems, and industrial enclosures.

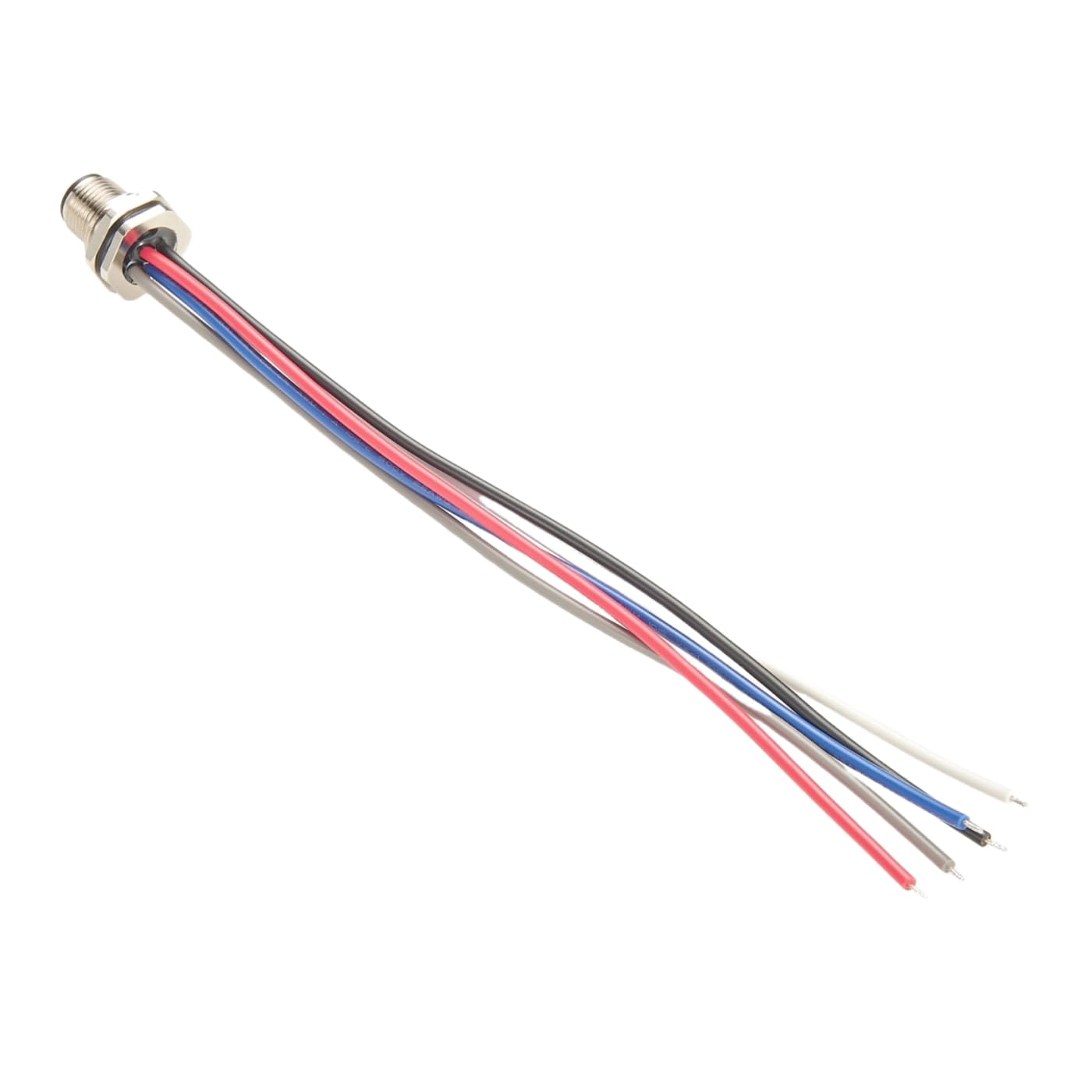

• ✔Pre-wired Convenience – Comes with 20cm pre-attached wires, simplifying installation by eliminating the need for additional wiring, perfect for quick and efficient setups.
• ✔Application – for NMEA2000, CAN BUS, CANOpen, Profibus, Profinet, CC-Link , DeviceNet,also for PLCS, sensors, actuators, machine equipment,industrial automation, industrial network transmission, ships, security and other fields.
• ✔Custom Cable – We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.

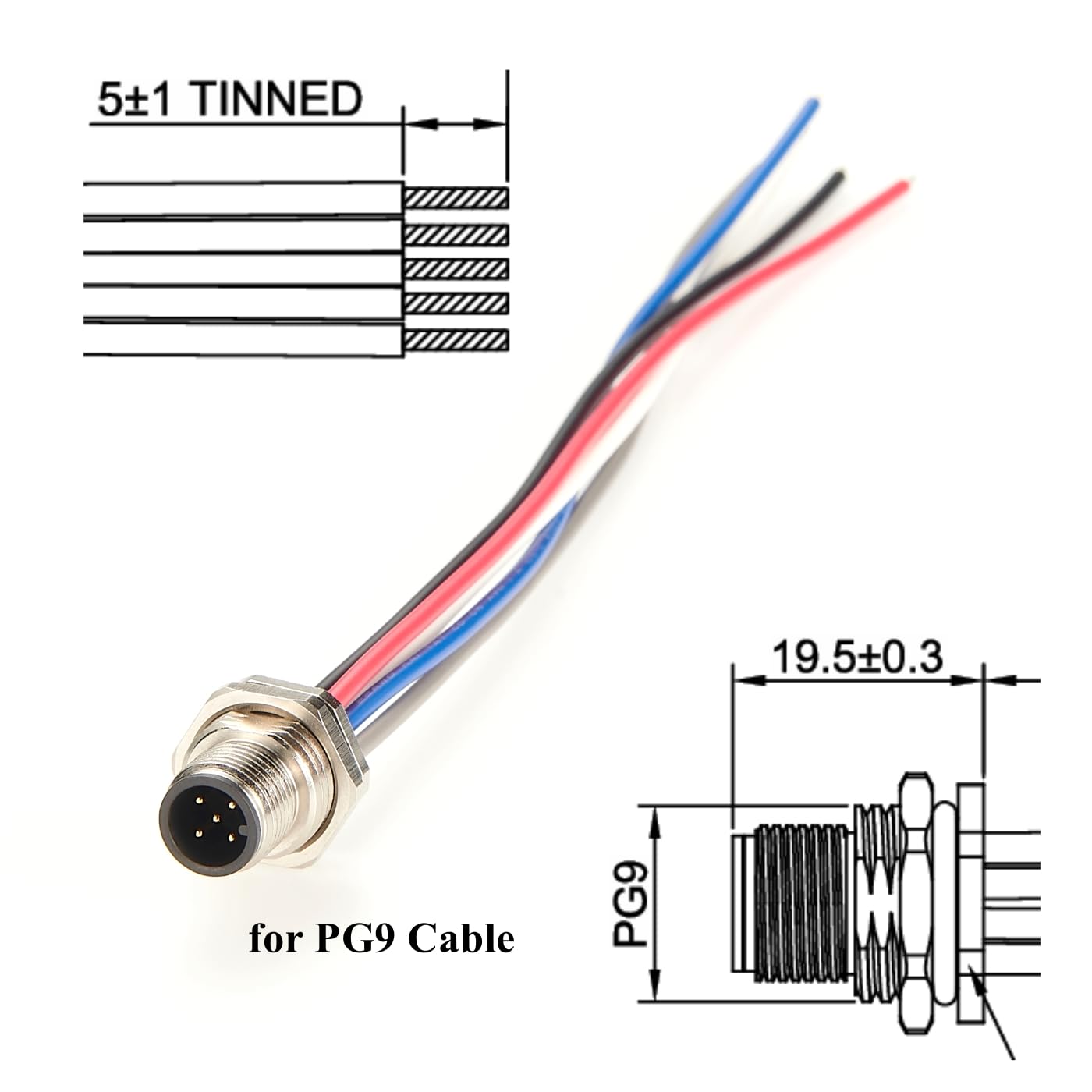

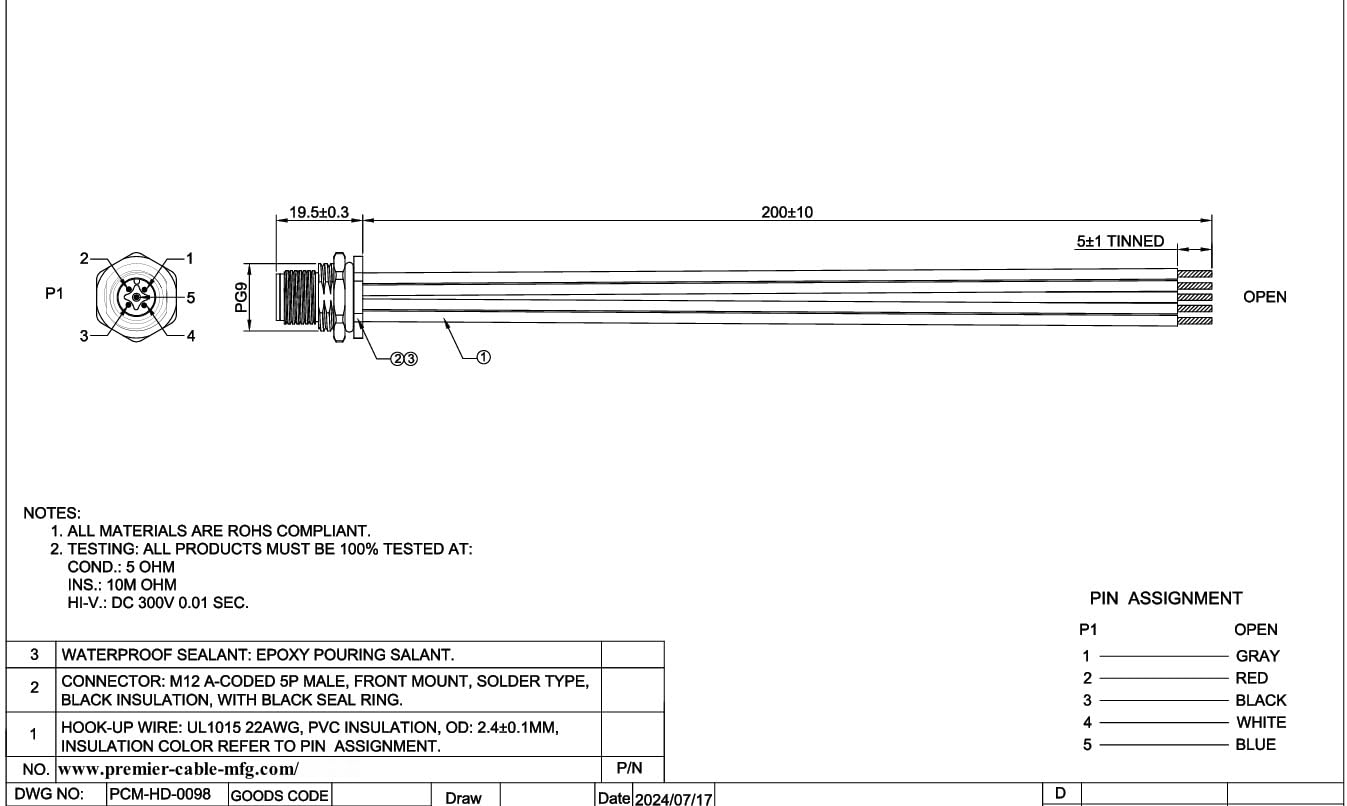

Connector A: M12 A-Coded 5Pin Connector A Gender: Male Panel Mount: Bulkhead Thread Chassis Front Panel Mount Length: 0.2M/0.66FT Wire gauge: 22AWG OD: 2.4MM Protection Class: IP67 Panel Cutout Size: 15.5mm ~ 16 mm
