NISSEI RS-102 Stationary Wave Meter and Vatmeter

• This SWR & POWER meter is a highly accurate RF meter for measuring Forward Power, Reversed Power, and VSWR

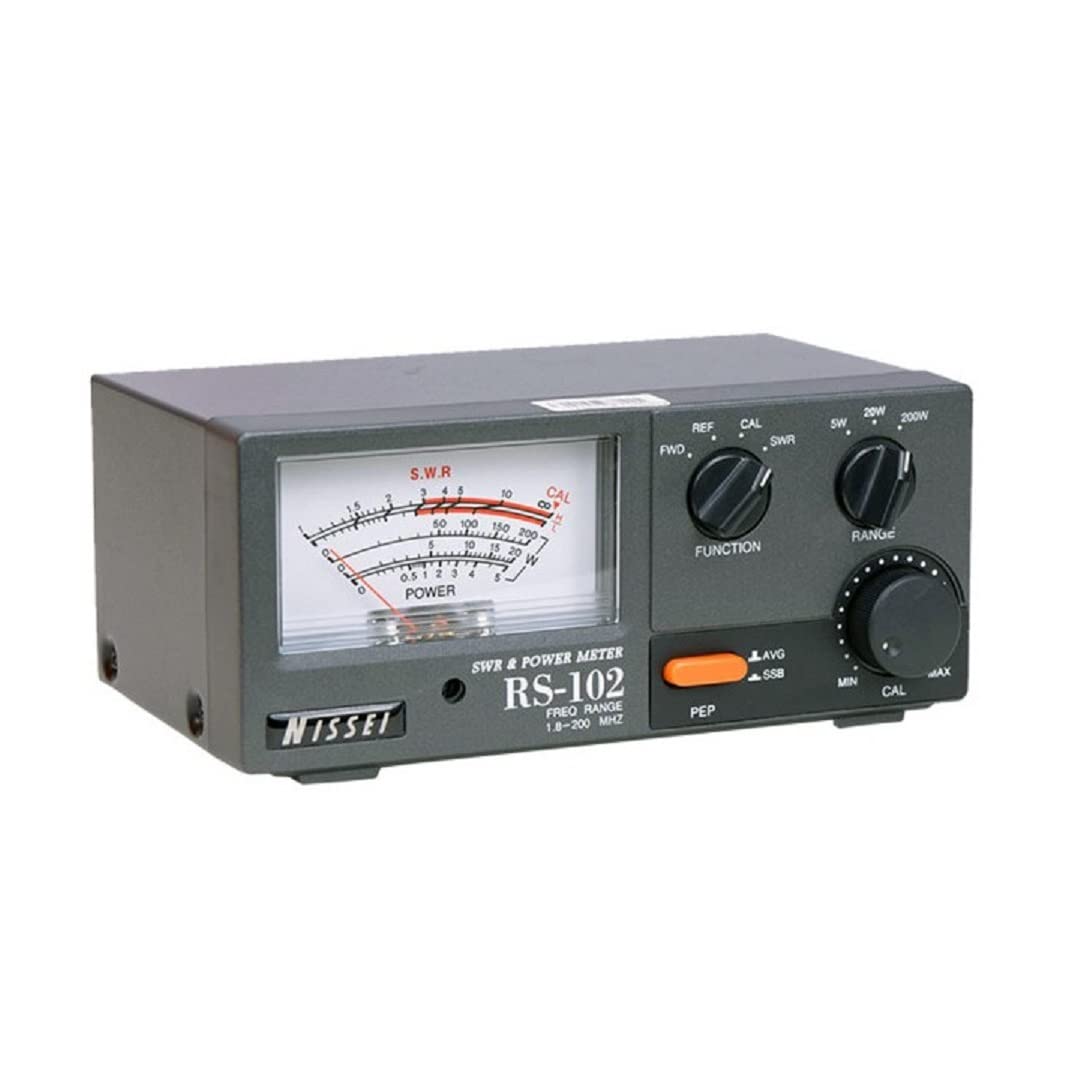

• This SWR/Power meter has a large meter display for ease of reading; can perform forward RF power readings (switchable to indicate either average power or Peak Envelope Power [PEP], for SSB and AM transmitters) ; Reversed RF power readings and shows VSWR rations.

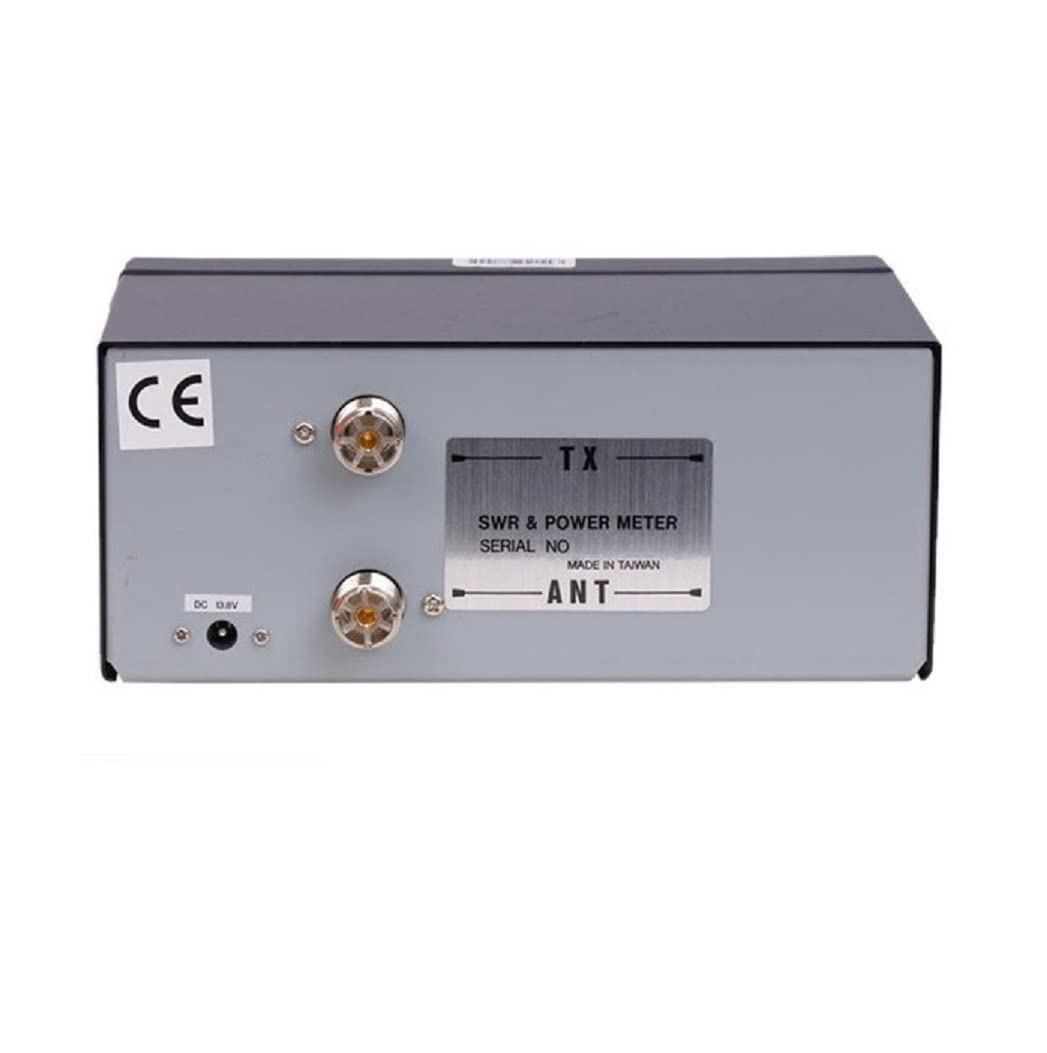

• Convenient control layout for ease operation and PL Input/Output Connector
• Frequency Range: 1.8 - 200 MHz Power Range: 0 - 200W Power measurement scale: 5/20/200W

Product identification Product code Nissei RS-102 General characteristics Large meter display for ease of reading Forward RF power readings (switchable to indicate either average power or Peak Envelope Power [PEP] for SSB and AM transmitters) Reversed RF power readings VSWR rations Illuminated meter Convenient control layout for easy operation Specifications Frequency Range 1.8 - 200 MHz Power Range 0 - 200W Power Scale 5/20/200W Maximum Power 200W Accuracy 5W Range (AVG) +/- 10%, (PEP) +/- 15% Accuracy 20-200W Range (AVG) +/- 5%, (PEP) +/- 10% Minimum Power for SWR 1 W Insertion loss of less than 0.1 dB Input/Output Impedance 50 OHM Input/Output Connectors PL Dimension 190 x 85 x 135 mm Net Weight 790 g The package contains SWR/Power meter 13.8 DC Wire Operation Manual 13.8 DC Wire
