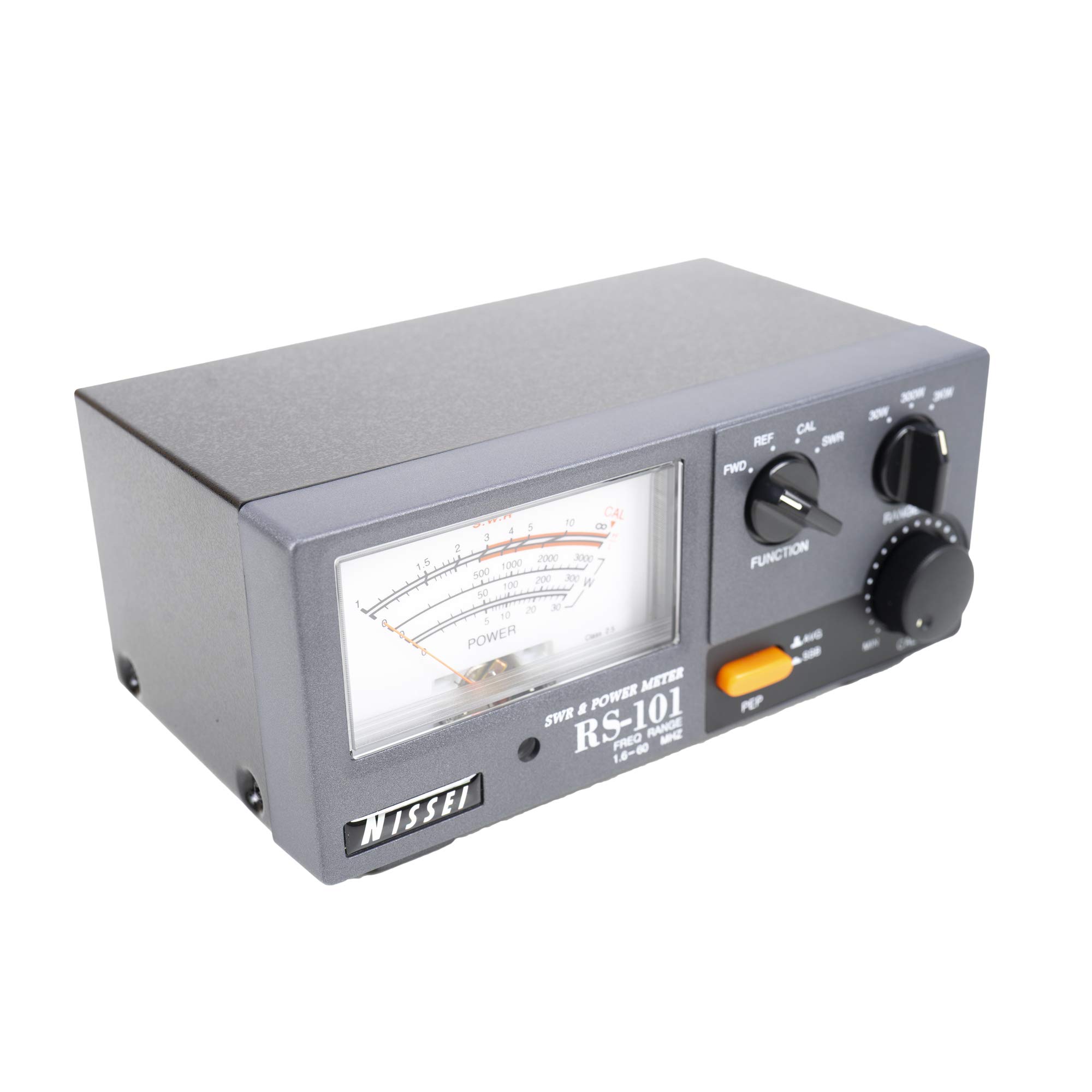

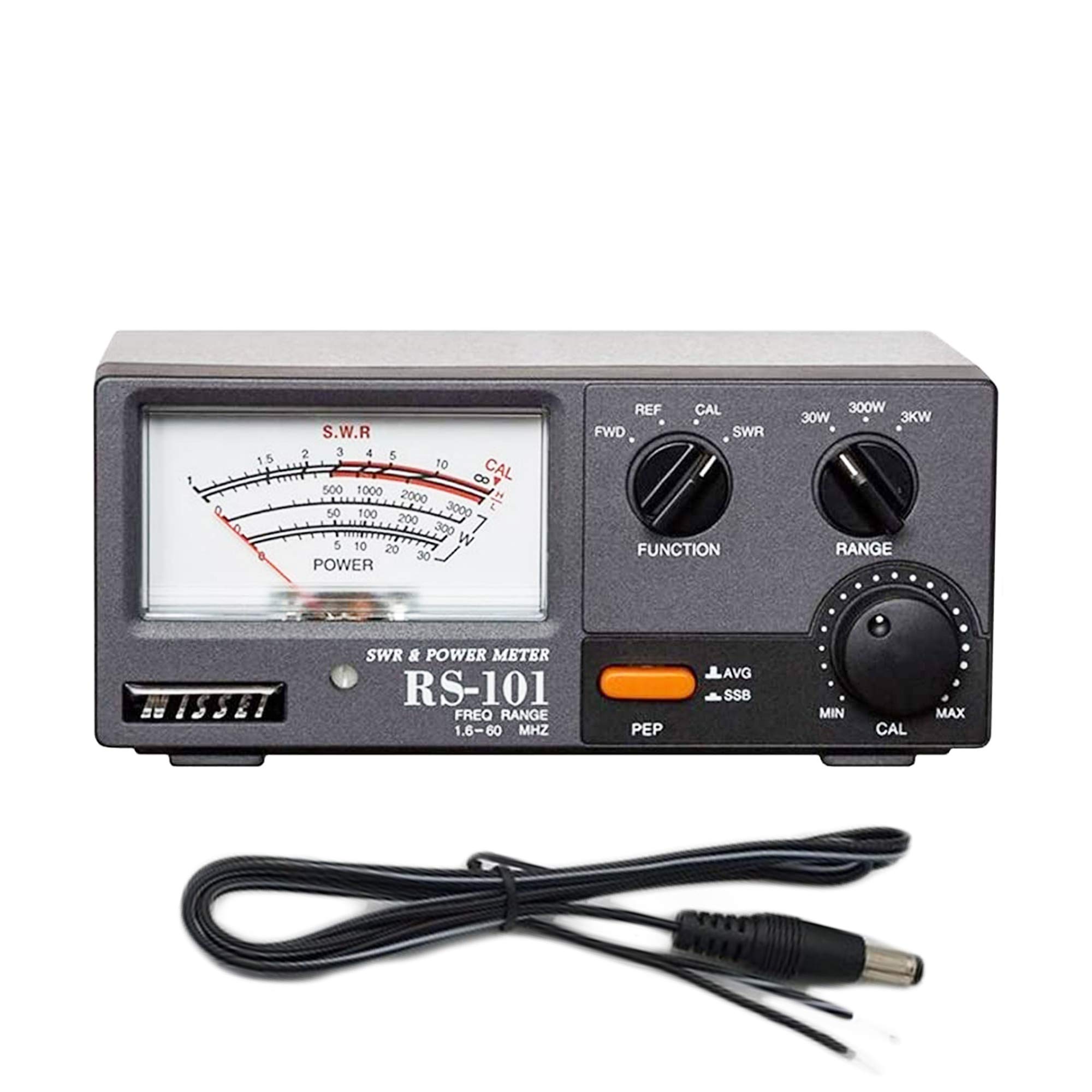

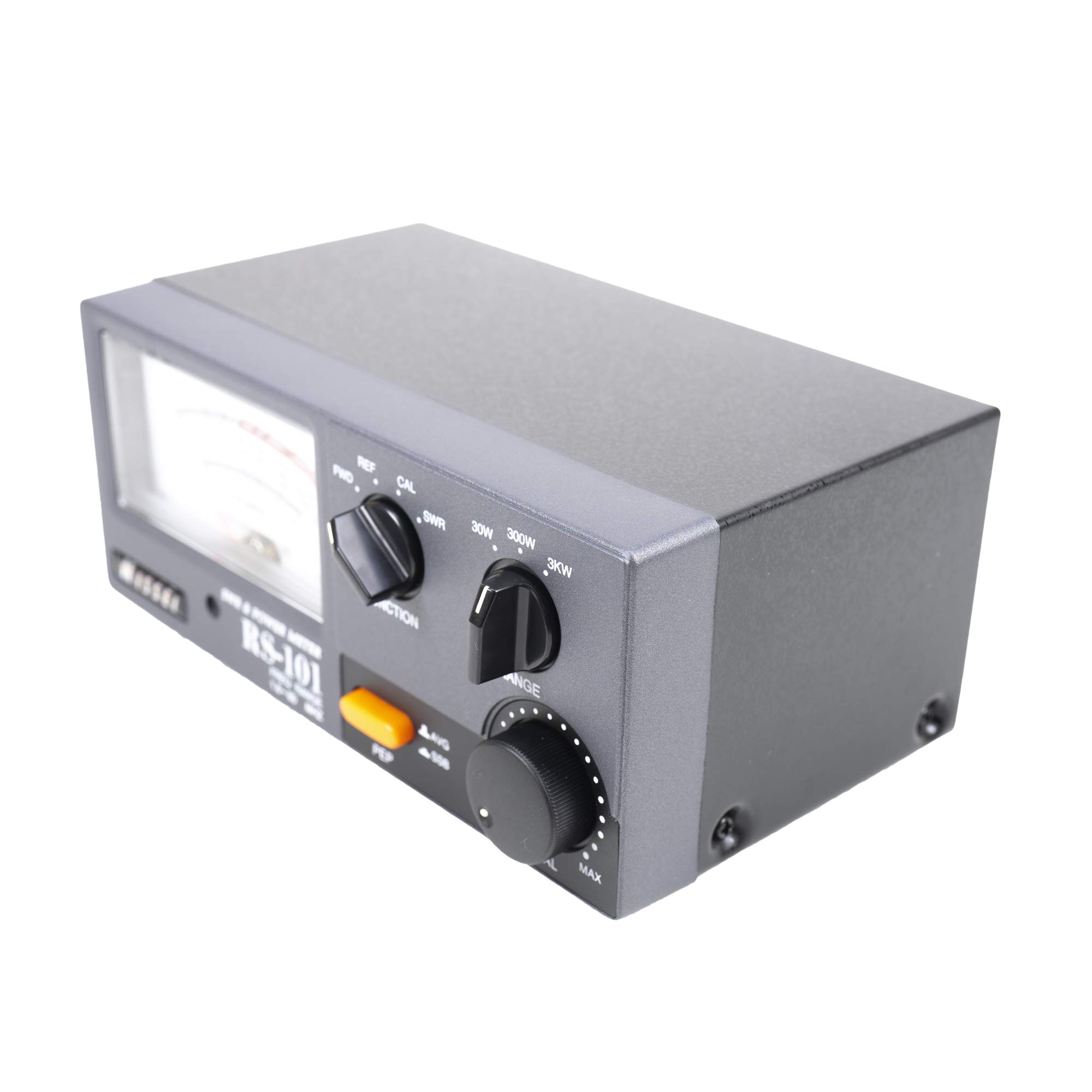

Nissei RS-101 SWR 1.6-60 Mhz Wattmeter 3W-3KW PNI Reflectometer

• This SWR & POWER meter is a highly accurate RF meter for measuring Forward Power, Reversed Power, & VSWR
• This SWR/Power meter has a large meter display for ease of reading; can perform forward RF power readings (switchable to indicate either average power or Peak Envelope Power [PEP], for SSB and AM transmitters) ; Reversed RF power readings and shows VSWR rations.

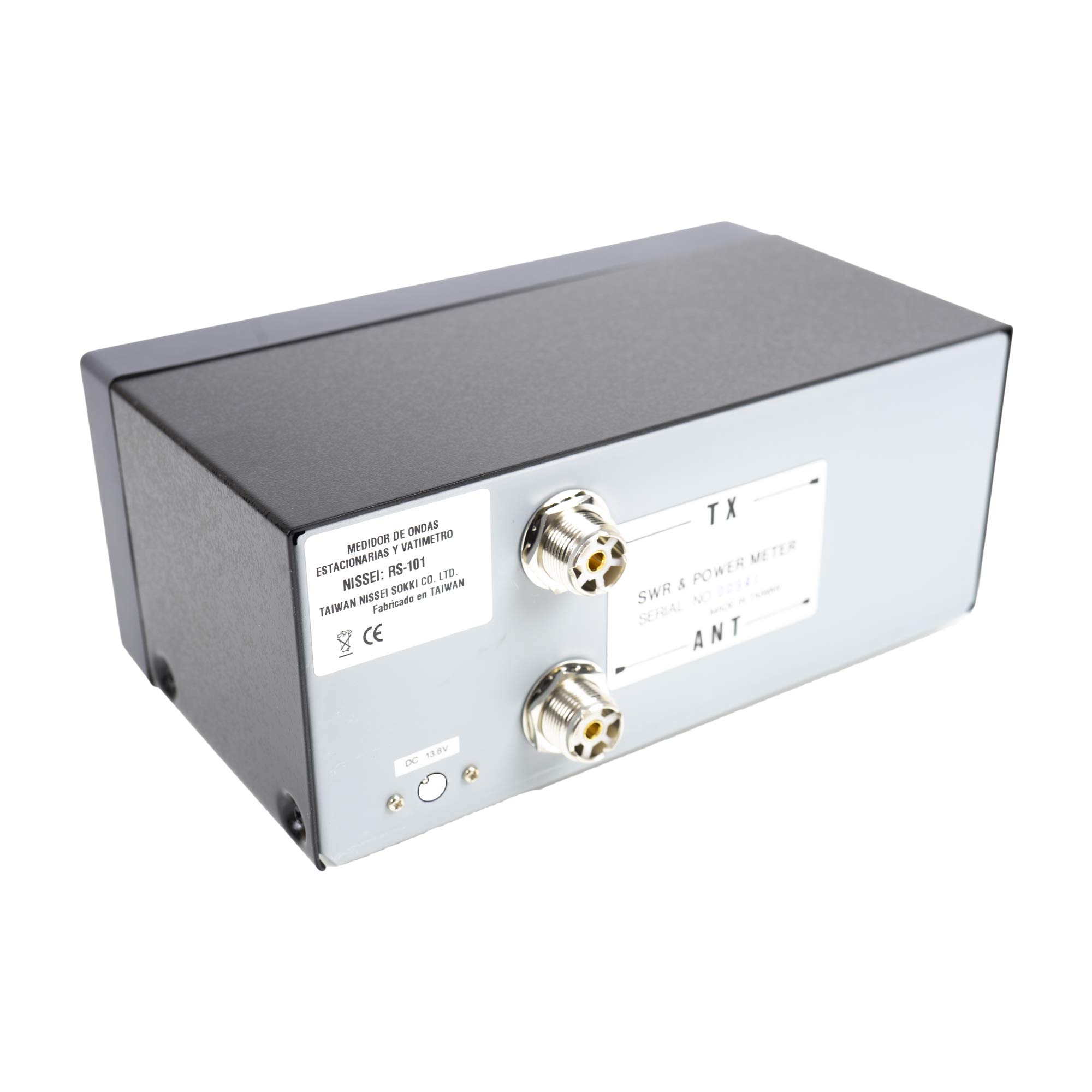

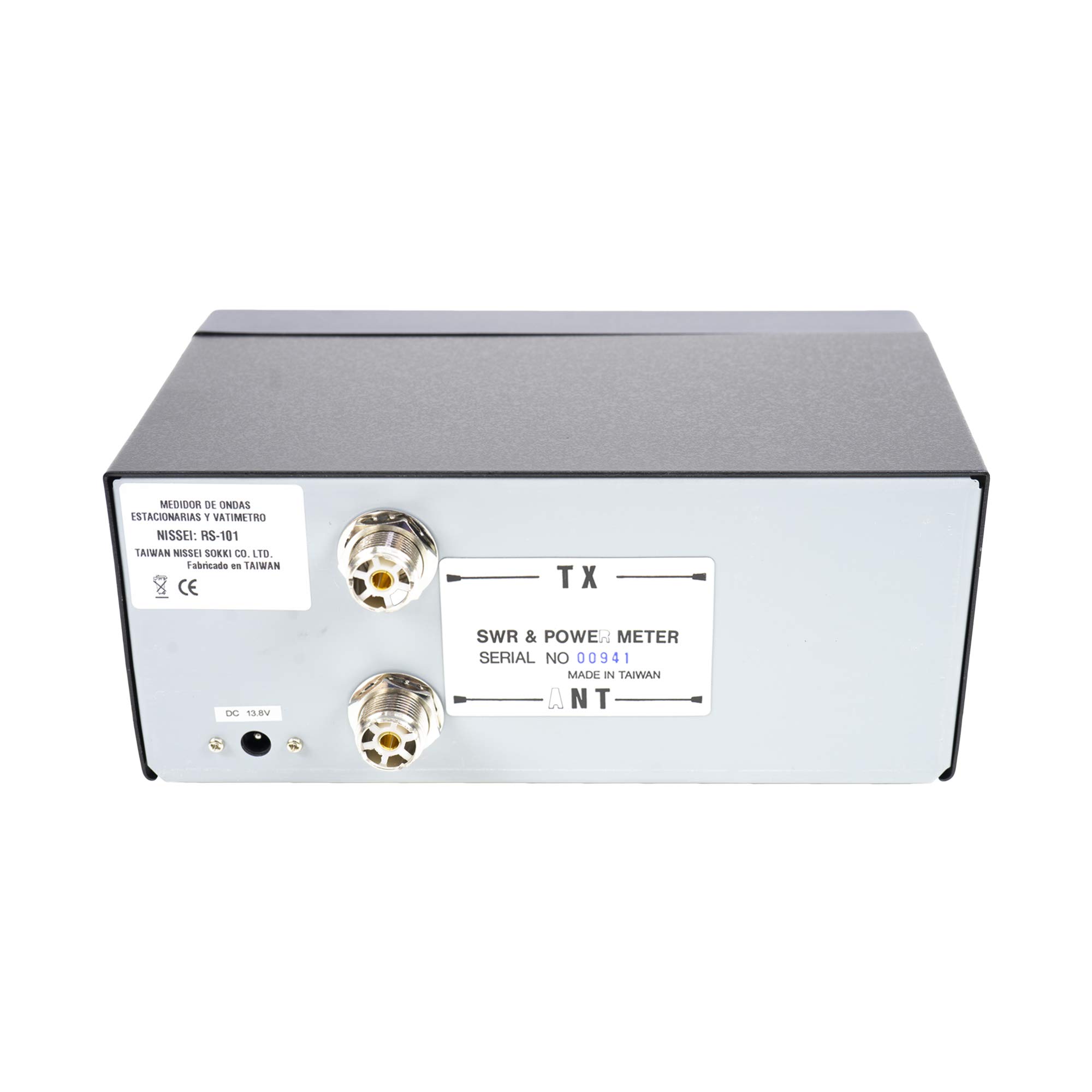

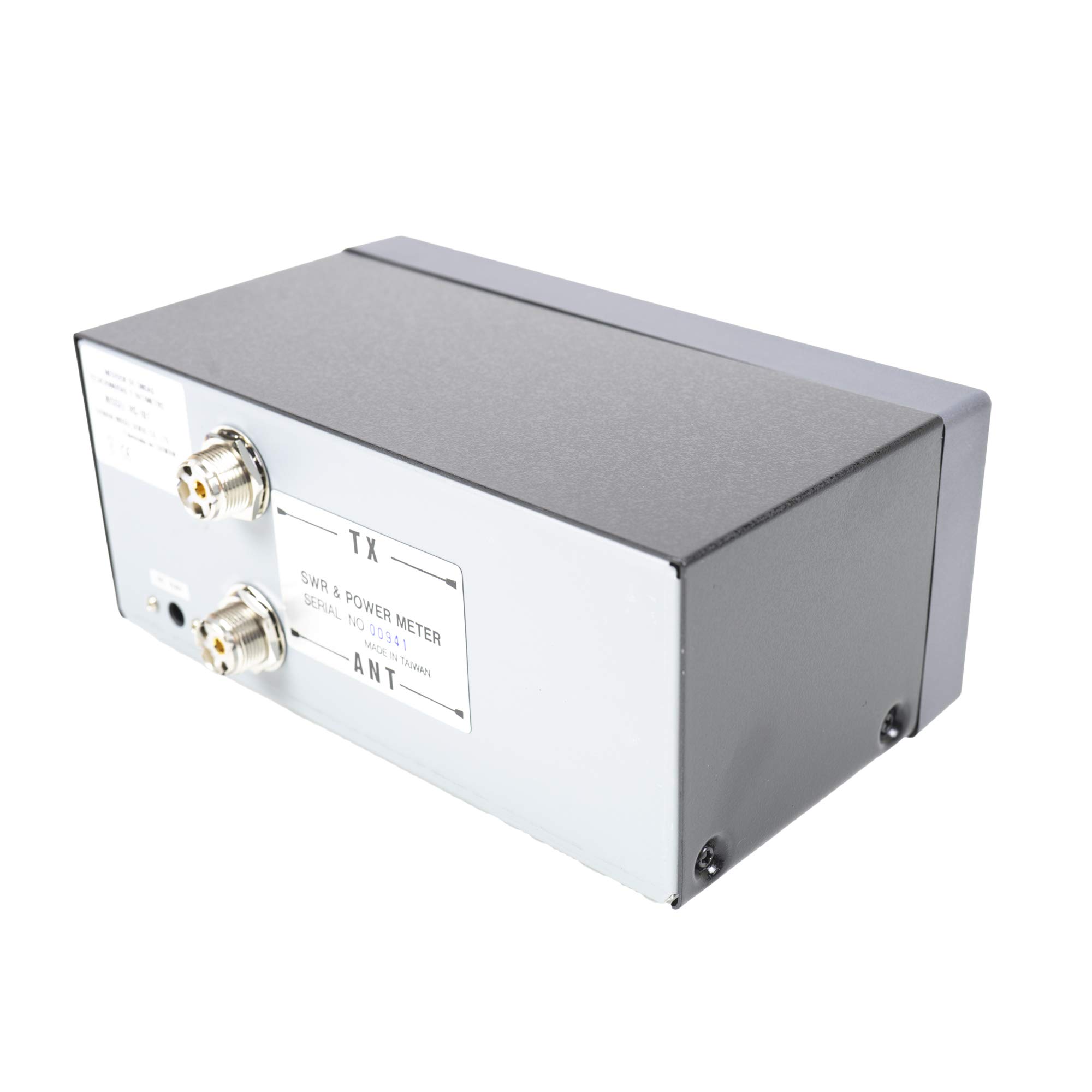

• Convenient control layout for ease operation and OS 239 connector
• Frequency Range: 1.6 - 60 MHz Power Range: 0 - 3 KW Power measurement scale: 30 W - 300 W - 3 kW

Product identification Product code PNI-RS-101 General characteristics Large meter display for ease of reading Forward RF power readings (switchable to indicate either average power or Peak Envelope Power [PEP] for SSB and AM transmitters) Reversed RF power readings VSWR ratios Illuminated meter Convenient control layout for easy operation Specifications Frequency Range 1.6 - 60 MHz Power Range 0 - 3 KW Power Scale 30/300/3KW Maximum Power 3 KW Accuracy : LOW power (AVG) +/- 10%, (PEP) +/- 15% Accuracy : HIGH power (AVG) +/- 5%, (PEP) +/- 10% Minimum Power for SWR 1 W Input/Output Impedance 50 OHM Input/Output Connectors "M" or/and "N" type Insertion Loss less than 0.1 dB Testing Function Fwd/Rev Power, PEP, SWR Dimension 190 x 85 x 135 mm Net Weight 780 g The package contains SWR/Power meter Operation Manual, 13.8 DC Wire
