Nikou Lithium Battery Protection Board-24V 20A 7Series BMS 18650 Battery Protection Board with Balancing for Lithium Li-ion LiFePO4 Battery Pack

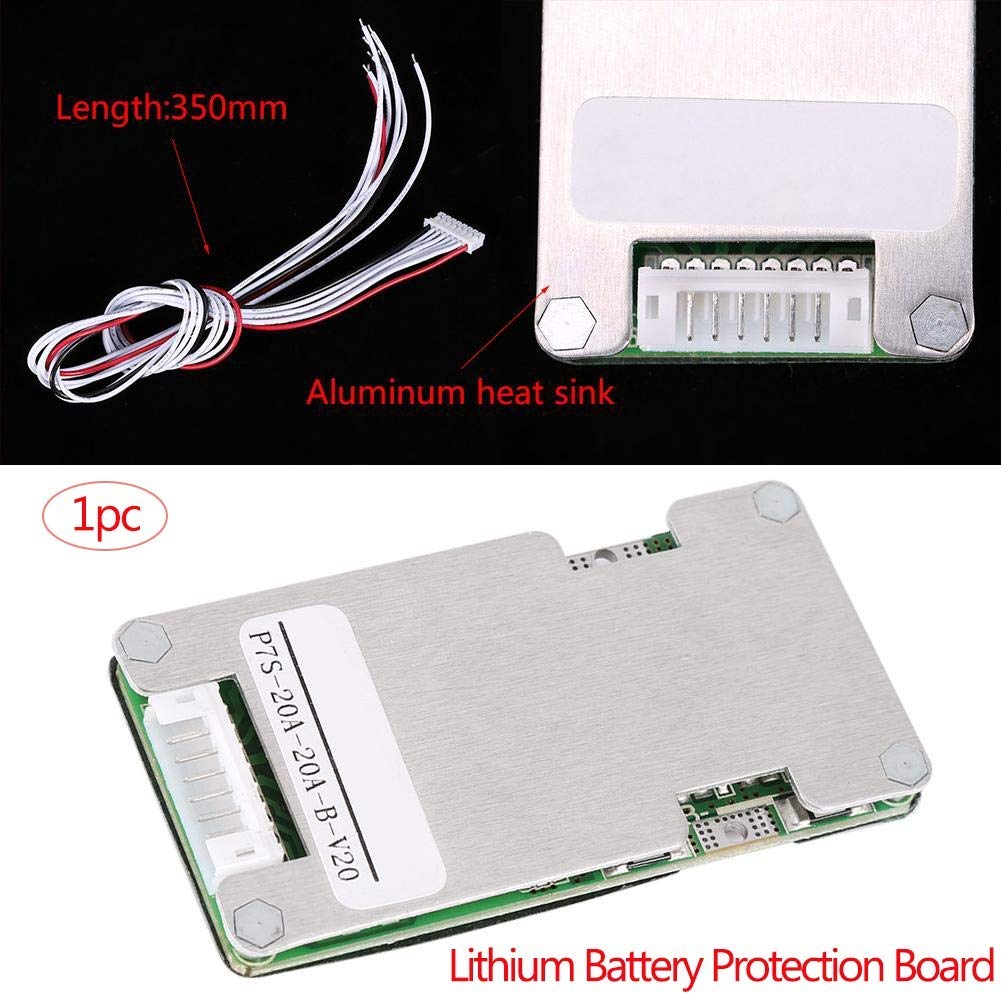

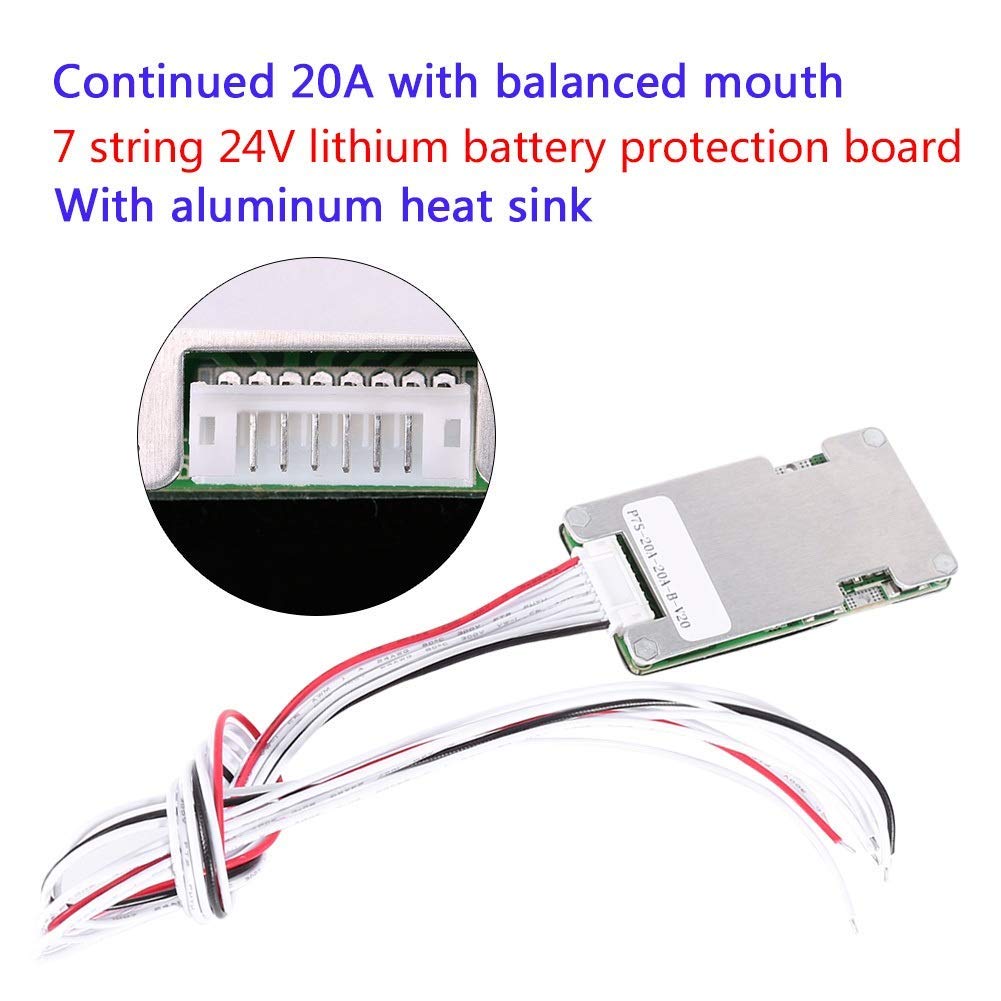

• Good heat dissipation effect: The Protection Board adopts aluminum sheet that would enhance heat dissipation for MOS tube and extend the service life of MOS tube.
• Balance function: Batteries core hardware balanced processing, proper balanced current, reasonable balanced heat emitting, does not affect performance of battery pack.
• Multiple protection: Stable various protective functions for charging and discharging, such as accurate overcharge protection, over-discharge protection, over current protection and short circuit protection.
• Energy-saving design: 24V 20A 7S lithium li-ion liFePO4 battery battery BMS protection board with low quiescent power consumption, it can save energy.
• Scope of application: The lithium battery protection board is for 7 series 18650 li-ion 3.6V/3.7V batteries.

Description Description: This product is a battery protection BMS board which is designed for 7series lithium batteries. It can be used for ternary lithium batteries, manganese acid lithium batteries, cobalt acid lithium batteries and LiFePO4 batteries. And the board is equipped with multiple protective functions including overcharge protection, overdischarge protection, overcurrent protection and short circuit protection, so you can use it safely . Specifications: Protection: Polymer/Terpolymer/Lithium Manganate LiFePO4 Overcharge Protection Delay: 1000ms±l00ms Over-discharge Protection Delay: 100ms±10ms Discharge Over-current Protection: 60A±5A Discharge Over-current Delay: 200ms±20ms Short Circuit Protection: Yes Short Circuit Delay: 200uS±20uS Short Circuit Protection Recovery: Disconnect Load Release Charge Current: 5A(adjustable) Equilibrium Function: Yes Equilibrium Current: 50~60mA Equilibrium Accuracy: ±25mV Polymer/Terpolymer/Lithium Manganate: Single Battery Overcharge Protection Voltage: 4.25V±0.025V Single Battery Overcharge Protection Recovery Voltage: 4.050V±0.025V Single Battery Over-discharge Protection Voltage: 2.75±0.025V Single Battery Over-discharge Protection Recovery Voltage: 3.00V±0.025V LiFePO4 Single Battery Overcharge Protection Voltage: 3.75V±0.025V Single Battery Overcharge Protection Recovery Voltage: 3.60V±0.025V Single Battery Over-discharge Protection Voltage: 2.10V±0.025V Single Battery Over-discharge Protection Recovery Voltage: 2.30V±0.025V Size: 65×33×7mm / 2.56×1.3×0.27" Wire Length: 350mm / 13.77" Package Includes: 1× 7S Lithium Battery Protection Board
