NICCOO Automatic Sliding Gate Opener Kit - Electric Door Opener Motor with Gear Rack and Infrared Sensor, 550W for Gates Up to 1200kg

• ⭐【POWERFUL PERFORMANCE】Equipped with a powerful 220V AC motor delivering 550W of power, our electric gate opener kit boasts a high-speed motor running at 1400 rotations per minute. For the gate up to 1200kg, it ensures effortless and efficient operation, making it ideal for commercial and residential use.
• ⭐【UNIQUE DESIGN】Our electric gate opener kit is equipped with unique features that ensure safety and convenience. The door automatically rebounds if obstacles or people are detected while closing, thanks to the reliable electromagnetism limit switch. Additionally, the anti-shock stroke design prevents accidental strokes by allowing the button to be pressed only in the opposite direction when the door reaches its limit.
• ⭐【MULTIPLE PROTECTION】Safety is paramount with our gate opener kit. It features slow heating, a smooth start, high safety standards, waterproofing, and explosion-proof capabilities. The motor thrust can be adjusted during operation to prevent overloading, and the motor automatically cuts off power when temperatures rise too high, ensuring both motor and user safety.

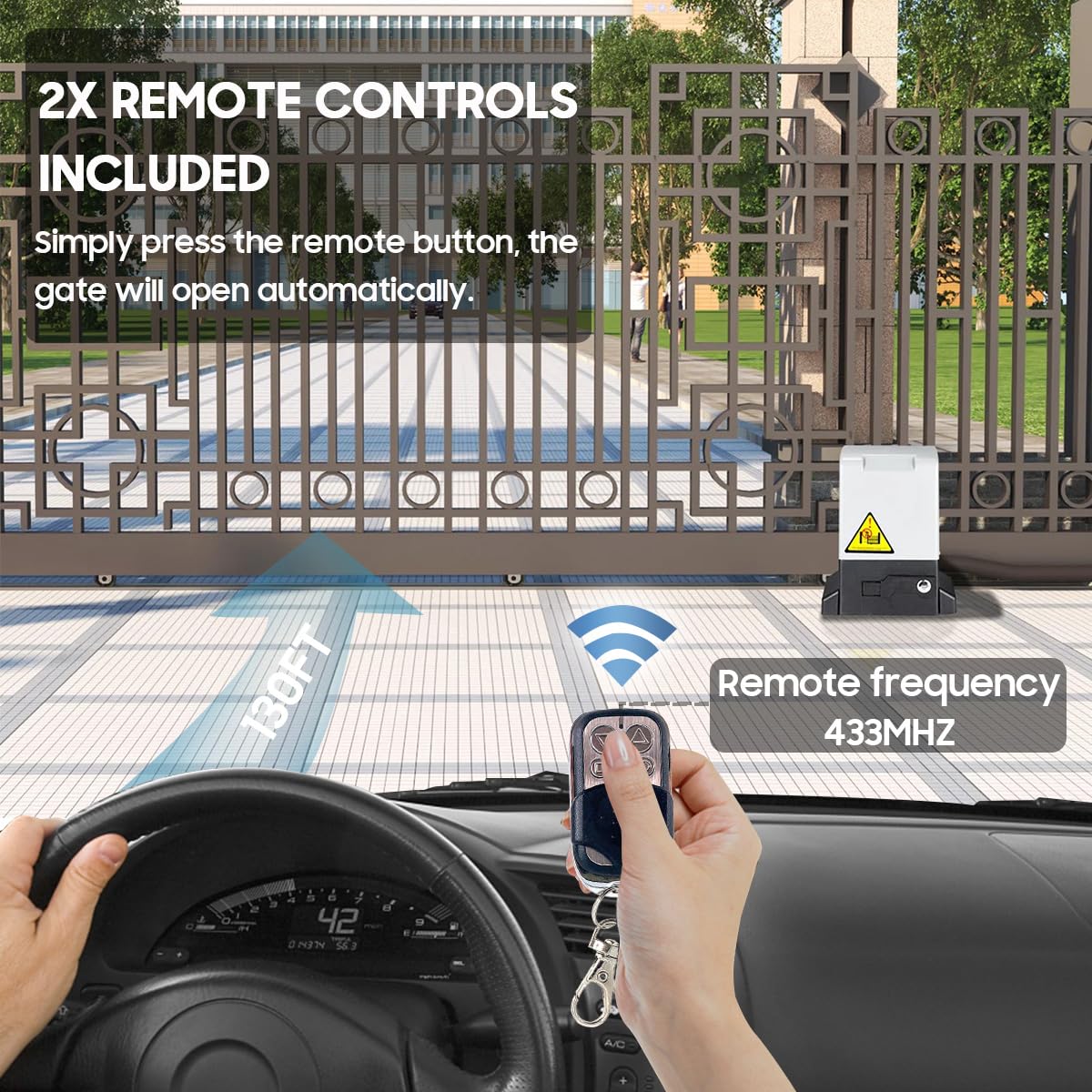

• ⭐【CONVENIENT OPERATION&CONTROL】Operating our electric gate opener is effortless and convenient. It comes with two remote controls, each with four buttons to open, close, and stop the gate. An emergency release key is also included, allowing you to enter or exit even when the power is off, providing peace of mind and added security.
• ⭐【WIDE APPLICATIONS】Our electric gate opener kit is suitable for a wide range of applications, including residential, commercial, and courtyard settings. Installation is simple and can be completed using commonly available tools. Full mounting hardware and easy-to-follow instructions are included, ensuring a stress-free installation process that takes just a few hours.

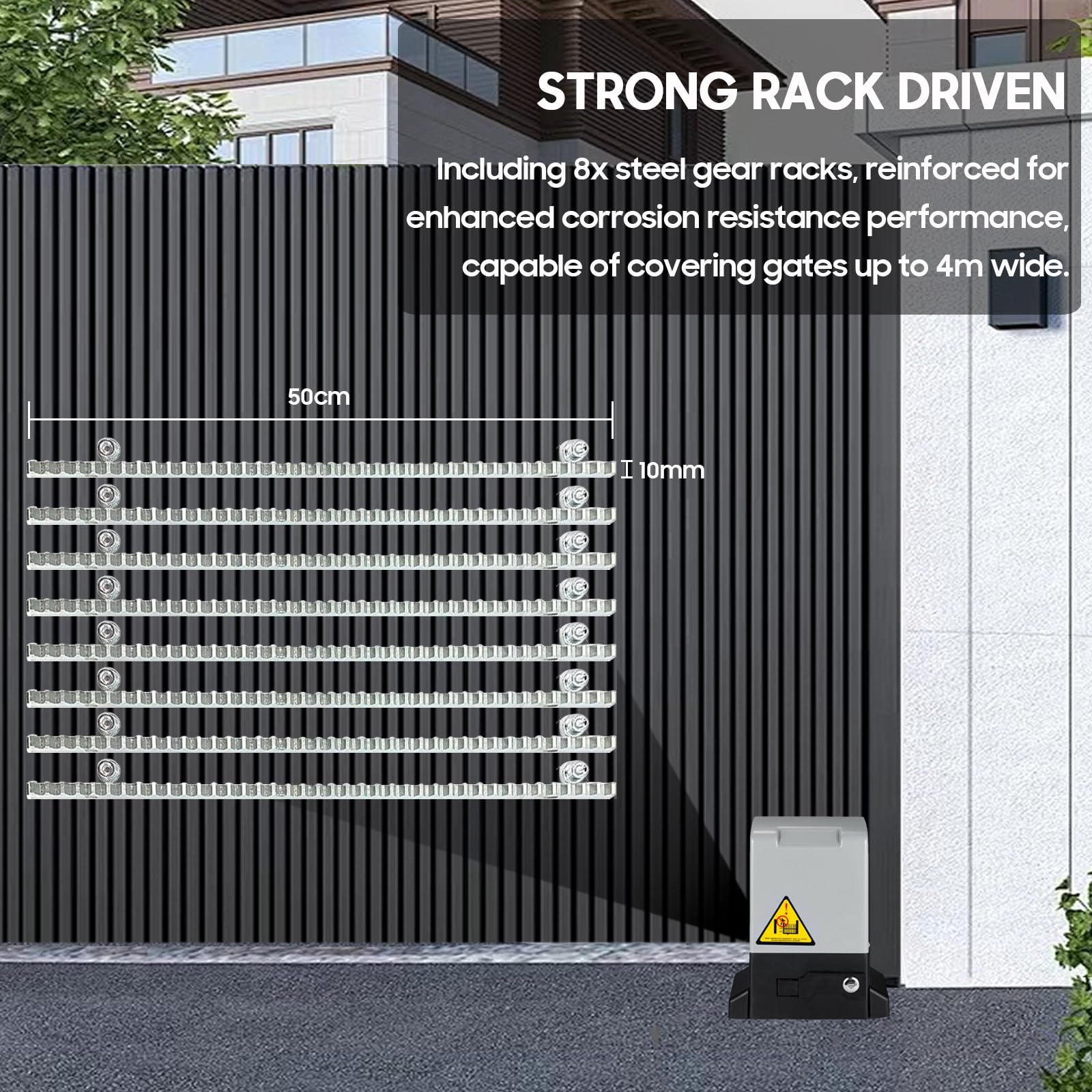

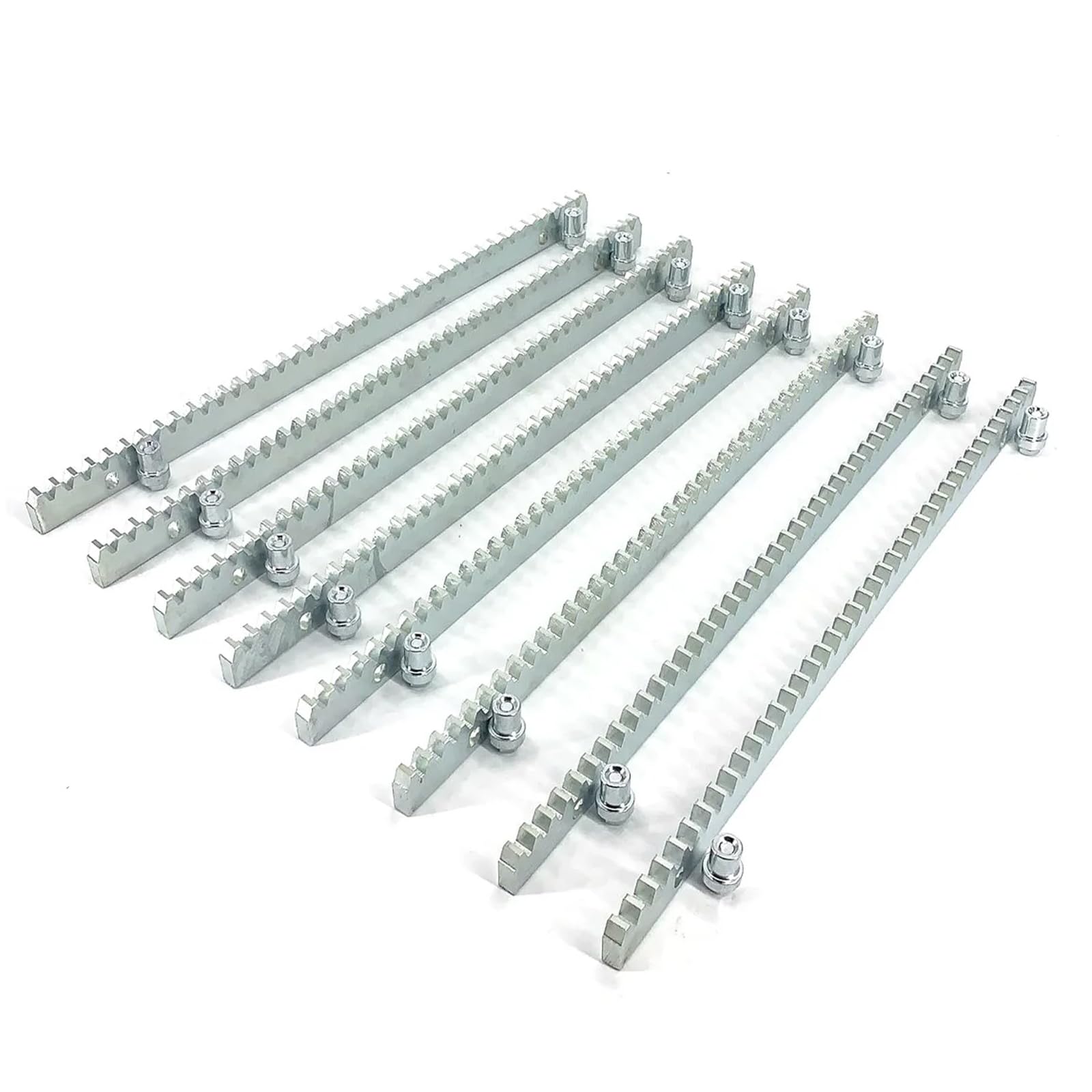

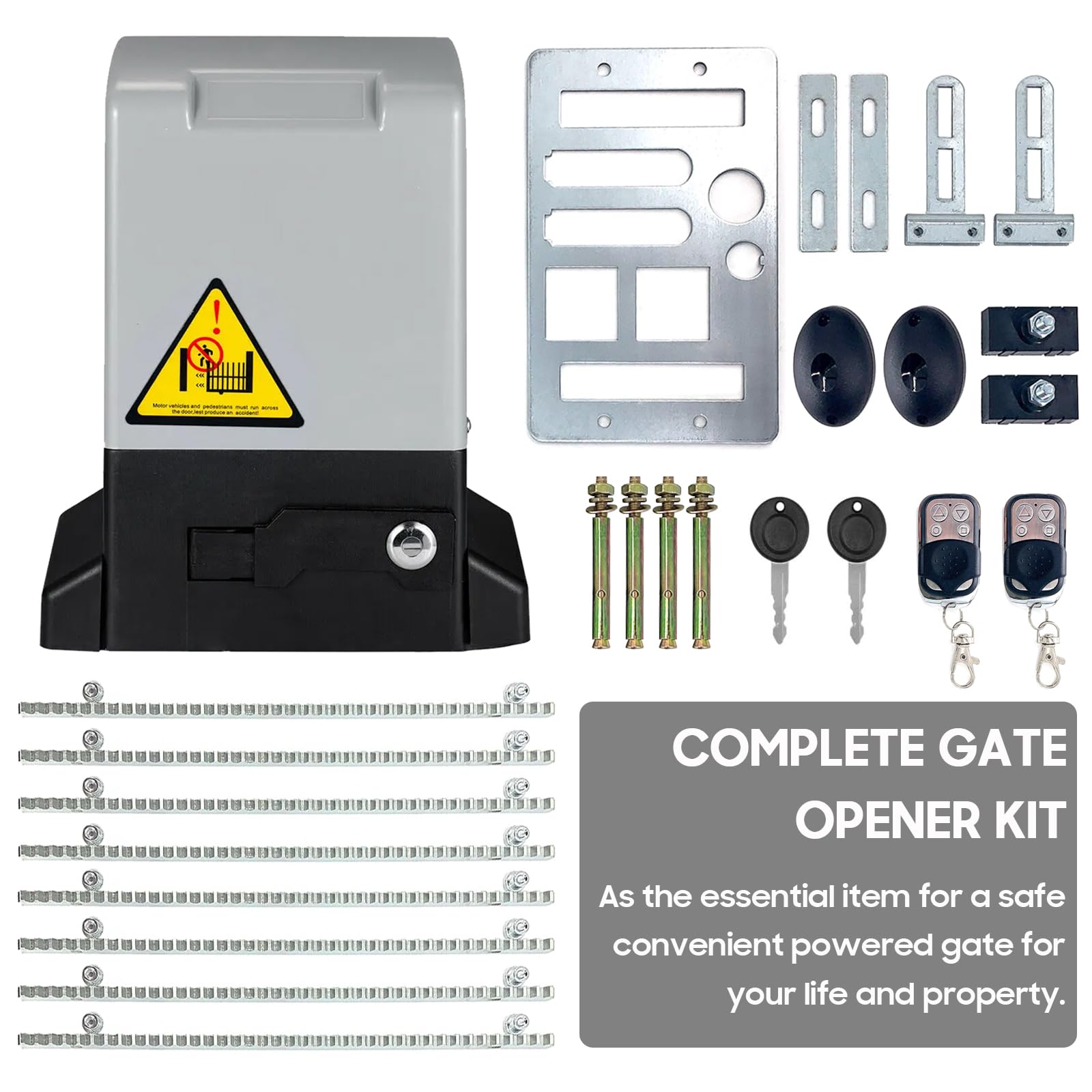

Working Principle&Structure: 1.This machine is consists of the motor, worm, gear, driven gear,etc. 2.The specific motor drives the worm, the worm transfers the motion to the worm gear and the driven gear（sprocket）,and the driven gear drives the rack. 3.The motor transfers its motion energy to the sprocket through the worm and gear, the driven gear, and the worm gear will both rotating when the clutch is engaged, so the door will to be open or close under electric control. When in power failure, get the clutch disengaged through the disengage key(turn 90° clockwise), this machine will to be effected manually to open or close the gate. Specifications: Material: Plastic, aluminum Color: Silver & Black Voltage: 220V AC, 60Hz Motor Power: 550W Motor Speed: 1400r/min Maximum load: 1200kg Output Torque: 26N.m Limit Switch: Magnetic Limit Switch Noise: <56dB Remote Control Range: 70m/229Ft Duty Cycle: 10 Minutes Rack: Quality: 8Pcs; Length:about 0.5M; Tooth Width: 10mm. Remote contol mode: single button Starting current: 3A Running speed: 12m/min Temperature: -25℃~55℃ Remote Battery required: 1 section 27A 12V alkaline battery（not included） Package List: 1* Motor 8* Gear Racks (length:0.5m/rack) 2* Remote Controls 2* Single infrared beam sensors 2* Manual Release Keys 1* Mounting Hardware 1* Installation Parts 1* Owners Manual
