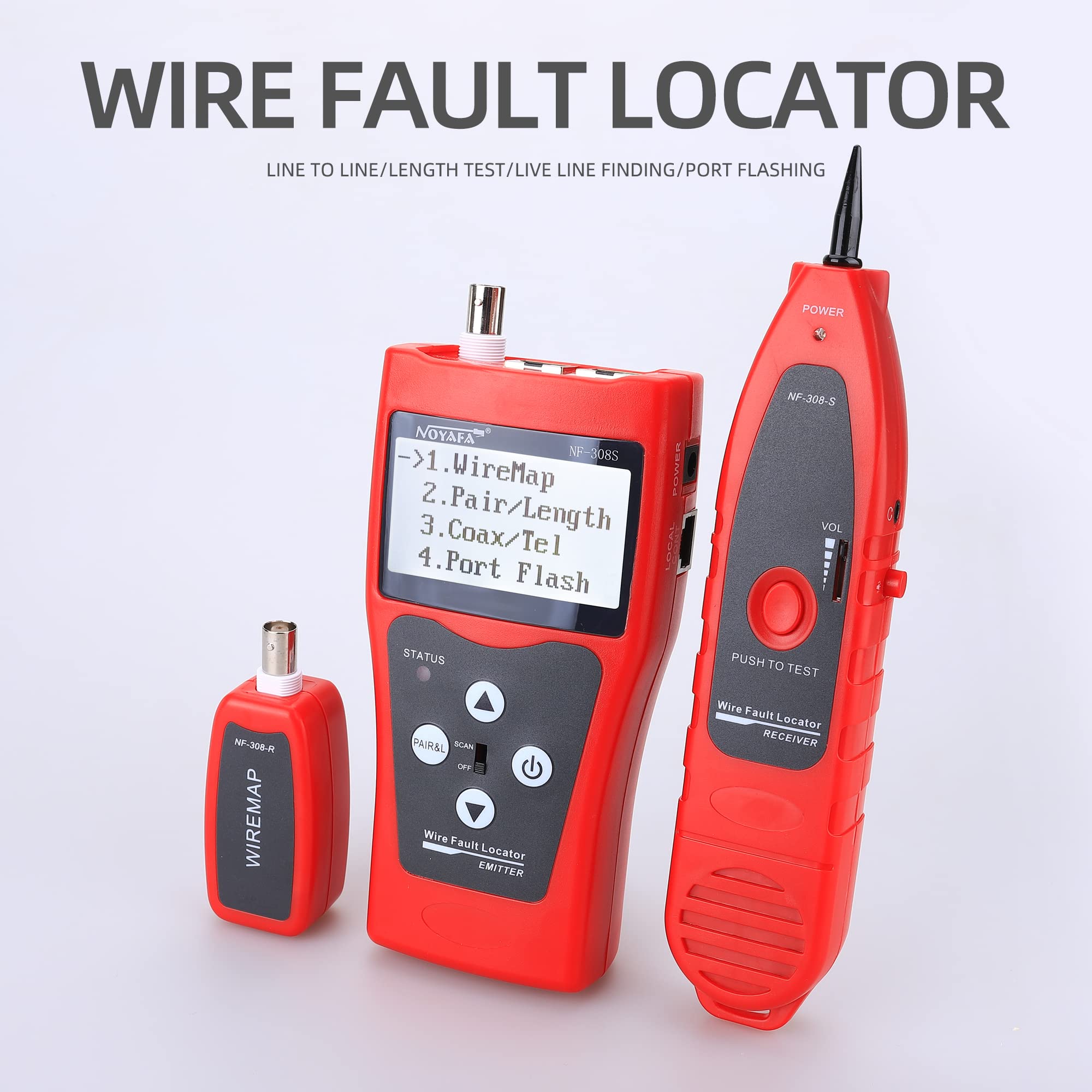

NF-308 Network Telephone Audio Cable Length With Tester Remote Identifier

• Trace telephone wire/LAN cable. Trace wire in electrical system. It can take place of cable tester.

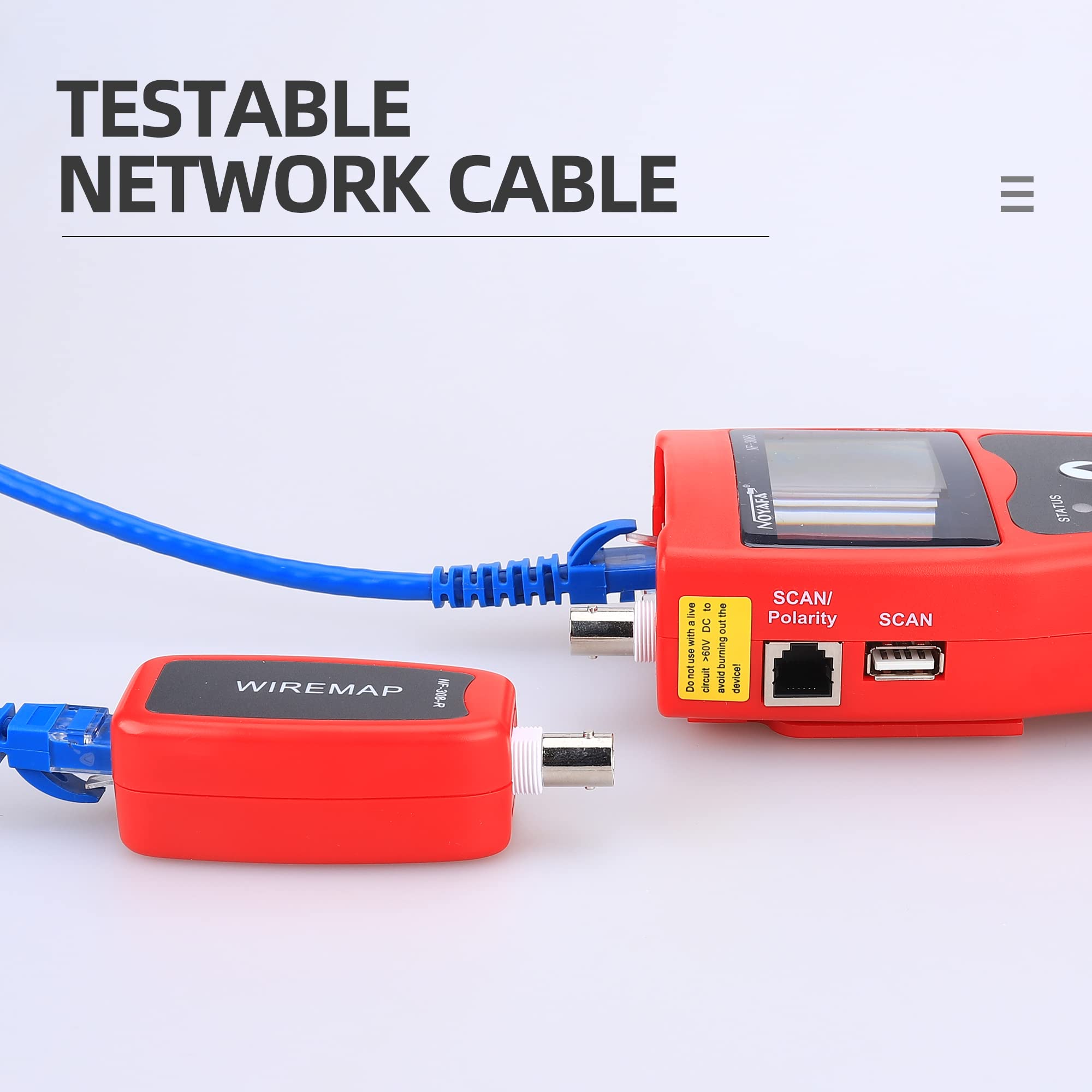

• Verify LAN cable condition. Continuity test. Cable Assignment Test and Cable State Testing (2-wire).
• Rapidly find the target wire from among plenty of telephone wires.
• Rapidly find the target wire from among plenty of network wires.

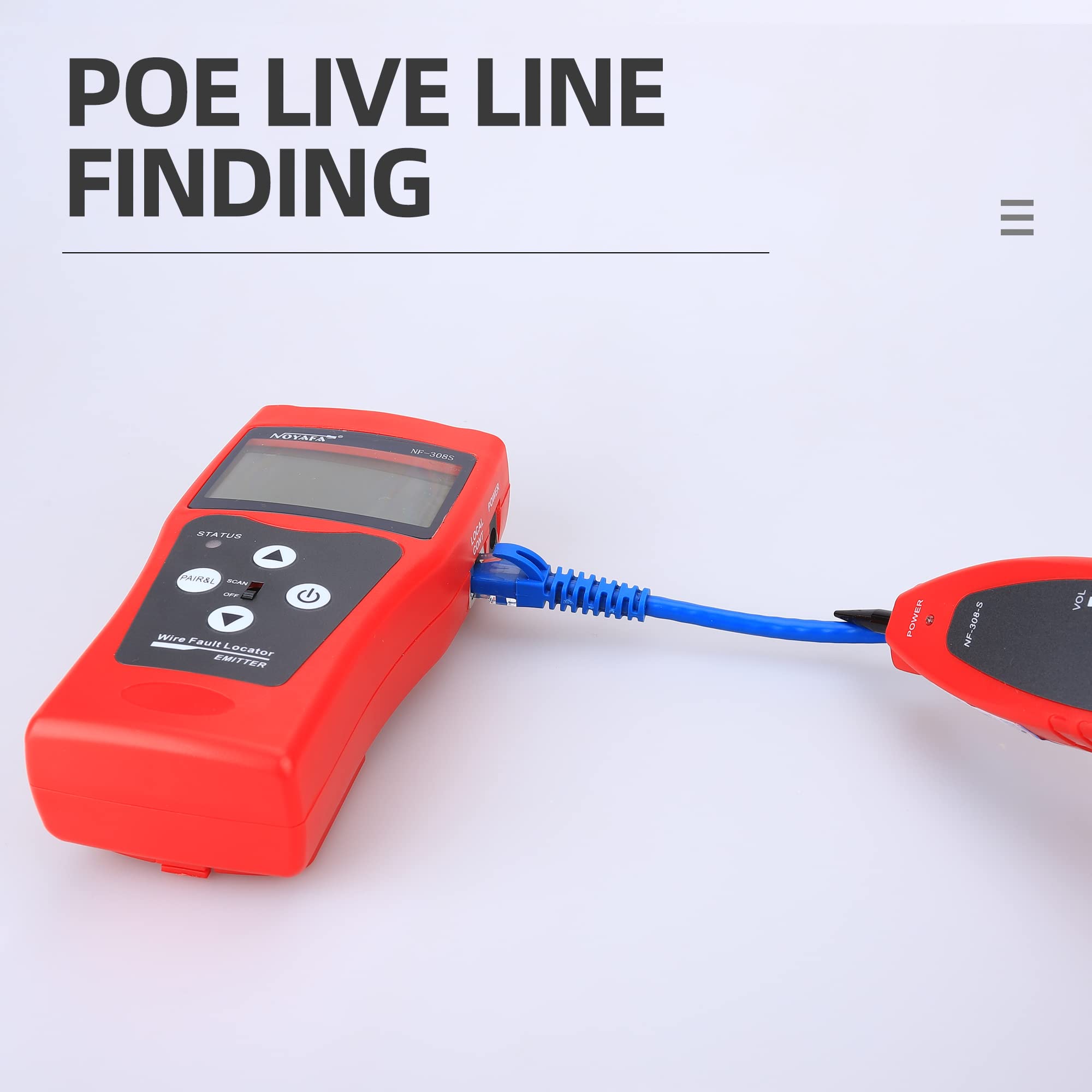

• Find target wire on all types of connected operating Ethernet switch /Router/PC.

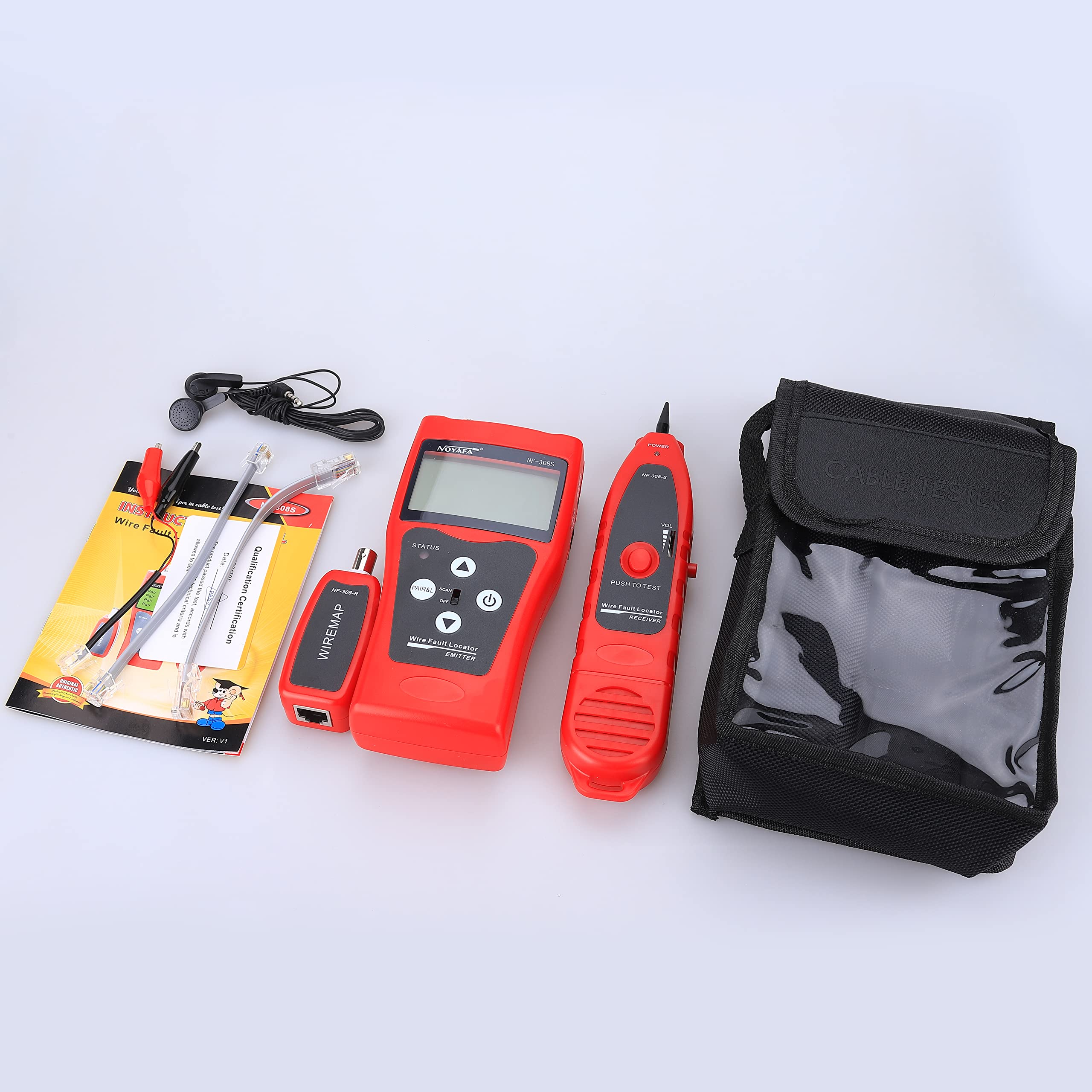

Descriptions: 1. Trace telephone wire/LAN cable 2. Trace wire in electrical system 3. Verify LAN cable condition 4. Continuity test 5. Low Battery Indication 6. Bright white LED flash light 7. Cable Assignment Test: Open, short and cross of LAN cable, 2-wire (RJ11)/4-wire (RJ45) telephone cable 8. Cable State Testing (2-wire) a. Line DC detecting and anode, cathode determination b. Ringing signal detecting c. Open, short and cross testing 9.Find wire on all types of connected operating Ethernet switch/Router/PC terminal 10.Rapidly find the target wire from among plenty of telephone wires 11.Rapidly find the target wire from among plenty of network wires 12.It can take place of cable tester 13.Compare the volume of the "tout" sound and the brightness of the signal indicator, Then you can find the target wire which has the highest volume and brightest indicator 14.Power: DC 9V battery（not include) 15.Working current: test: =10mA, receiver: =30mA 16.Signal transmission format: Multiple frequency pulse 17.Signal output electric status: 8VP-P 18.Distance of signal transmission: =3km 19.Material: ABS plastic Package include: 1.1xEmitter 2.1xReceiver 3.1xEarphone(90cm) 4.1xRJ11 Telephone Cable 5.1xCable with Crocodile Clamp 6.1xRJ45 Network Cable 7.1xManual 8.1xBag
