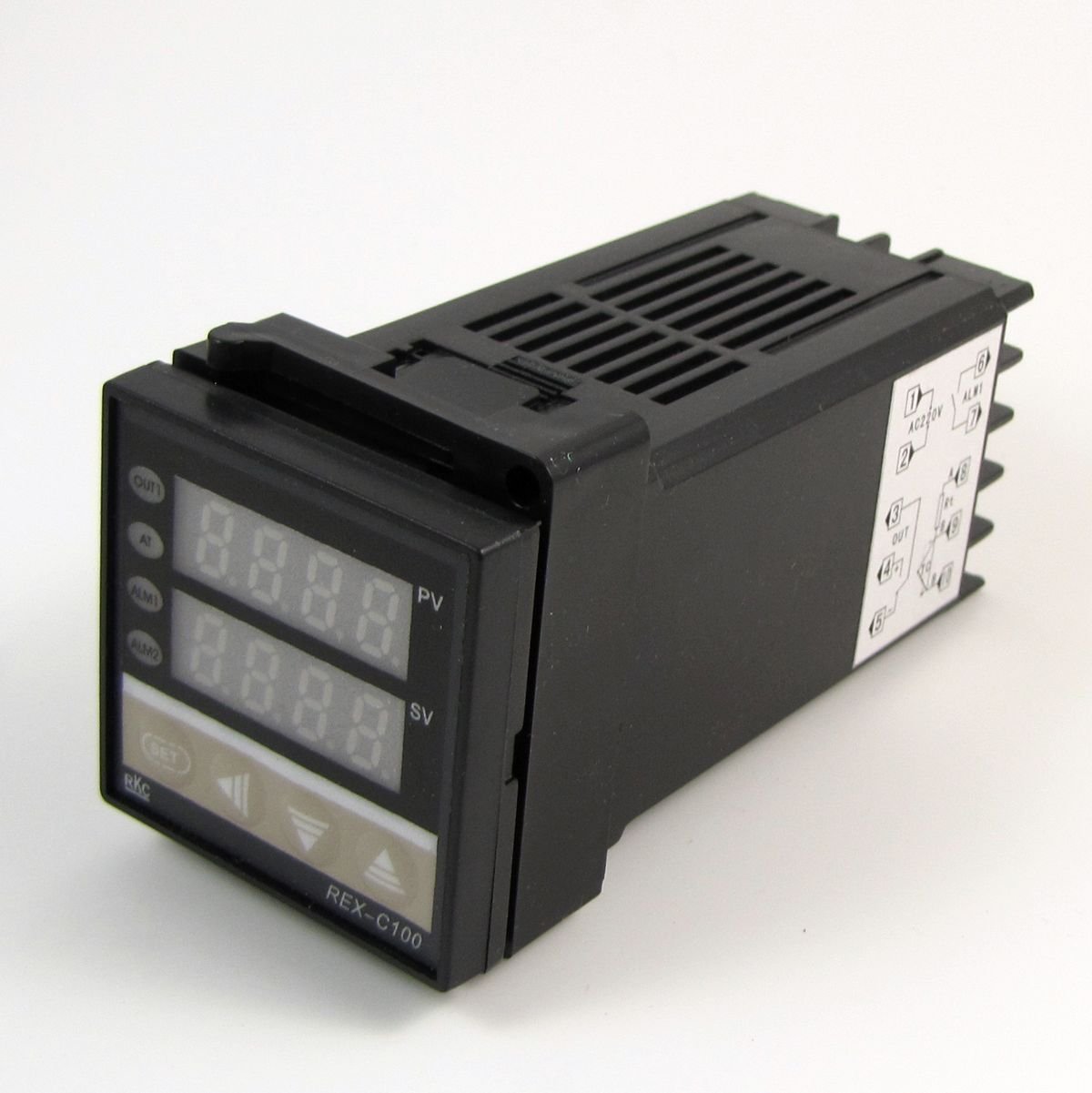

New REX-C100 Digital F/C PID Temperature Thermocouple Control Controller

• Relay output: contact capacity 250V AC 3A (resistive load，default type. NOT SSR)
• Measuring accuracy: ±0.5%FS
• Dimensions:48 x 48 x 110 (mm) ±0.2mm
• Cold-end compensation tolerance: ±2℃（can be modified by software in 0~50℃）
• Resolution: 14 bit

Features: Relay output: contact capacity 250V AC 3A (resistive load，default type. If you need SSR type please contact us before order) Measuring accuracy: ±0.5%FS Cold-end compensation tolerance: ±2℃（can be modified by software in 0~50℃） Resolution: 14 bit Sampling cycle: 0.5 Sec Dimensions:48 x 48 x 110 (mm) ±0.2mm Process value (PV), Setting value (SV) Output, alarm and self-tuning can be indicated by: LED PIN control (including ON/OFF, step-type PID and continuous PID) Self-tuning control Voltage pulse output: 0/12V (suitable for solid state relay SSR) Alarm function output: 1 way Setting value (SV): identical to measuring range (PV) Proportional band (P): 0~full range (ON/OFF control when set to 0) Integral time (I): 0~3600 sec (No integral action when set to 0) Derivative time (D): 0~3600 sec (No derivative action when set to 0) Heat-reset proportional cycle: 1~100 sec Detective temperature range：0 to 400℃ Insulation resistance: >50M ohm(500V DC) Insulation resistance: 1500V AC/min Power Consumption: 10 VA Service environment: 0~50℃, environment with no corrosive gas 30~85% RH Package Included: 1 x New Dual Digital F/C PID Temperature Controller Control REX-C100
