New Replacement PP204, HA3004 1/2" Rotor Kit for Desa, Reddy, Master Heater #70-022-0100

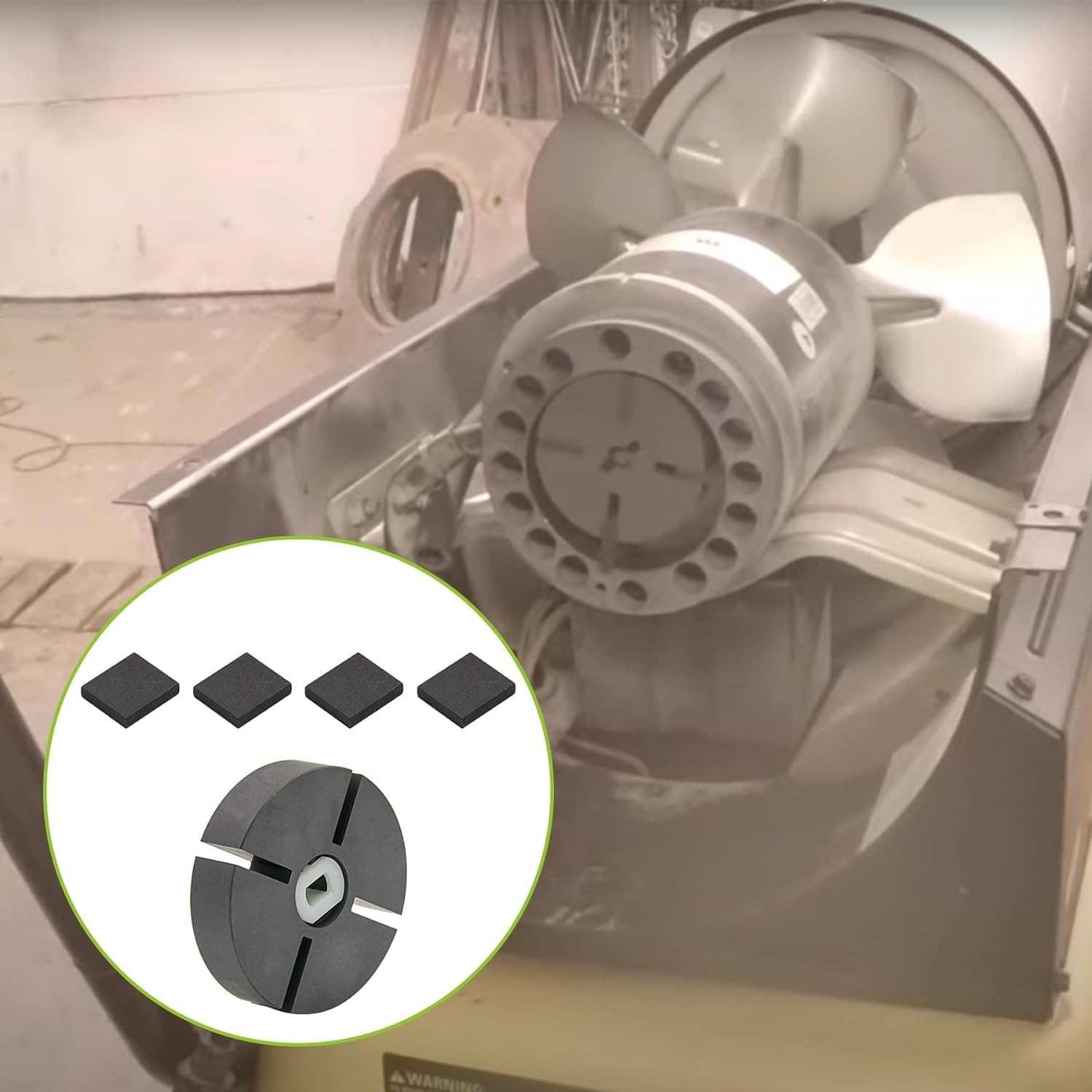

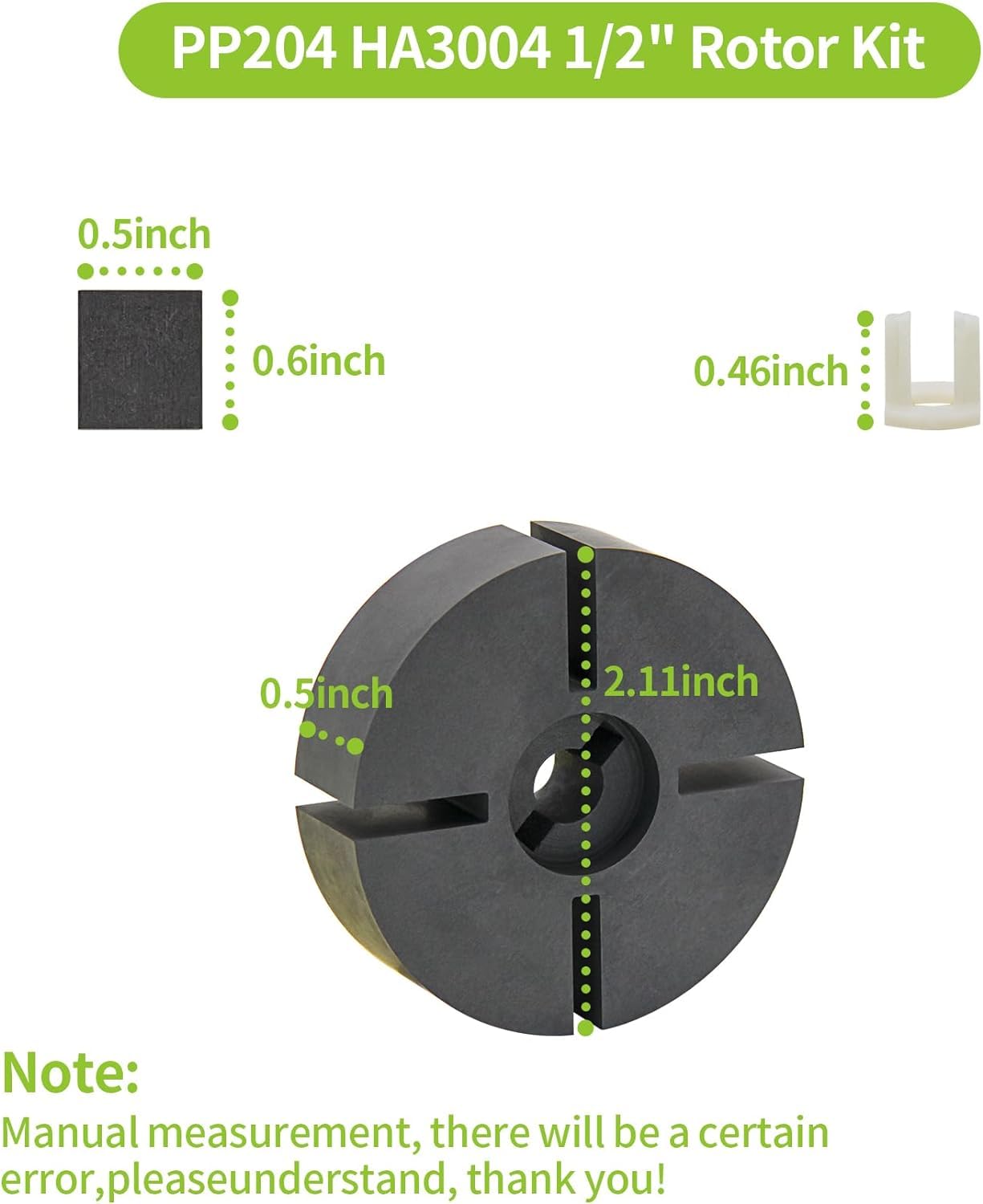

• ⭐PP204 / HA3004 1/2" Rotor Kit,Includes Rotor, Vanes, and Insert Rotor Kit 1/2" Thick Dia= 2 1/8".

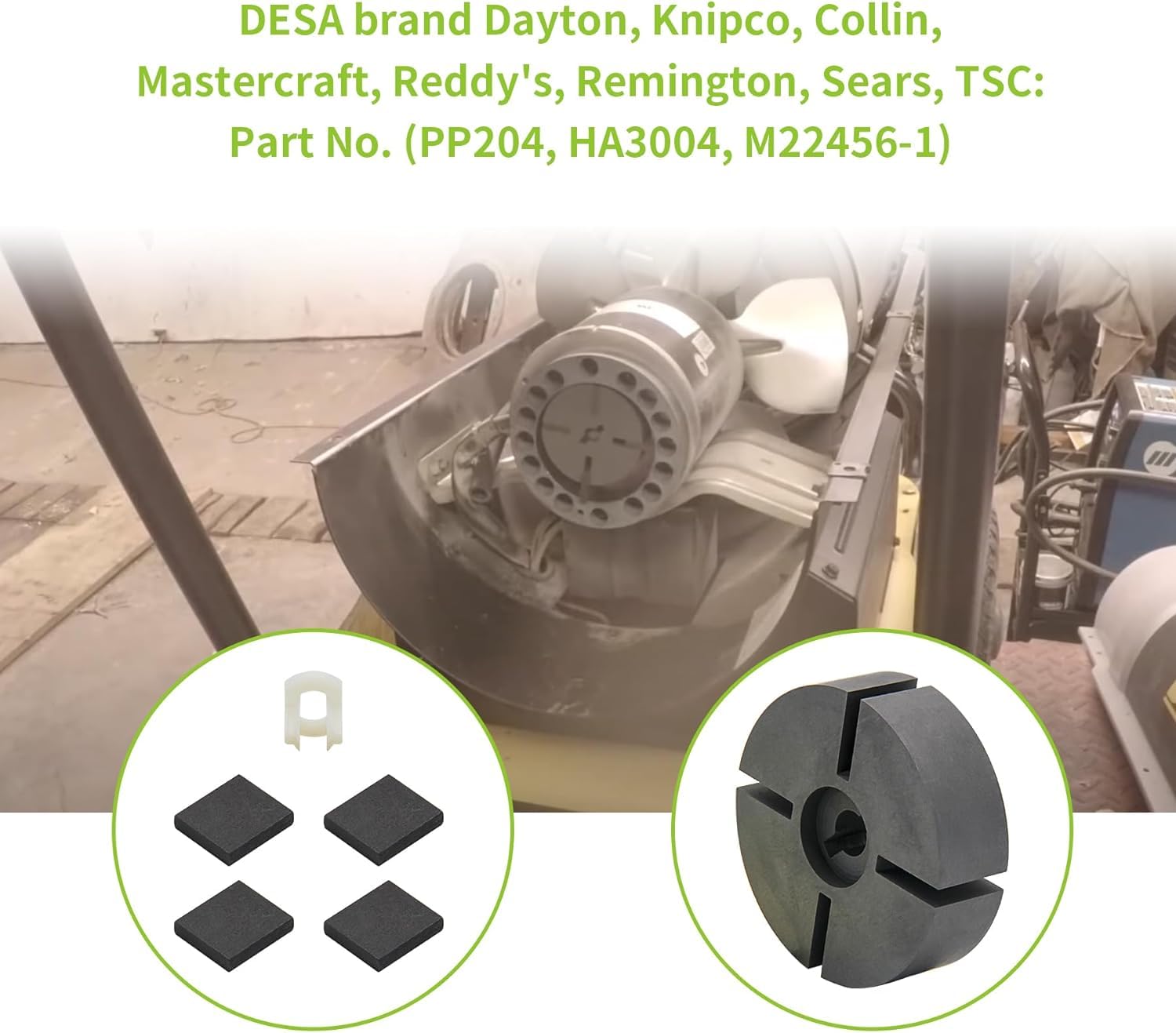

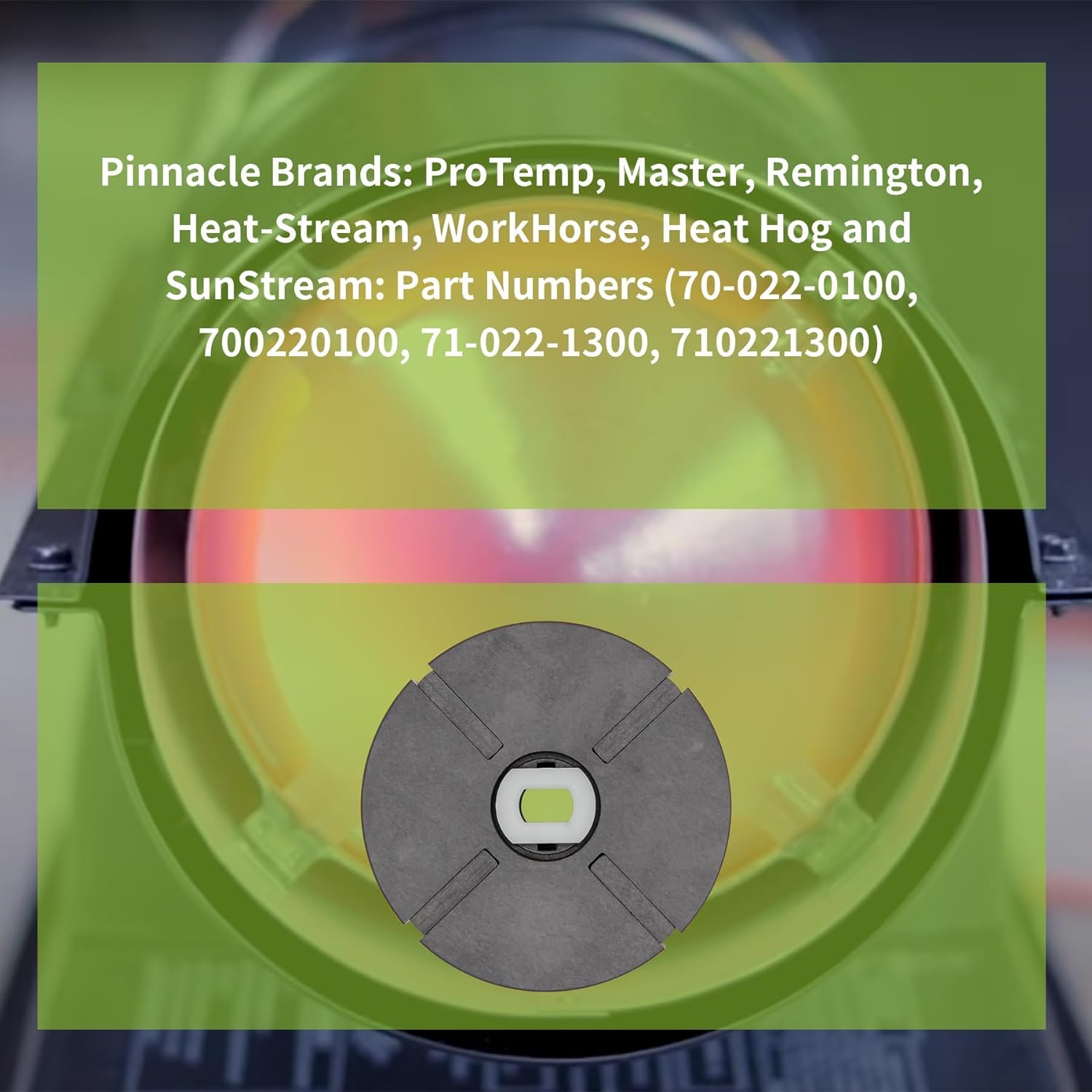

• ⭐This kit (includes the vanes and insert) is used on a variety of different heater models. The other part numbers are: Desa part# PP204, GHP part#SP-KFA1000, Mi-T-M part# 68-3043, Pinnacle part# 70-022-0100
• ⭐Other Part Numbers: PP204 , HA3004 , M22456-1 , 70-022-0100 , 700220100 , 71-022-1300 , 710221300 , SP-KFA1000 , SPKFA1000 , KFA1000 , 68-3043,and For more model
• ⭐This kit (includes the vanes and insert) is Suitable for a variety of different brands, including Reddy,DESA,Master, Remington, Knipco, Koehring, Dayton, And many, many more,etc..

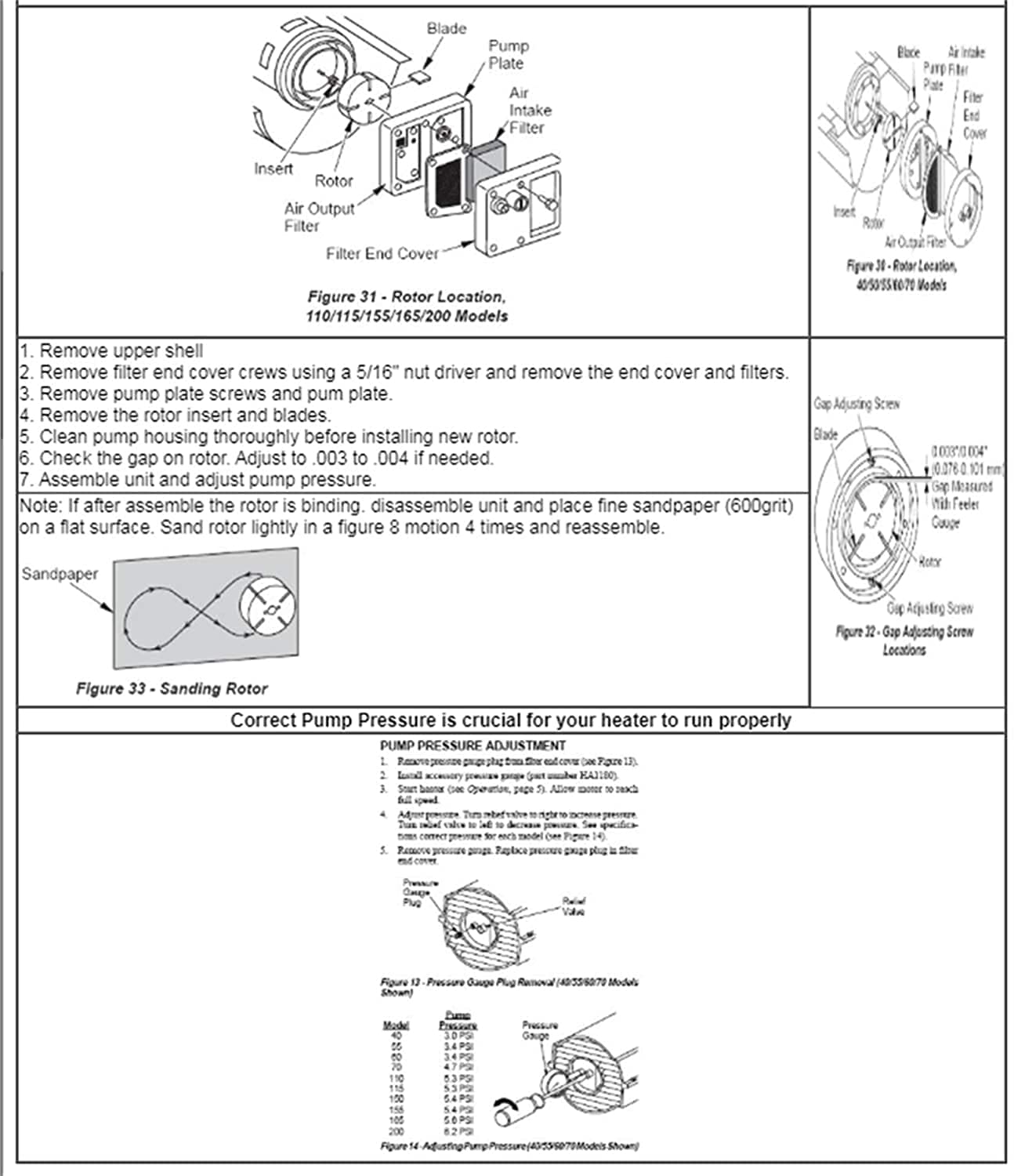

• ⭐Please measure the thickness of the rotor or the rotor steel ring to insure that you order the correct part.[Installation instructions, as shown in Figure (8)].

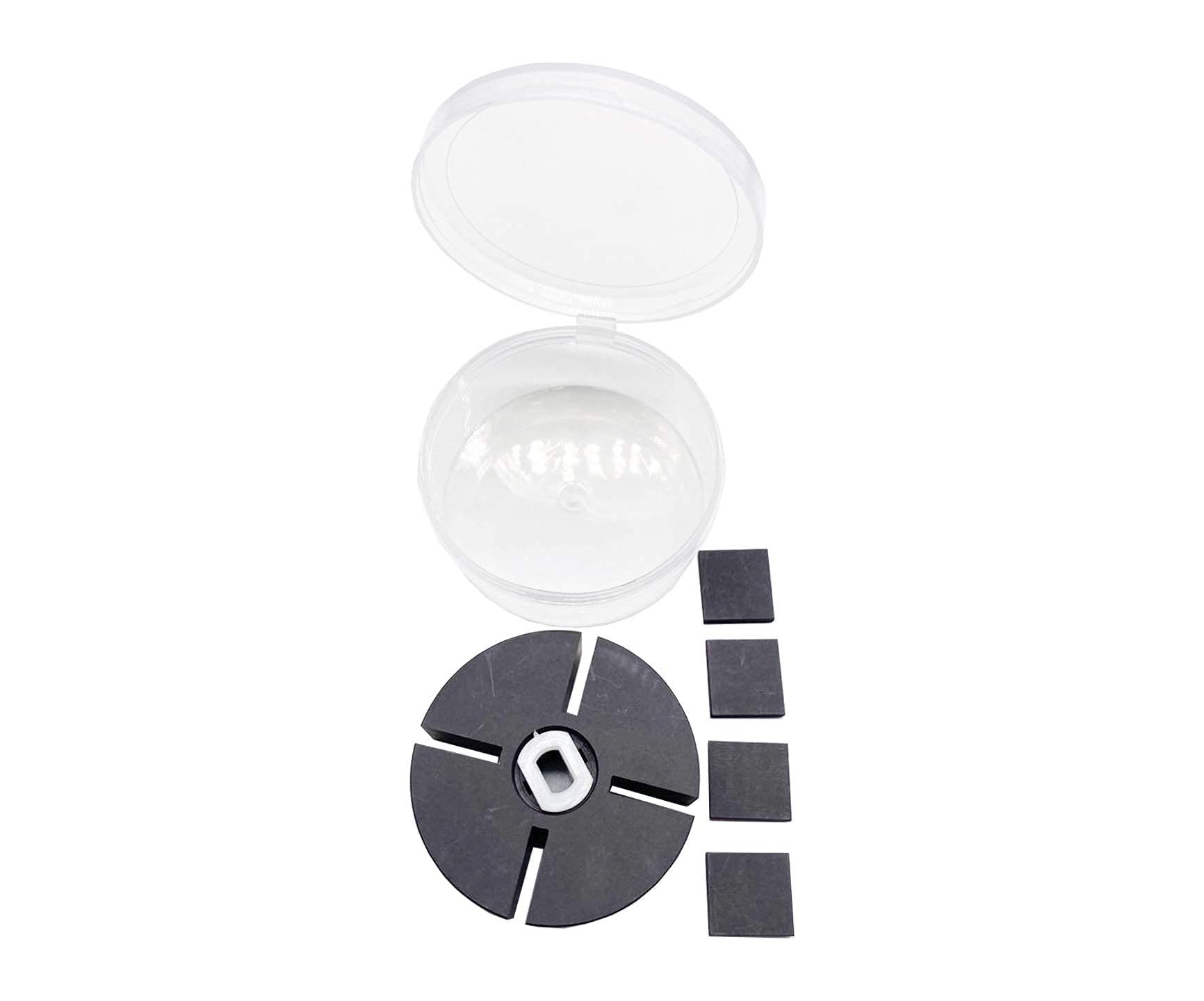

Includes M22009 Insert, M224561 Pump Rotor, M8643 Pump Blade M29633 Intake Filter. This is a 1/2" Rotor kit for a variety of heaters. It replaces the following part numbers : PP204 ,HA3004 ,M22456-1 ,70-022-0100 , 700220100 ,71-022-1300,710221300 ,SP-KFA1000 ,SPKFA1000 , KFA1000 ,M22456,68-3043 Fits Heater Models ： 1:For Reddy Heater: R30, R35, R35A, R35B, R50, R50A, R50B, R70, R70A, R70B, R70BT, R70CT, R100, R100A, R100B,R110, R150, R150A, R150AT, R150B, R150BT, R150D, R150M, R155, R165, M30, M50A, M66D, and M100D. 2:For DESA: C35, C35A, C35B, C50D, C50E, C50F, C100D, C100E, C100F, C150D, C150E, and C150F. 3:For Master: B50A, B50B, B50D, B50E, B50F, B66D, B70B, B70BT,B70D, B100A, B100B, B100D, B100G, B110, B110A,B, B150B, B150C, B150F, B150FT, B150G, B150GT, B150M, B165, B200, B200AT, B350, B600. 4:For Knipco: F30, F50A, F50E, F50F, F50G, F66D, F110D, F110E, F110F, F110G, F110H, F150F, F150G, and F150H. 5:For Remington: REM35, REM35A, REM50, REM50W, REM50A, REM50AW, REM100, REM100A, REM110, REM150, REM150A, REM150B, and REM165. 6:For Koehring: K30, K50A, K100, and K100A, PKC70ET, PKC115DT, PKC165DT，And many, many more.. Installation Notes： 1:Remove upper shell 2:Remove filter end cover crews using a 5/16" nut driver and remove the end cover and filters. 3:Remove pump plate screws and pum plate. 4:Remove the rotor insert and blades. 5:Clean pump housing thoroughly before installing new rotor. 6:Check the gap on rotor. Adjust to .003 to .004 if needed. 7:Assemble unit and adjust pump pressure. Note : If after assemble the rotor is binding. disassemble unit and place fine sandpaper (600grit) on a flat surface. Sand rotor lightly motion 4 times and reassemble
