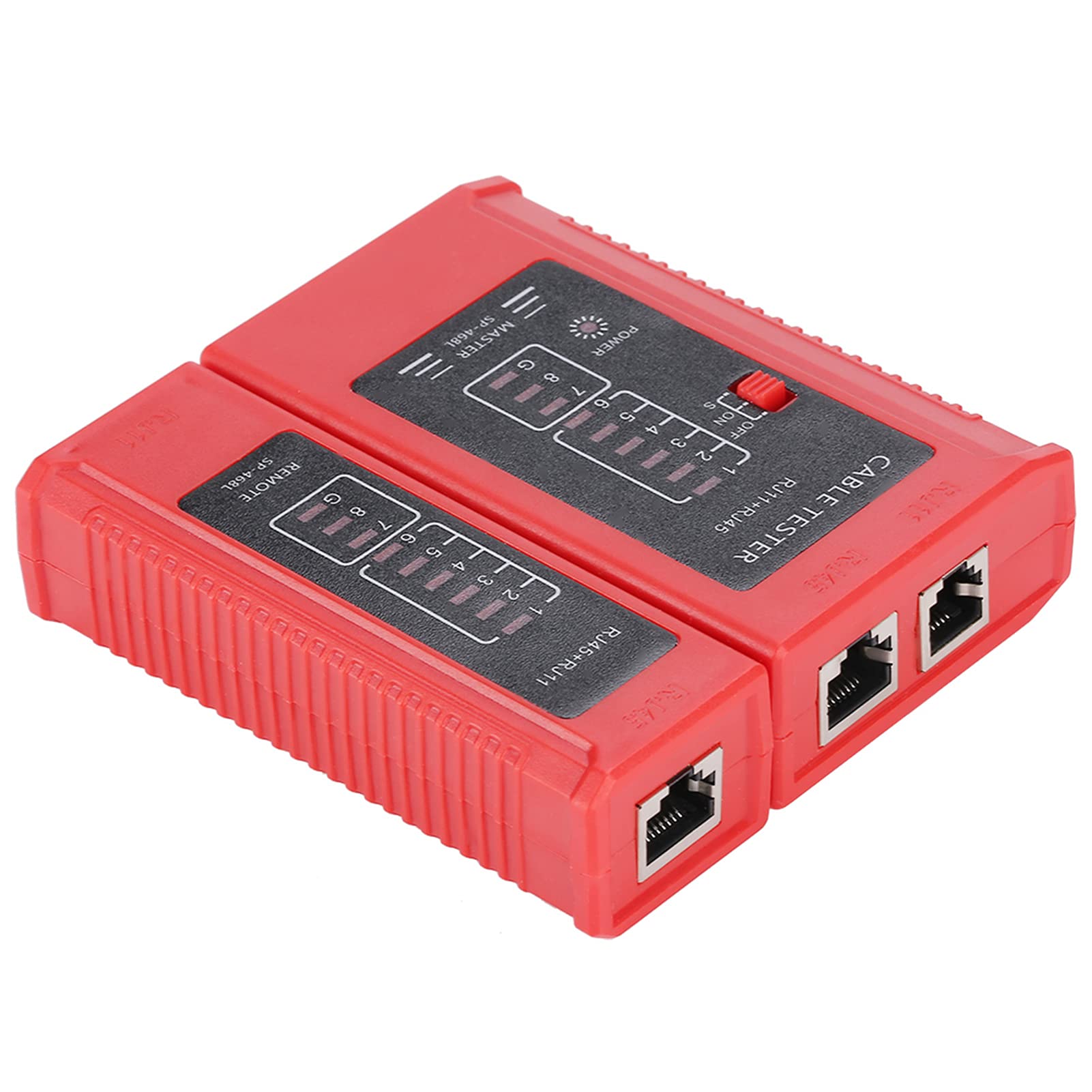

Akozon Network Cable Tester WZ-468 RJ45 and RJ11 Ethernet LAN Network Test Tool

• 【Application】: RJ45 network cable tester tests double-twisted cables 1, 2, 3, 4, 5, 6, 7, 8 and Ground With this network cable tester, you can judge wrong connection, short circuit and open circuit. Compact and light weight network cable tester, useful for home and outside use

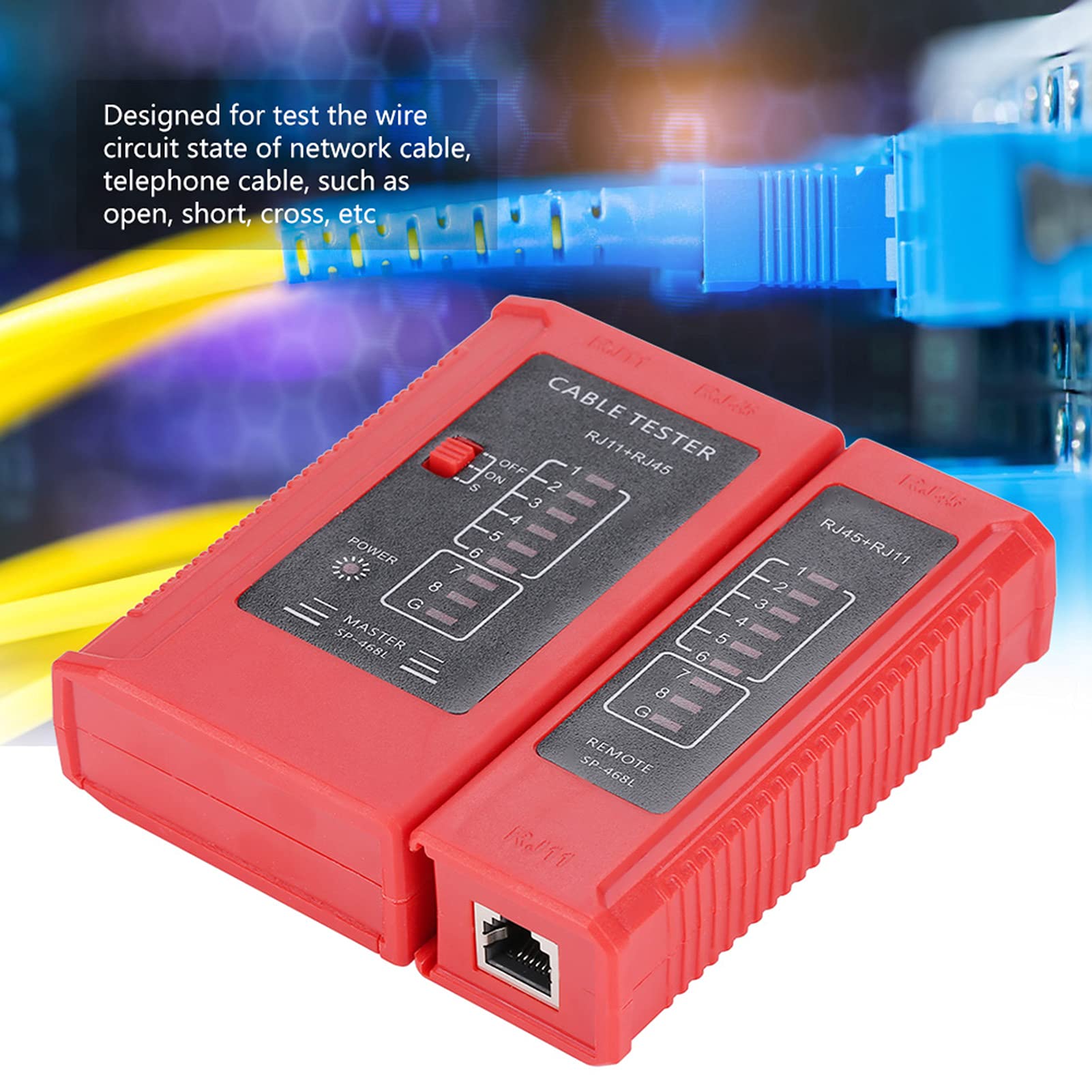

• 【Network Cable Tester】: 100% new network tester Designed for test the wire circuit state of network cable, telephone cable, such as open, short, cross, etc, o make sure they are in working order prior to connecting to your devices

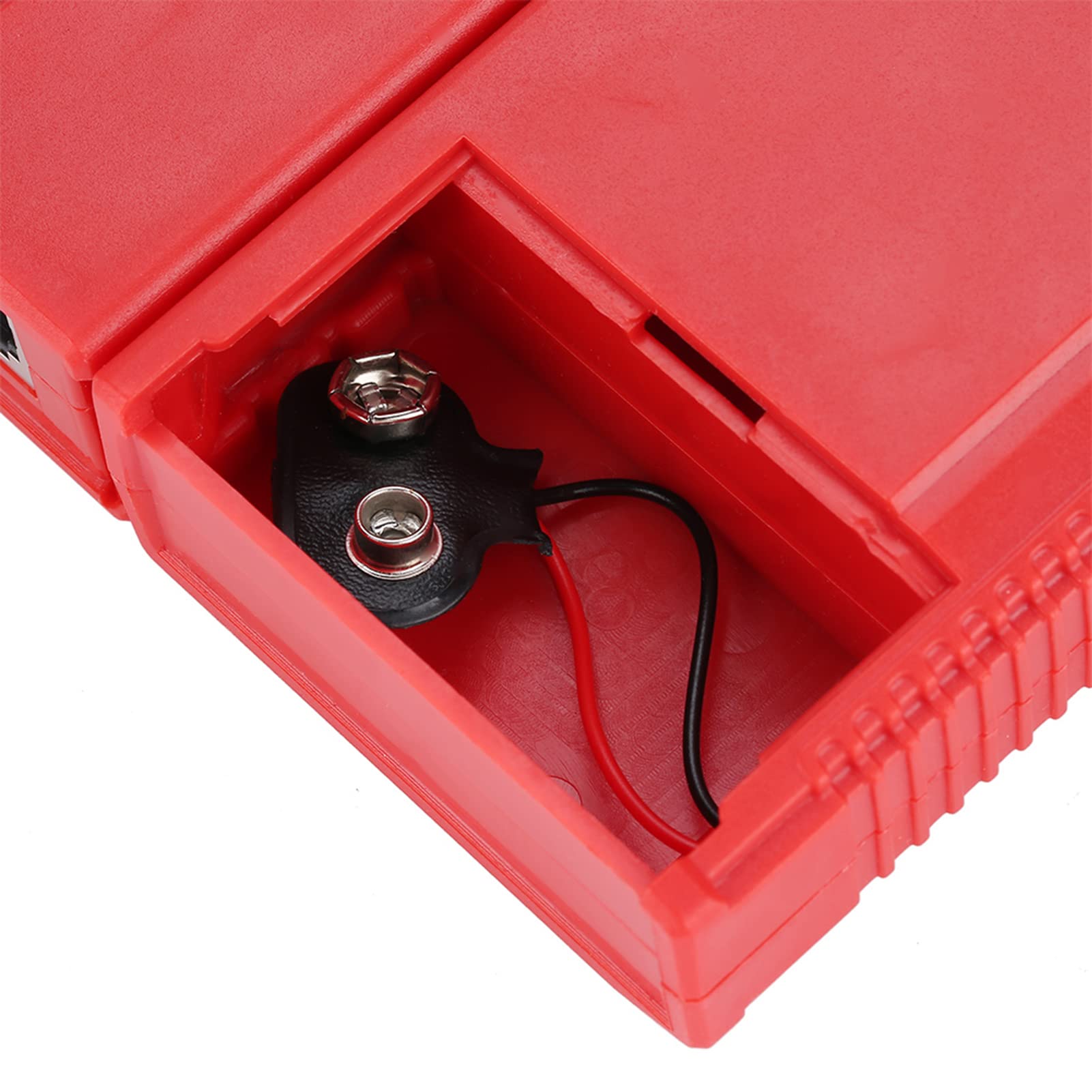

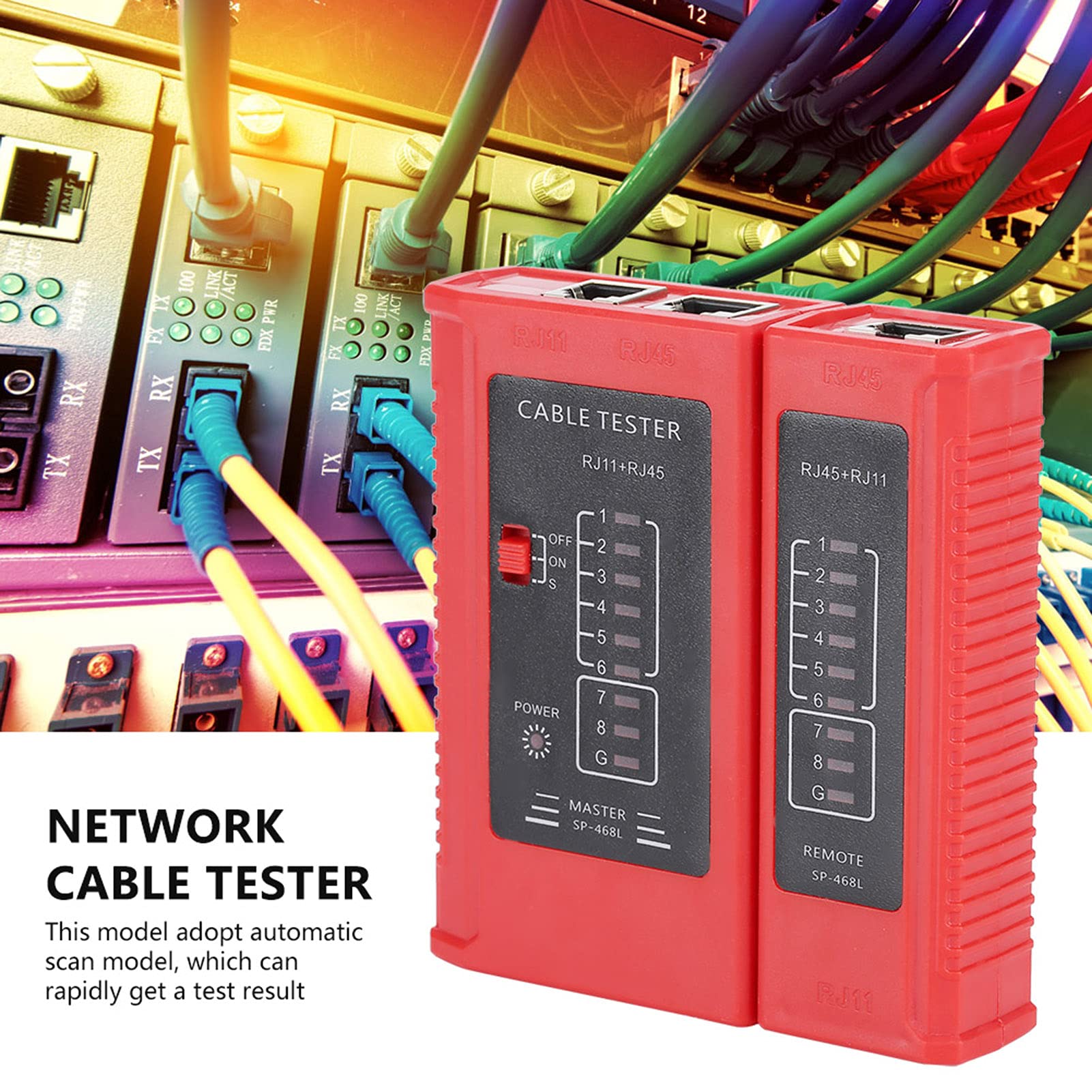

• 【9V Power Supply】: This model adopt automatic scan model, which can rapidly get a test result. Operate with one 9V battery ( Not Included ), battery is advised to change if any weak light appears. Or through the micro-port power work

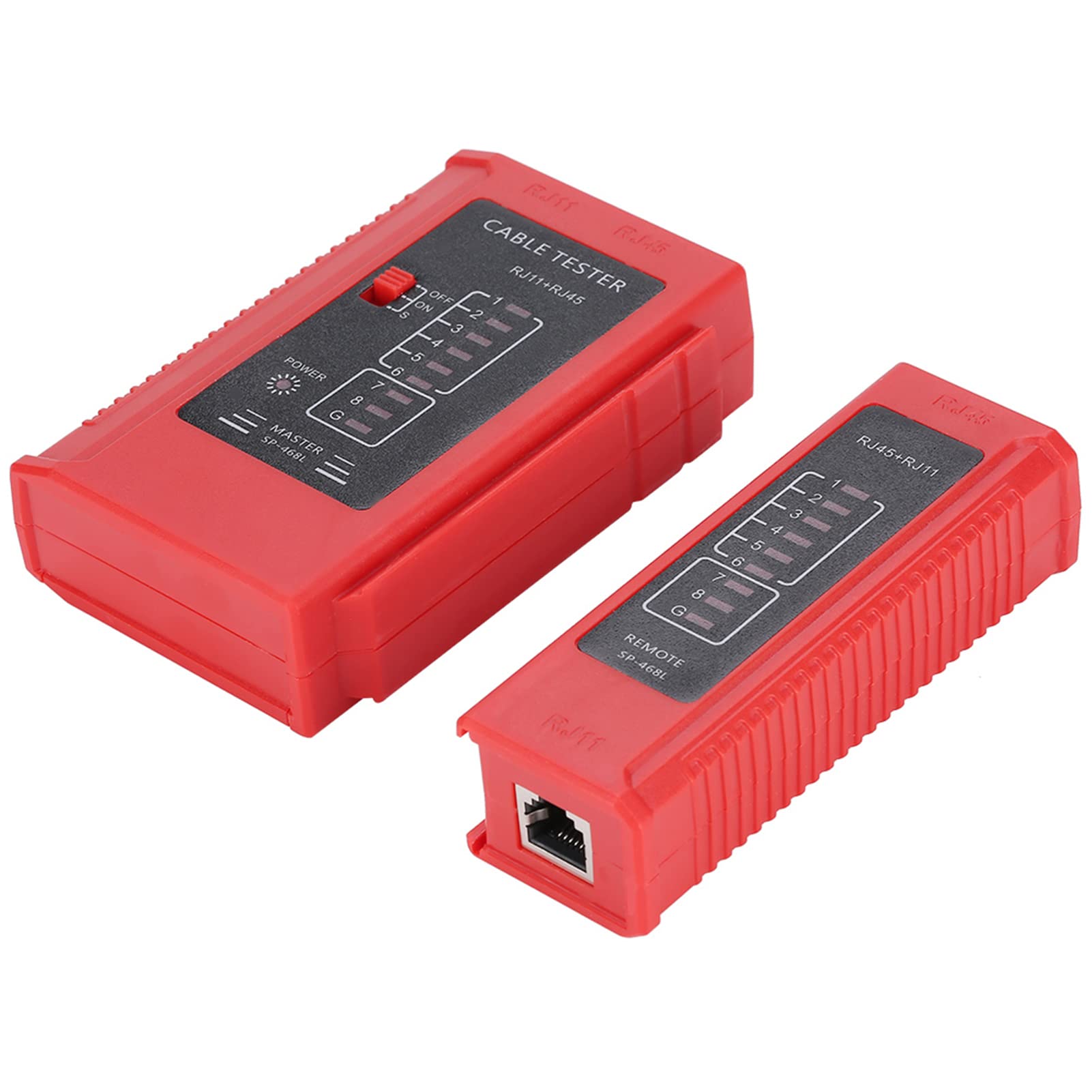

• 【Easy to Use】: The tester has a detachable section making it perfect for testing cable runs in different locations. Small and easy carried with smooth lines which is designed drop prevented and portable hand-held
• 【Automatic Detection】: High quality network cable tester suitable for testing both RJ45 Ethernet cables and RJ11 cables. Automatically runs all tests and checks, with LED lights and micro-power supply interface

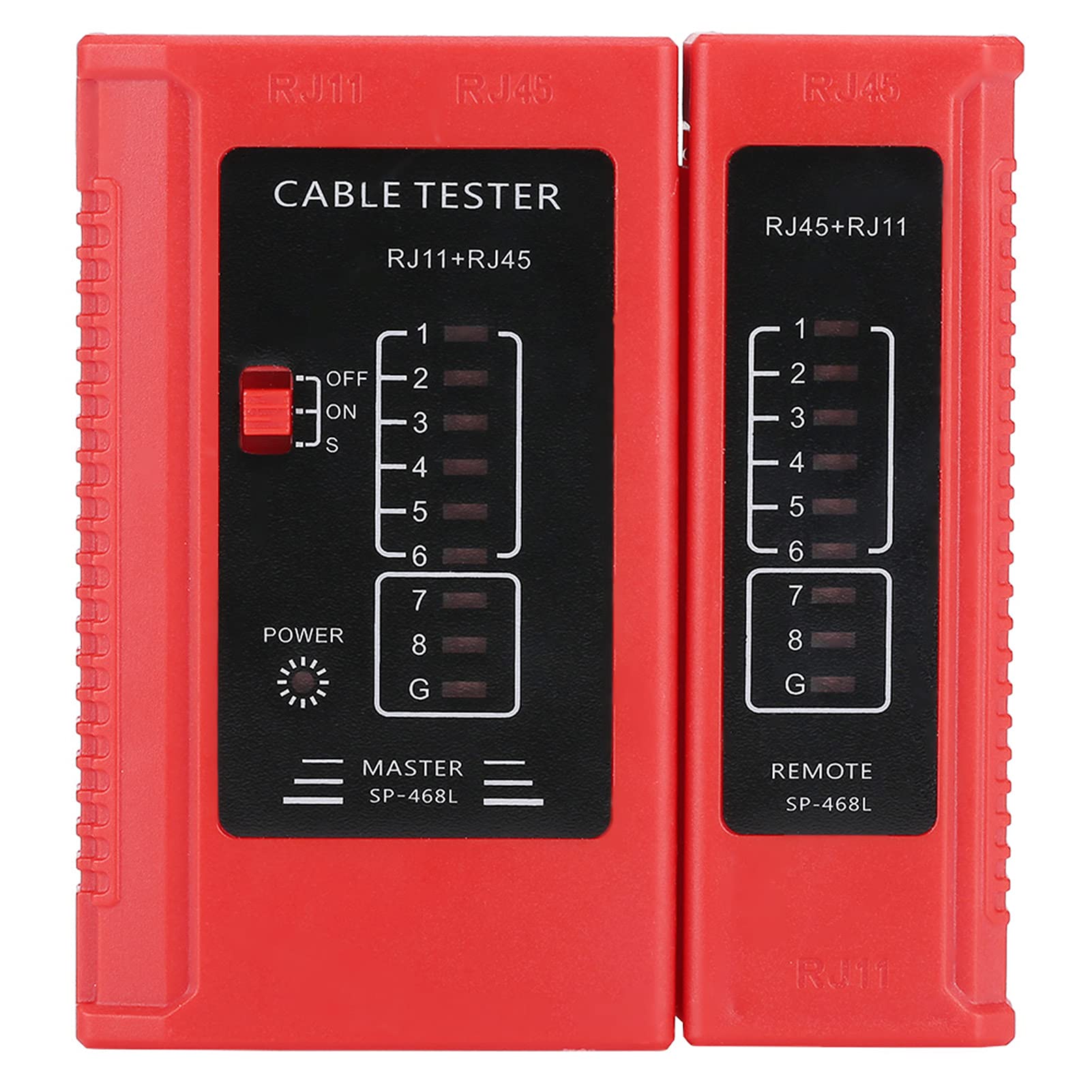

Specification: Model: WZ-468 Detected Cable type: RJ11,RJ45 Power supply: 9V laminated battery(Not included) Size: 9.7*10.3*2.8cm/3.8*4.1*1.1in Weight: Approx.116g/4.1oz Instructions: 1. Testing double twisted cables 1,2,3,4,5,6,7,8 and G corresponding ,and tell users which exact line is on wrong circuit 2. Switch ON is the normal test speed, "S" is the rapid test speed, and OFF is Turn off the Tester 3.turn on the tester ,insert the line connector into main tester and remote control .Then the indication lights(1 to 8 and G) will flash Main tester: 1-2-3-4-5-6-7-8-G Remote control tester: 1-2-3-4-5-6-7-8-G（RJ45） 1-2-3-4-5-6------ （RJ12） 1-2-3-4---------- （RJ11) If the connection is not normal, it will be displayed as follows: 1.When there is a network cable such as NO. 3 cable is open circuit, the main tester and remote test end NO.3 lights is not on. 2.When several cables are open circuit, several cables are not on. When less than two cables are connected, the lights are not on. 3.When the two ends of network cables are in disorder, for example, cable 2 and 4 are in disorder, it is shown as follows: 4. When there are two wires short circuits , the main tester does not light up, while the remote test end shows that both of the two line lights of short circuit are dim. If there are more than 3 (including 3) short circuits, all the lights of several wires Numbers of short circuit will not light up Package list: 1 x Network Cable Tester (battery not included)
