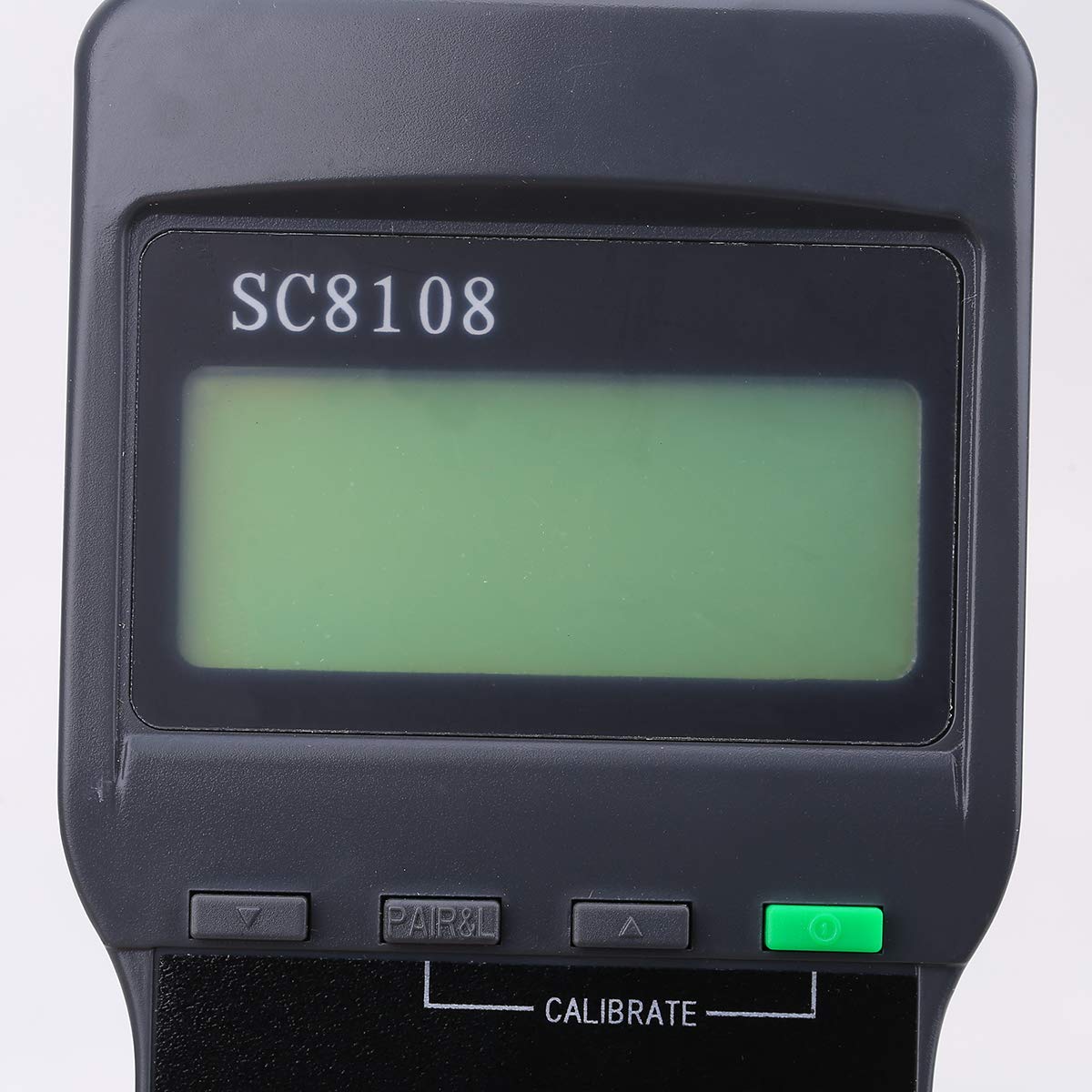

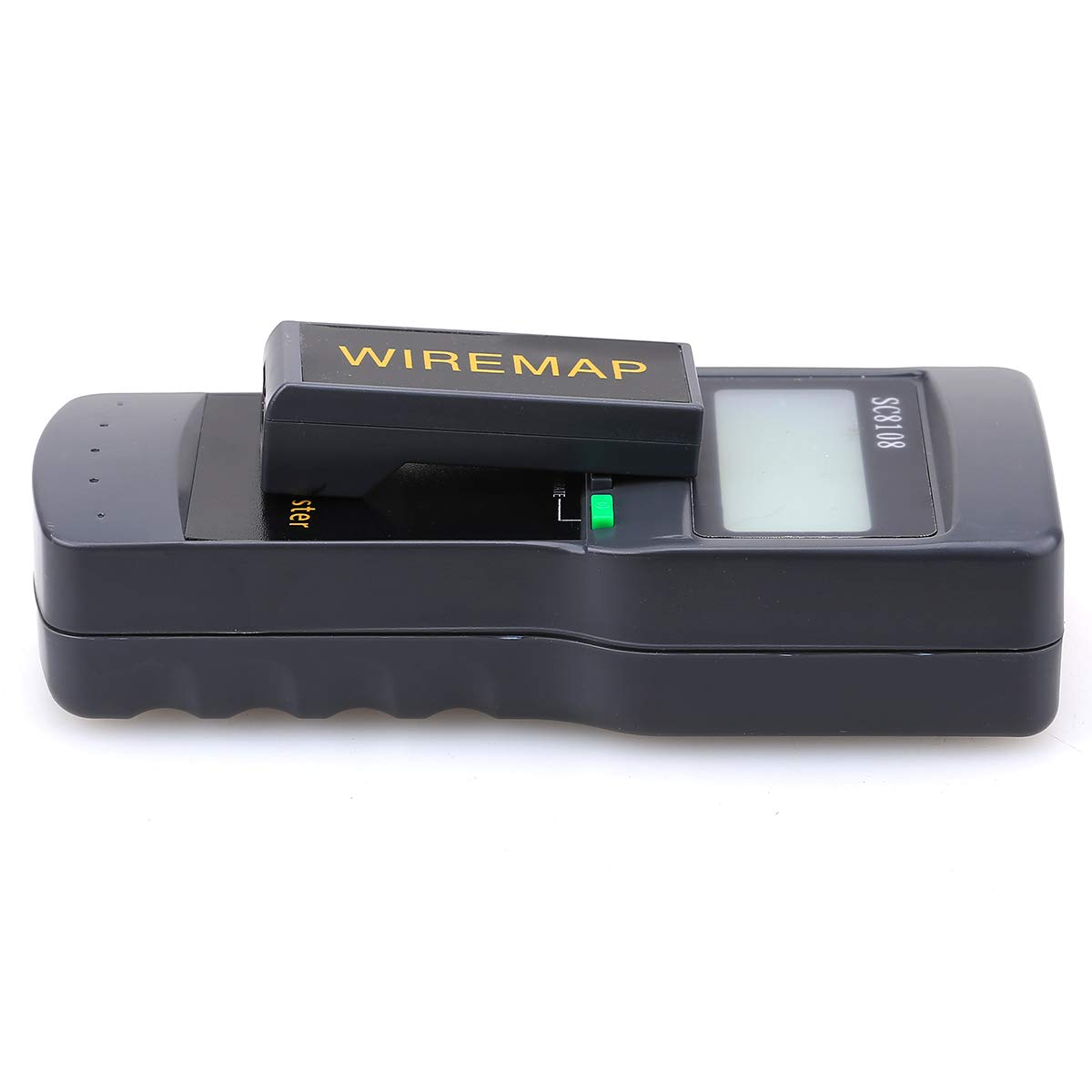

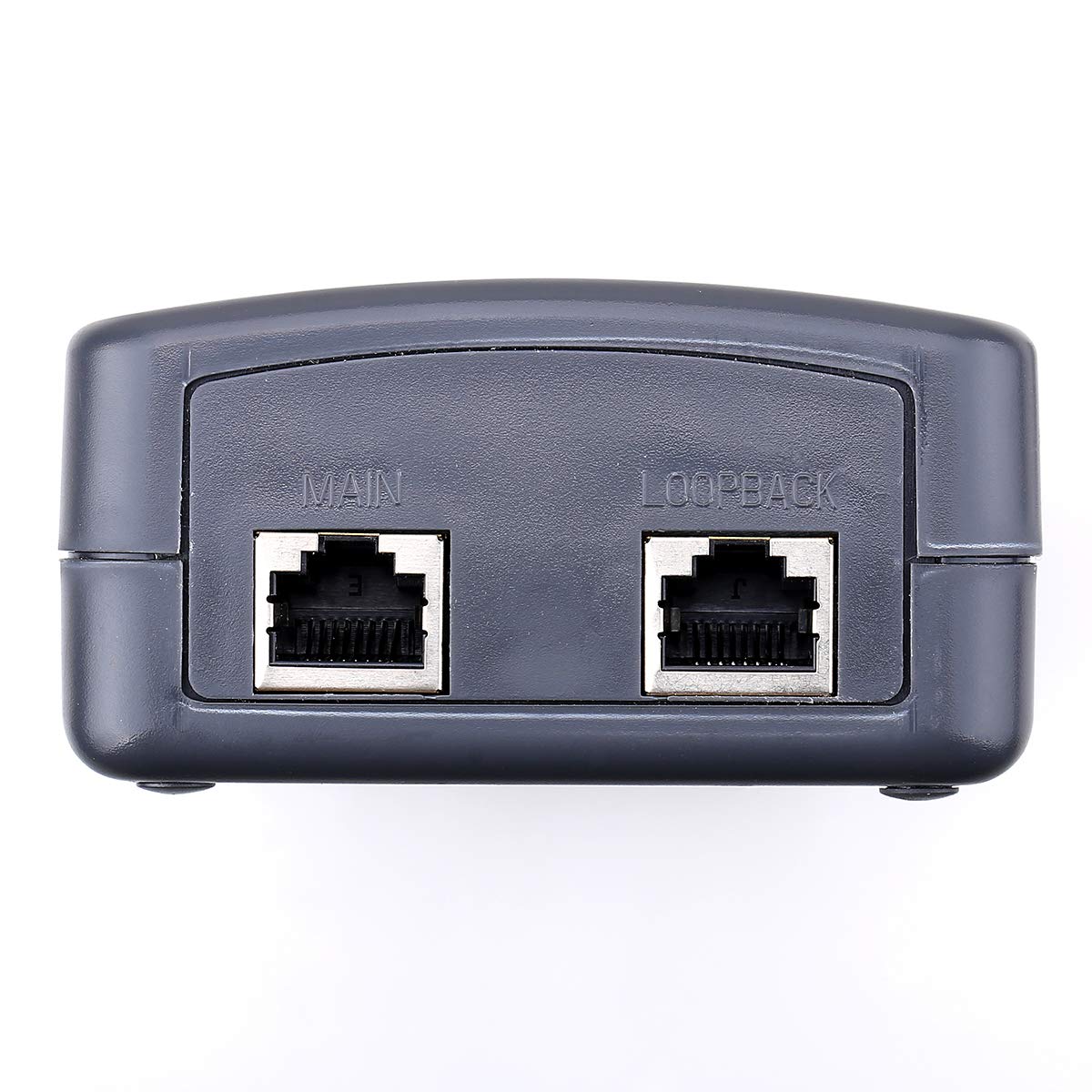

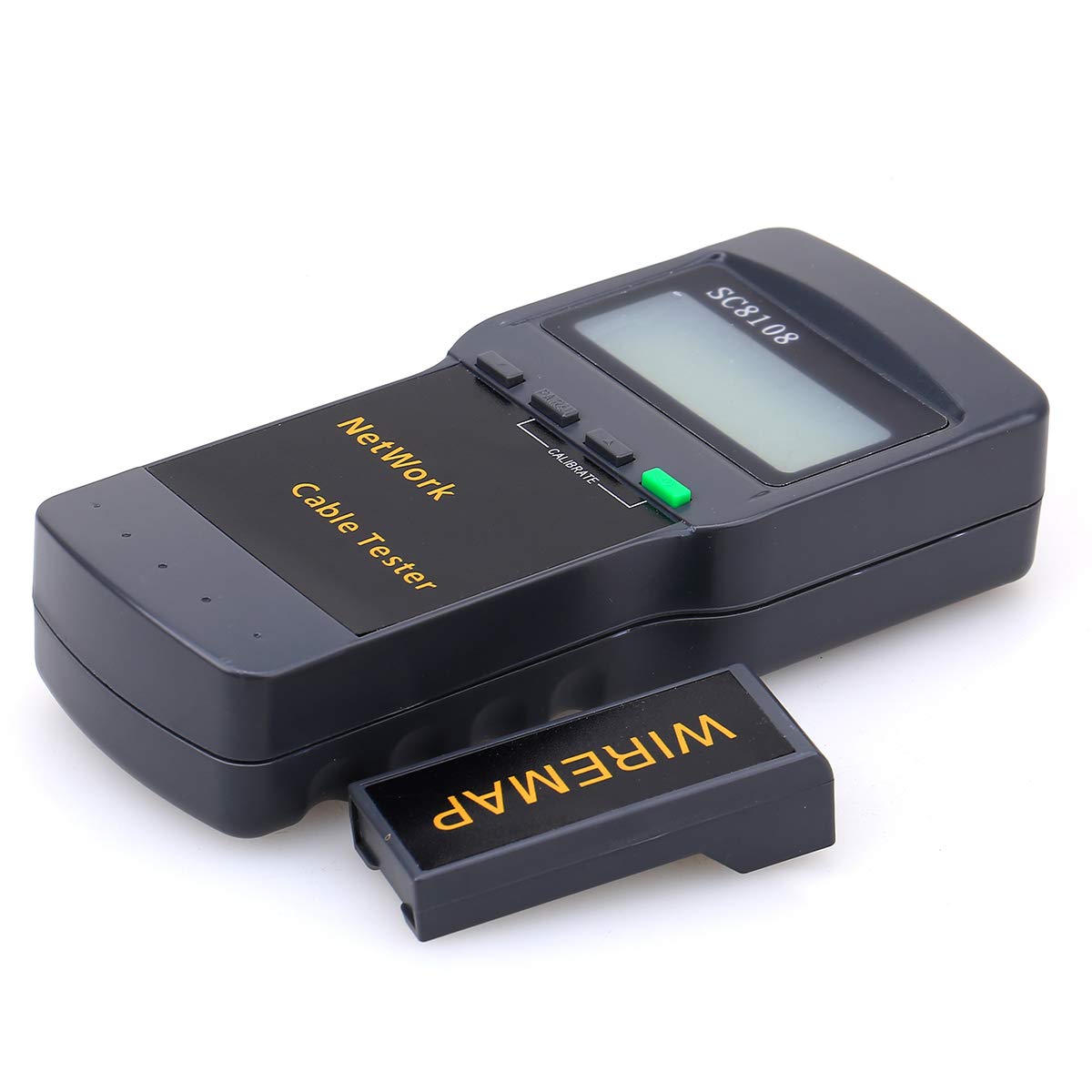

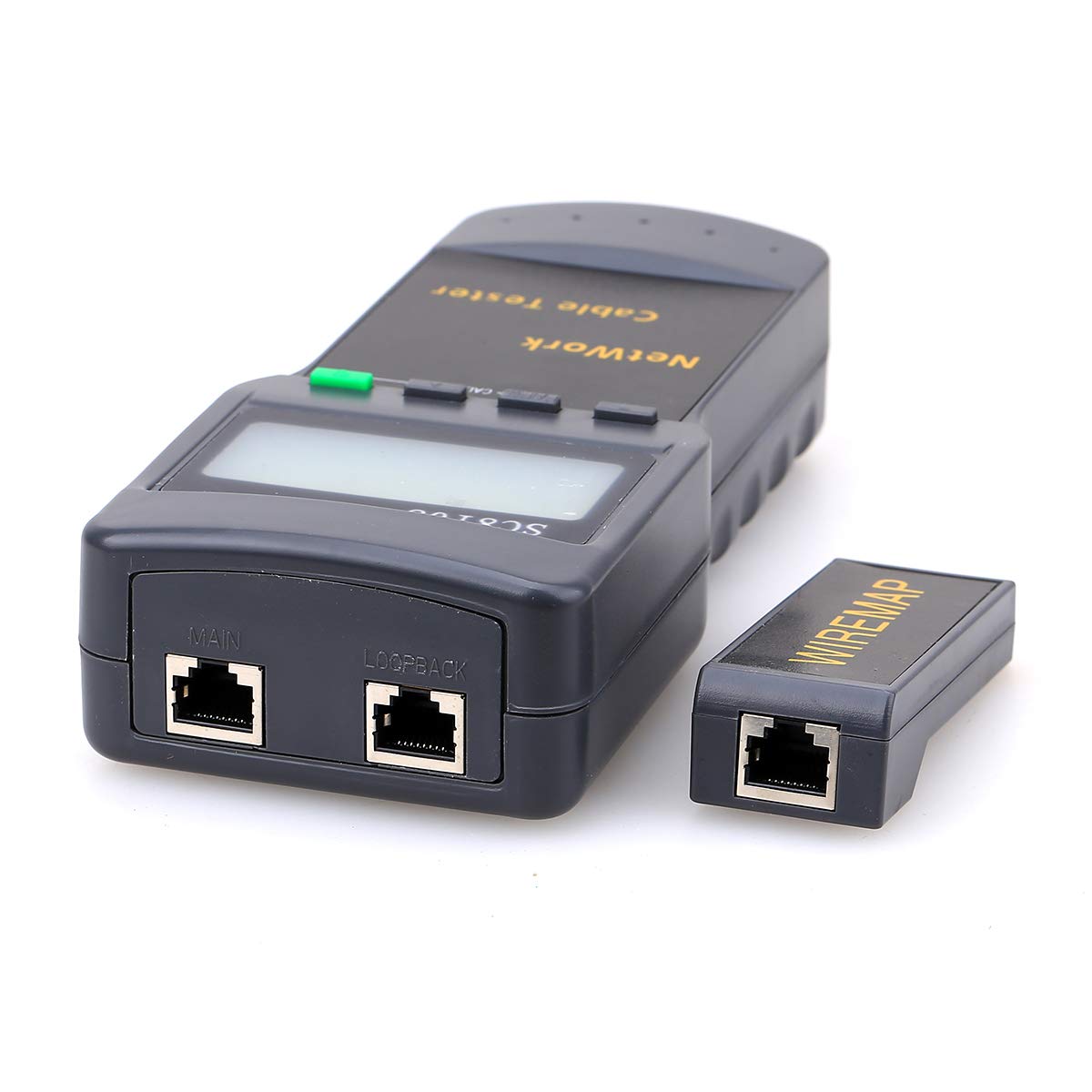

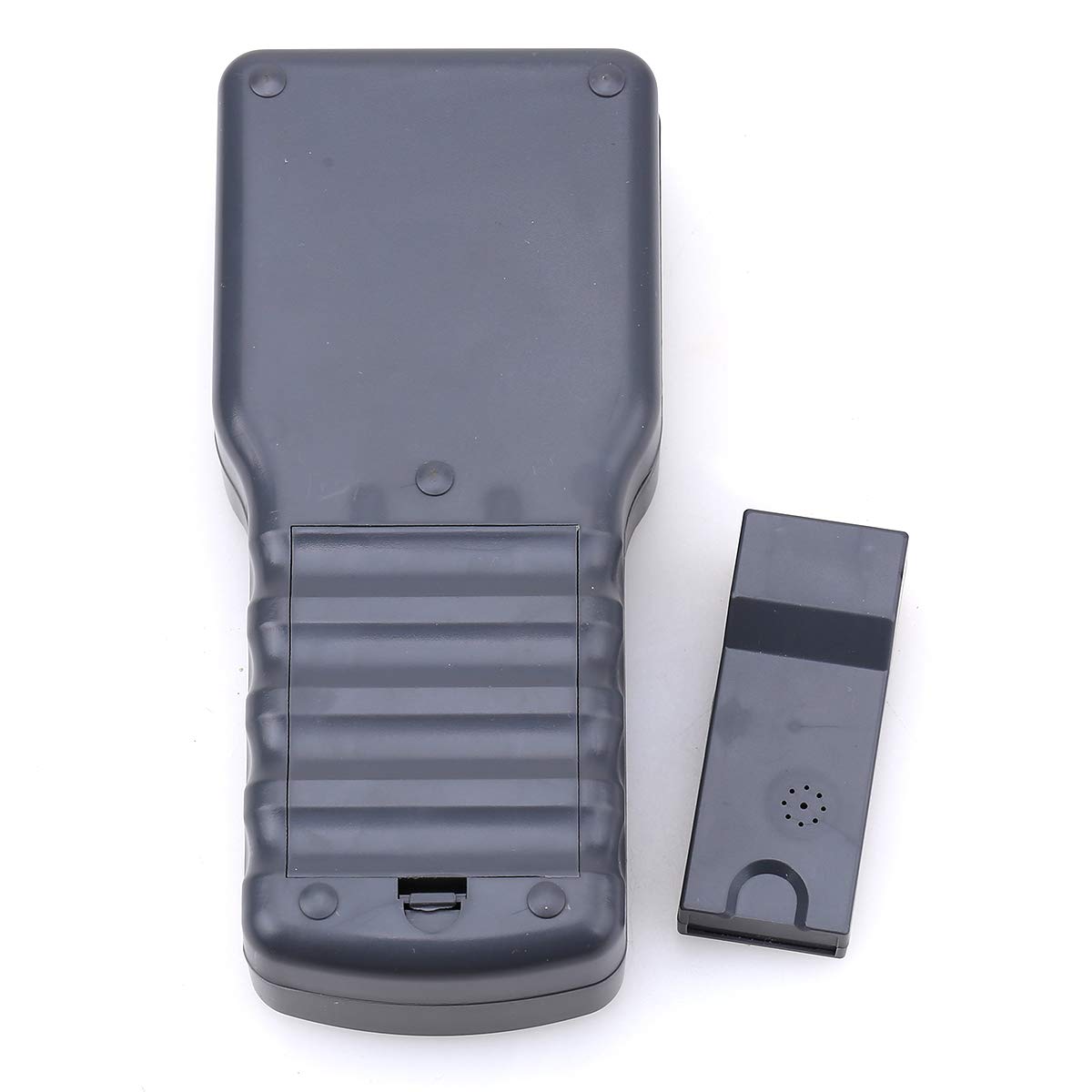

SC8108 Network Cable Tester CAT5 CAT6 RJ45 LAN Phone Cable Wire Testing Tool with Wiremap Adapter

• The connectivity test can be carried out, single cable
• And can detect 5E, 6E coaxial cable and telephone line wiring fault, open circuit,short circuit, including: cross connection, reverse connection and series wound
• And measuring cable length, and location of the specific location of open circuitshort circuit
• And the length of the cable dynamic calibration function, make the lengthmeasuring accuracy is as high as 97%
• And there are no length measurement and matched pairs were inserted on distalrecognizer can and cable location

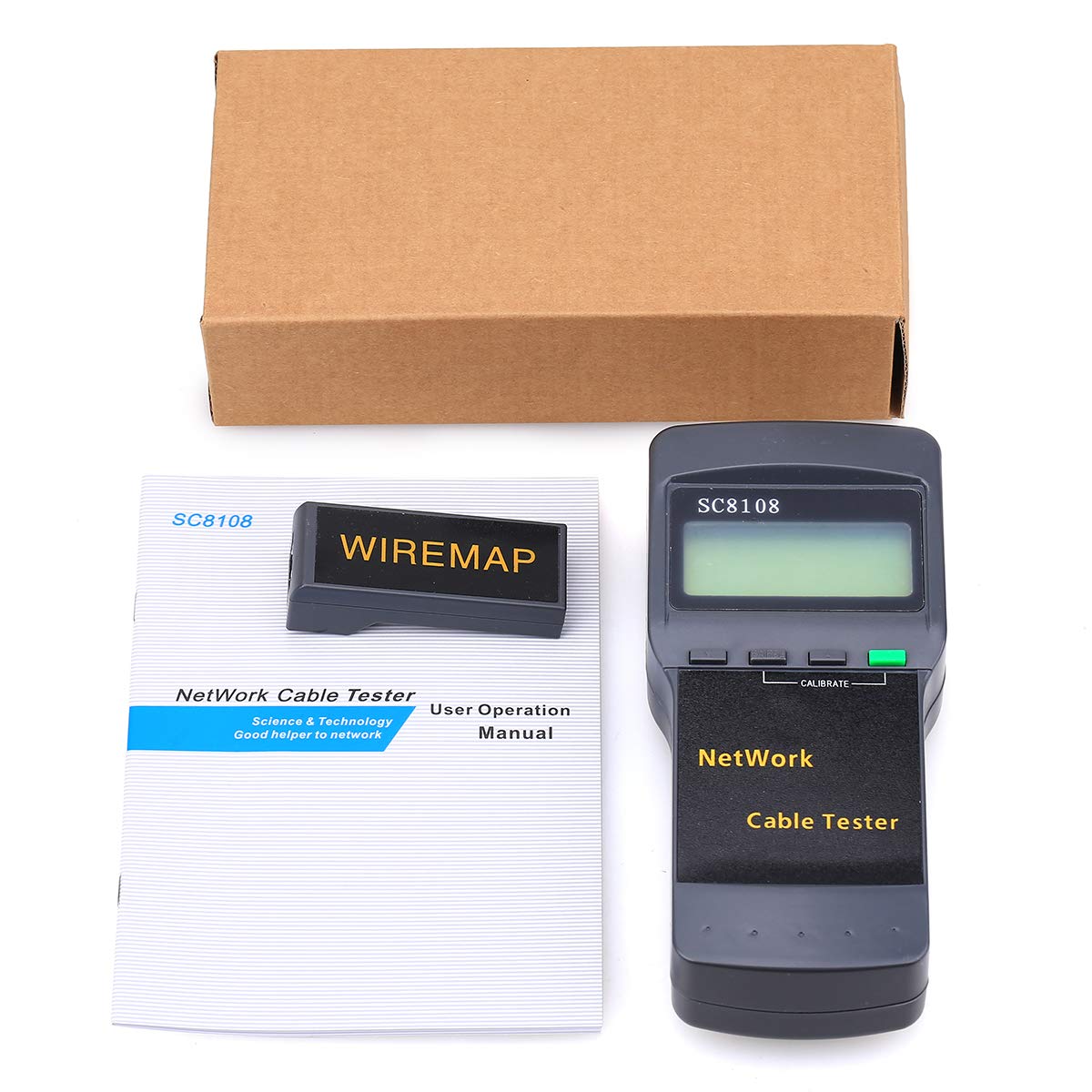

Main function characteristics: 1.Localization and connection / connection error. 2.Easy to use, large screen display the test results stick out a mile 3.And easy to carry, long battery life (50 hours of standby time 4.Automatic delay shutdown 5. 8 distal passive testing socket (identification number ID1-ID8 6. The distal identification appliance audio prompt function 7.And self checking function, can automatically compensate the variation of the battery power, the influence of environmental temperature change 8.MCU software watchdog design, reliable operation Length measurement of twin twisted cable: Scope : 1350M (31,200 FT) Calibration accuracy : 3% (± 0.5m or ± 1.5 ft) (calibrating cable > 5 M) Shipment accuracy : 5% (± 0.5m or ± 1.5 ft) (AMP, AT&T Class 5 cable) Display: M or FT Length calibration: User can set calibration factor by himself by a given length cable. The length of calibrating cable is more than 5m. Working temperature: -10°C to 60°C Powered：4pcs AA batteires (NOT included) Dimension: 180 x 80 x 40 mm Package Inluded: 1 x Multi-Network Cable Tester 1 x Far-End Test Jack 1 x Instruction Manual
