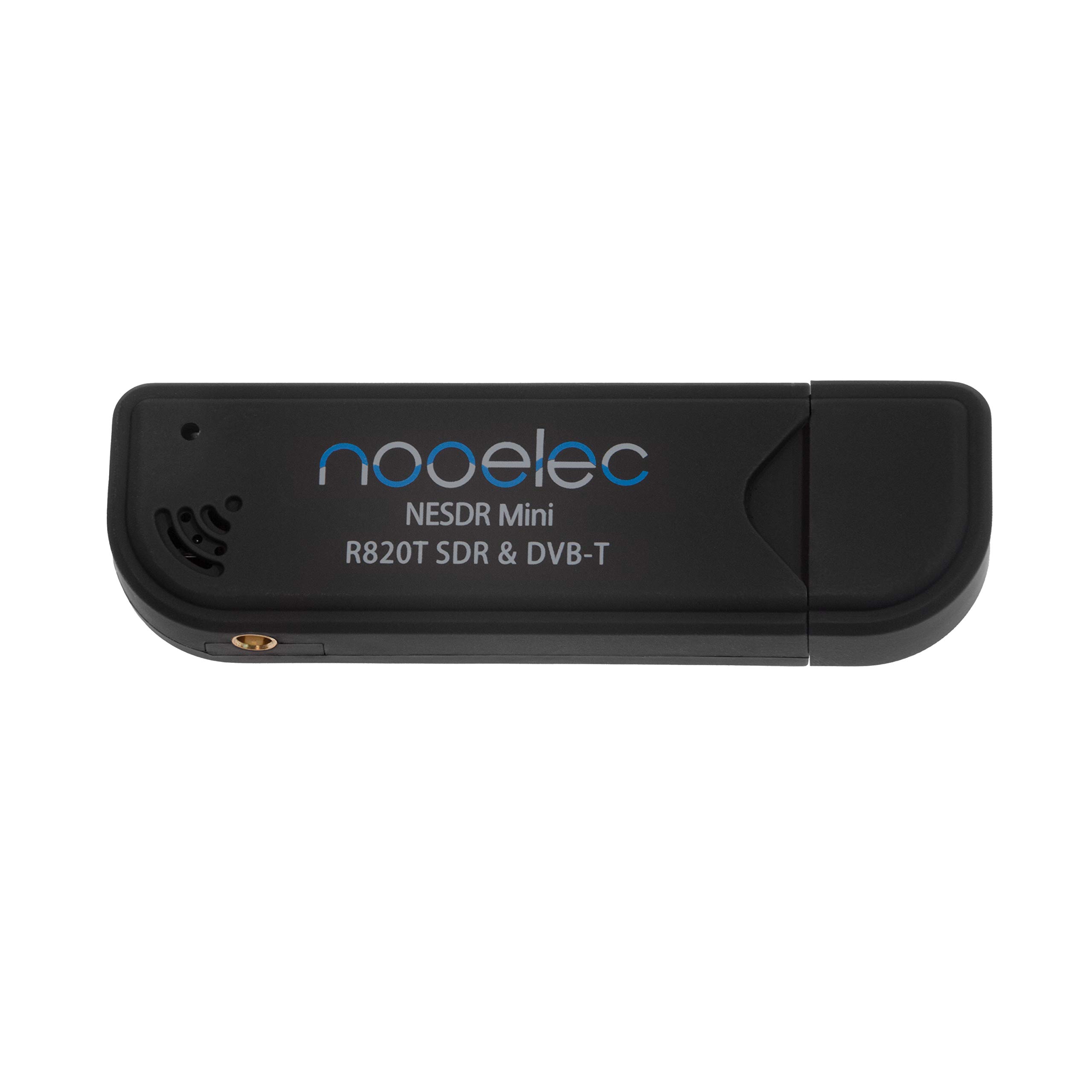

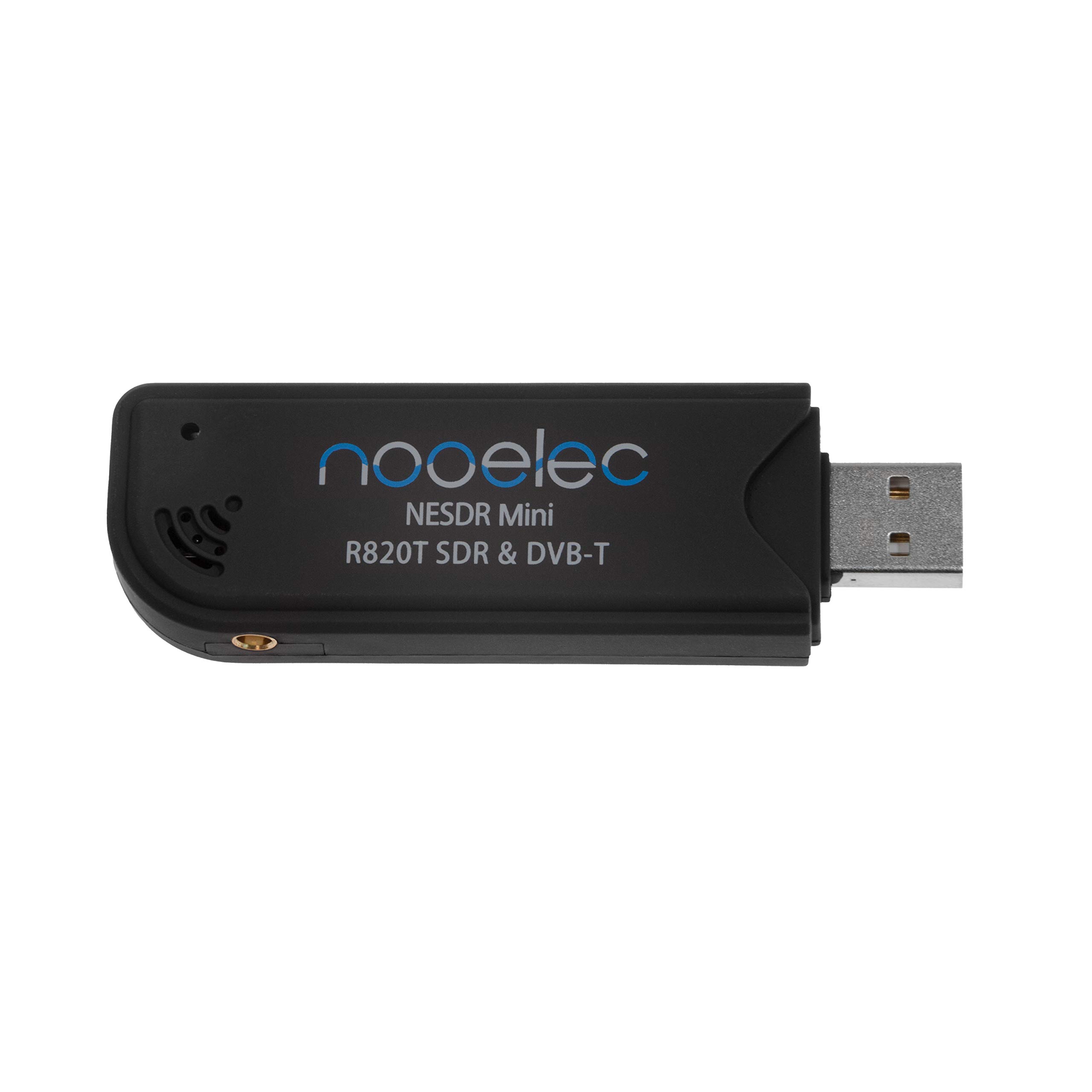

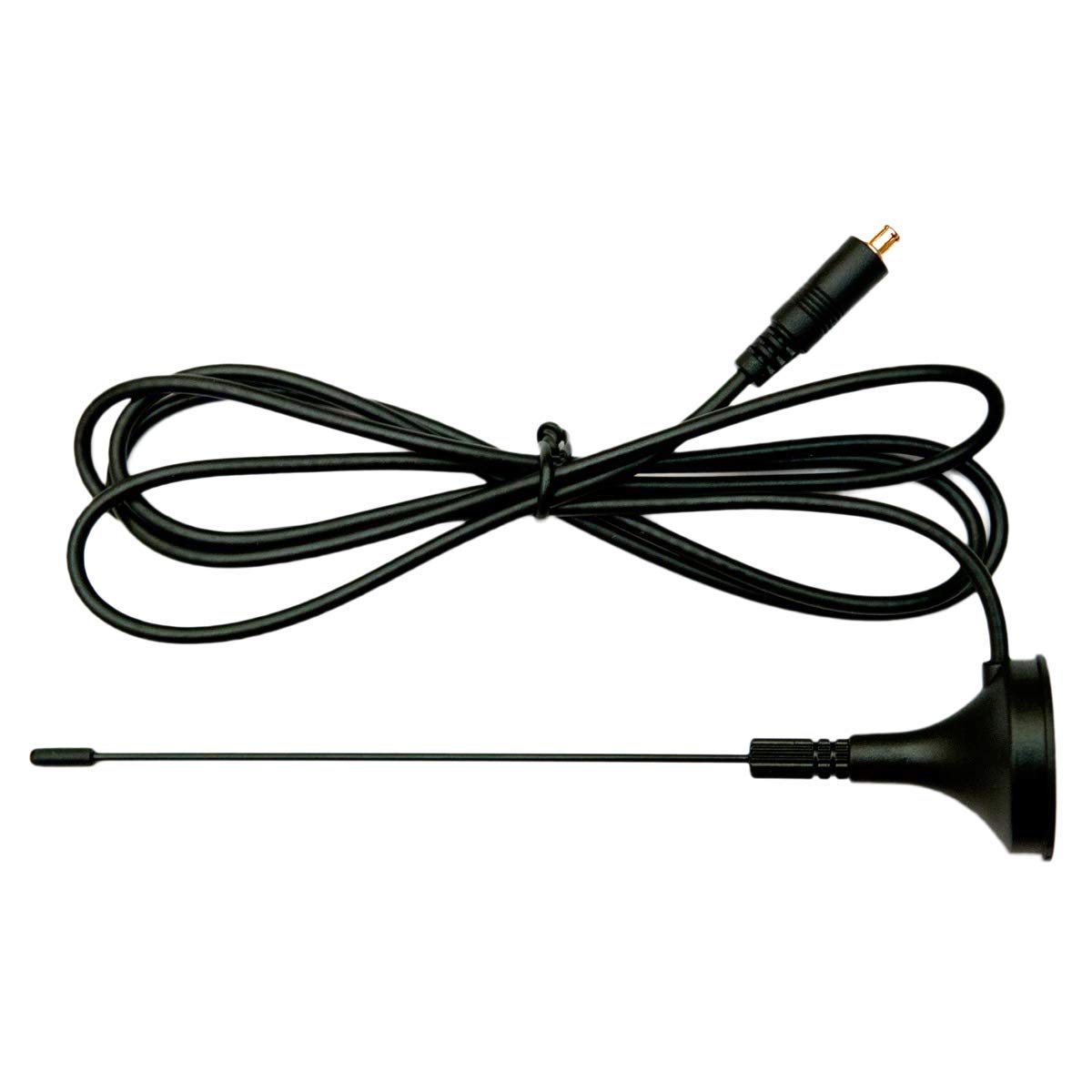

NESDR Mini (TV28T v2) USB RTL-SDR, DVB-T & ADS-B Receiver Set with Antenna. RTL2832U & R820T Tuner. Low-Cost Software Defined Radio Compatible with Most SDR Software Packages

• Excellent software defined radio, compatibility with RTL-SDR software packages
• Realtek RTL2832U interface IC & R820T tuner IC on USB dongle for 25-1750MHz+ frequency capability
• Software may be downloaded freely from nooelec.com
• Guaranteed protection diode on the input to protect from ESD damage
• All purchases from Nooelec include installation support if needed

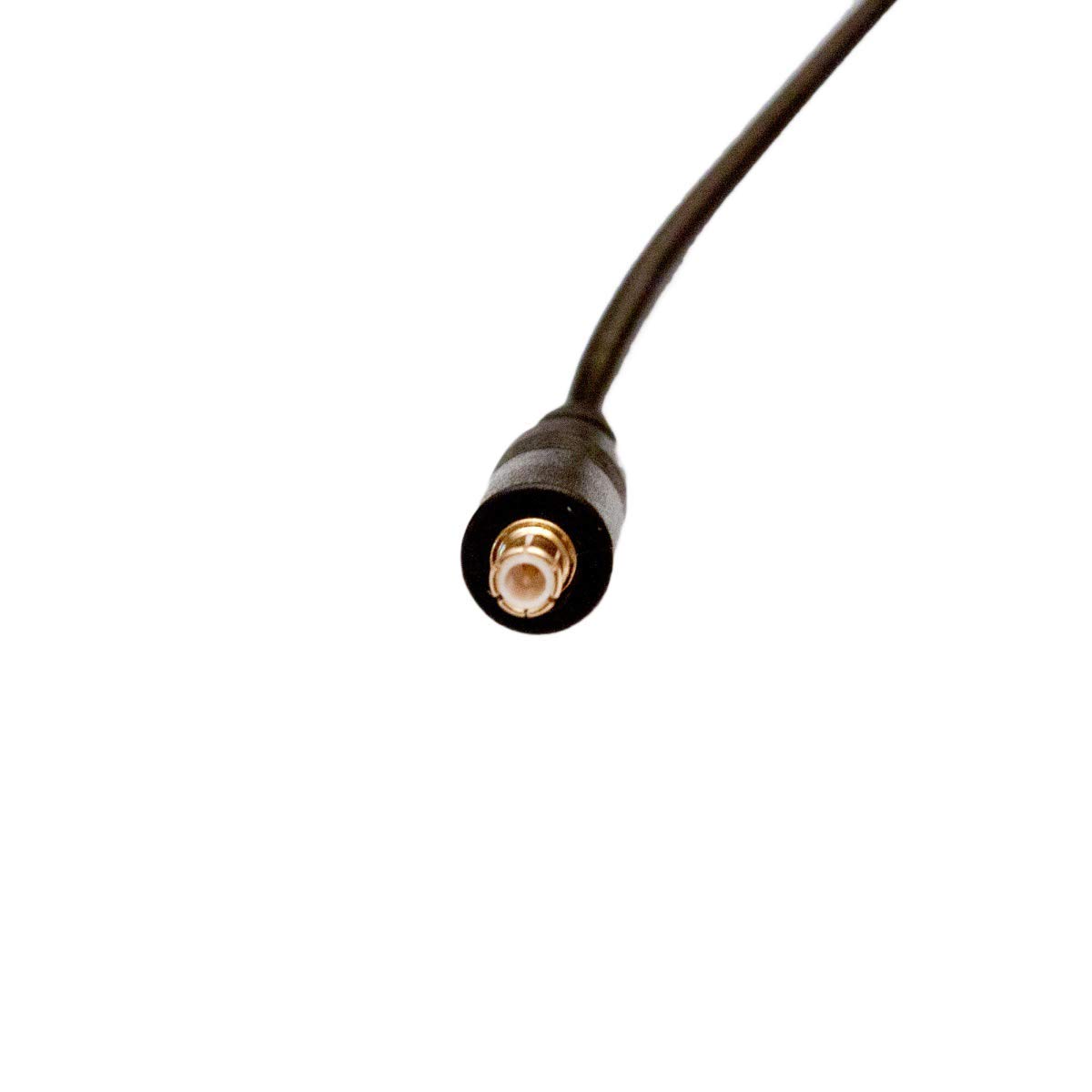

This custom Nooelec SDR is a modified DVB-T USB dongle tuned for SDR usage, including upgraded crystal, capacitors and inductors compared to generic devices. Full compatibility with a large array of software packages, such as MATLAB, HDSDR, SDR Touch, SDR#, Planeplotter--too many to list. The perfect device for learning software defined radio, on the cheap. Amateur radio, ADS-B, police & fire scanning, trunking, satellite images--you name it, this little guy can probably do it. Outperforms many devices 10x its cost! These units are based on the R820T tuner IC made by Rafael Micro. As such, they have a frequency capability of approximately 25MHz-1750MHz, though this can vary somewhat from unit to unit. There is also an RTL2832U IC on board of course, which acts as the demodulator and USB interface. The connector type on the antenna and USB board is MCX--male MCX on the antenna, female MCX on the SDR. There are plenty of adapter and adapter cables available in our store if you want to connect your favorite antenna! Want HF too? You can modify the dongle for HF reception, but it's not a great way of doing things. If you would like to do this please contact us and we'll be happy to walk you through it. However, we strongly recommend you take a look at our 'Ham It Up' upconverter which will let you listen all the way down to 100kHz or lower with impeccable sensitivity.
