Neon Sign Transformer, Solid Neon Light Electronic Transformer, for Outdoor Occasions Neon Signs Overheat Input Overvoltage

• Small power supply interference, effectively reduces the impact on the scanner and greatly improves the life of the transformer and scanner.
• Fully sealed waterproof and moisture-proof structure, suitable for various outdoor occasions, allows placement in the open air.
• No high current surge when starting, circuit input without filtering electrolysis.
• High frequency and high voltage AC input.
• Abnormal status protection: Input overvoltage, overheat.

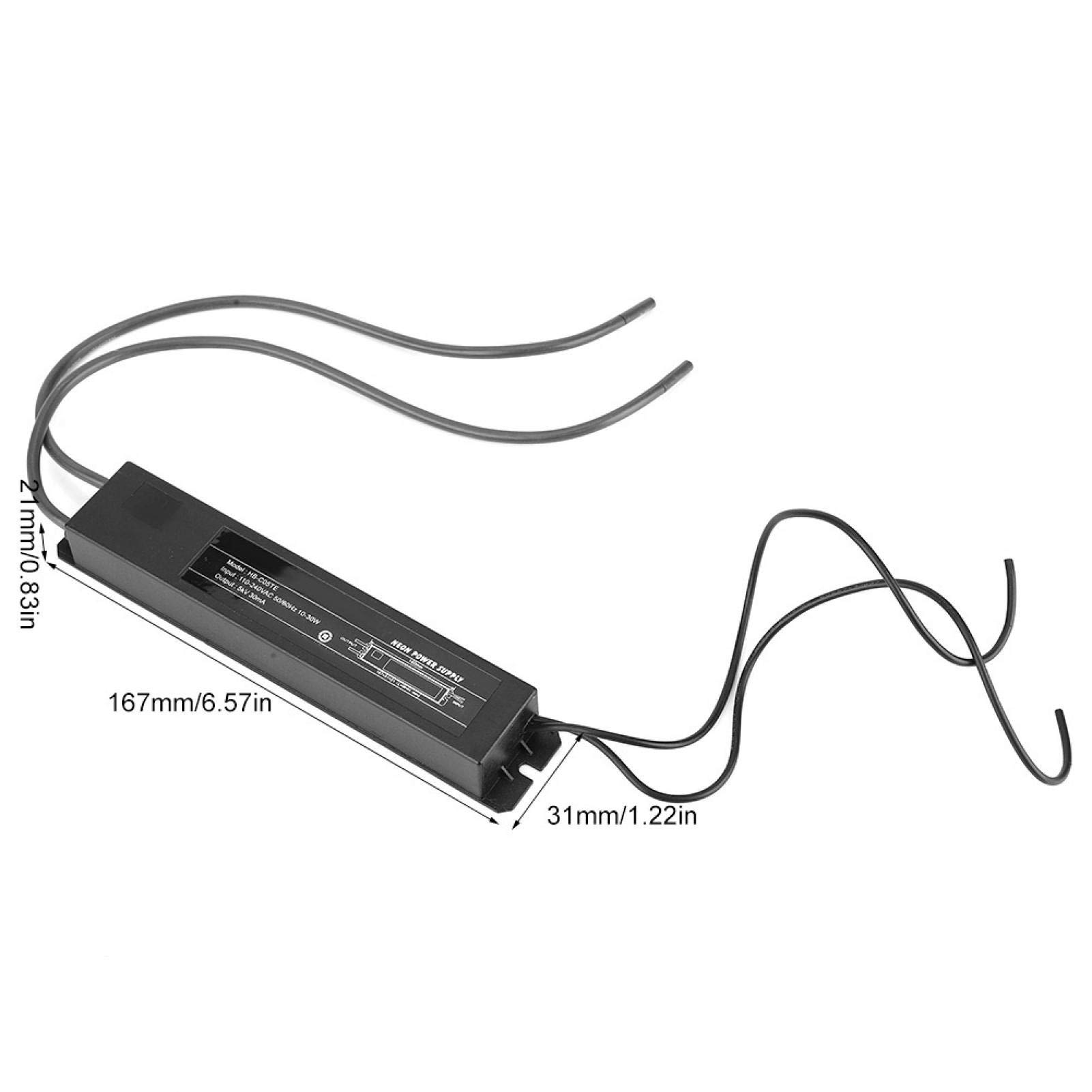

Feature: 1. High frequency and high voltage AC input. 2. No high current surge when starting, circuit input without filtering electrolysis. 3. Small power supply interference, effectively reduces the impact on the scanner and greatly improves the life of the transformer and scanner. 4. Abnormal status protection: Input overvoltage, overheat. 5. Fully sealed waterproof and moisture-proof structure, suitable for various outdoor occasions, allows placement in the open air. 6. Especially suitable for large neon signs with flashing and full-color scanning control as well as continuous working signs. Spec: Item Type: Neon Light Electronic Transformer Model: HB-C05TE Input Voltage: 100-230VAC 50/60Hz 10~30W Output Voltage: 5KV Output Current: 30mA Load Length: 1-5m Power Factor: ≥0.9 Operating Environment: -25~+40℃, 0~100%RH Item Size: Approx 167x31x21mm / 6.57x1.22x0.83in Power Phase Number: Single Phase Cooling Method: Oil Immersed Self-Cooling Cooling Form: Dry Frequency Characteristics: High Frequency Winding Form: Double Winding Core Shape: E Type Outline Structure: Horizontal Type Package List: 1 x Transformer
