Clipper BM-2 Battery Monitor (12Vdc, 600Ah, 199A) for Lead Acid Batteries

• AFD NONE
• Amps
• Lockable NONE
• Positions NONE

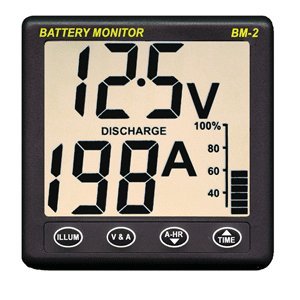

Clipper BM-2 battery monitor. The BM-2 is designed to monitor performance of 12 volt lead acid battery systems with capacities of up to 600 amp-hours. It is supplied complete with a precision 200 AMP shunt and a prefabricated cable assembly to enable simple DIY installation. The unit continuously monitors voltage, current (charge or discharge), number of amp/hours (charge or discharge), the battery charge level and the charge or discharge time. This information leads to more efficient use of the battery, which can enhance battery life and reduce the risk of failure. The supply voltage is 8-16 volts DC and the supply current is 1.5 milliamps. The battery capacities are 5-600 amp-hours and load current is 199 amp maximum. The charge current is 199 amp maximum and the shunt is standard 50 millivolt @ 200 amp.Cables supplied: 200 amp shunt link to M8 ring terminal. 5 metres from display unit to battery - fused and fitted with ring terminals for shunt, fuse holder and M8 ring terminal to battery.The display unit is standard 110 meter square clipper case. It features high contrast LCD, backlit for night viewing, minimum voltage visual alarm. It is simple operate with 4 keys to select backlight, volt/amp/charge level screen, amp hours or time to run.
