NanoPi NEO Open Source Allwinner H3 Development Board Super Raspberry Pie Quad-core Cortex-A7 DDR3 RAM 512MB Run Ubuntu Core

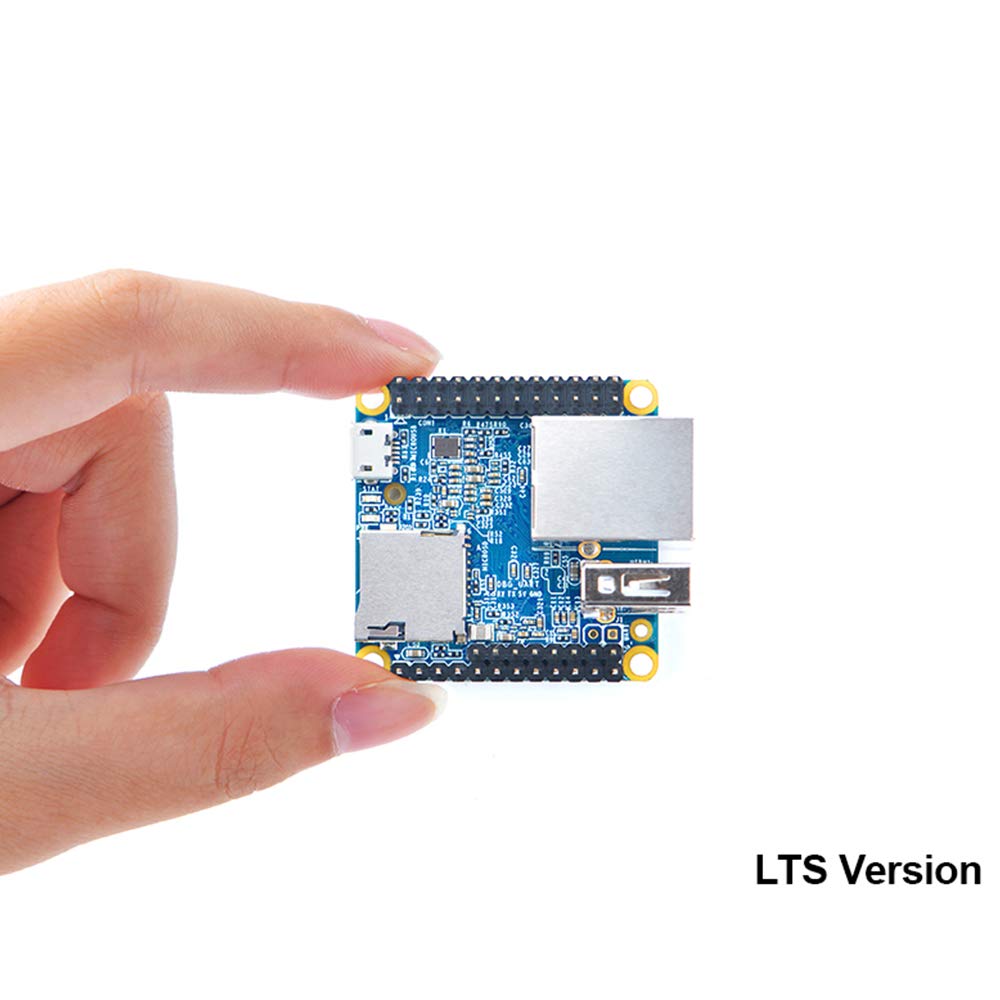

• Extremely tiny,lots of fun---Smaller than Oreo Cookie, 40x40mm in Size
• Light & Full-speed Gigabit---It features high speed data transmission and perfectly suits loT applications that require both high quality data transmission and small form factor
• GPIO Programming Libraries, Ready to Go---Connect, Git clone, and Make it.
• Security & Stability---Running 32-Bit Ubuntu core xenial with latest mainline linux
• A Refined & Cool Heat Sink---Customized for NanoPi NEO/NEO2/Air, Pure Aluminum and Refined Design with Care and Profession, Efficient and Powerful Heat Dissipation

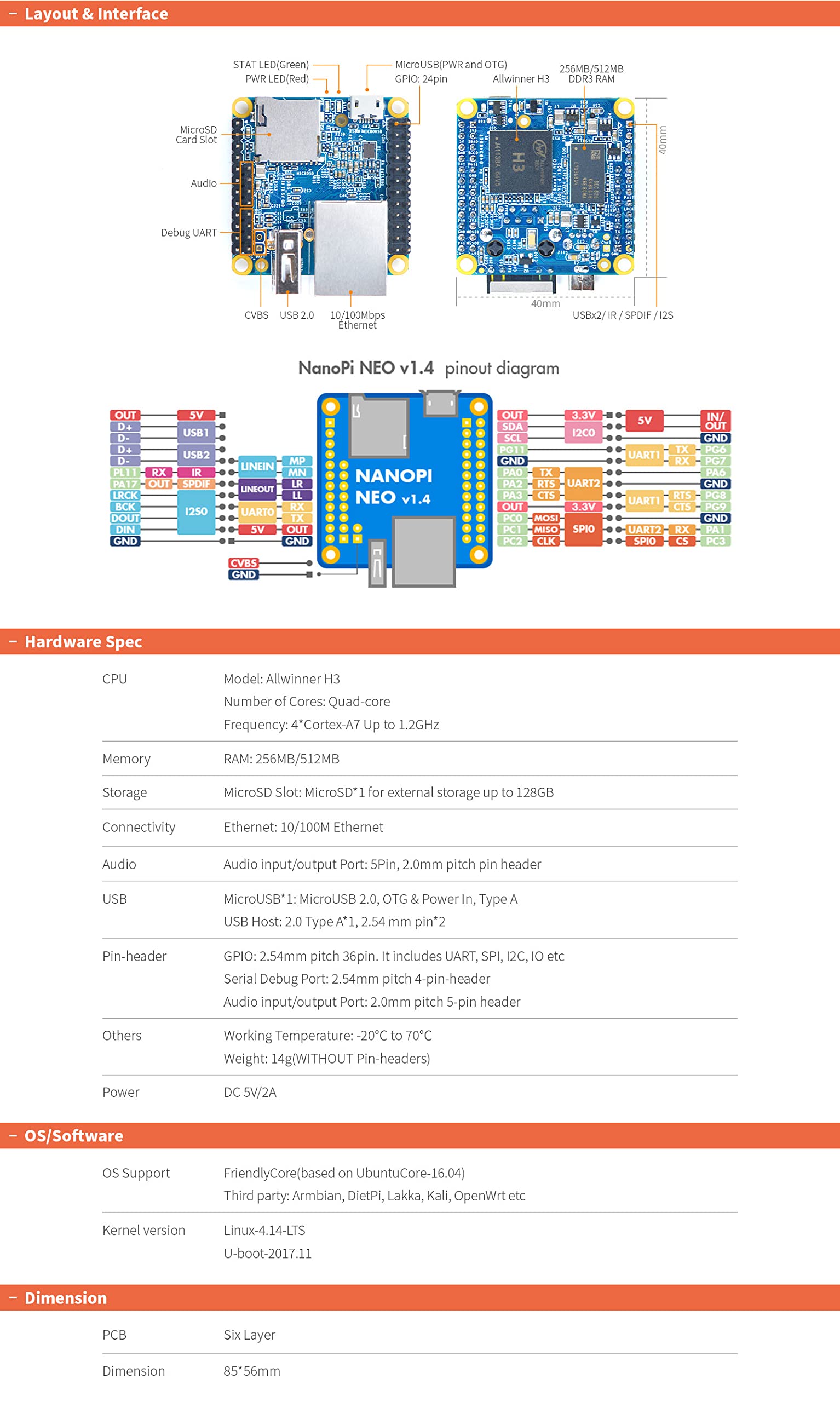

-Overview- CPU Model: Allwinner H3 Number of Cores: Quad-core Frequency: 4*Cortex-A7 Up to 1.2GHzMemory RAM: 256MB/512MB StorageMicroSD Slot: MicroSD*1 for external storage up to 128GBConnectivity Ethernet: 10/100M Ethernet Audio: Audio input/output Port: 5Pin, 2.0mm pitch pin header USB: MicroUSB*1: MicroUSB 2.0, OTG & Power In, Type A USB Host: 2.0 Type A*1, 2.54 mm pin*2 Pin-header: GPIO: 2.54mm pitch 36pin. It includes UART, SPI, I2C, IO etc Serial Debug Port: 2.54mm pitch 4-pin-header Audio input/output Port: 2.0mm pitch 5-pin header LED: Power LED(Red)*1 System LED(Green)*1 Others: Working Temperature: -20℃ to 70℃ PowerDC: 5V/2A OS: SupportFriendlyCore 16.04(based on UbuntuCore-16.04) FriendlyWrt 19.07.1(32-bit) Armbian DietPi Lakka KaliKernel versionLinux-4.14-LTS U-boot-2017.11 PCB4: Layer Dimension: 40*40mm: Weight: 14g(WITHOUT Pin-headers) -In the Box- 1x NanoPi NEO 512M RAM -Technical Support- Wiki: http://wiki.friendlyarm.com/wiki/index.php/NanoPi_NEO Tech-team: support@smartfire.cn Skype: smartfire_cn Product Customization : support@smartfire.cn
