Nano Base Board (B) for Raspberry Pi Compute Module 4, Same Size as CM4, with Standard CM4 Socket, Raspberry Pi 40PIN GPIO, Gigabit Ethernet, USB2.0, DSI, CSI, HDMI, 3.5mm Audio Jack etc.

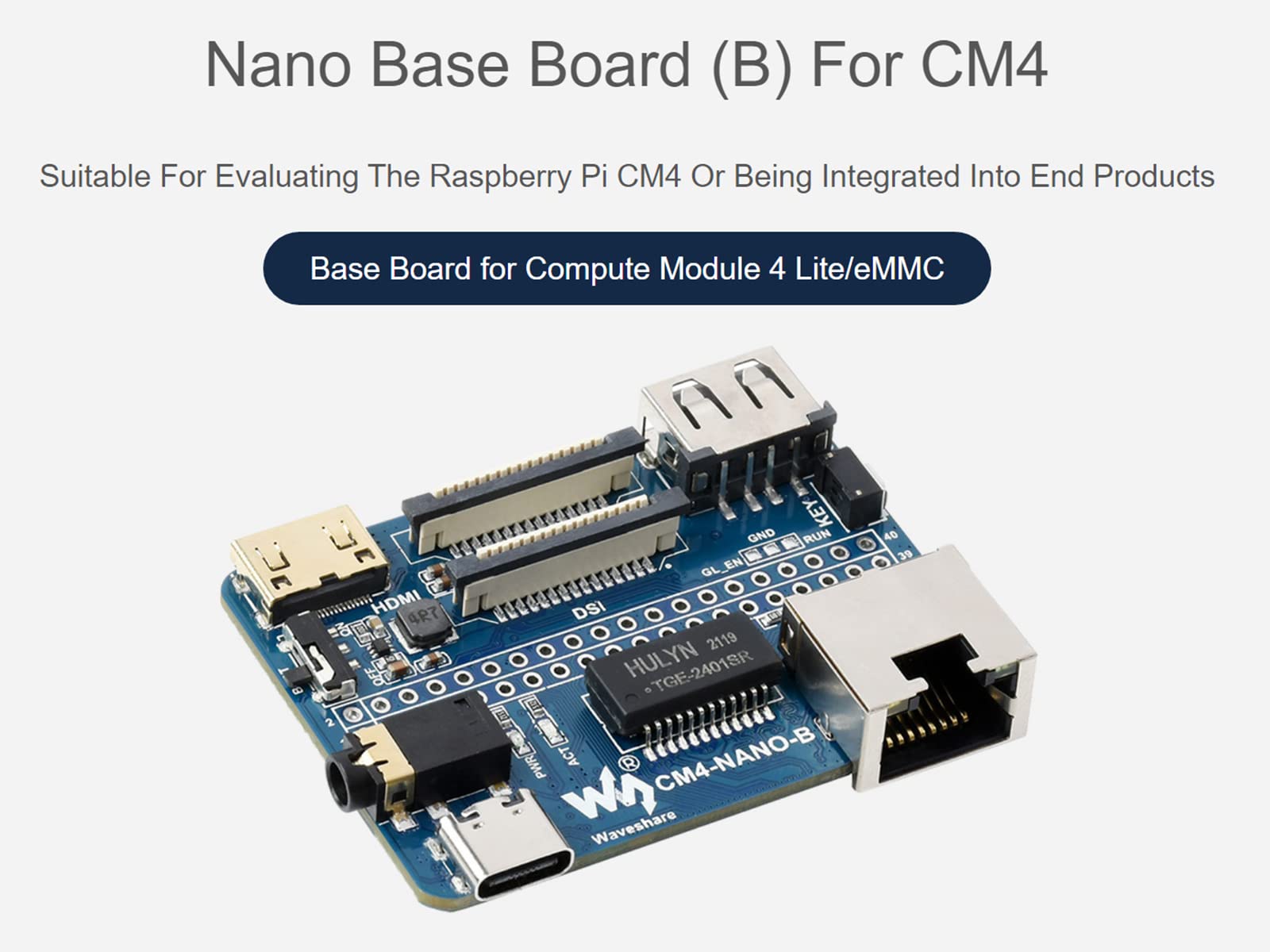

• Nano Base Board (B) for Raspberry Pi Compute Module 4 Lite/eMMC, suitable for evaluating the Raspberry Pi CM4 or being integrated into end products
• Same size as Raspberry Pi CM4, standard CM4 socket, suitable for narrow application environment

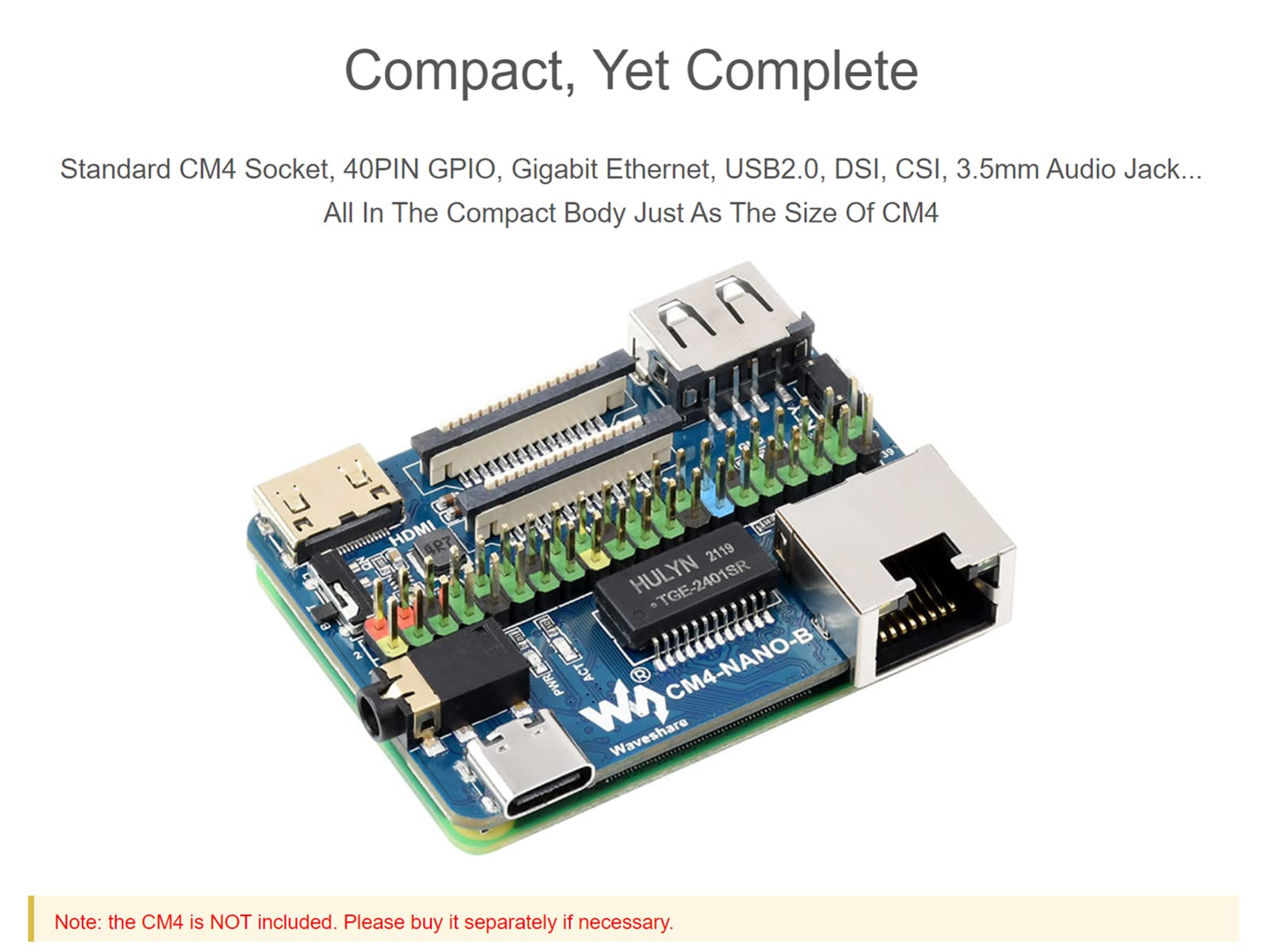

• Multiple Peripheral Interfaces: Raspberry Pi 40PIN GPIO header × 1, Gigabit Ethernet RJ45 connector, UUSB 2.0 Type A connector × 1, MIPI DSI port × 1, MIPI CSI-2 port × 1, Mini HDMI port × 1, 3.5mm audio jack etc. all in the compact body just as the size of CM4

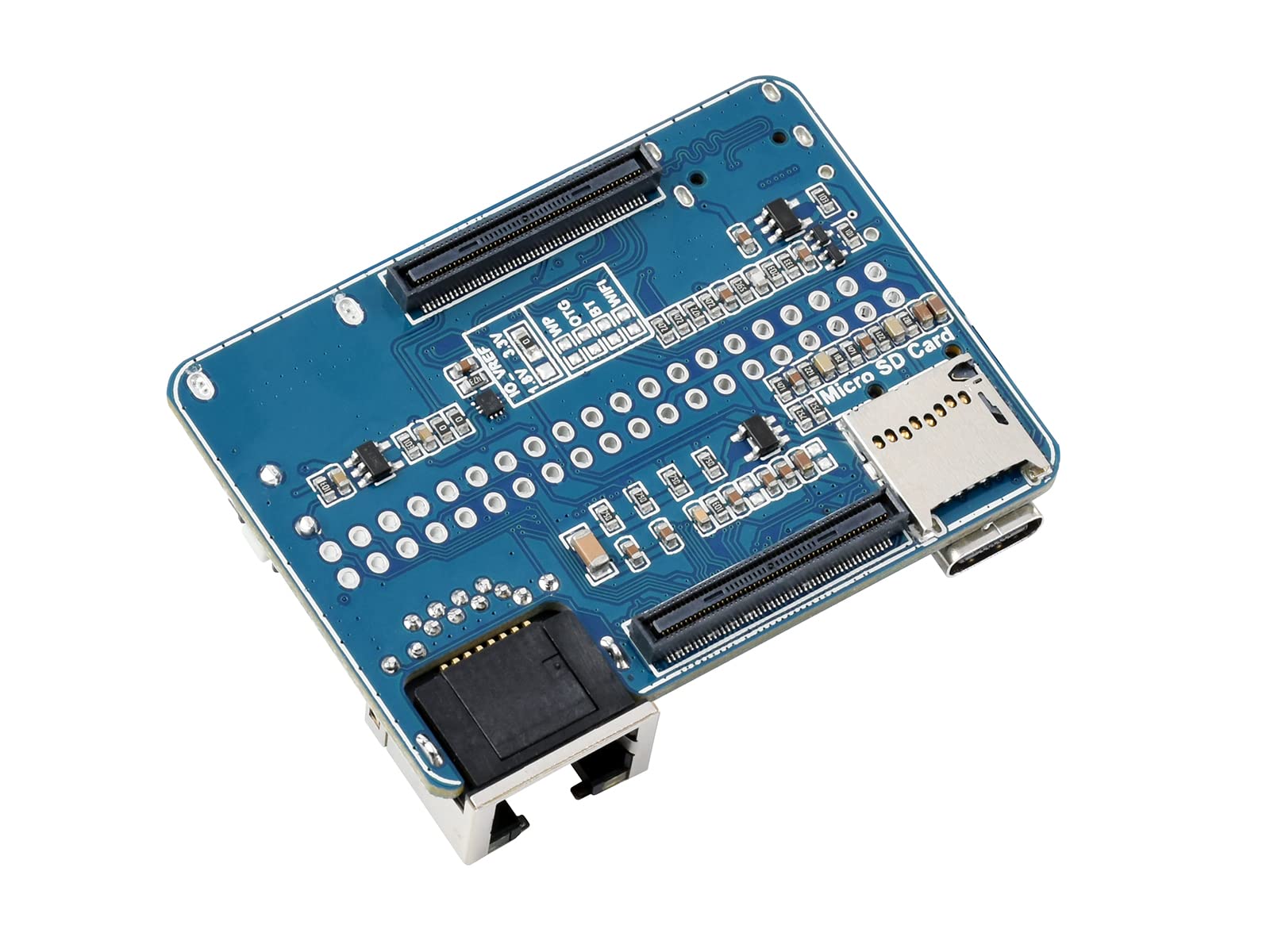

• Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
• Note: The CM4 is NOT included. Please buy it separately if necessary

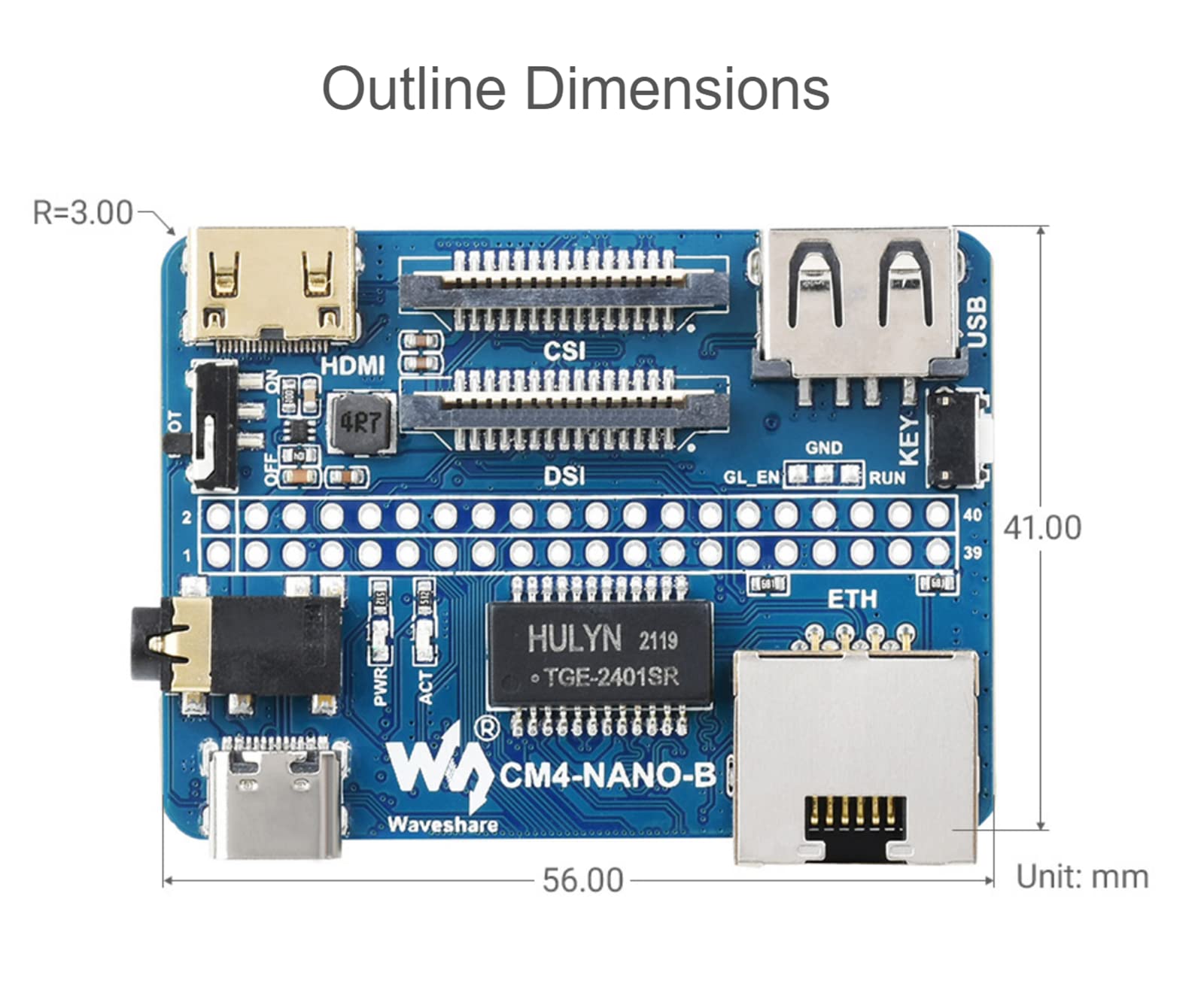

Overview Nano Base Board (B) for Raspberry Pi Compute Module 4 Lite/eMMC, Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products Specifications CM4 socket : suitable for all variants of Compute Module 4 Networking : Gigabit Ethernet RJ45 connector Connector : Raspberry Pi 40PIN GPIO header × 1 USB : USB 2.0 Type A connector × 1 Display : MIPI DSI port × 1 (15pin 1.0mm FPC connector) Camera : MIPI CSI-2 port × 1 (15pin 1.0mm FPC connector) Video : Mini HDMI port × 1, supports 4K 30fps output Audio : 3.5mm jack Storage : Micro SD card socket for Compute Module 4 Lite (without eMMC) variants Power input : 5V Dimensions : 56 × 41mm Package Content 1. CM4-NANO-B x1 2. 2*20PIN color-coded straight pinheader x1 Note Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
