Nano Base Board (B) for Raspberry Pi Compute Module 4 Lite/eMMC,with Raspberry Pi 40PIN GPIO Interface,Same Size As The CM4,with Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack Port

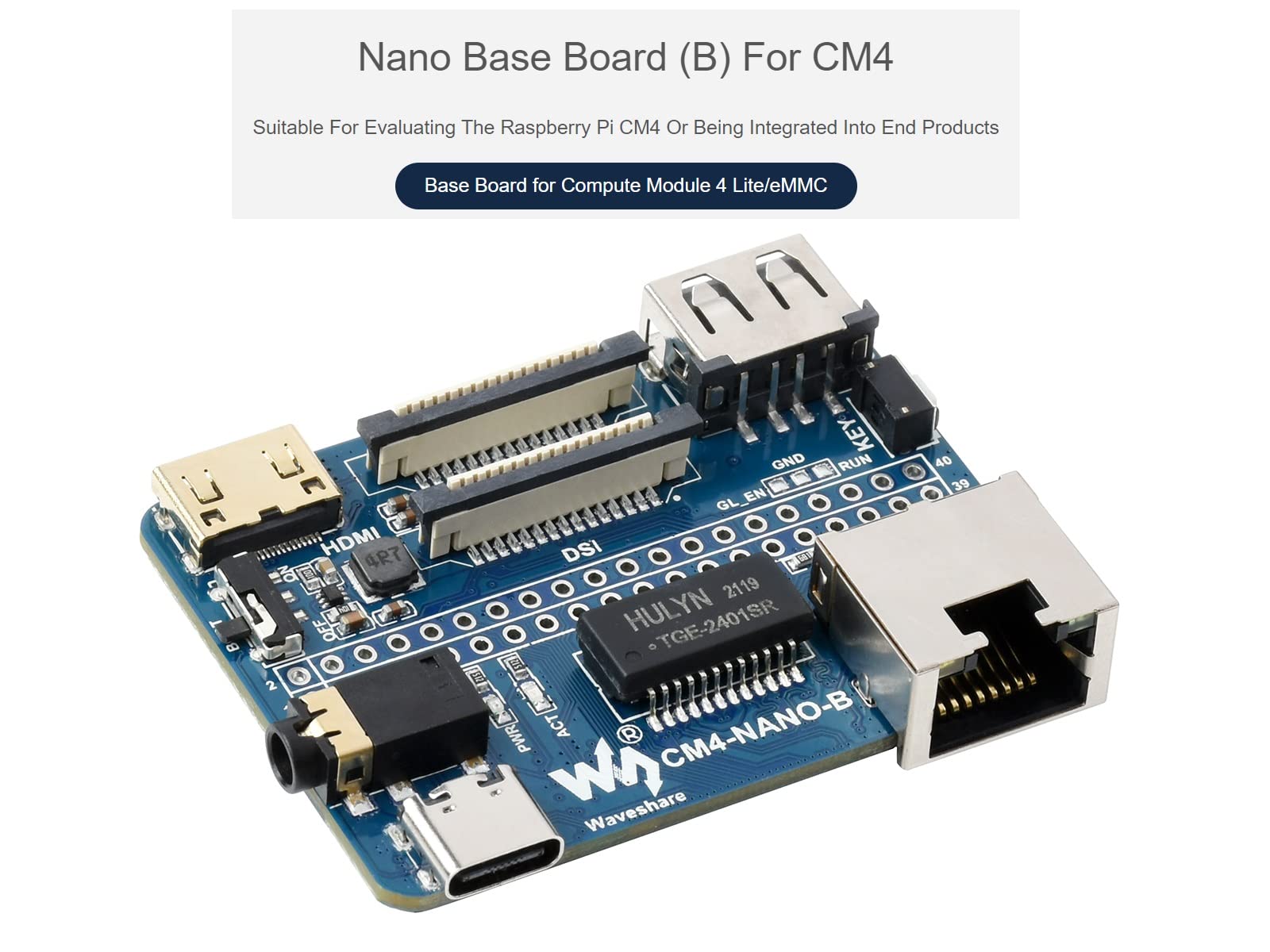

• Nano Base Board (B) For Raspberry Pi Compute Module 4,Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

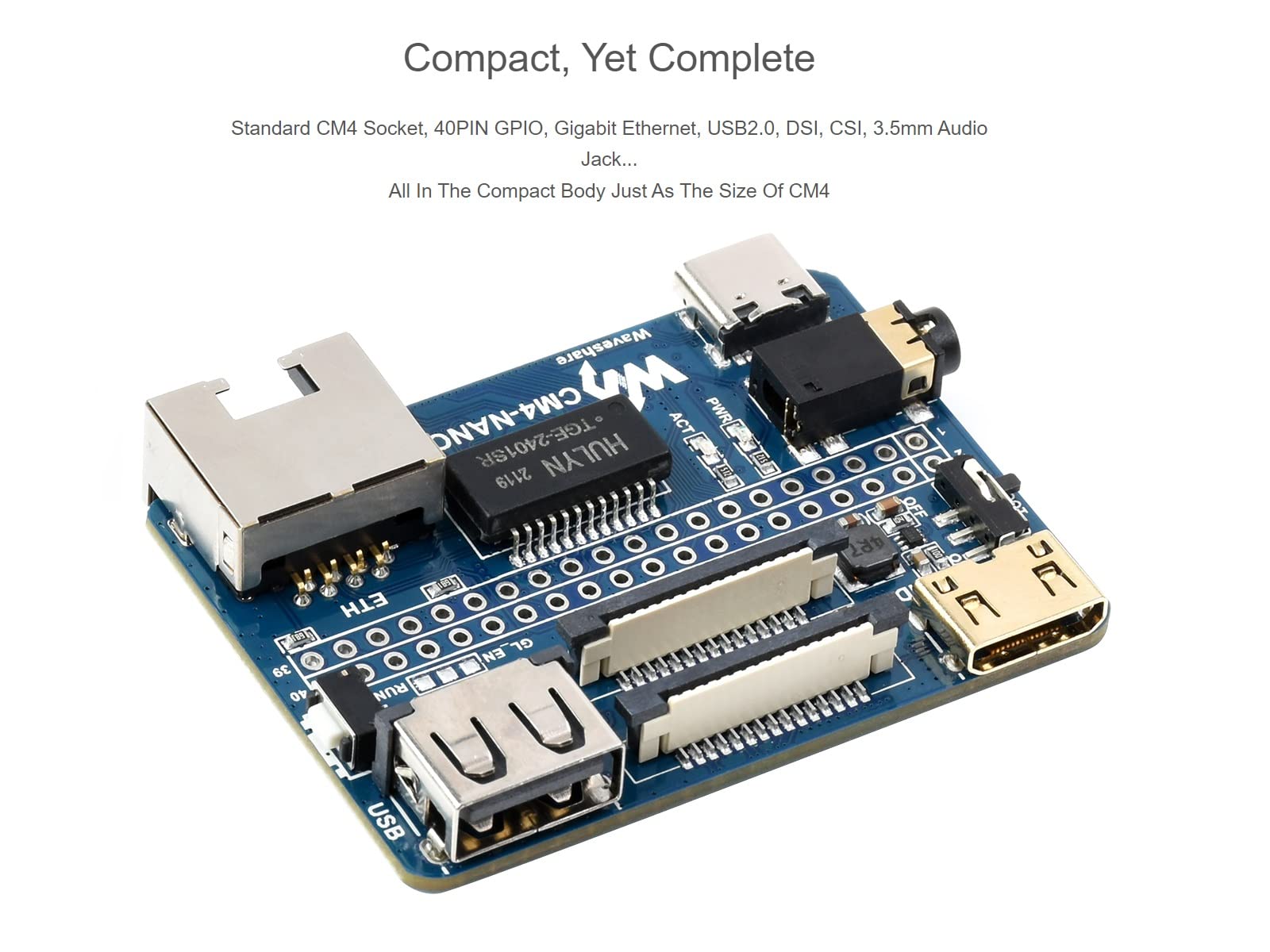

• Multiple Peripheral Interfaces.Standard CM4 Socket, 40PIN GPIO, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack…
• Same Size As The CM4.Standard CM4 Socket,Suitable For Narrow Application Environment

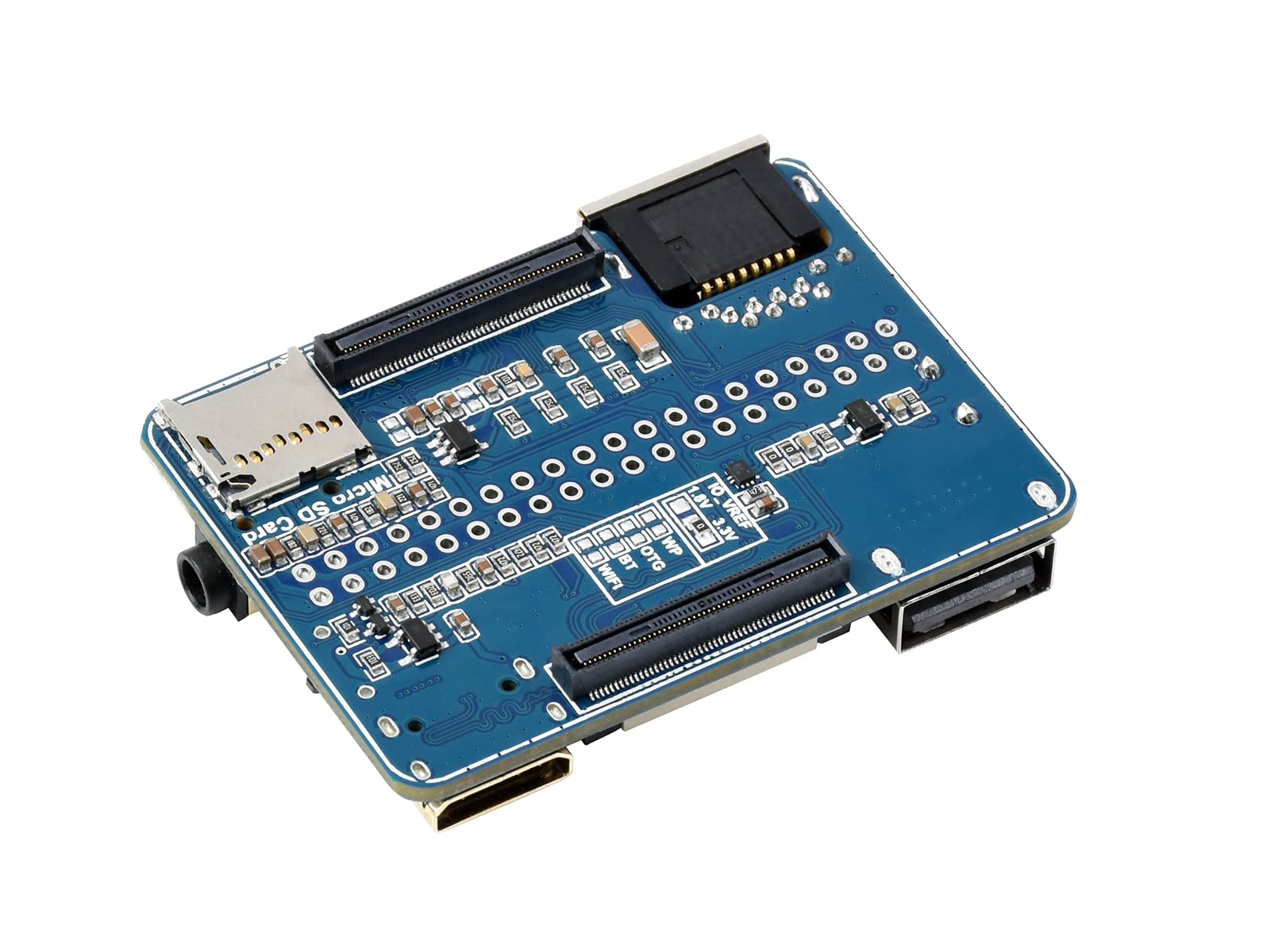

• STORAGE.Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
• Note:The Compute Module 4 Board is NOT included. Please buy it separately if necessary.

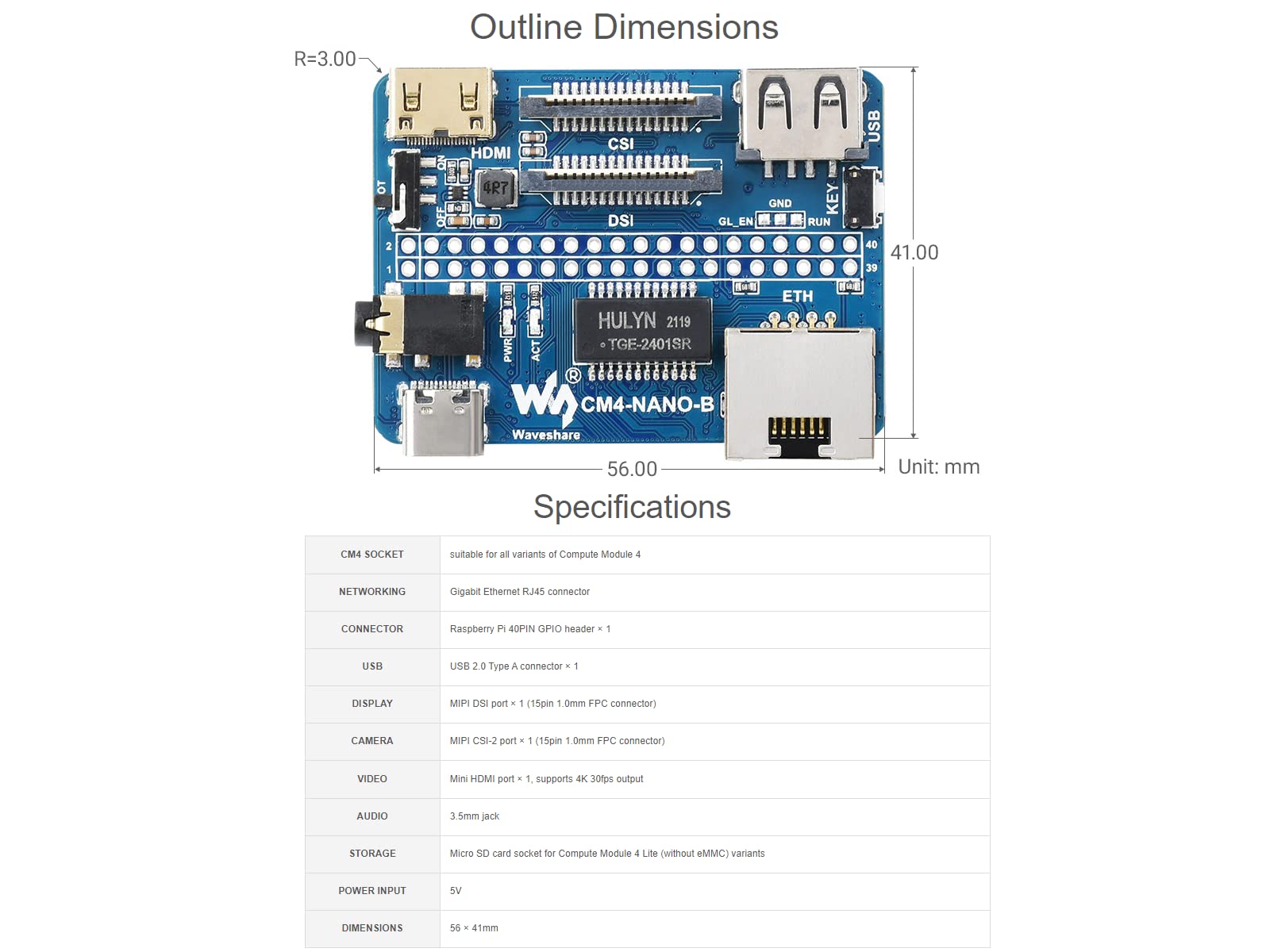

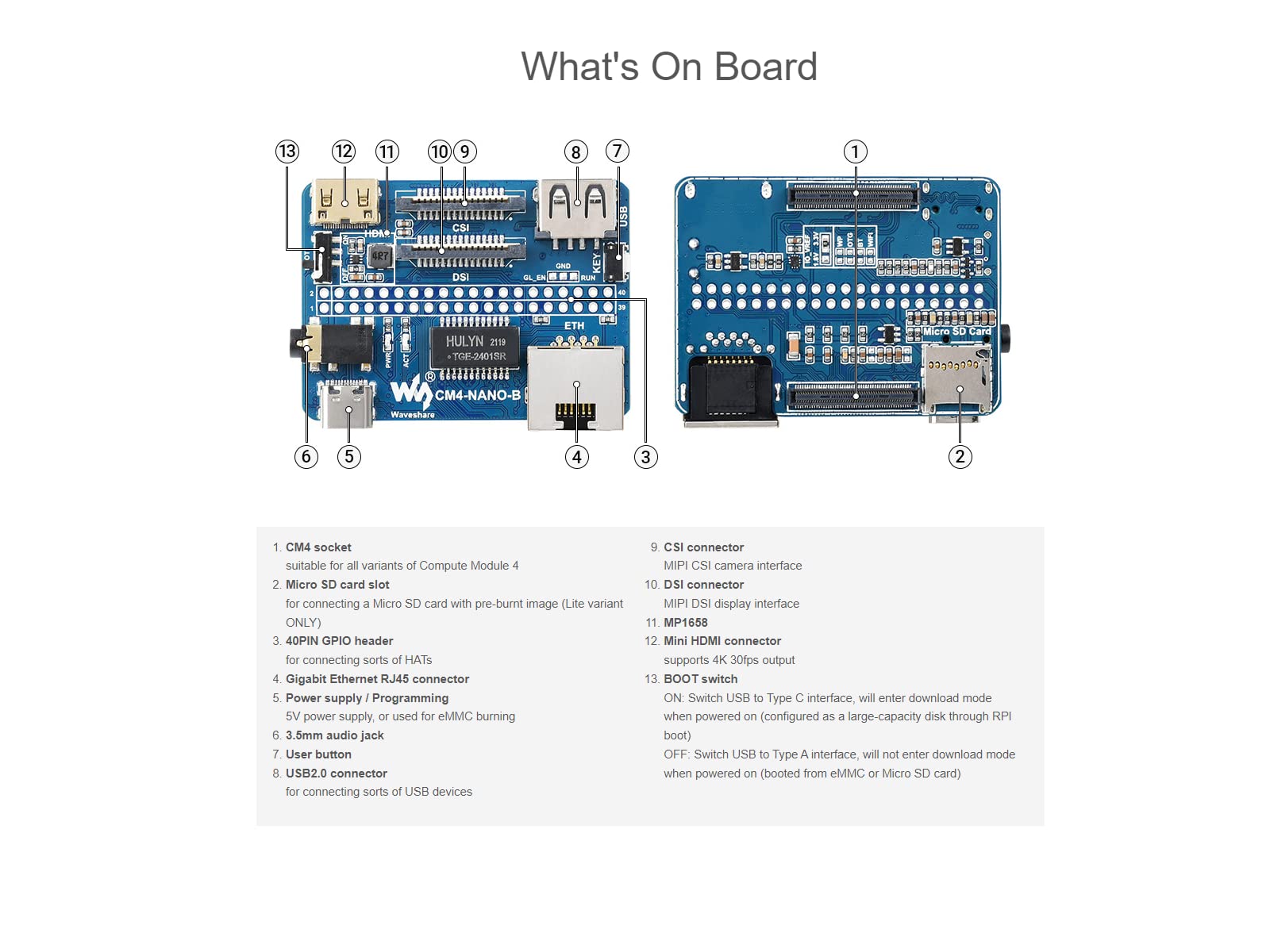

Nano Base Board (B) For Raspberry Pi Compute Module 4, Same Size As The CM4 1.Nano Base Board (B) For CM4 Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products Base Board for Compute Module 4 Lite/eMMC 2.Compact, Yet Complete Standard CM4 Socket, 40PIN GPIO, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack... All In The Compact Body Just As The Size Of CM4 Specifications CM4 SOCKET---suitable for all variants of Compute Module 4 NETWORKING---Gigabit Ethernet RJ45 connector CONNECTOR---Raspberry Pi 40PIN GPIO header × 1 USB---USB 2.0 Type A connector × 1 DISPLAY---MIPI DSI port × 1 (15pin 1.0mm FPC connector) CAMERA---MIPI CSI-2 port × 1 (15pin 1.0mm FPC connector) VIDEO---Mini HDMI port × 1, supports 4K 30fps output AUDIO---3.5mm jack STORAGE---Micro SD card socket for Compute Module 4 Lite (without eMMC) variants POWER INPUT---5V DIMENSIONS---56 × 41mm Package Content CM4-NANO-B x1 2*20PIN color-coded straight pinheader x1 Development Resources https://www.waveshare.com/wiki/CM4-NANO-B?Amazon Note 1.Technical Support is provided , Please feel free to contact us via Amazon message if you have any problem. . 2.the Compute Module 4 in the photo is NOT included.
