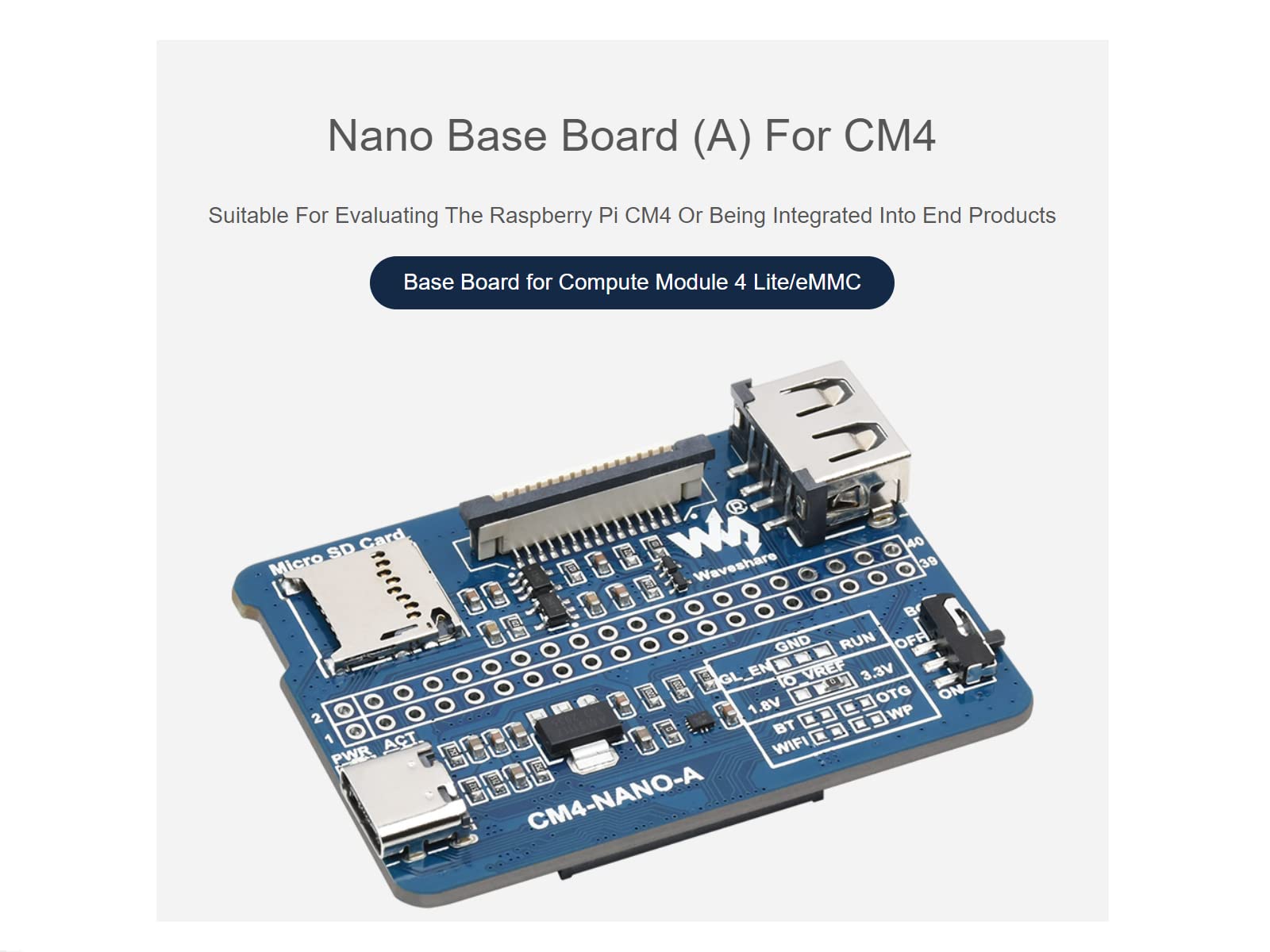

Nano Base Board (A) for Raspberry Pi Compute Module 4 Lite/eMMC,with Raspberry Pi 40PIN GPIO Interface,Same Size As The CM4,MIPI CSI-2 Port,USB 2.0 Type A,

• Nano Base Board (A) For CM4,Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products.Base Board for Compute Module 4 Lite/eMMC
• Same Size As The CM4.Standard CM4 Socket, Suitable For Narrow Application Environment
• Multiple Peripheral Interfaces. Raspberry Pi 40PIN GPIO interface × 1.USB 2.0 Type A interface × 1.MIPI CSI-2 port × 1 (15pin 1.0mm FPC connector)
• STORAGE.Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
• Power supply/burning interface.5V/2A power supply, can also be used as eMMC burning interface

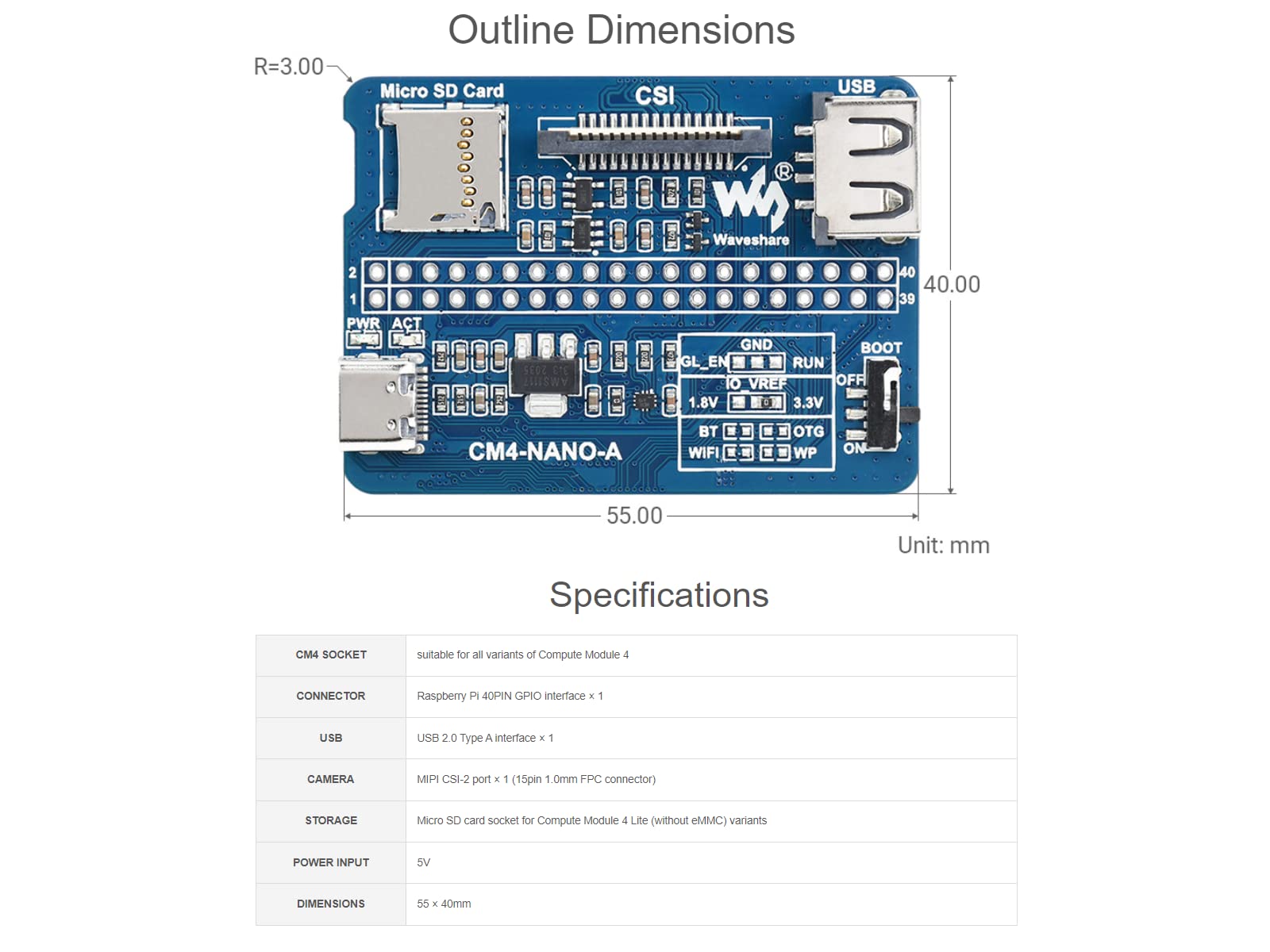

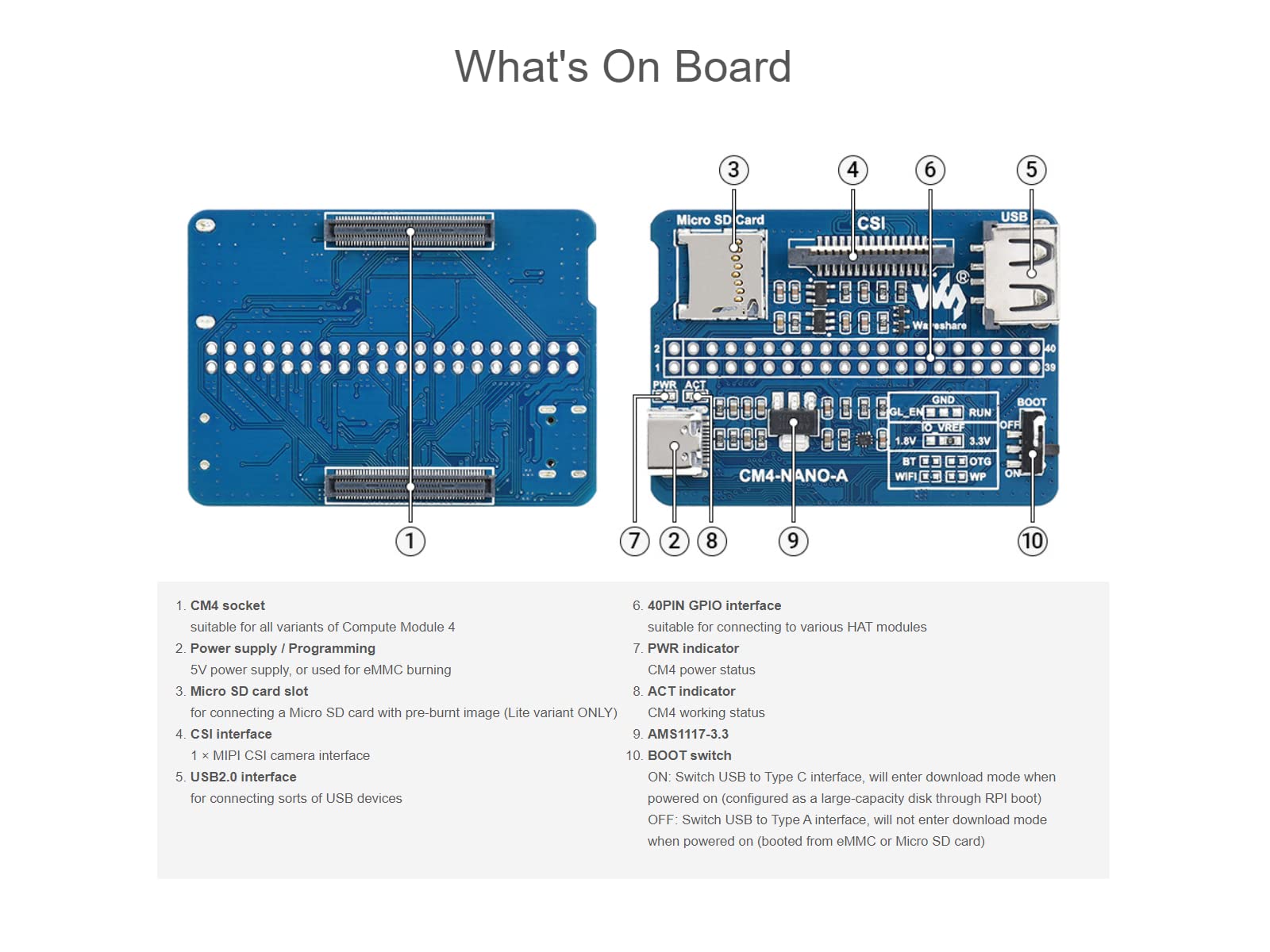

Nano Base Board (A) For Raspberry Pi Compute Module 4, Same Size As The CM4 1. Nano base board (A) for CM4. Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products Base Board for Compute Module 4 Lite/eMMC 2. Same size as the CM4. Standard CM4 Socket, With Multiple Peripheral Interfaces, Suitable For Narrow Application Environment Specifications: CM4 SOCKE---Tsuitable for all variants of Compute Module 4. Connector---Raspberry Pi 40PIN GPIO interface × 1 USB---USB 2.0 Type A interface × 1 Camera---MIPI CSI-2 port × 1 (15pin 1.0mm FPC connector) Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants. Power input: 5 V. Dimensions: 55 x 40 mm. What's On Board 1.CM4 socket. Suitable for all variants of Compute Module 4. 2. Power supply/programming. 5V power supply, or used for eMMC burning. 3. Micro SD card slot. For connecting a Micro SD card with pre-burnt image (Variant ONLY LIST) 4.CSI interface 1 × MIPI CSI camera interface. 5.USB2.0 interface For connecting sorts of USB devices 6.40PIN GPIO interface Suitable for connecting to various HAT modules 7.PWR indicator CM4 power status 8.ACT indicator CM4 working status 10.BOOT switch ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot). Off: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or Micro SD card). Development Resources https://www.waveshare.com/wiki/CM4-NANO-A?Amazon Package Content CM4-NANO-A x1 2 x 20 PIN color-coded straight pinheader x1
