MybotOnline Stepper Motor NEMA 17 Bipolar 1.8deg 44Ncm (62.32 oz-in) 1.7A 42x37.5mm 4-Lead w/ 1m Cable & Full D-Cut Shaft for 3D Printer, XYZ Axis, DIY CNC

• Up to 62.32 oz-in or 44Ncm Holding Torque, low noise and low loss stators
• Rated current: 1.7A. Step angle: 1.8 degree
• 4-wire, 39.37 inch cable. Dimension: 1.65"x1.65"x1.48"
• RoHS and CE Certified
• Widely used for 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, placement machine, non-standard equipment, automation equipment

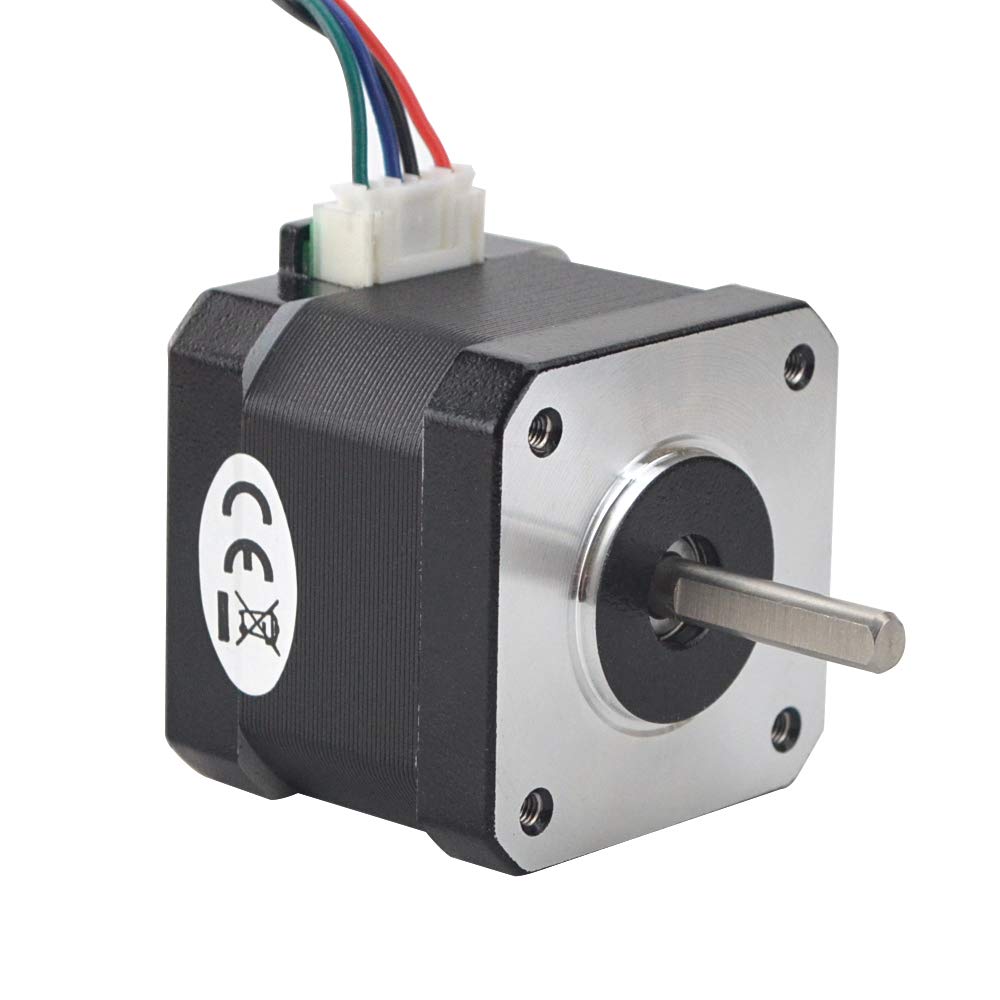

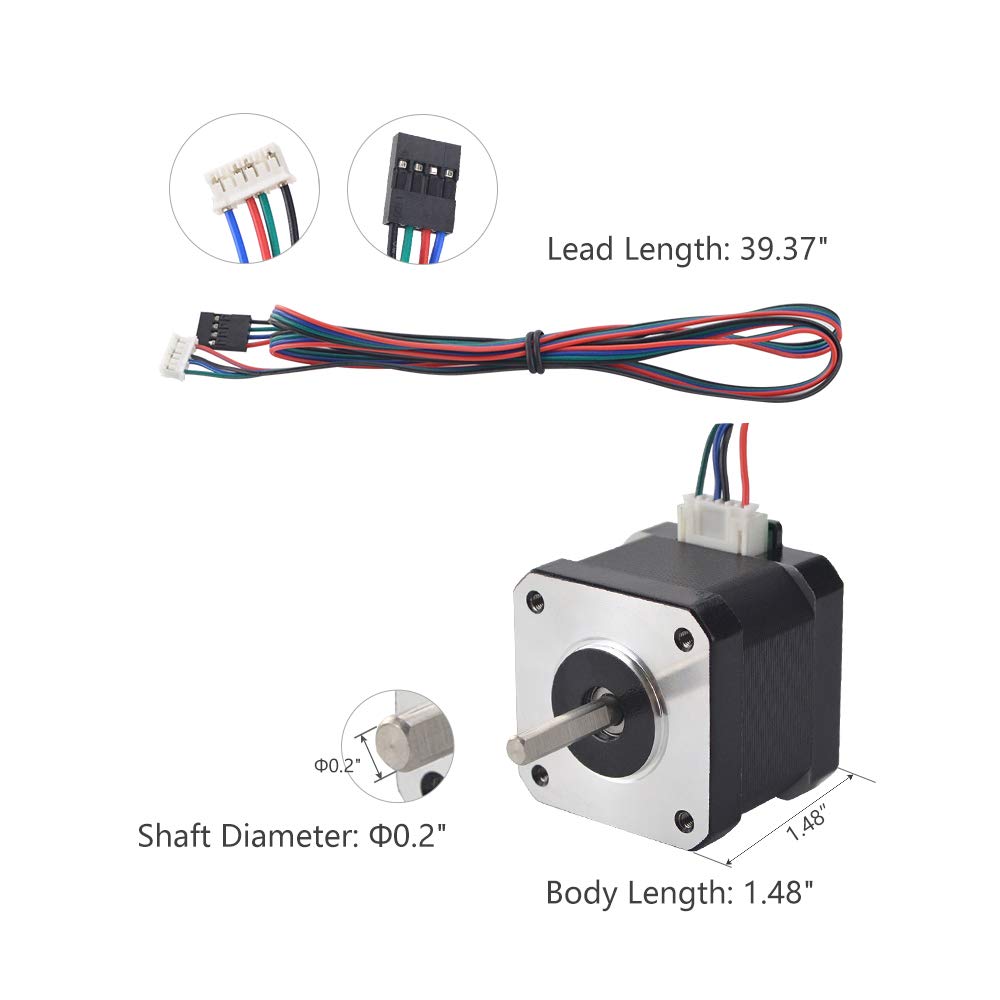

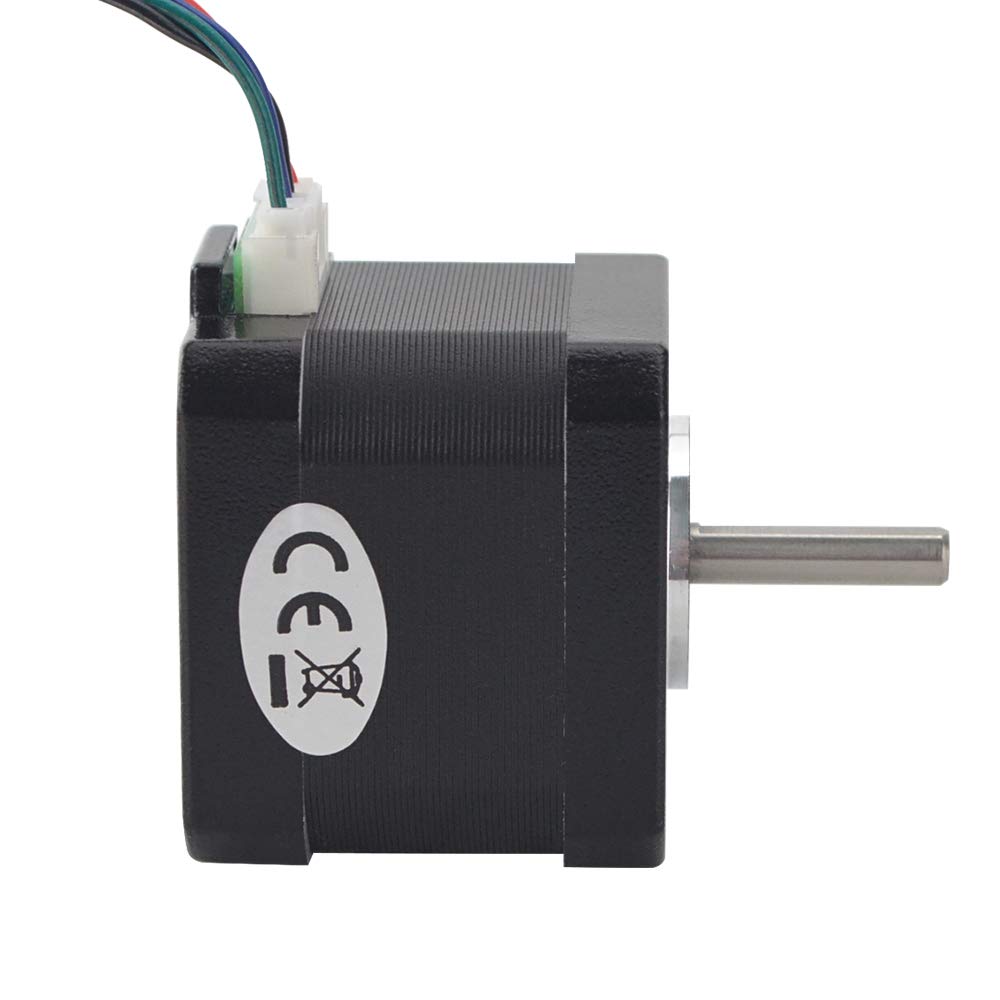

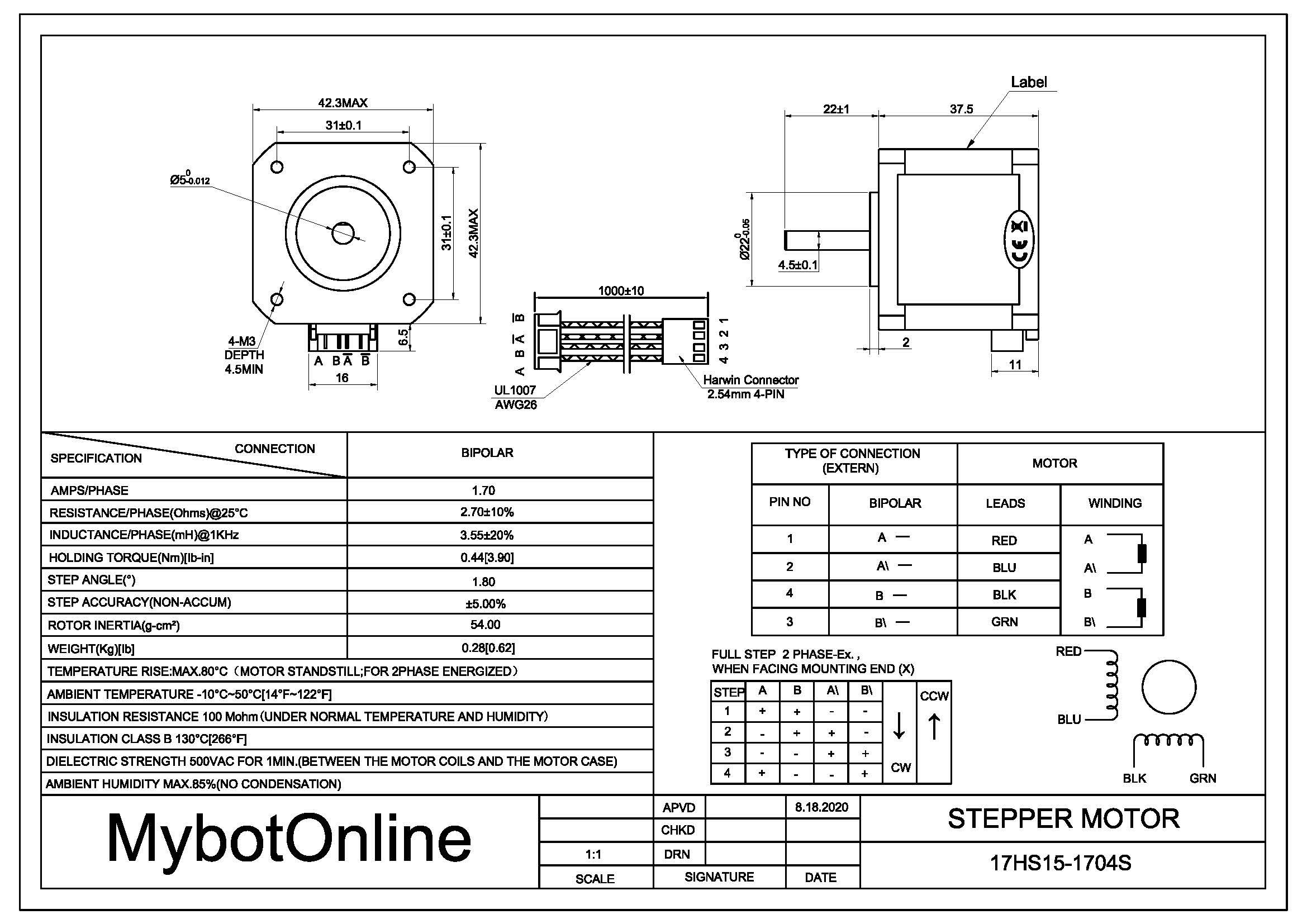

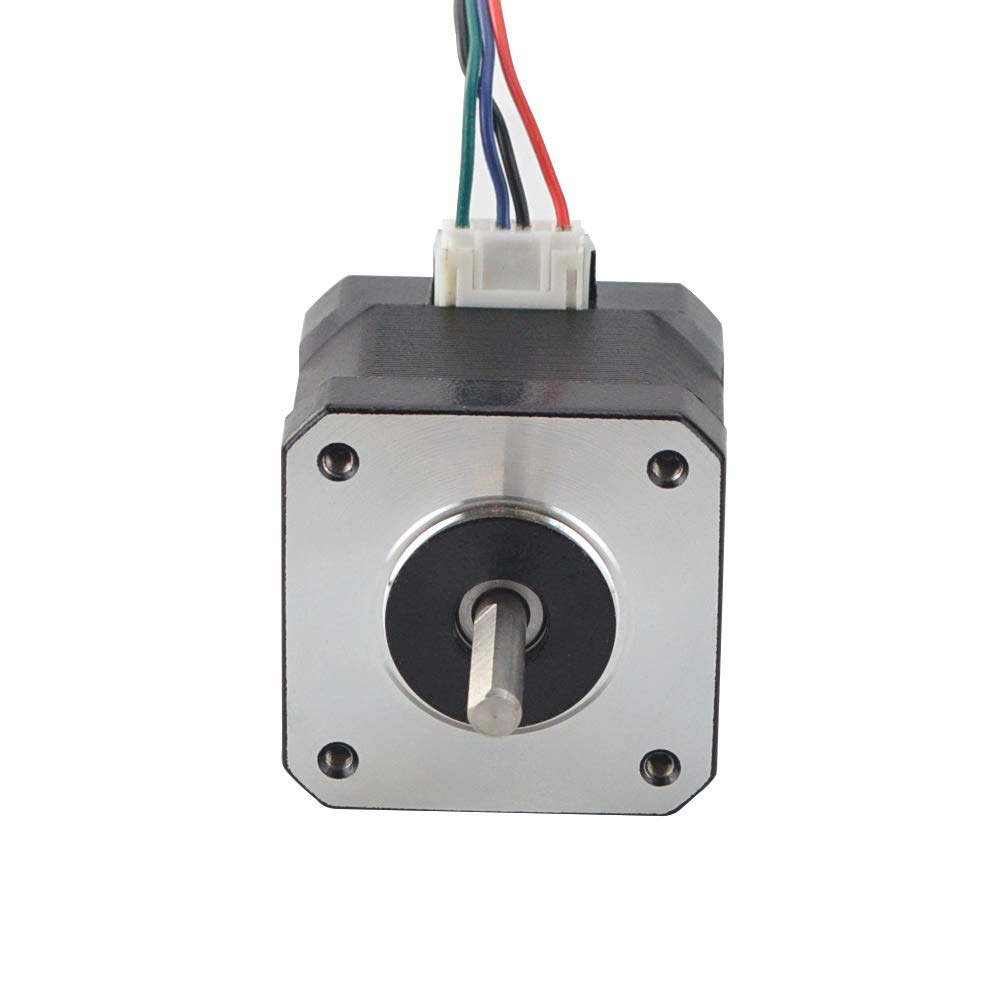

This bipolar Full D-cut shaft NEMA 17 stepper motor with step angle 1.8deg and size 1.65"x1.65"x 1.48" (42x42x37.5mm). It has 4 wires, each phase draws 1.7A, with holding torque 44Ncm (62.32oz-in). Electrical Specification Manufacturer Part Number: 17HS15-1704S Motor Type: Bipolar Stepper Step Angle: 1.8 deg Holding Torque: 44 Ncm(62.32oz-in) Rated Current/phase: 1.7 A Phase Resistance: 1.86 ohms Inductance: 3.55 mH ± 20%(1KHz) Physical Specification Frame Size: 1.65" x 1.65" (42 x 42mm) Body Length: 1.48" (37.5 mm) Shaft Diameter: Φ0.2" (5mm) Full D-cut Shaft Length: 0.87" (22 mm) Number of Leads: 4 Lead Length: 39.37" (1000mm) Weight: 280 g Connection A+: Red, A-: Black, B+: Blue, B-: Green Package Included 1 x NEMA 17 Stepper Motor 1 x 39.37" 4 Pins Cable
