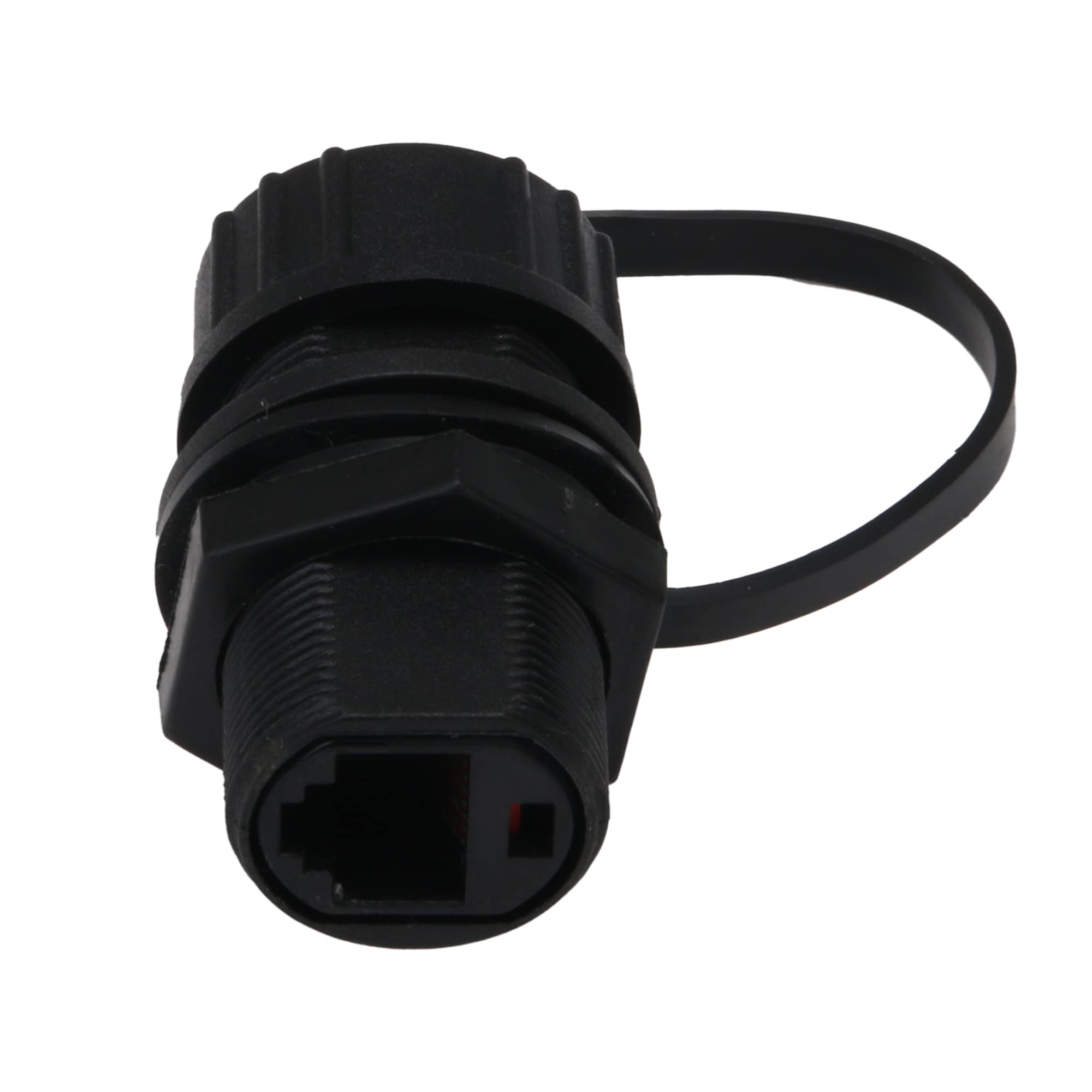

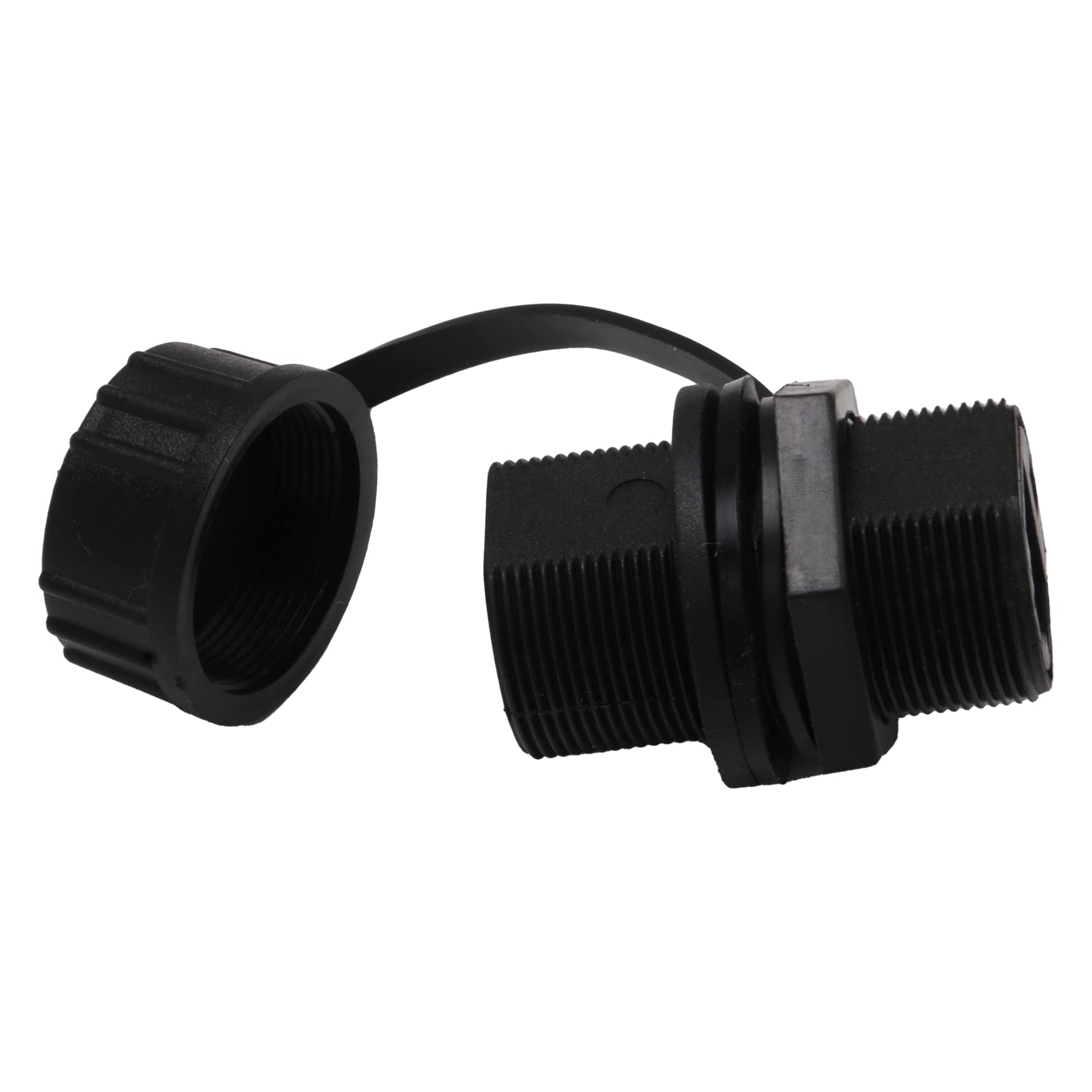

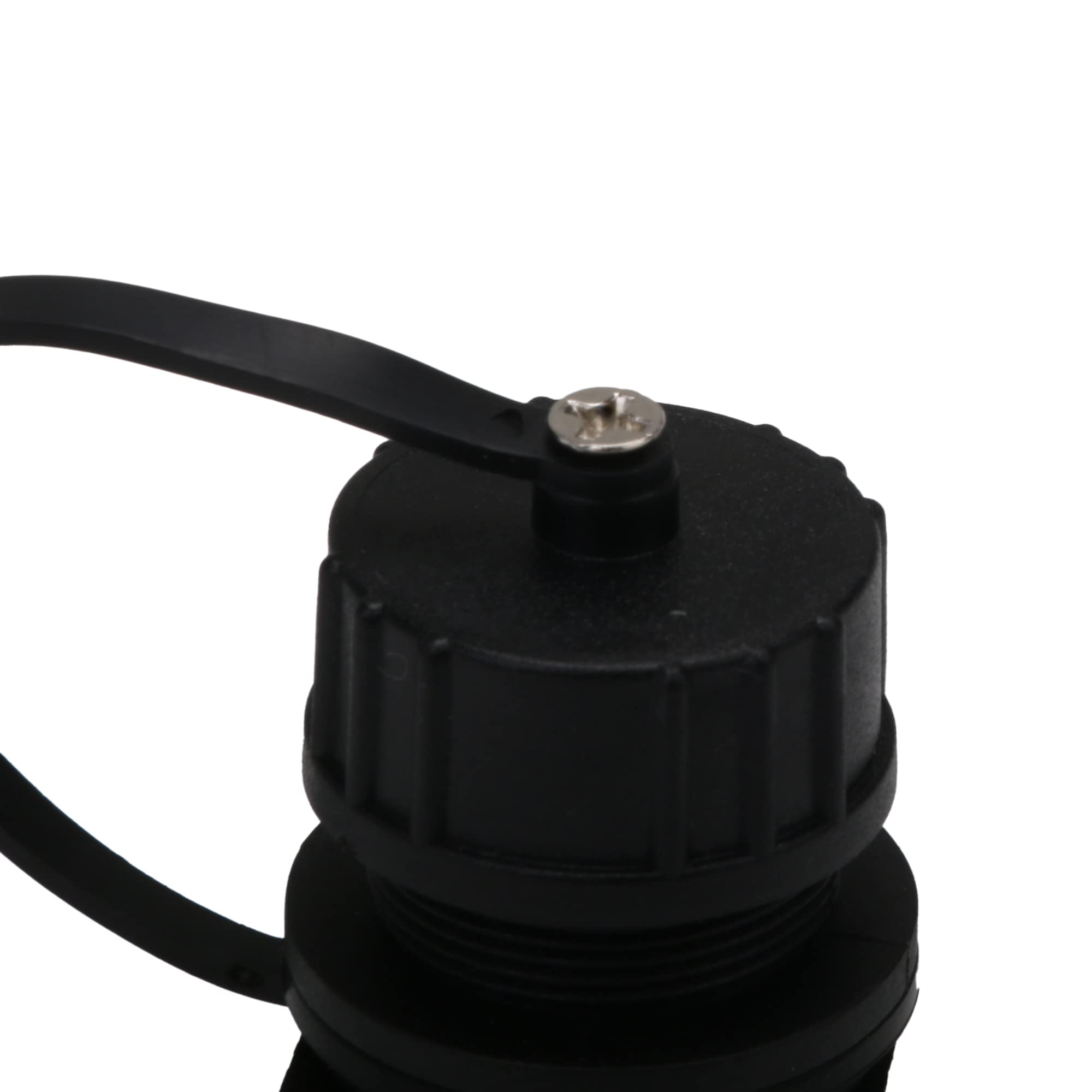

Mxfans RJ45 Panel Mounting Connector Ethernet M20 Inch Thread AP for Standard Pack of 10

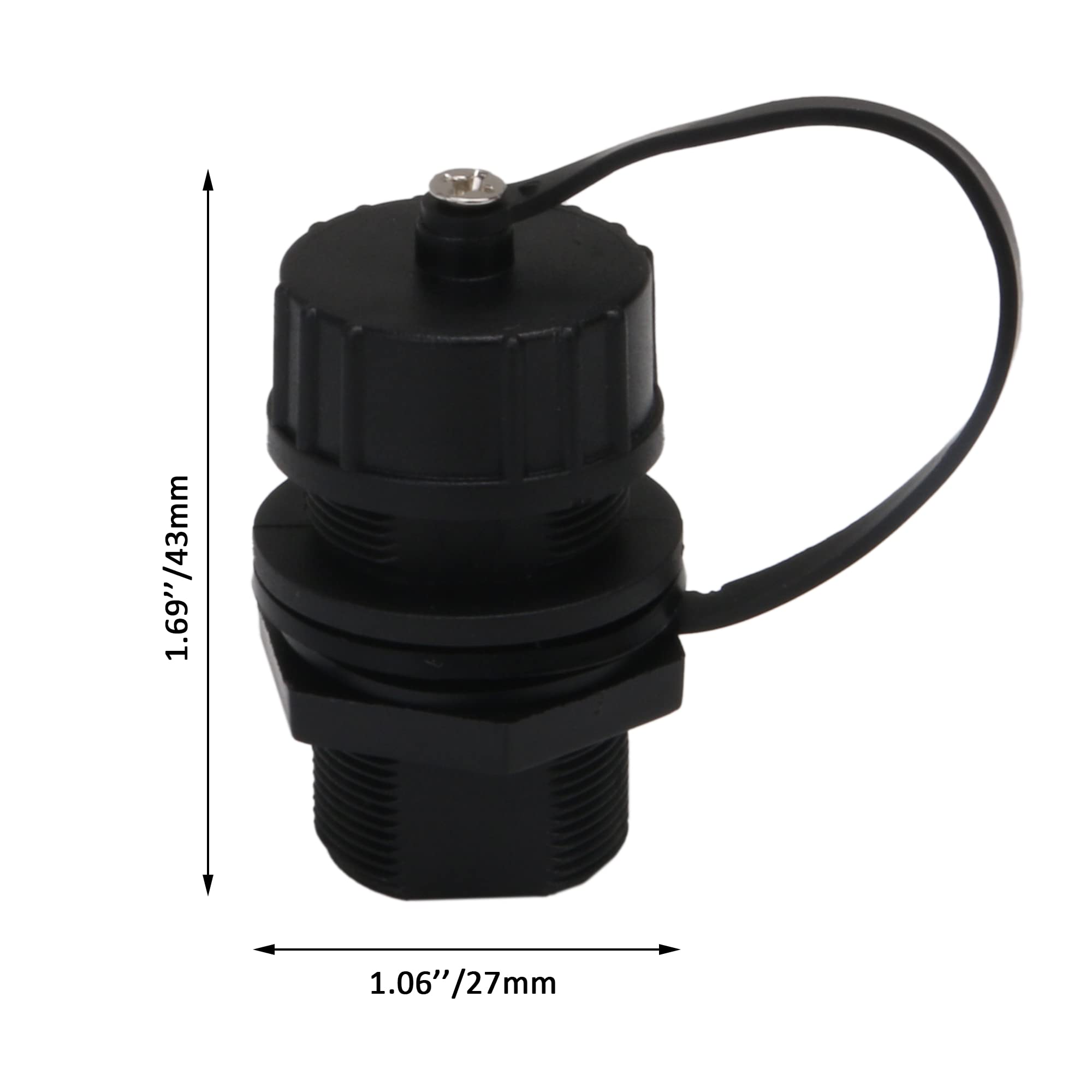

Feature: 1.Each qualify checked item with a unique Manufacturing Part Number label on the inner package to confirm if it is the authentic item sold from our store. 2.When you have any problems about your item,please send us the MPN label information first. 3.Widely used in aviation, nevigation, and some other sealing electronic equipments. 4.airproof and really a great apparatus electronic connector 5.Made of plastic and metal. 6.Plated 6FU 8 core, connect better, faster speed of network. Specification: IP68 is safer Cable Core: 8 Rated Voltage: AC12V Rated Current: 1.5AMPS Working Temperature: -40¡ãC-60¡ãC Insulation Resistance: Not less than 500 megohm Compressive Strength: AC1000V 50HZ/MIN Contact Resistance: No more than 20 milliohm Insertion Force: 900g With crystal head strength: 5kg Connect Port: RJ45 Material: Plastic + Metal Size: approx. 30 x 27mm/1.18 x 1.06 inch (without cap) Length(with cap): approx. 36mm/1.42 inch Line Length: approx. 73.5mm/2.89 inch Brand:Mxfans Color: Black Weight: 190g Note: This RJ45 socket is M20 Inch thread, both ends are the RJ45 female, one end of the thread length is 20.3MM, can be installed inside a thicker case. Installing dimensions is inch thread M20, specifications is 13/16-24. Package Include: 10 x M20 Connector
